Grohe 19506003 Eurostyle Single-Lever Bath / Shower Mixer Spare Parts
Send a photo of your item and we'll help confirm it.
Summary
Spares for Grohe 19506003 Eurostyle Single-Lever Bath / Shower Mixer
Automatic Diverter: Bath / Shower

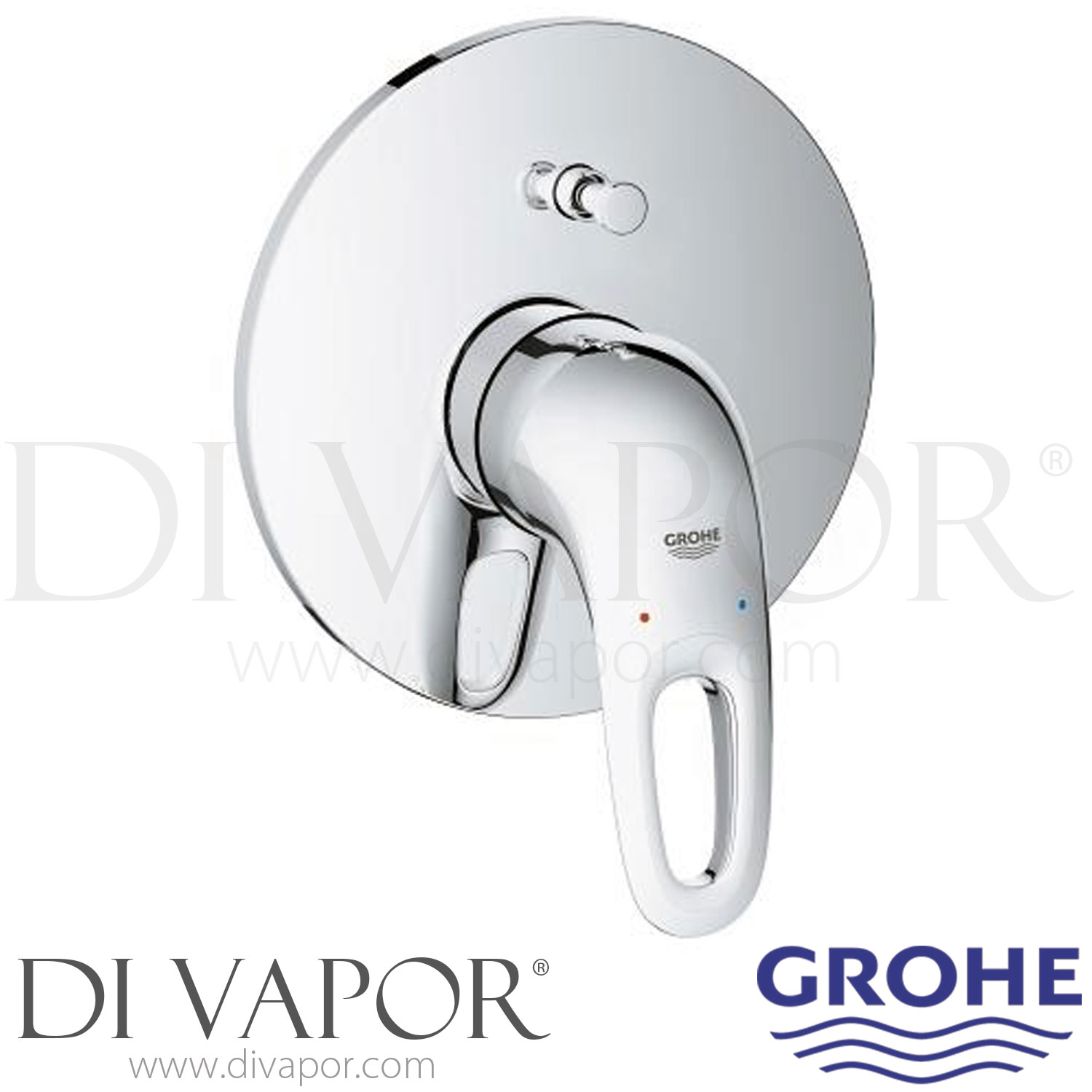

Grohe 19506003 is a Eurostyle concealed single-lever bath shower mixer trim set in chrome, designed as the visible final-installation control for the associated concealed mixer body. It combines the operating lever, metal escutcheon and automatic bath/shower diverter within the finished wall-mounted assembly. The concealed mixer body is not included.

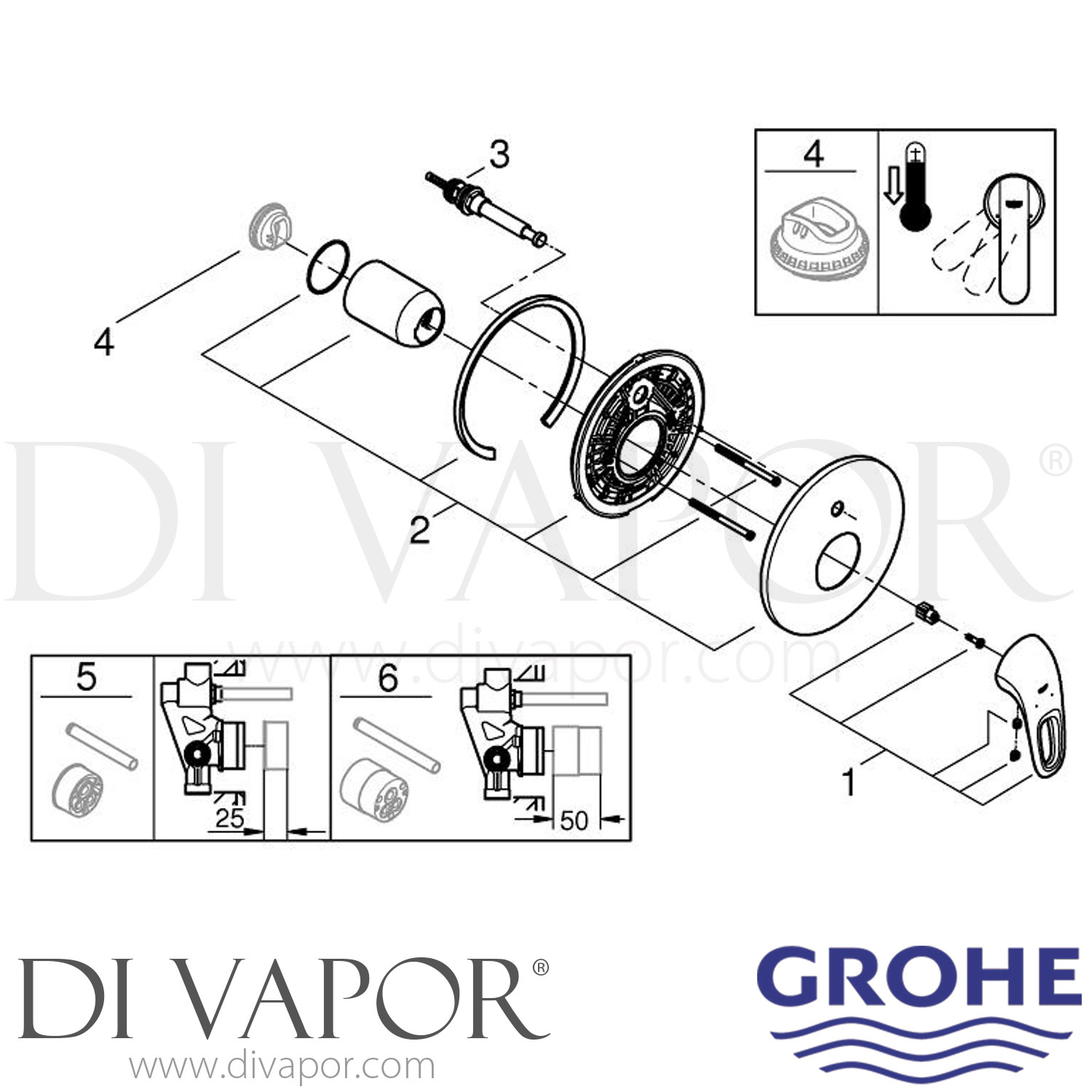

The automatic diverter changes the water outlet between the bath and shower functions, while the single lever controls the mixed water supply. When servicing this installation, the Grohe spare parts listed below cover the directly listed trim components and the cartridge used within the associated concealed mixer bodies.
Technical Details
| Brand | Grohe |
|---|---|
| Range | Eurostyle |
| Category | Bath shower mixer |
| Product code | 19506003 |
| Product type | Concealed single-lever bath shower mixer trim set |
| Finish | Chrome |
| Control | Single lever |
| Diverter | Automatic bath/shower |
| Escutcheon | Metal |
| Installation | Final-installation trim for a separate concealed mixer body |
| Concealed mixer body included | No |
| Escutcheon diameter | 163mm |
| Overall vertical dimension shown on the technical drawing | 193mm |
| Lever operating movement | 50 degrees either side |
| Projection range shown on the technical drawing | 76-106mm |
| Overall projection range shown on the technical drawing | 118-148mm |
| EAN | 4005176334399 |
Confirmed Installation Bodies
- Grohe 33961000 Single-Lever Mixer 1/2 Inch Concealed Body, code shown by the 19506003 spares information as 33 961 000
- Grohe 33963000 Single-Lever Mixer 1/2 Inch Concealed Body, code shown by the 19506003 spares information as 33 963 000
- Grohe 33965000 Single-Lever Mixer 1/2 Inch Concealed Body, code shown by the 19506003 spares information as 33 965 000
- Grohe 35501000 Rapido E Universal Single Lever Manual Shower Mixer Valve, code shown by the 19506003 spares information as 35 501 000
Before You Order
Check the 19506003 model code and the concealed installation-body code before ordering parts. The diverter and extension kit are associated with the visible trim assembly, while the 46048000 cartridge is fitted within the concealed mixer body behind the trim.
Grohe 46737000 Diverter SwitchThe GROHE 46737000 is a 3-way diverter valve and trim assembly used in specified concealed single-lever bath and shower mixers. It directs mixed water between the bath outlet and shower outlet and is supplied with the diverter knob.The diverter is th...
GROHE 46191000 25mm Extension Kit for Concealed Single-Lever Bath and Shower MixersThe GROHE 46191000 is a 25mm extension kit for concealed single-lever bath and shower mixer installations. It is used where the concealed mixer has been installed too deeply for the standard trim a...
