Grohe 19346001 Concetto Single-Lever Bath Shower Mixer Spare Parts
Send a photo of your item and we'll help confirm it.
Summary
Spares for Grohe 19346001 Concetto Single-Lever Bath Shower Mixer

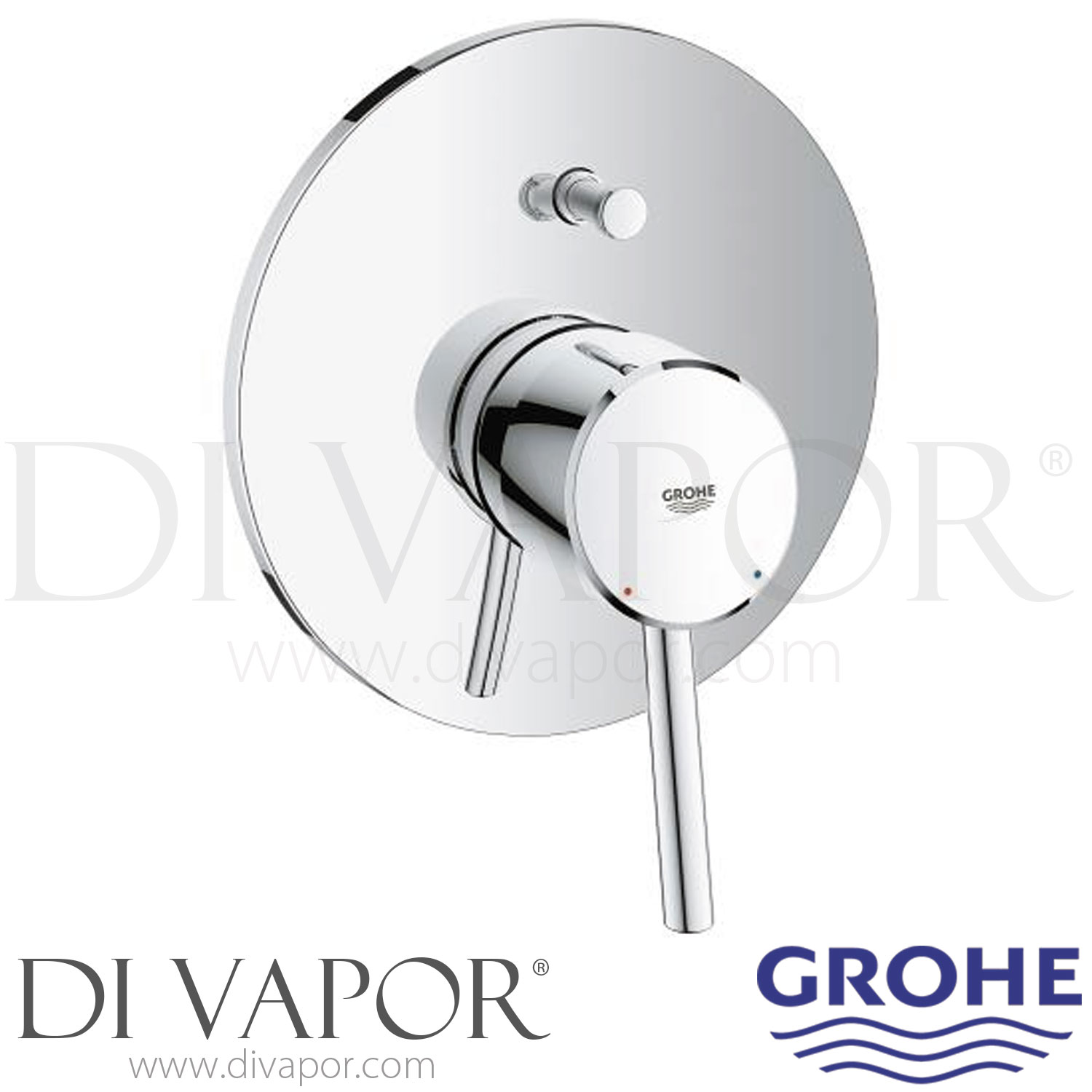

The Grohe 19346001 Concetto is a chrome final-installation trim set for a concealed single-lever bath shower mixer. It includes the operating lever, round wall escutcheon and automatic bath/shower diverter, while the concealed mixer body is supplied separately.

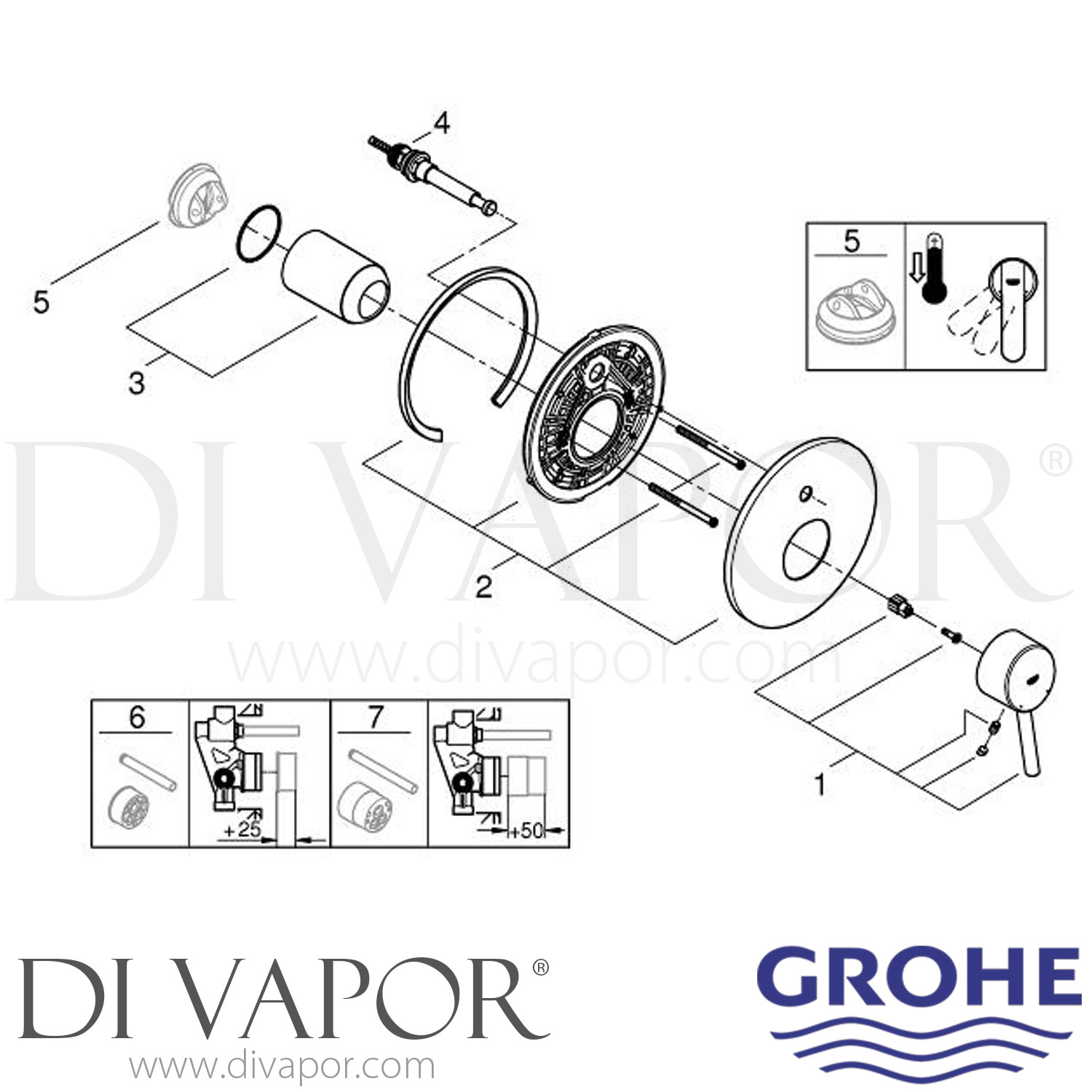

The diverter selects between the bath and shower outlets, while the ceramic mixer cartridge fitted inside the concealed body controls water flow and temperature. The verified Grohe spare parts below support servicing of the trim, installation depth and associated concealed mixer bodies.
Technical Details
| Brand | Grohe |
|---|---|
| Range | Concetto |
| Category | Bath shower mixer |
| Product code | 19346001 |
| Installation type | Concealed final-installation trim set |
| Control type | Single lever |
| Diverter type | Automatic bath/shower diverter |
| Finish | Chrome |

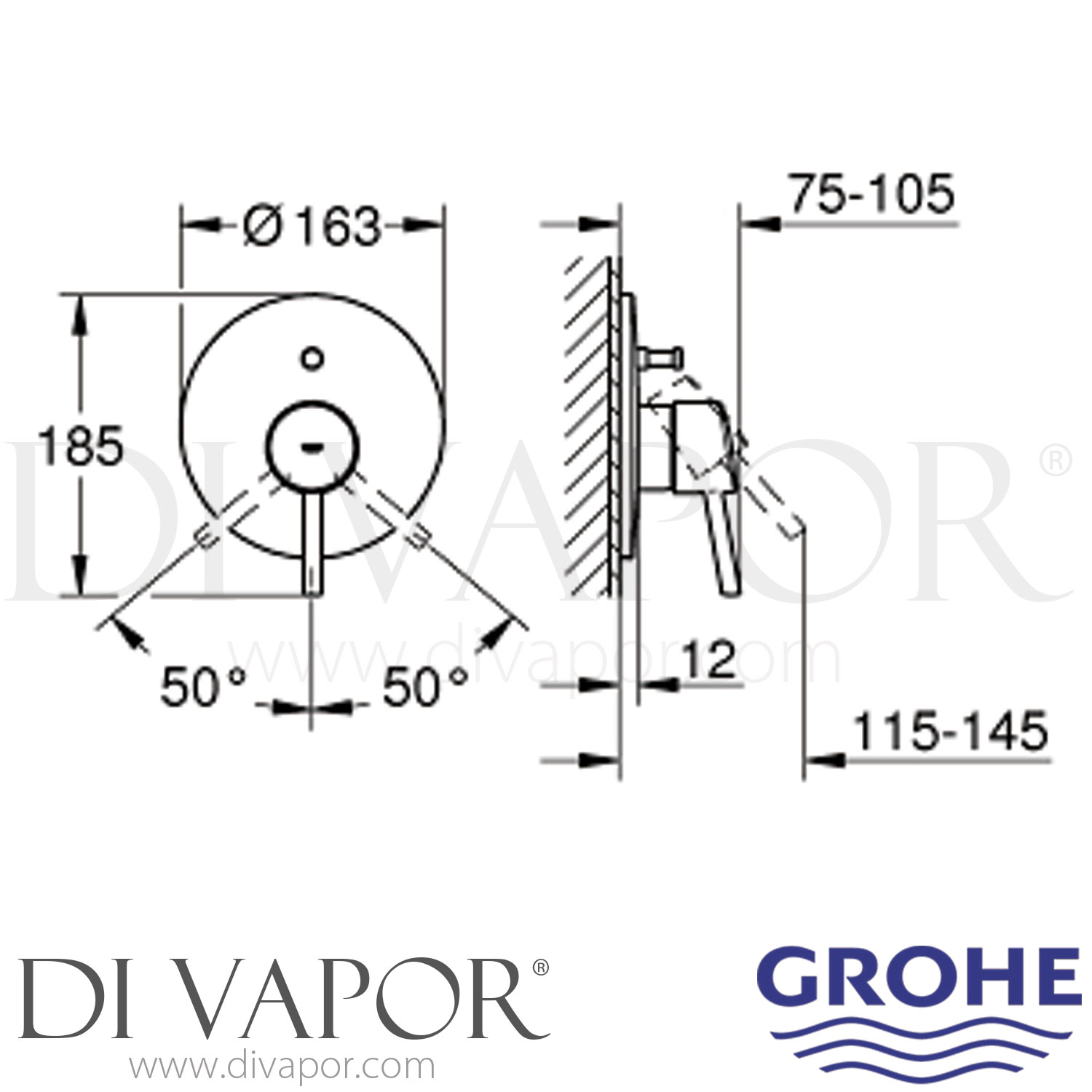

| Wall escutcheon | Round, 163 mm diameter |
| Overall trim height | 185 mm |
| Flow rate | 27 l/min at 3 bar |
| Minimum operating pressure | 0.5 bar |
| Recommended operating pressure | 1-5 bar |
| Maximum operating pressure | 10 bar |
| Concealed mixer body | Not included |
| EAN | 4005176889080 |
Confirmed Concealed Bodies
The 19346001 trim set is documented for the concealed bodies below. Match the complete concealed-body code before selecting spare parts.
- Grohe 33 961 000 Single-Lever Mixer 1/2 Inch Concealed Body
- Grohe 33 963 000 Single-Lever Mixer 1/2 Inch Concealed Body
- Grohe 33 965 000 Single-Lever Mixer 1/2 Inch Concealed Body
- Grohe 35 501 000 Rapido E Universal Single-Lever Manual Shower Mixer Valve
- Grohe 33 963 001 concealed body
- Grohe 33 965 001 concealed body
Before You Order
Match the full 19346001 mixer code and the complete concealed-body code. Do not assume that the 000 and 001 body-code variants are interchangeable.
The 46048000 is a 46 mm ceramic mixer cartridge, not a thermostatic cartridge. Water continuing to drip from the bath spout or shower outlet after the mixer is turned off can indicate wear in the cartridge, while unreliable switching between outlets can indicate a diverter fault.
Grohe 46737000 Diverter SwitchThe GROHE 46737000 is a 3-way diverter valve and trim assembly used in specified concealed single-lever bath and shower mixers. It directs mixed water between the bath outlet and shower outlet and is supplied with the diverter knob.The diverter is th...
GROHE 46191000 25mm Extension Kit for Concealed Single-Lever Bath and Shower MixersThe GROHE 46191000 is a 25mm extension kit for concealed single-lever bath and shower mixer installations. It is used where the concealed mixer has been installed too deeply for the standard trim a...
