Dornbracht 36115710-00 LULU Assembly
Send a photo of your item and we'll help confirm it.
Summary

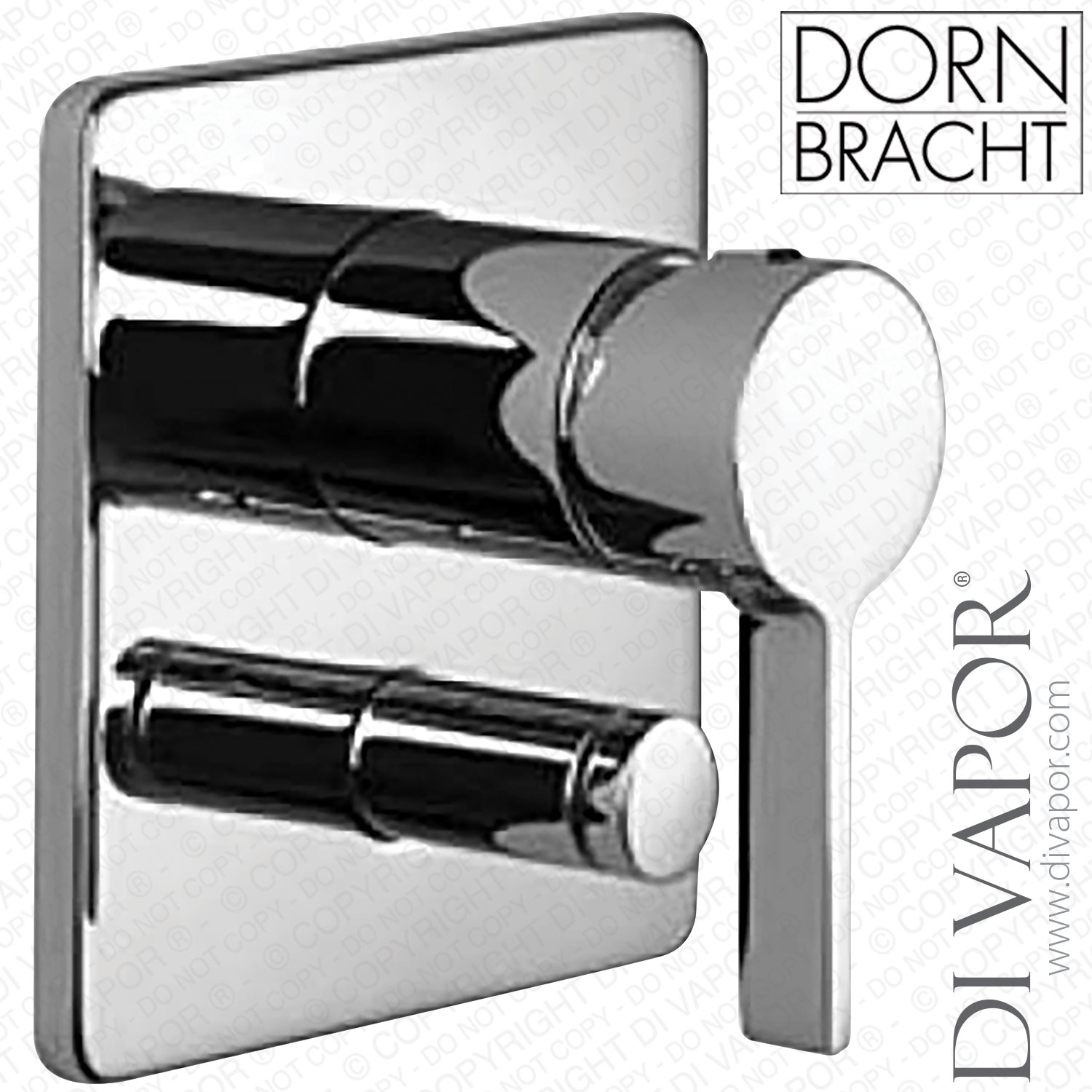

The Dornbracht 36115710-00 LULU xSTREAM assembly for a concealed single lever bath and shower mixer with diverter. This chrome exposed assembly is used with Dornbracht concealed parts 3511597090 / 35 115 970 90 for the LULU xSTREAM bath and shower mixer arrangement.
The assembly provides the visible control trim and diverter components for the concealed mixer installation, including the automatic bath/shower diverter and the square cover rosette. It should be checked against the existing valve article number and concealed body before ordering.
Technical Details
| Exact part code | 36115710-00 |
|---|---|
| Dornbracht article format | 36 115 710-00 |
| Part type | LULU xSTREAM exposed mixer and diverter assembly |
| Finish | chrome |
| Application | concealed single lever bath and shower mixer with diverter |
| Concealed valve body used with this assembly | 3511597090 / 35 115 970 90 |
| Cover rosette size | 155 x 155 mm |
Included Parts
- Sleeve for cartridge screw
- Diverter sleeve
- Automatic bath/shower diverter
- Diverter knob with pull-rod and sleeve
- Cover rosette 155 x 155 mm
Confirmed Applications
- Dornbracht 36115710-00 LULU xSTREAM concealed single lever bath and shower mixer with diverter
- Dornbracht concealed parts 3511597090 / 35 115 970 90 for single lever bath and shower mixer
Before You Order Check
- The existing exposed assembly or valve documentation shows 36115710-00 / 36 115 710-00
- The concealed body is 3511597090 / 35 115 970 90
- The required visible trim is the LULU xSTREAM chrome assembly with 155 x 155 mm cover rosette
- Do not order from appearance alone because Dornbracht LULU concealed mixer assemblies can use different concealed bodies and trim dimensions
Related Spares You May Need
- Dornbracht 09150505090 Lever Cartridge
- Dornbracht 0421340800190 Diverter for xStream Shower Valves (04.21.340800190)
- 150mm Universal Shower Hose - NXT734
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
If the single lever control becomes stiff, flow is difficult to shut off, mixed water control becomes unreliable or water continues to pass when turned off, inspect the 09150505090 lever cartridge. If the bath/shower outlet changeover does not divert correctly, inspect the 0421340800190 diverter before replacing the full trim assembly.
