Bristan N2 CSHXTVO C 1901 Thermostatic Exposed Dual Control Shower (Top Outlet)
Send a photo of your item and we'll help confirm it.
Summary

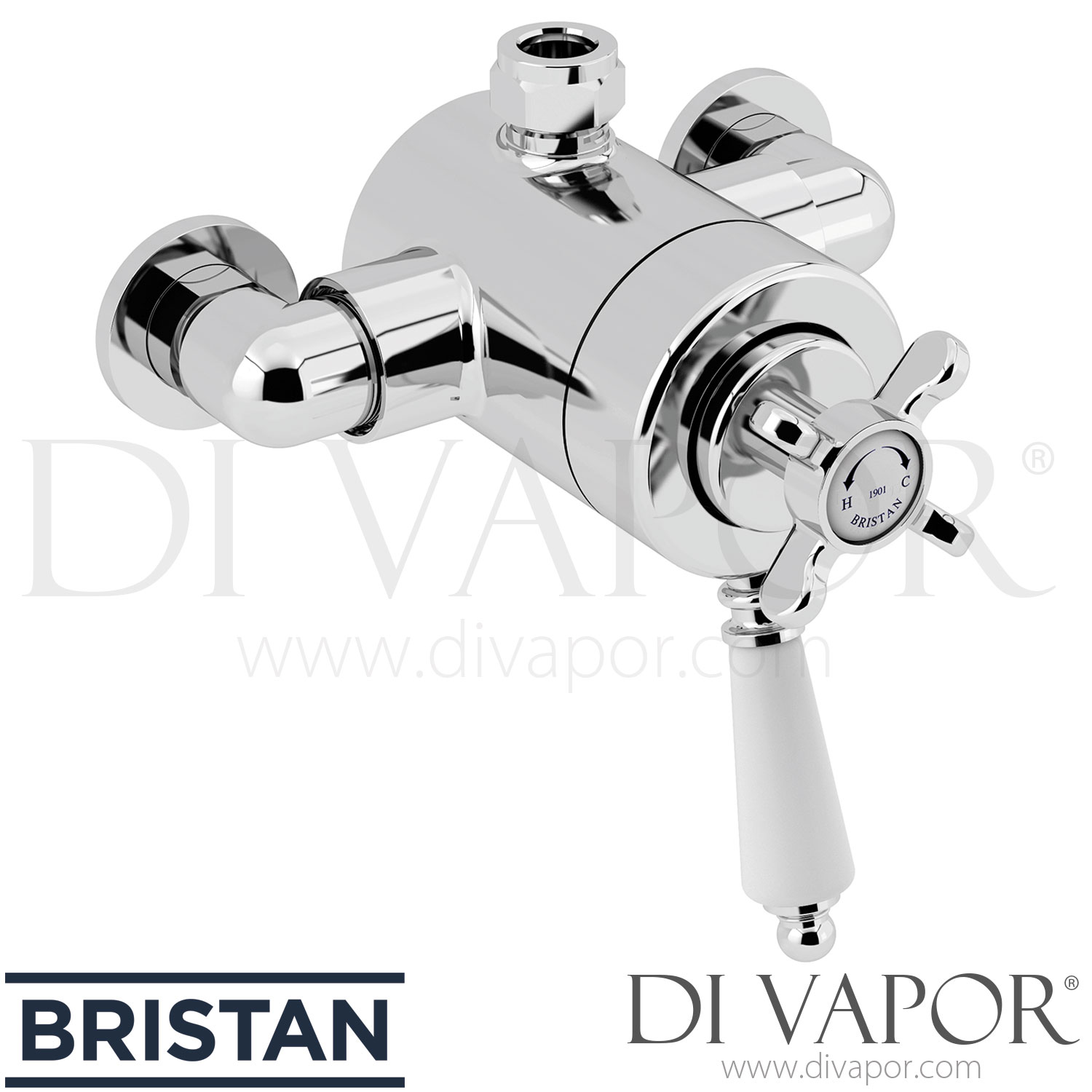

Bristan N2 CSHXTVO C 1901 Thermostatic Exposed Dual Control Shower (Top Outlet)
The Bristan N2 CSHXTVO C is a 1901 thermostatic exposed dual control shower valve with a chrome finish and top outlet connection. This page is used to identify component spare parts for the valve-only Bristan 1901 exposed shower valve.
The valve uses thermostatic temperature control with a separate flow control layout. The current Bristan spare table for this product is revision-specific, so customers should compare the existing valve, finish and component shape before ordering replacement parts.
Technical Details
| Part Number | N2 CSHXTVO C |
|---|---|
| Product type | thermostatic exposed dual control shower valve |
| Range | Bristan 1901 |
| Finish | chrome |
| Outlet direction | top outlet |
| Format | valve only |

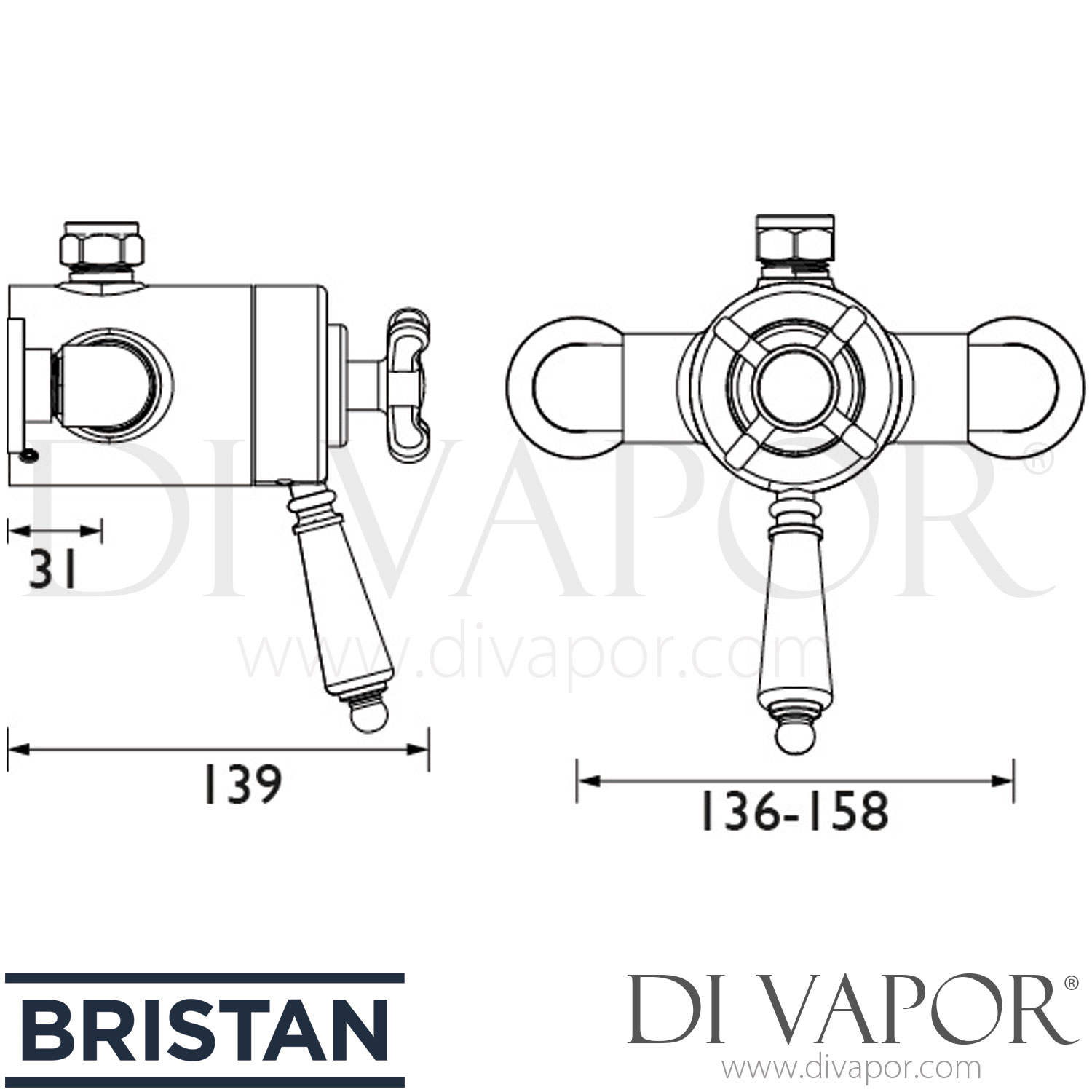

| Adjustable inlet centres | 136mm to 158mm |
| Safety stop | 42 C with override when required |
| Flow regulation | two 8L/min flow regulators are specified for the valve |
Ordering Checks
- Check that the valve is the Bristan 1901 N2 CSHXTVO C top outlet version before selecting spares.
- Match the handle finish carefully; the valve page is for chrome and lists chrome C handles, while gold G handles are also shown as separate finish-specific items.
- If temperature control is unstable, constantly hot or a drip is coming from the shower head when the shower is turned off, inspect the SK971007 cartridge assembly, SK1500-3 thermostat and piston, seals and non-return valves before ordering.
Related Spares You May Need
- Bristan 0307-00-037 C Elbow Assembly - Pair
- Bristan 0307-00-139 C 1901 Flow Handle Chrome
- Bristan 0307-00-140 C 1901 Temperature Handle Chrome
- Bristan 0307-00-160 Stop Ring for SK971007 Thermostatic Cartridge
- Bristan 5039019 Temperature Stop
- Bristan 5504591 Backplate and fixing Screws
- Bristan 58-7378-1 Neoperl 8lpm Inlet Flow Limiters White
- Sirrus SK1500-3 Thermostat and Piston (Bristan SK1500/3)
- Sirrus SK970010 1/2 Inch Non-Return Valve (NRV)
- Bristan SK971007 Thermostatic Cartridge with Piston and Thermostat for Mini Valve, Rio and Regency 2 Showers
- Bristan 0307-00-140 G 1901 Temperature Handle Gold (0307-00-140-G)
- Bristan 0307-00-139 G Flow Handle - Gold
- 150mm Universal Shower Hose - NXT734
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
Bristan 0307-00-139 C 1901 Flow Handle Chrome
Bristan 0307-00-140 C 1901 Temperature Handle Chrome
Bristan 0307-00-160 Stop Ring for SK971007 Thermostatic Cartridge
Bristan 58-7378-1 Neoperl 8lpm Inlet Flow Limiters White
Sirrus SK1500-3 piston and wax thermostat capsule with o-ring seal. Plastic Slider Diameter: 34.8mm (35mm) Included - Plastic piston - Wax thermostat - Black rubber o-ring seal This piston and thermostat is used in a large number of sirrus thermostatic cartridges ...
Sirrus SK970010 1/2 Inch Non-Return Valve (NRV)
Bristan SK971007 Thermostatic Cartridge WITH Piston and Thermostat for Mini Valve, Rio & Regency 2 Showers This cartridge assembly includes the following: 1 x SK971007 Cartridge 1 x Slider Piston 1 x Molykote 111 Silicone Grease (3g) 1 x Wax Thermostat Element Most ot...
Bristan 0307-00-140 G 1901 Temperature Handle Gold (0307-00-140-G)
