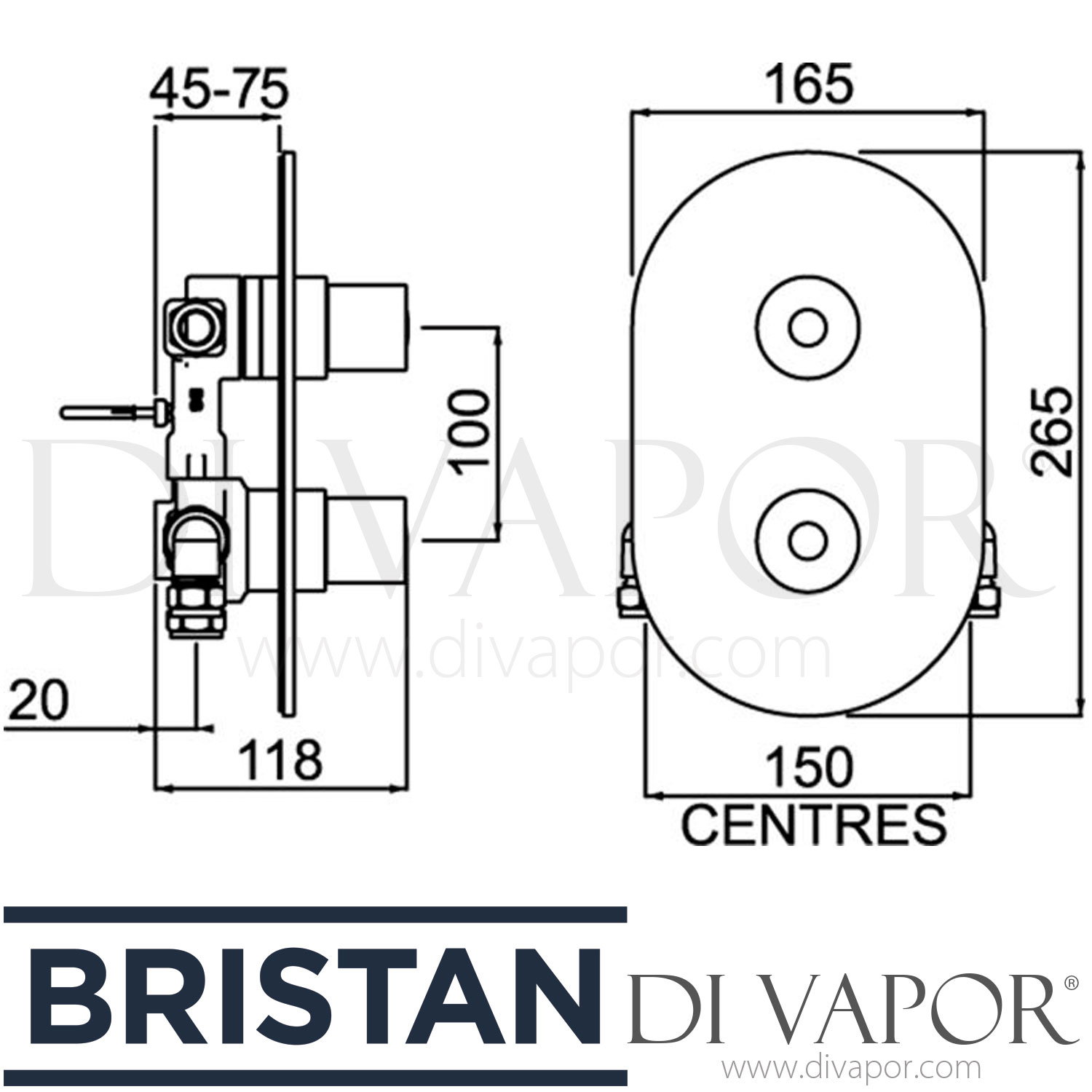

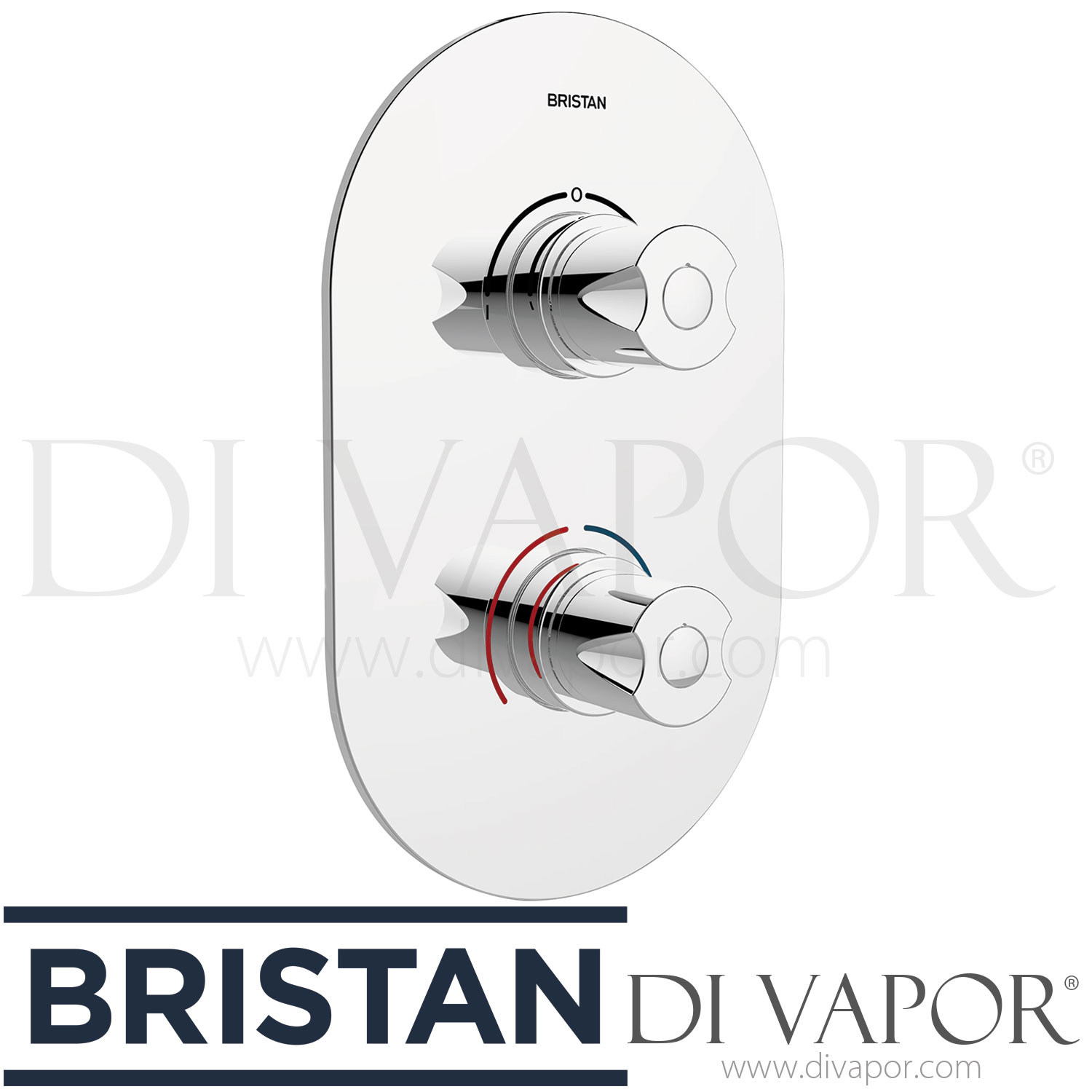

Bristan AR3 SHCDIV C Artisan Recessed Concealed Shower Valve with Diverter Spare Parts
SUMMARY

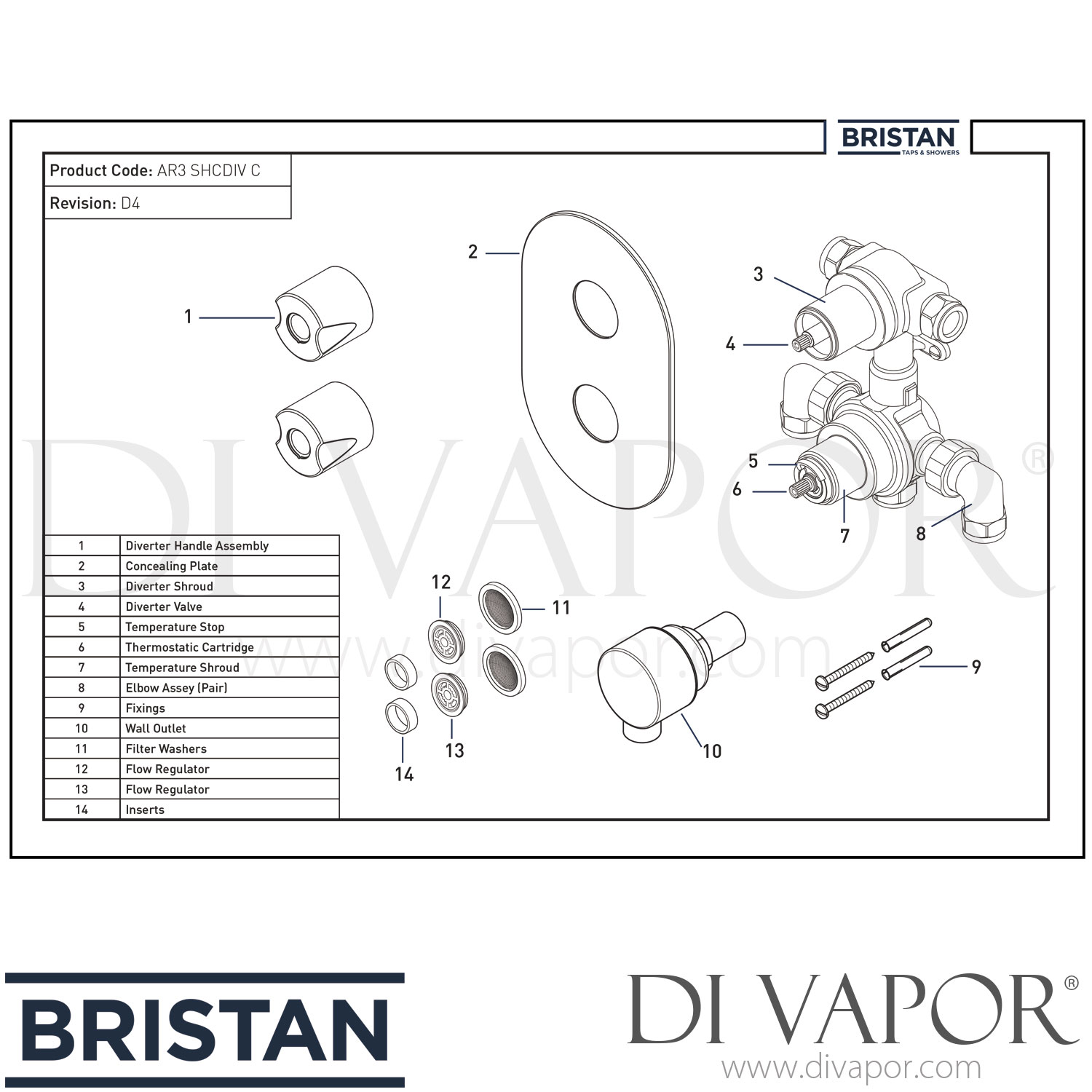

Spares for Bristan AR3 SHCDIV C Artisan Recessed Concealed Shower Valve with Diverter
Bristan 0020-33 Temperature Stop External Diameter at Widest Point: 26mm Internal Spline Diameter: 21.3mm...
Bristan D282-006 Temperature Handle Shroud for PM2 SHCDIV C Prism Shower Valves - Diameter 47.6mm - Chrome Finish - Internal thread diameter - 43.7mm - Top opening diameter - 31mm...
This is a Bristan D282-027 thermostatic cartridge. If your shower valve is experiencing temperature issues then you may only need the wax thermostat and element kit which is in the following link: Sirrus SK1500-3 Thermostat and Piston (SK1500/3) The D282-027 is used in t...
Bristan D282-040 Dual Control (Dia.47.6) Diverter Control Shroud Chrome
Bristan D282-073-B2 Concealing plate AR3 SHCDIV C
Bristan Artisan D282-126 Control Handle. This handle is used on both thermostatic cartridge. Control Knob Measurements: External Diameter at Bottom: 39.6mm Total Height: 37mm For Cartridges with Splines: 20 splines (7.6mm in diameter)...
Bristan D40P-19B2 4-Way 40mm Diverter Cartridge (4 Functions) Cartridge Dimensions Height: 81mm (excluding locating pins) Cartridge Body Diameter: 39mm (40mm at o'ring) Brass Spindle Length: 39mm Distance Between Locating Pins (centre to centre): 22mm Diameter of Spline: ...
Bristan N116-F Plastic Wall Outlet Elbow Assembly
Bristan SK560604 No.8X1.5 Inch CSunk Woodscrew With Wall Plugs (x4)
Sirrus SK970010 1/2 Inch Non-Return Valve (NRV)
Bristan BLH74 Flat Filter Washer 24mm Outer Diameter 15mm Outer Diameter - Pair...
