VADO CAR-K40A 40mm Lever Ceramic Disc Cartridge
Send a photo of your item and we'll help confirm it.
Summary

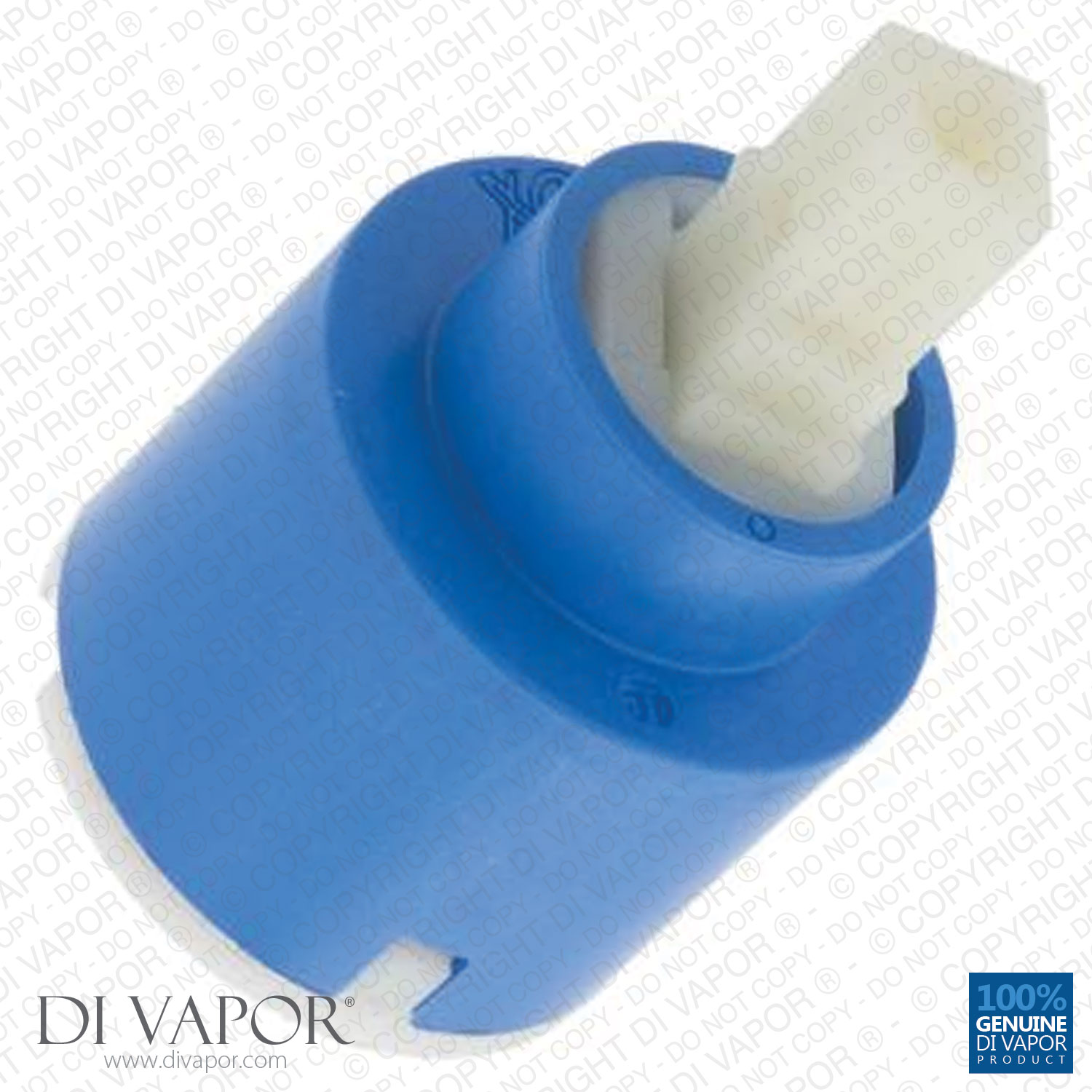

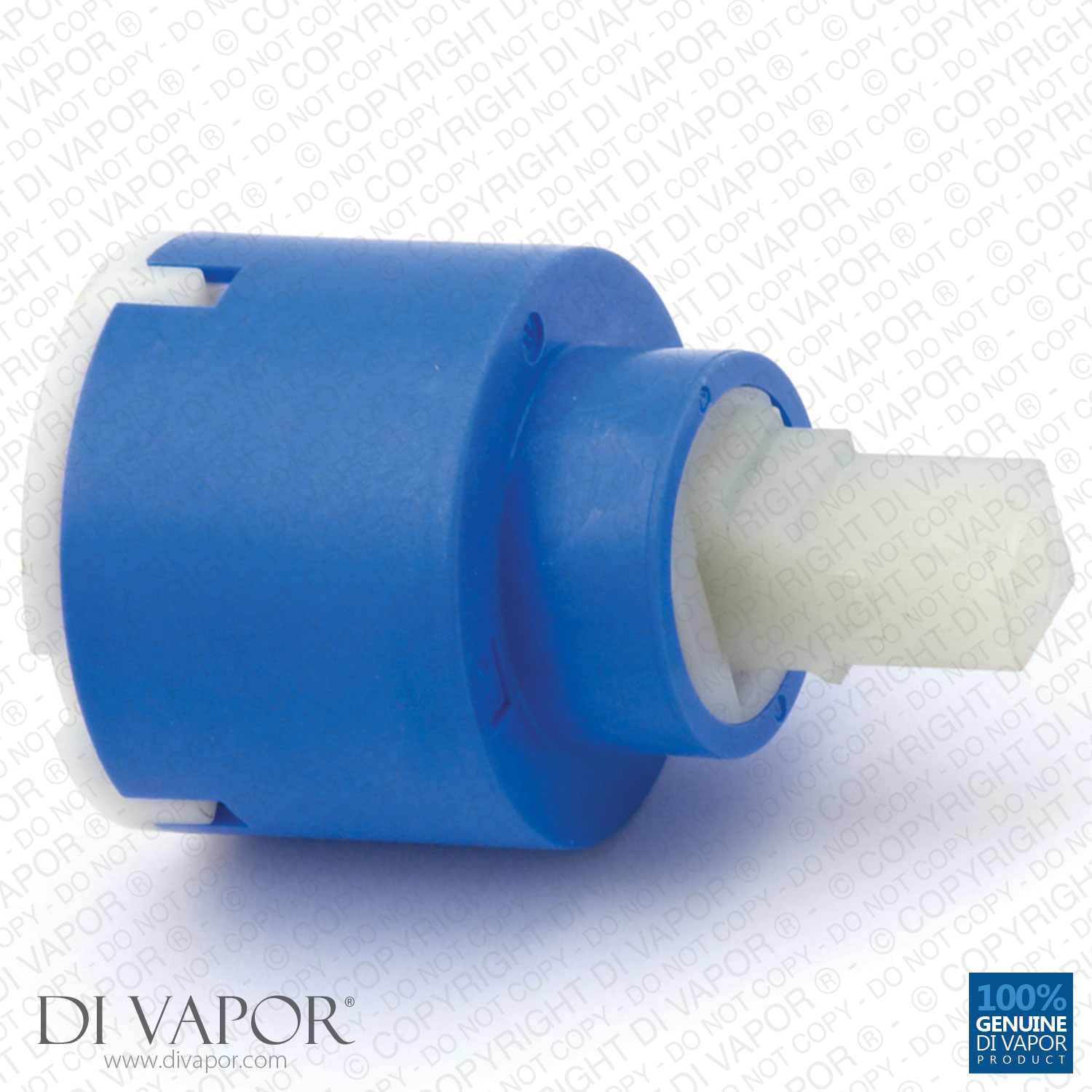

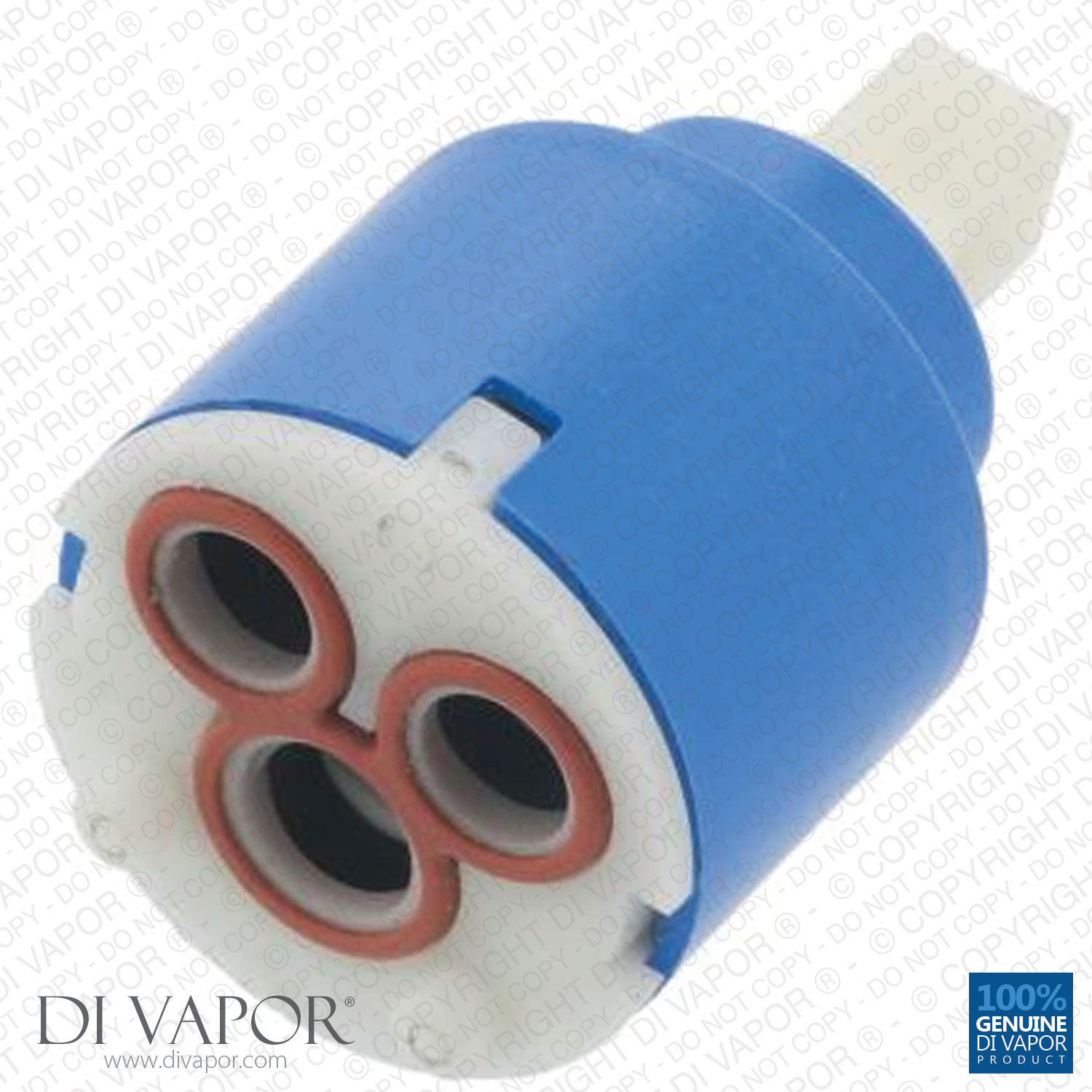

VADO CAR-K40A 40mm Lever Ceramic Disc Cartridge
This cartridge is used in the following Vado valves:
- AXI/RAD-147
- AXI/RAD-145
- Chelsea CHE-152
- Chelsea CHE-150
- Chelsea CHE-149
- Chelsea CHE-147
- Chelsea CHE-145
- Evolve EVO-145
- Evolve EVO-147
- Evolve EVO-150
- Evolve EVO-152
- Life LIF-109S
- Life LIF-145
- Life LIF-147
- Life LIF-132
- Life LIF-132/NS
- Life LIF-142/SL
- Magma MAG-145
- Magma MAG-147
- Magma MAG-154
- Magma MAG-149
- Magma MAG-150
- Magma MAG-152
- Nuance NUA-145
- Nuance NUA-147
- Notion NOT-142/SL
- Notion NOT-132
- Notion NOT-132/NS
- Notion NOT-145
- Notion NOT-147
- Origins ORI-132
- Origins ORI-132/NS
- Origins ORI-145
- Origins ORI-147
- Soho SOH-132
- Soho SOH-133
- Soho SOH-132/NS
- Soho SOH-142/SL
- Soho SOH-145
- Soho SOH-147
- TE-109S
- TE-132
- TE-132/NS
- TE-145
- TE-147
- Sense SEN-100
- Sense SEN-100/SB
- Sense SEN-100E
- Sense SEN-100E/SB
- Sense SEN-110
- Sense SEN-132
- Sense SEN-145
- Sense SEN-147
- ZOO-100
- ZOO-100/SB
- ZOO-100E
- ZOO-100E/SB
- ZOO-109S
- ZOO-110
- ZOO-132
- ZOO-145
- ZOO-147
Frequently Asked Questions: Vado Spare Cartridge – CAR-K40A
Question: My shower is a Vado Life. How do I open it to fit the new Vado spare CAR-K40A?
Answer:
- Remove the screw cover which is found under the handle.
- Loosen the grub screw to remove the handle.
- Slide the wallplate out.
- You can now remove and replace the single-lever cartridge.
Note: Layer a small amount of silicone grease on the O-ring of the replacement Vado CAR-K40A. This will help the cartridge sit well in the valve.
Question: Do you have any tips for fitting the Vado CAR-K40A?
Answer: When you have installed the Vado spare part, put the lever handle back to the “on” position before securing it with the screw. This will lessen the pressure on the O-ring. Sometimes hardened minerals make the handle hard to remove. So, another tip would be to pull with extra force in case of calcification.
Question: What are the measurements of this Vado spare part?
Answer: The CAR-K40A measures about 63mm in length (without the locating pins) and 40mm in diameter.
We provide an extensive range of Vado spare parts:
Please leave us a message should you have any questions. We are here to assist you.
