Ultra SPR16 35mm Lever Cartridge for PN380 and KC301 Valves

SUMMARY

Ultra SPR16 35mm Ceramic Single Lever Mixer Tap Cartridge for PN380 and KC301

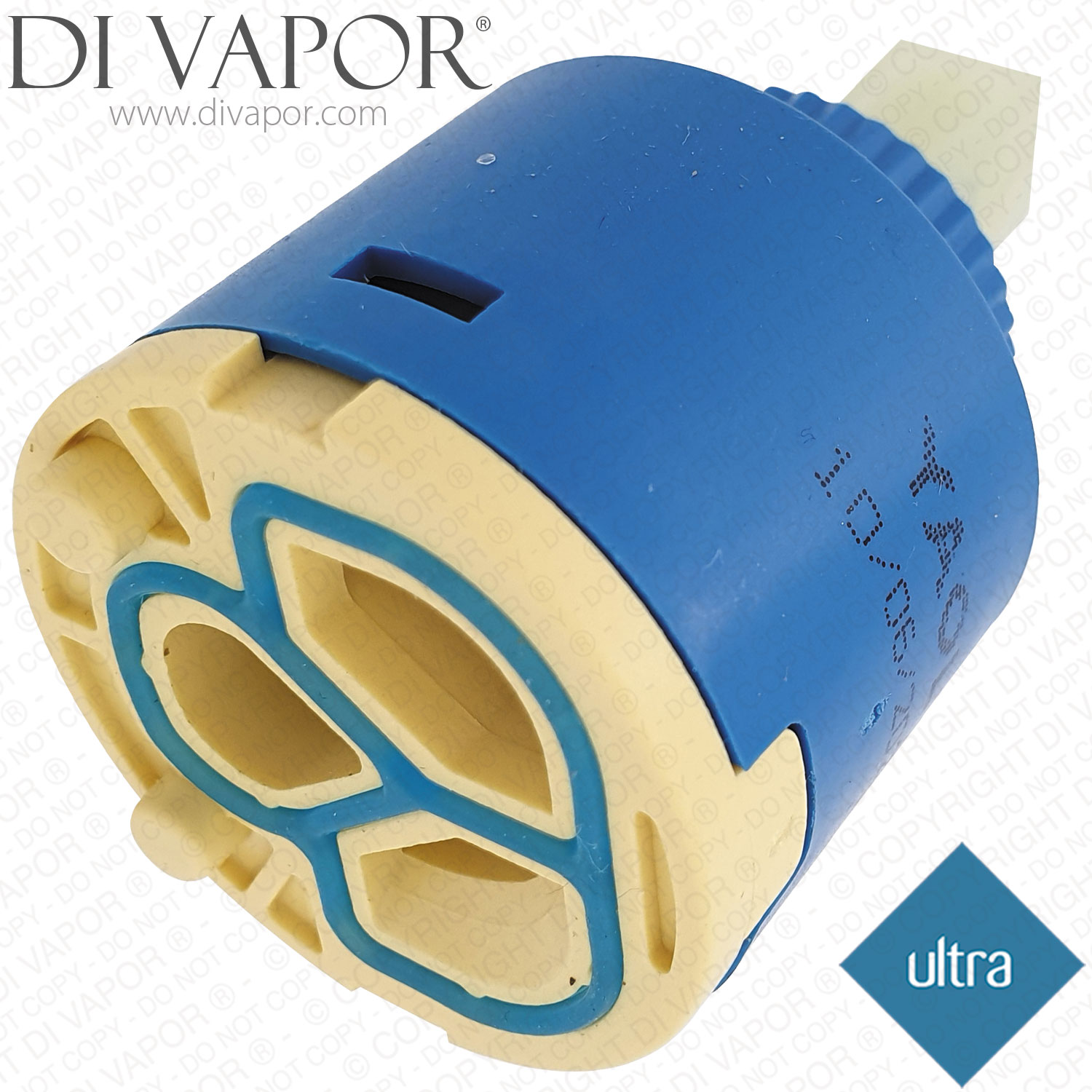

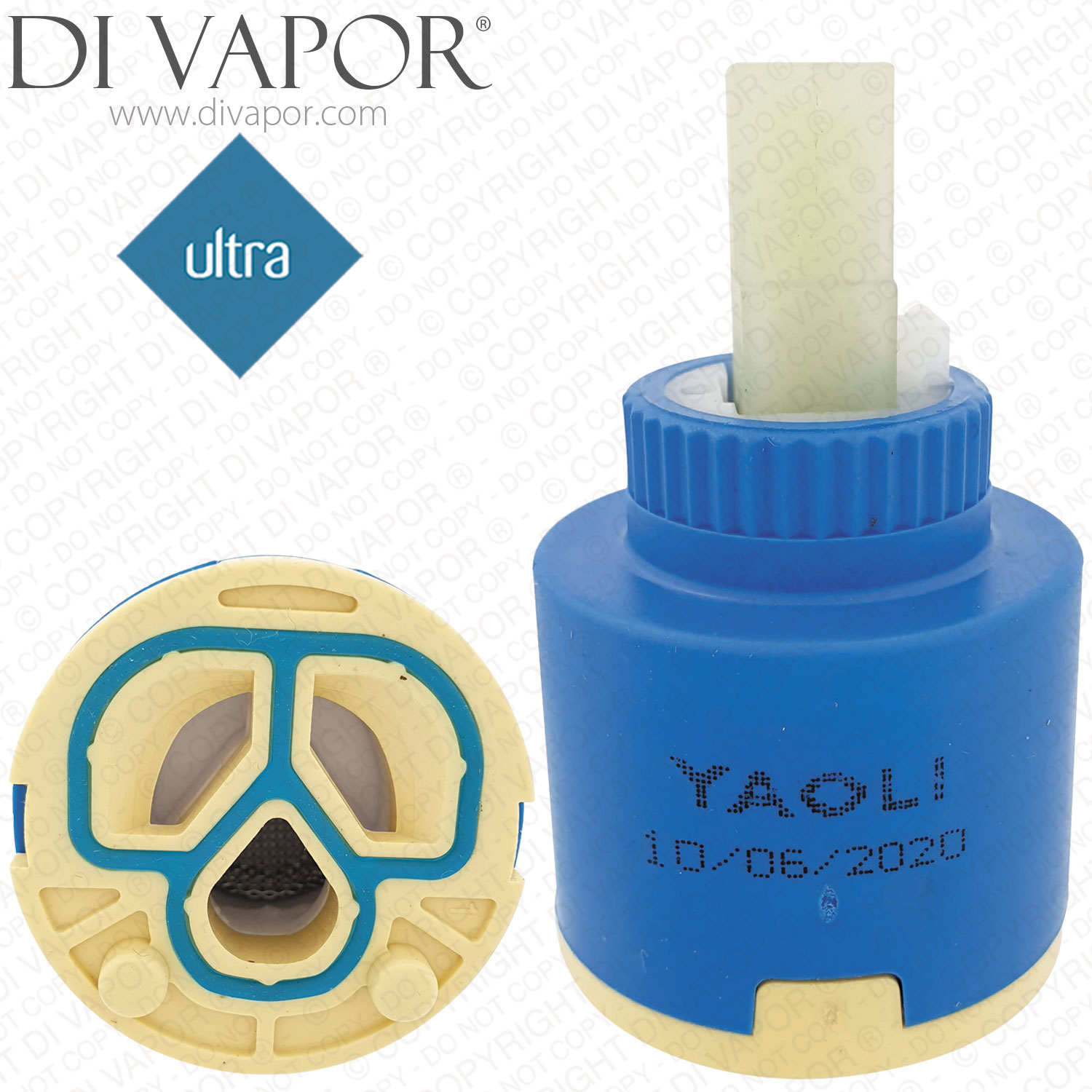

Please note that the seal at the bottom of the cartridge has now changed design so it's different to the photo.

The Ultra SPR16 is a 35mm ceramic cartridge used in single lever mixer taps, including the PN380 and KC301. It controls water flow and the mix of hot and cold water through the tap's lever.

Persistent dripping from the spout after the tap has been turned off can indicate that the cartridge is no longer closing fully. Identify the existing cartridge before ordering to ensure that you select the correct part.

Important: Bottom Seal Design

The bottom seal design has changed from the design shown in the product photograph. Take this change into account when comparing the cartridge with your existing part.

Technical Details

- - Cartridge size: 35mm

- - Control type: Manual single lever

- - Mechanism: Ceramic

- - Base type: Flat base

Confirmed Compatible Models

- - Hudson Reed Tec PN380 Single Lever Side-Action Basin Mixer Tap

- - Hudson Reed Tec PN381 Wall-Mounted Single Lever Side-Action Basin Mixer Tap

- - Hudson Reed Tec PN386 Side-Action Cloakroom Basin Mixer Tap with Push-Button Waste

- - Hudson Reed Arco ARC381 Wall-Mounted Single Lever Side-Action Basin Mixer Tap

- - Hudson Reed Clio MG380 Side-Action Single Lever Basin Mixer Tap

- - Hudson Reed Rhyme RHY304 Open-Spout Bath Shower Mixer with Kit

- - Ultra Blake TBL305 Waterfall Basin Mixer Tap

- - Ultra Level TLE305 Mono Basin Mixer Tap with Waste

- - Ultra Minimalist TMI305 Side-Action Mono Basin Mixer Tap

- - Ultra Munro TMU305 Mono Basin Mixer Tap with Waste

- - Ultra Vibe Sinclair VIB305 Single Lever Mono Basin Mixer Tap with Waste

- - Premier / Nuie Eon DTY305 Mono Basin Mixer with Pop-Up Waste

- - Premier / Nuie Eon DTY306 Mono Sink Mixer with Swivel Spout

- - Ultra KC301 Luxury Pre Rinse Mixer

- - Hudson Reed Art ART305 Mono Basin Mixer with Push-Button Waste - SPR16 flat base version only

Check Before Ordering

For ART305, confirm that the existing cartridge is the SPR16 type with a flat base. The peg-leg version uses SPR28, which is a different cartridge.

Before ordering for any of the models below, identify the existing cartridge and confirm that it is the 35mm SPR16 type. Do not select the cartridge from the tap model alone or substitute SPR16 for the 40mm SPR08.

- - Premier / Nuie Eon DTY304 Single Lever Deck-Mounted Bath Shower Mixer with Shower Kit and Wall Bracket

- - Hudson Reed / Ultra Eon PF304 Single Lever Deck Bath Shower Mixer

- - Ultra KC313 Pull-Out Kitchen Mixer Tap

Check the existing cartridge's part number where available, along with its body size, base layout and lever connection. A 35mm diameter alone does not confirm suitability. Allow for the revised bottom seal design when comparing parts.

Fitting Notes

Isolate the hot and cold water supplies before removing the existing cartridge. Clean the seating area and remove any debris before fitting the replacement. Follow the tap's fitting instructions and check for leaks once the supplies have been restored.

Related Spares You May Need

- - TACSIL 3g WRAS Approved Silicone Grease - TAC86 - For a light application to suitable cartridge seals and O-rings during fitting

If you are unsure which cartridge you need, use the Di Vapor part identification service.
