SPIX09 Ultra Lever Cartridge (Pixi Single Lever Manual Cartridge) - Hudson Reed

SUMMARY

Ultra SPIX09 25mm Ceramic Single Lever Basin Mixer Tap Cartridge (Pixi Single Lever Manual Cartridge) - Hudson Reed

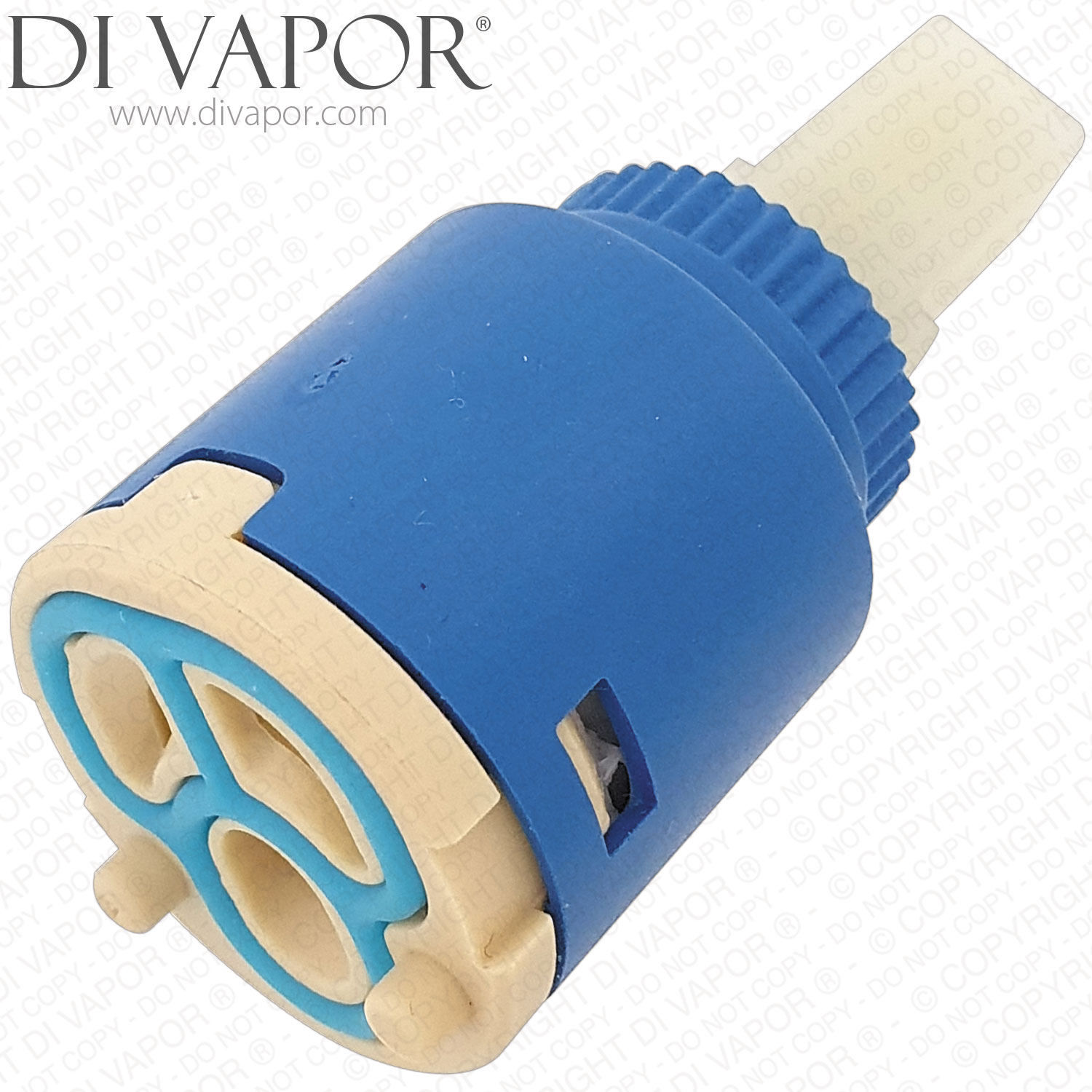

The Ultra SPIX09 is a 25mm ceramic single-lever cartridge for selected Ultra and Hudson Reed basin mixer taps. Also known as the Pixi single-lever manual cartridge.

The cartridge sits inside the tap body beneath the operating lever and controls both water flow and the mix of hot and cold water. Persistent dripping from the spout when the tap is turned off can indicate a worn or damaged cartridge. Replacing a faulty cartridge can restore water shut-off and normal lever operation.

Technical Details

- - Part Number: SPIX09

- - Cartridge type: ceramic single-lever manual mixer cartridge

- - Nominal body diameter: 25mm

- - Handle-end width: 9mm

- - Handle connection: square lever

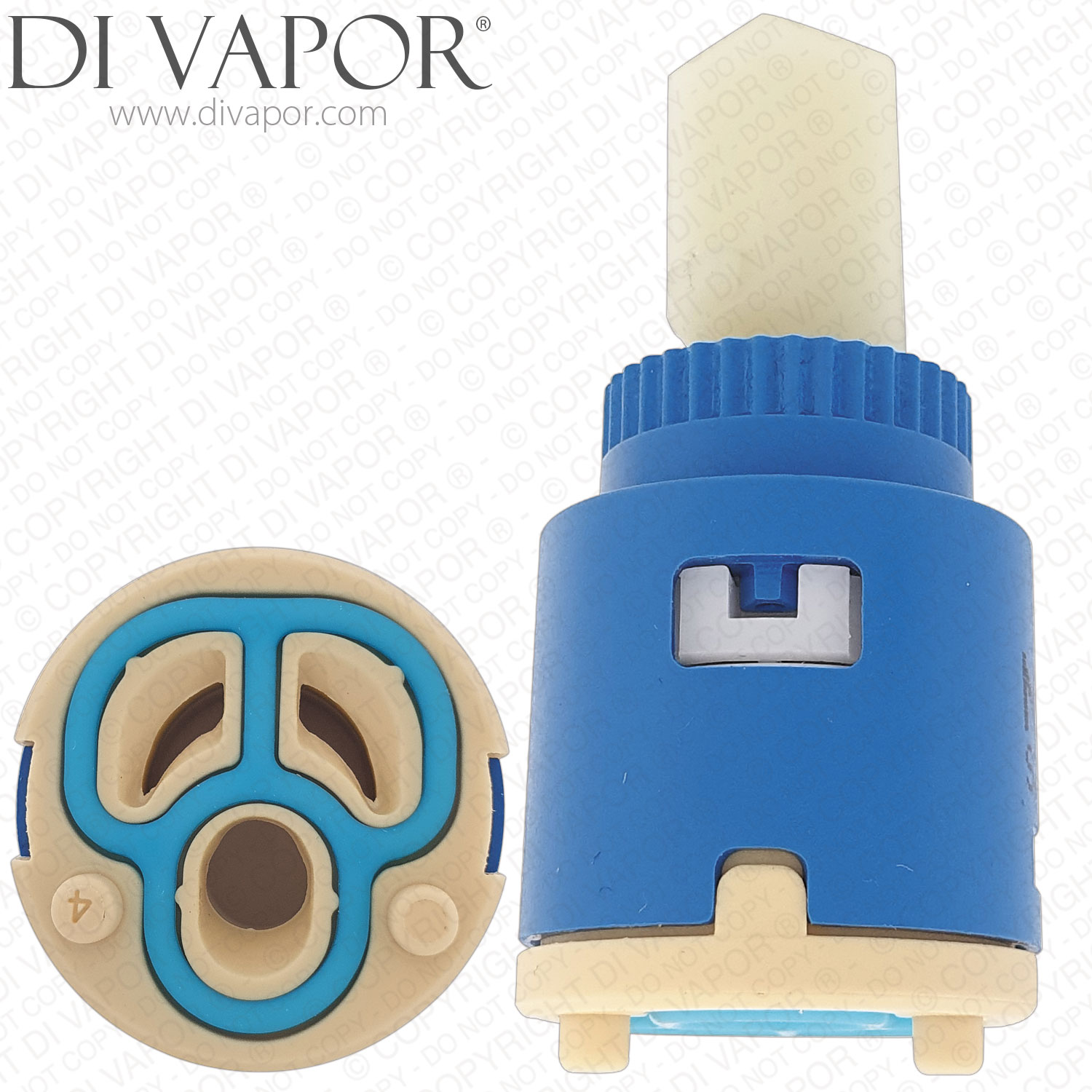

- - Base arrangement: three water ports and two locating pegs

Confirmed Compatible Models

- - Ultra Nevada TNE305 Open Spout Mono Basin Mixer Including Waste

- - Hudson Reed Cloud 9 CLO305 Mono Basin Mixer Tap Without Waste

- - Hudson Reed Motif MOT315 Mono Basin Mixer Tap With Push Button Waste

Before Ordering

Check the exact tap model and compare your existing cartridge with the product photographs. Check the body diameter, overall height, square lever, locating pegs and base-port seal arrangement. A matching diameter or similar appearance alone does not establish the correct fit.

Fitting Advice

Isolate both water supplies before removing the cartridge. Check the seating area for debris and make sure the locating pegs are correctly seated when fitting the new cartridge. Restore the water supplies and check the tap for leaks and correct operation.

Related Spares You May Need

- - TACSIL 3g WRAS Approved Silicone Grease for Tap & Shower Cartridges - Part Number TAC86 - For a thin coating on appropriate rubber seals and O-rings during fitting

If you need help finding the right cartridge, use the Di Vapor part identification service.
