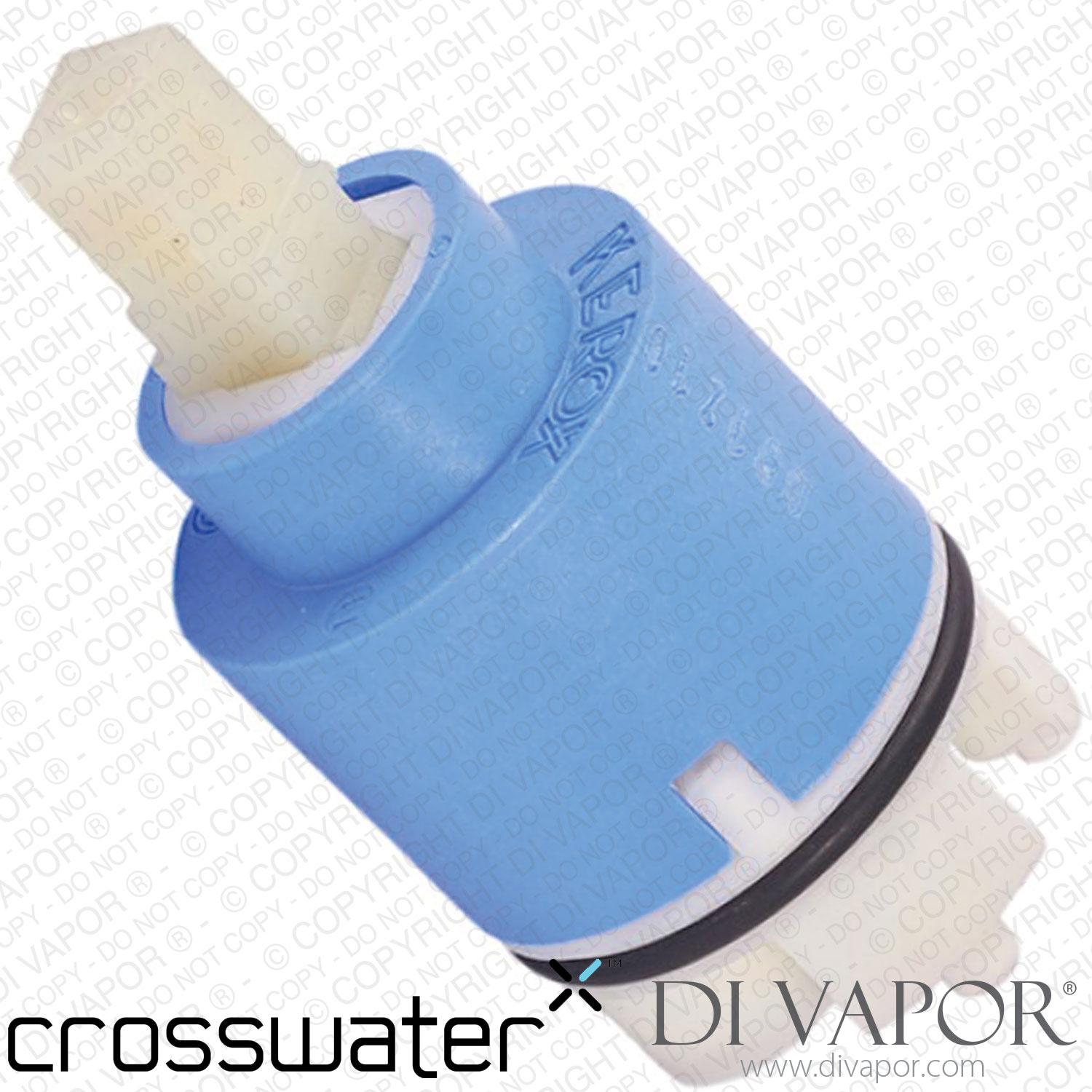

SPACW0006 Crosswater Flow Cartridge for Mono Basin Tap

SUMMARY

SPACW0006 Crosswater Flow Cartridge for Mono Basin Tap

Frequently Asked Questions: Crosswater Flow (On/Off) Cartridge – SPACW0006

Question: How do I remove the Crosswater cartridge?
Answer: Try to locate the grub screw around the handle. It can be hidden under a screw cap. Loosen the screw and lift the handle. Remove the retaining ring to access the SPACW0006 cartridge. Lift the cartridge to remove.

Note: Silicone grease must be used on the O-rings of the new Crosswater SPACW0006 before installing it. The grease serves as a protection against abrasion.

Question: There are several SPACW cartridges that look alike. Is this the spare part I need to fix my tap?
Answer: To be sure you will buy the needed single lever cartridge, please use our Find a Part service (working hours only). Will will do our very best to find the correct spare within a one-hour time frame.

Question: I installed the cartridge but it keeps on moving in place.
Answer: Be sure that the locating pins at the bottom of the Crosswater single lever cartridge are inserted in the right holes inside the valve seat. This will prevent the newly installed cartridge from moving or wiggling.


We provide many spare parts including:
– Crosswater Thermostatic Cartridges
– Crosswater Flow Cartridges
– Crosswater Diverter Cartridges
– Crosswater Shower Handles

Installation Guidance

Before removing the existing cartridge, isolate the hot and cold water supplies. Locate the grub screw securing the tap handle, which may be concealed beneath a decorative screw cap. Loosen the screw and lift away the handle to expose the cartridge retaining ring.

Remove the retaining ring and carefully lift the existing cartridge from the tap body. Before inserting the SPACW0006 cartridge, apply a thin coating of suitable plumbers' silicone grease to its O-ring seals. This helps protect the seals against friction and abrasion during installation.

Position the cartridge so that the locating pins on its underside engage correctly with the matching holes in the valve seat. Refit the retaining ring and tap handle, restore the water supply and check that the tap operates correctly without leaking.

Before Ordering

Crosswater uses several cartridges with similar appearances, so the existing cartridge should be carefully identified before ordering. Compare the cartridge body, base locating pins, seals and overall configuration with the part being removed. A similar appearance or diameter alone does not establish that two cartridges are interchangeable.

Related Spares You May Need

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved - TAC86

- - GROHE Premium Plumbers Silicone Grease - 2g - SYNTHESO LM 220 (18007031) - GR-18007031

- - Molykote 111 Silicone Grease - 3g - 3E6Q719C

These silicone greases are used to lubricate cartridge O-rings and seals during installation. Apply a thin coating to the seals before fitting the cartridge to help reduce friction and minimise the risk of damage.
