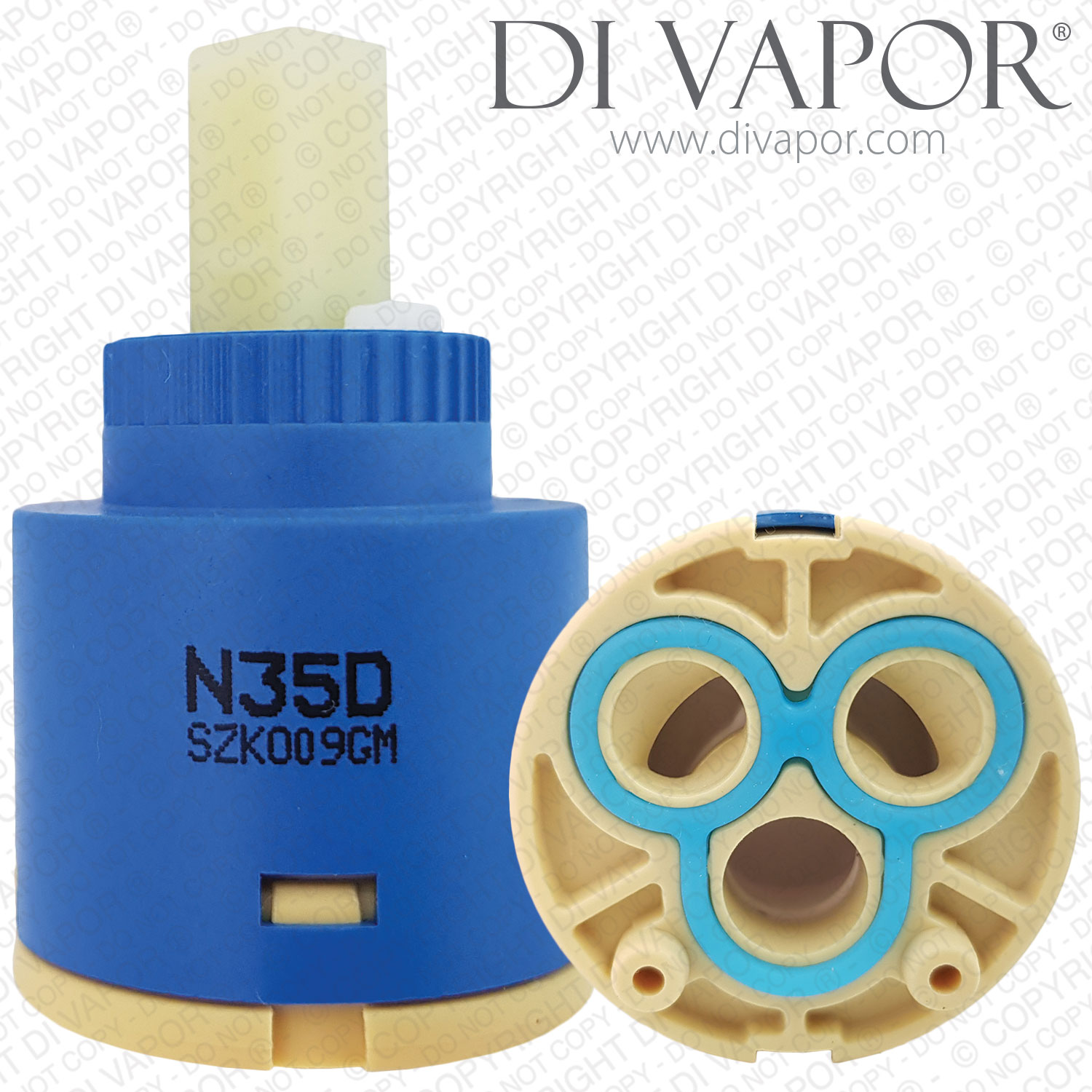

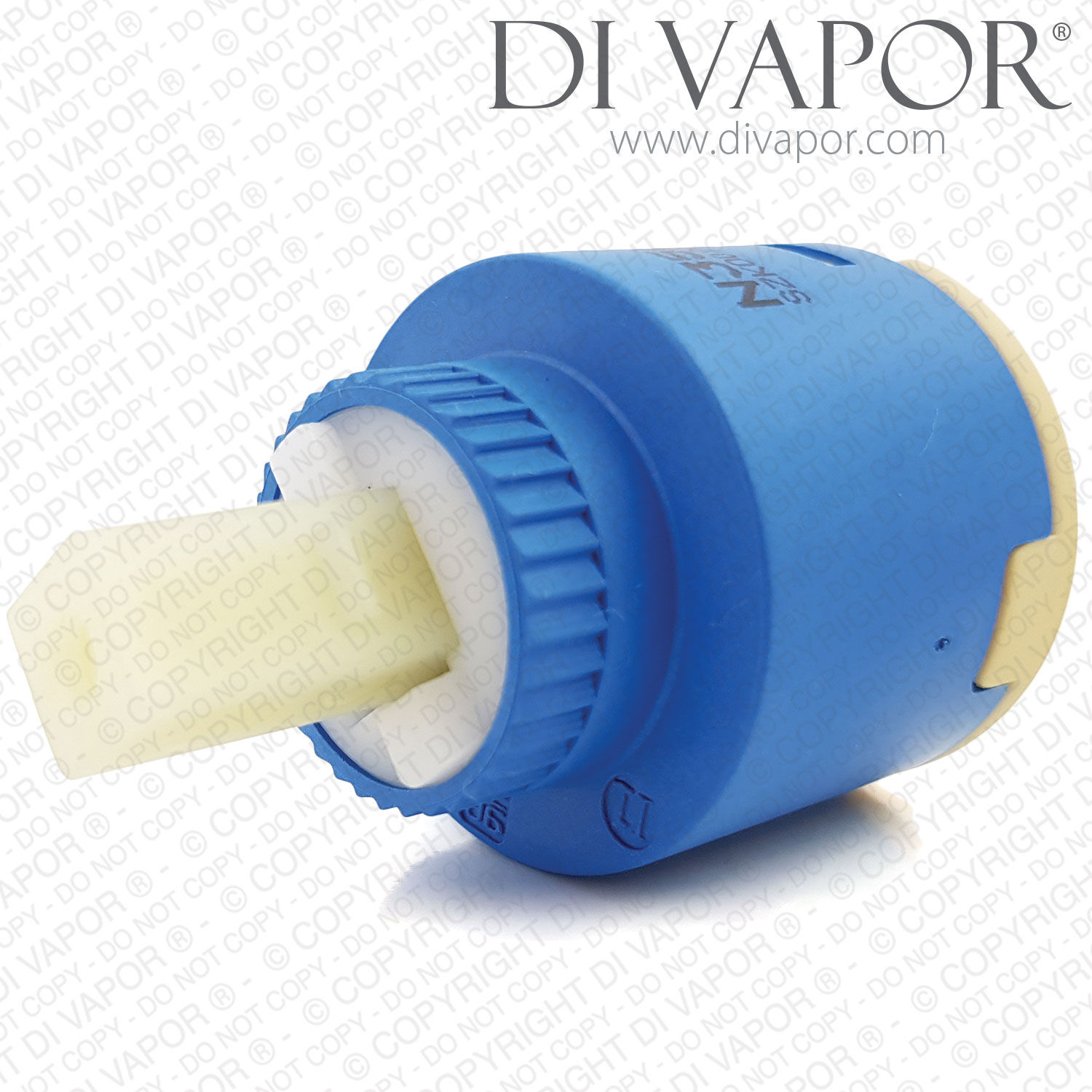

N35D 35mm Ceramic Disc Lever Cartridge
Send a photo of your item and we'll help confirm it.
Summary
Gear N35D 35mm Ceramic Disc Lever Cartridge

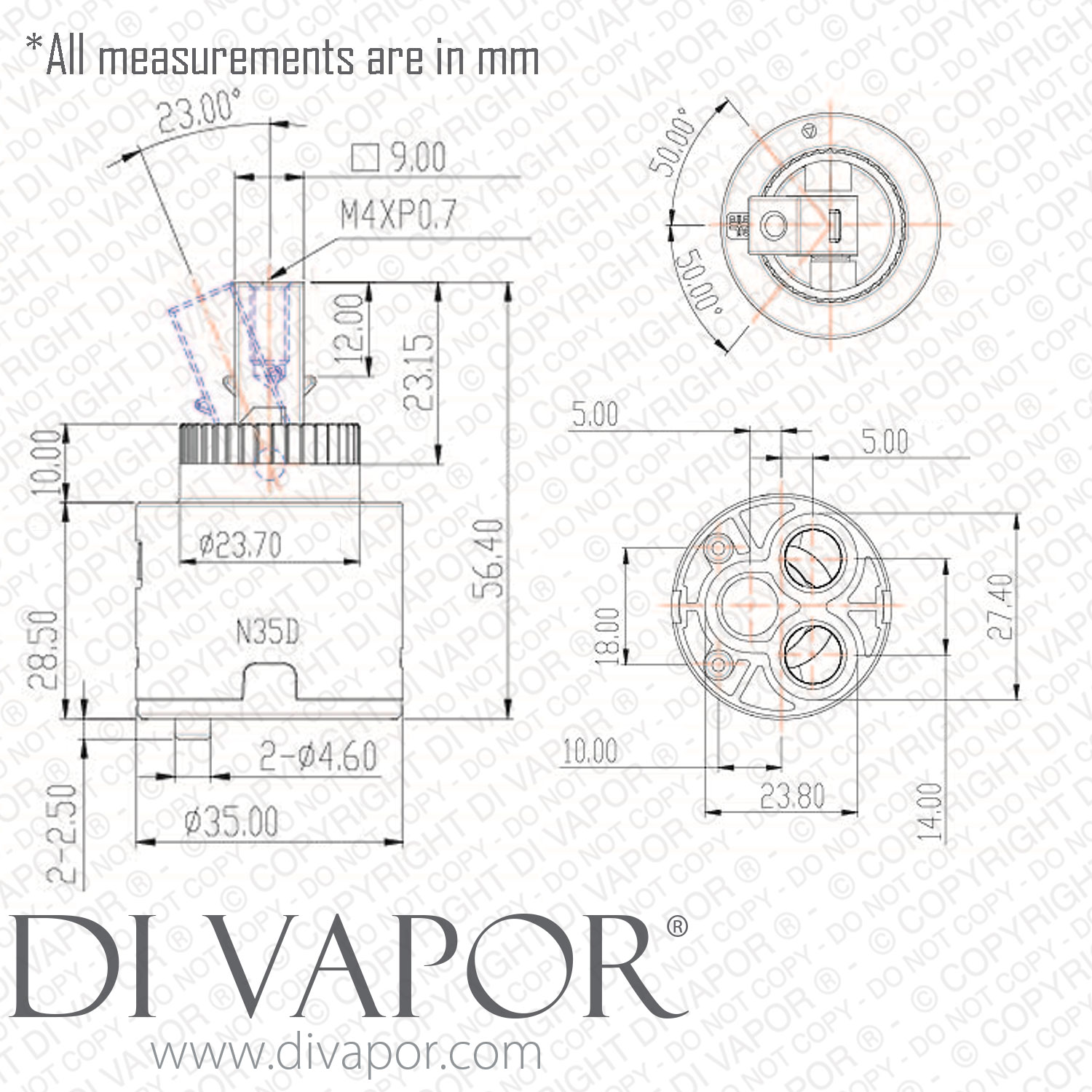

| Total Length (excluding locating pins) | 57.2mm |
|---|---|
| Barrel Diameter | 35mm |
| Diameter at Blue Splines | 23.4m |
| Top Square Plastic Handle Lever Diameter | 9mm x 9mm |
Distance Between Locating Pins at Bottom (Centre to Centre): 18.5mm
| Other Possible Codes | SZK009GM |
|---|---|
| Frequently Asked Questions | 35mm American Standard Gear Cartridge – N35D (M962655-0070A) |
Question: Do you have any tips for installing the N35D M962655-0070A cartridge?
Answer: We can give you three tips for the American Standard Gear N35D installation:
1. Apply plumbing grease on the O-rings of the new cartridge before installing it. This will protect the O-rings from pinching.
2. Make sure the locating pins are embedded in the corresponding holes inside the valve seat. This will prevent the cartridge from turning or wiggling.
3. Put the handle in the “on” position as you secure it back in place. This will lessen the pressure on the O-rings as you screw the handle back.
Question: There is no model number around my tap. How can I determine if this is the correct replacement cartridge?
Answer: American Standard does not always stamp model numbers for their taps. To know if the American Standard Gear cartridge is the correct replacement, please use our Find a Part (free) service. Let us serve you by finding the right spare part for your tap.
Or, you can check the measurements above and compare it with the measurement of the cartridge you need to replace.
Question: Are the bottom digits part of the part number?
Answer: No, the eight figure number is the manufacturer number. The part number is M962655-0070A or you can use N35D (35 for 35mm) which is shorter and easier to remember.
We have a whole wide range of single lever cartridges available and ready for shipping.
Need to repair other aspects of your bathroom? Check out other shower spare parts we offer.
Need help? Message us through our Find a Part (link above).
