Kerox BSD-40B 40mm Lever Cartridge (BSD 40 B HWS)
Part number: BSD-40B
Price: £80.00
Sale: £49.83
You save: £30.17 (38%)
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary

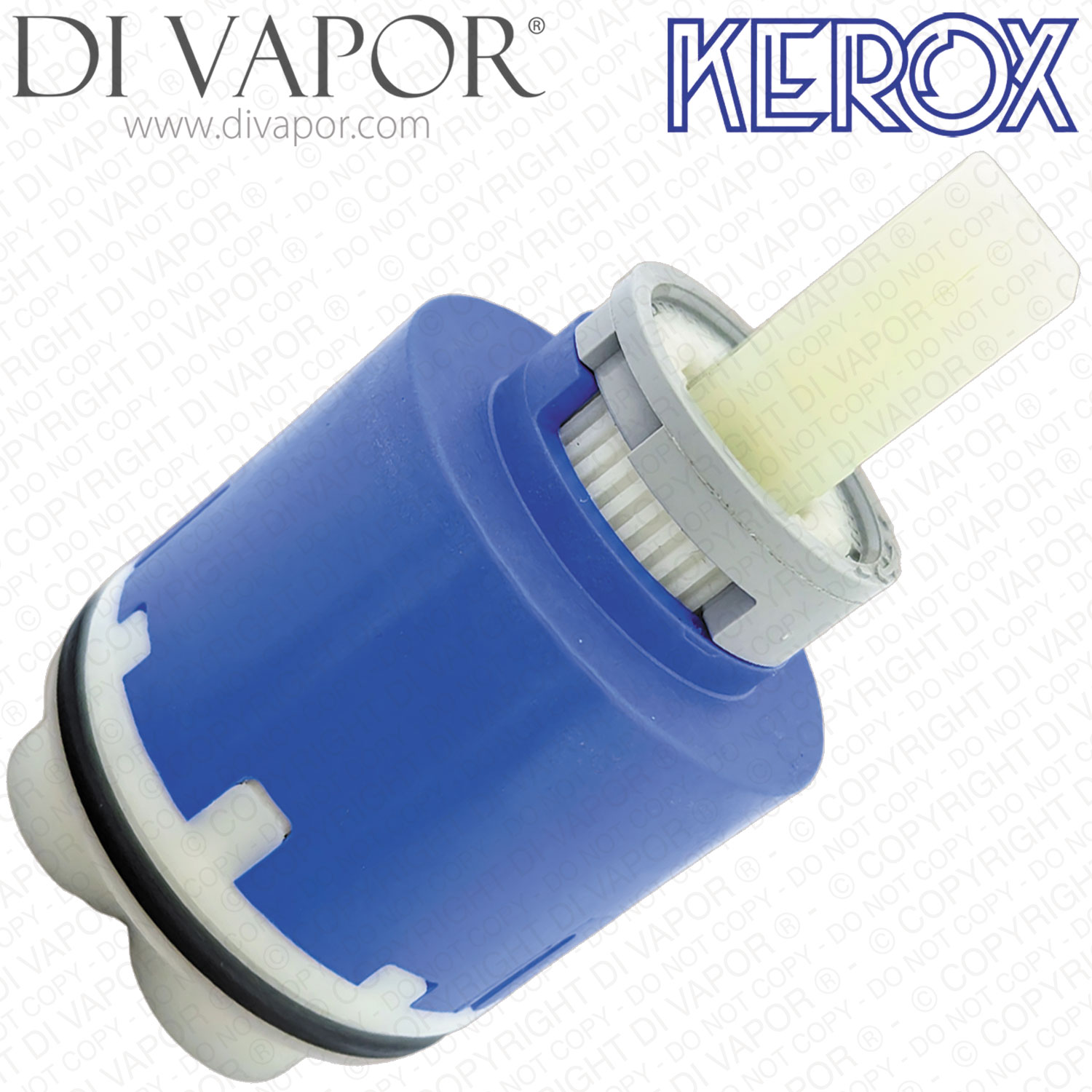

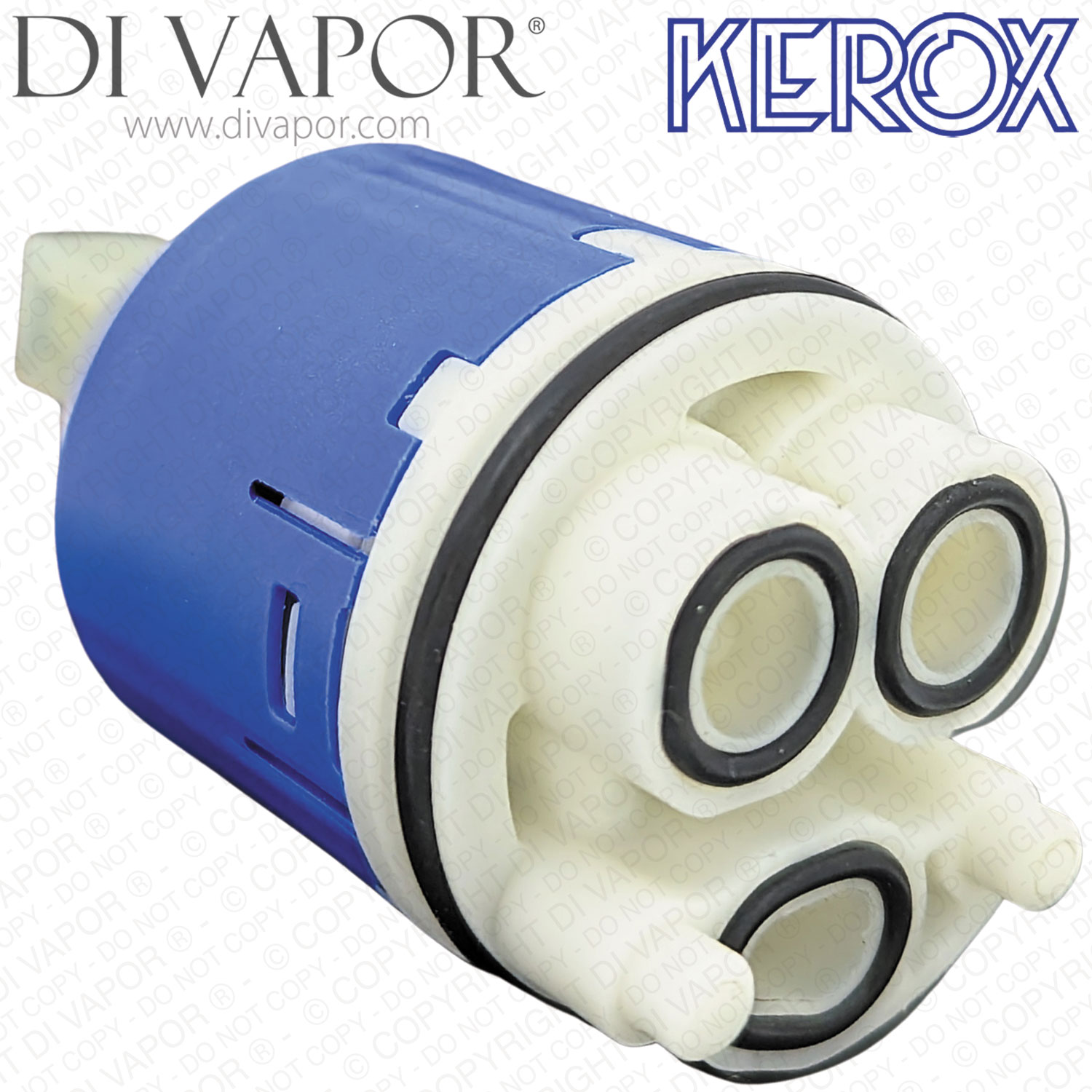

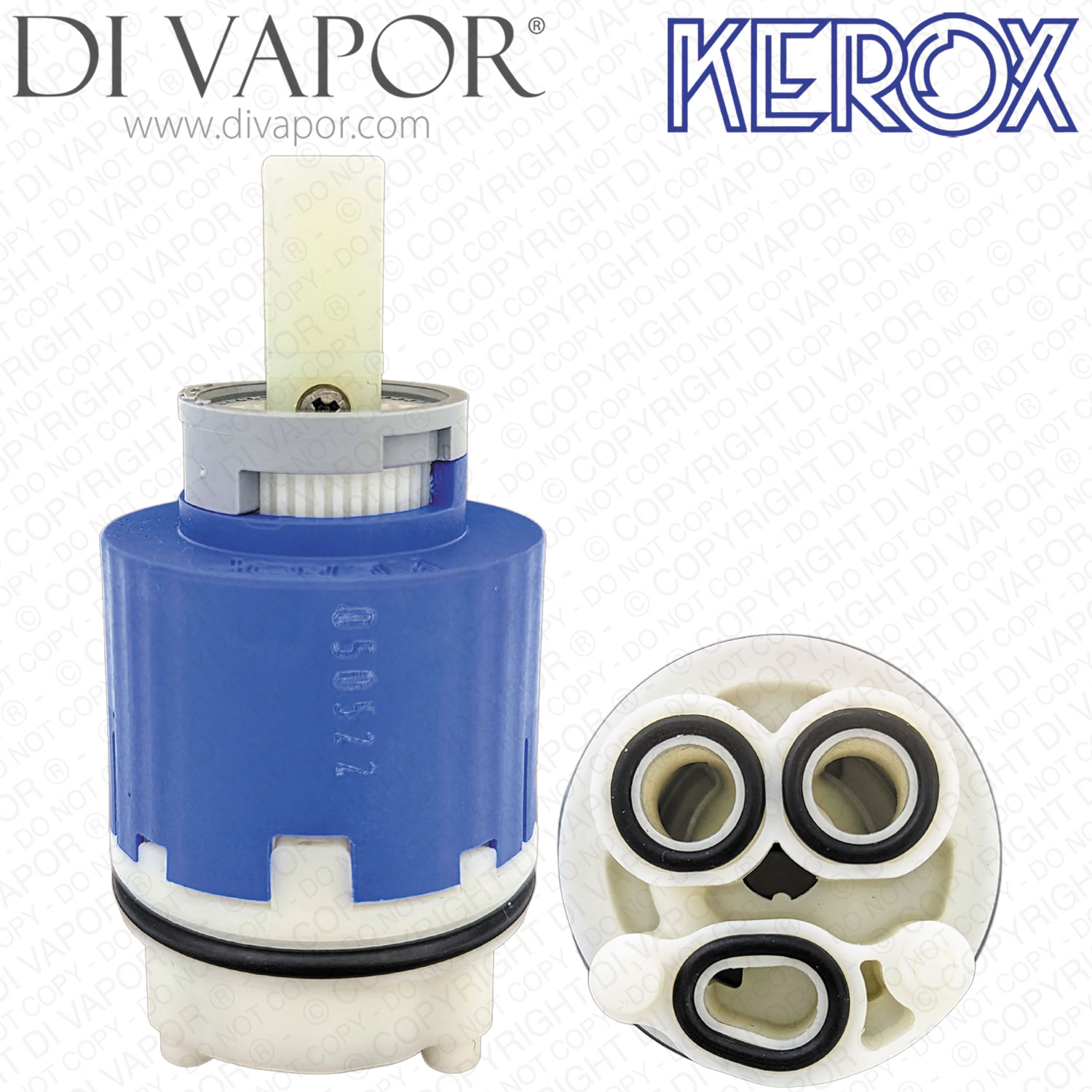

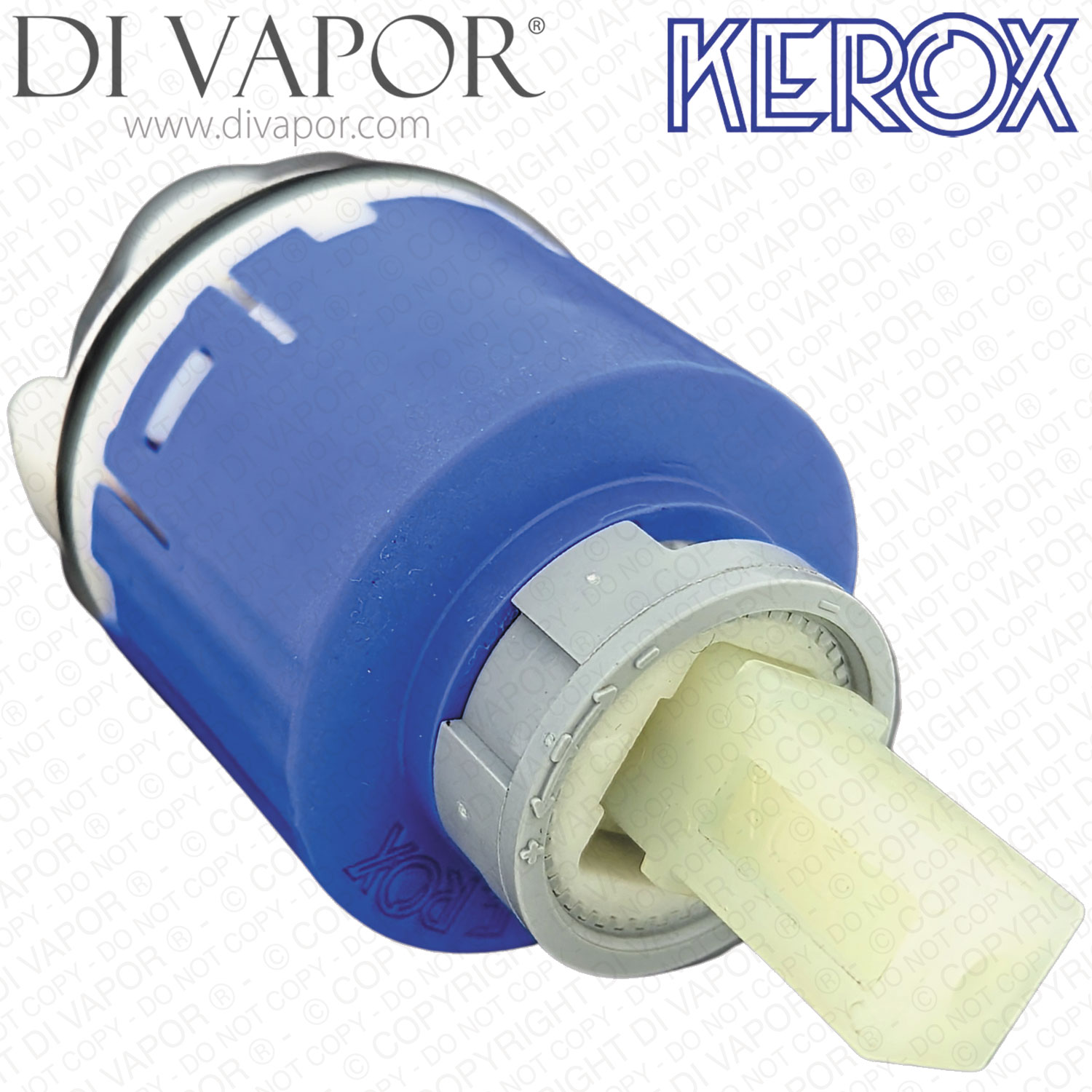

Kerox BSD-40B 40mm Lever Cartridge (BSD 40 B HWS)
This Kerox BSD-40B is a 40mm ceramic bath shower lever cartridge used in single-lever bath shower mixer valves.
It is the internal control cartridge that mixes hot and cold water and provides the bath shower diverter function within the valve assembly.
Technical Details
| Part Number | BSD-40B |
|---|---|
| Part type | 40mm ceramic bath shower lever cartridge with built-in shower diverter function |
| Application | single-lever bath shower mixer valve |
| Function | controls mixed water flow and switching between bath and shower operation |
| Nominal size | 40mm |
| Flow rate at 3 bar test pressure | 25.5 l/min in bath position and 11 l/min in shower position |
| Maximum water pressure | 35 bar |
| Maximum temperature | 90°C |
| Ceramic disc material | AL2O3 |
Before you order check
- Compare the removed cartridge carefully with your original including the 40mm body size stem detail locating features and diverter arrangement
- Do not order from diameter alone because different 40mm cartridges can look similar but fit and operate differently
