Inta LO985XX Lever Cartridge
SUMMARY
Inta LO985XX Lever Cartridge for LO980CP Lever Operated Basin Mixer Tap

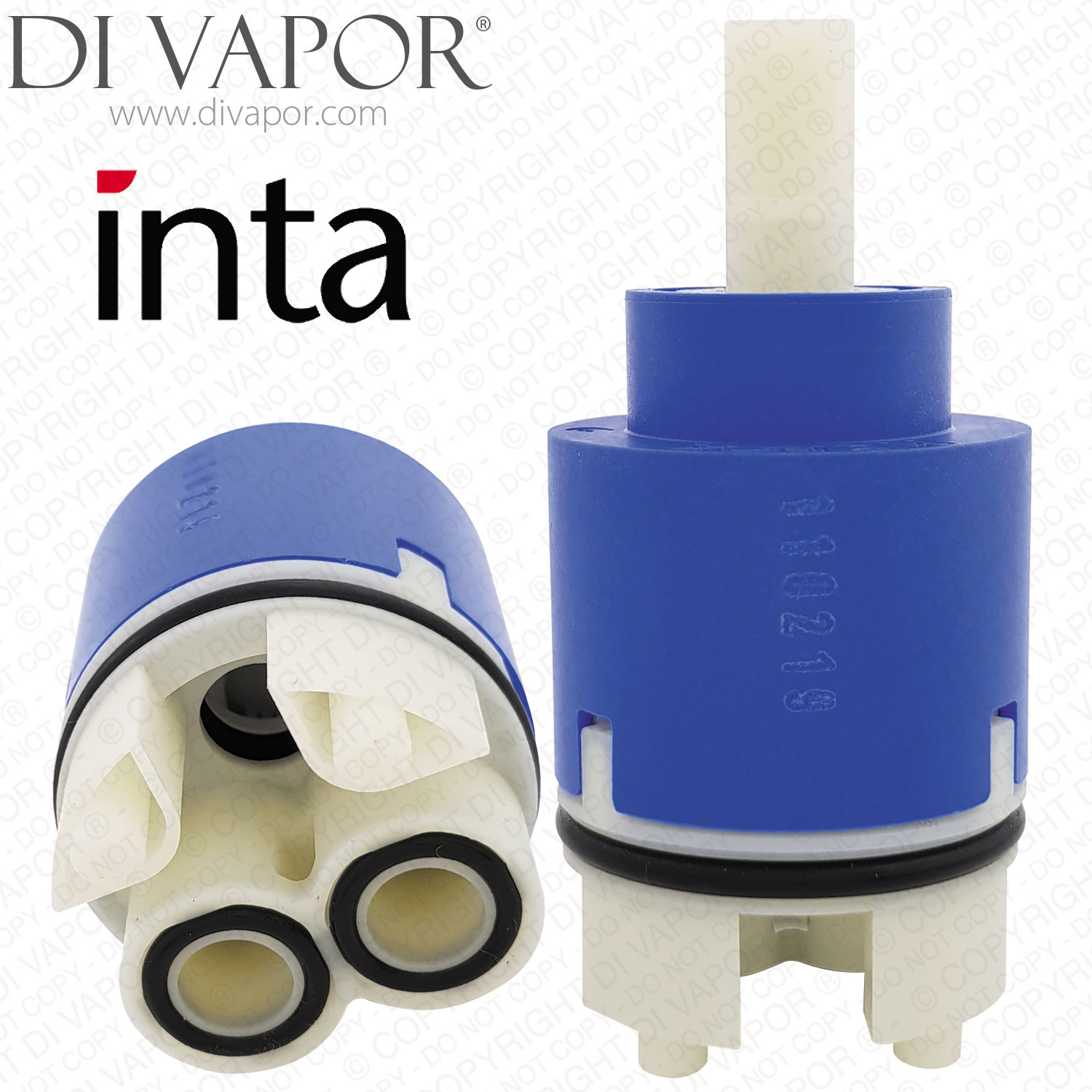

The Inta LO985XX is a lever-operated temperature cartridge used in the Inta LO980CP Lever Operated Basin Mixer Tap. It is the internal cartridge assembly used for the sequential lever control on the LO980CP basin mixer tap.
This cartridge is used when servicing the tap control where the original cartridge is worn, difficult to operate or no longer controlling the tap correctly. Before ordering, compare the existing cartridge with the dimensions below and check the locating pins and square lever interface.
Technical Details
- - Part Number: LO985XX
- - Total length excluding locating pins: 68.5mm
- - Barrel diameter: 35mm
- - Top square plastic handle lever diameter: 9mm x 9mm
- - Distance between locating pins at bottom centre-to-centre: 18mm
Confirmed Compatible Models
- - Inta LO980CP Lever Operated Basin Mixer Tap Spare Parts
Related Spares You May Need
- - INTA LO981XX Indice & O-ring for LO980CP
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
Before Ordering Check
- - Confirm the tap model is LO980CP.
- - Check the cartridge length, 35mm barrel diameter, 9mm x 9mm square lever connection and 18mm locating-pin spacing against the removed cartridge.
- - Isolate the hot and cold water supplies before removing the existing cartridge.
- - Apply suitable silicone grease to cartridge O-rings during installation where required.
