Hydroplast Cartridge G.35 Q. 9x9 C/​RT (G35)

SUMMARY

Hydroplast Cartridge G.35 Q. 9x9 C/RT (G35)

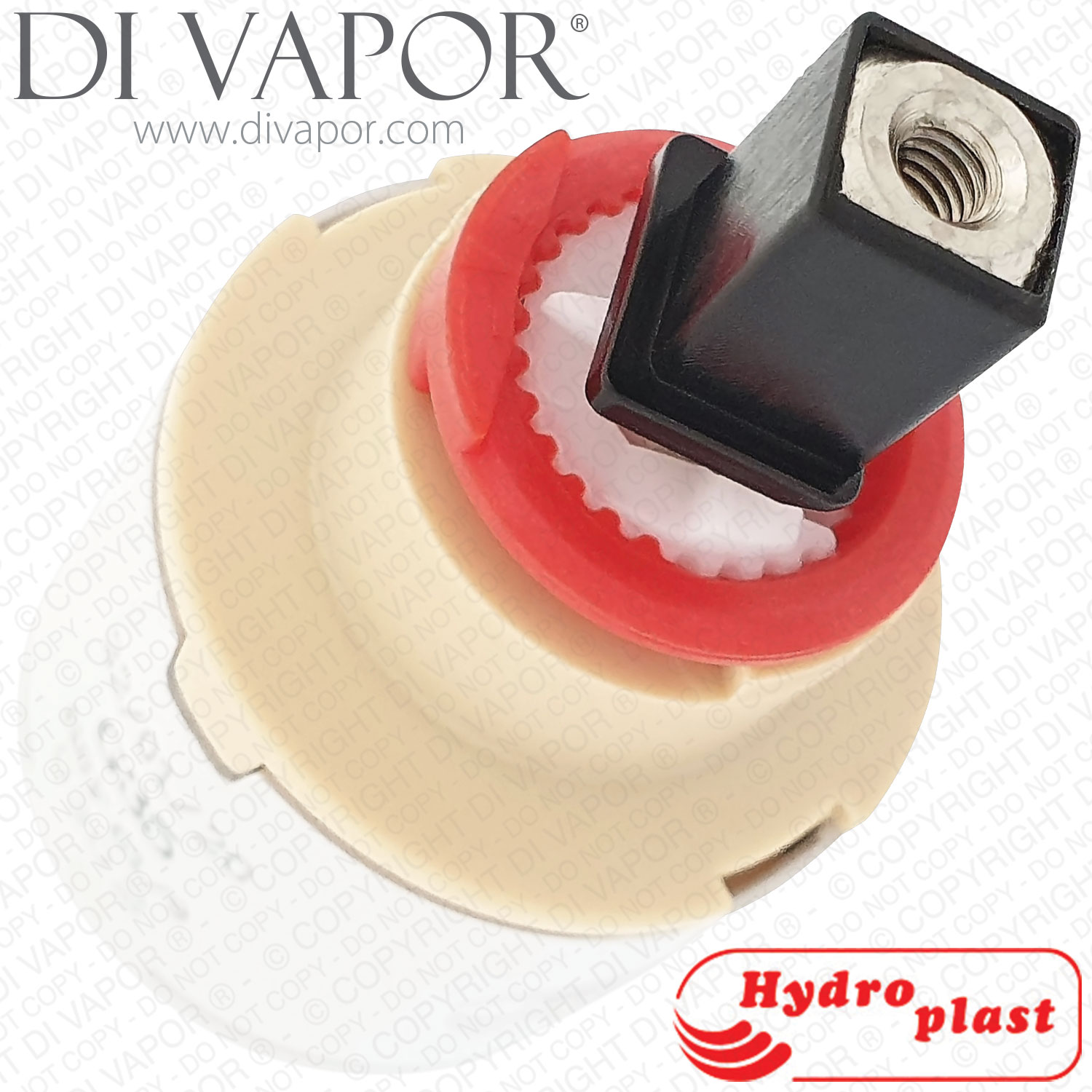

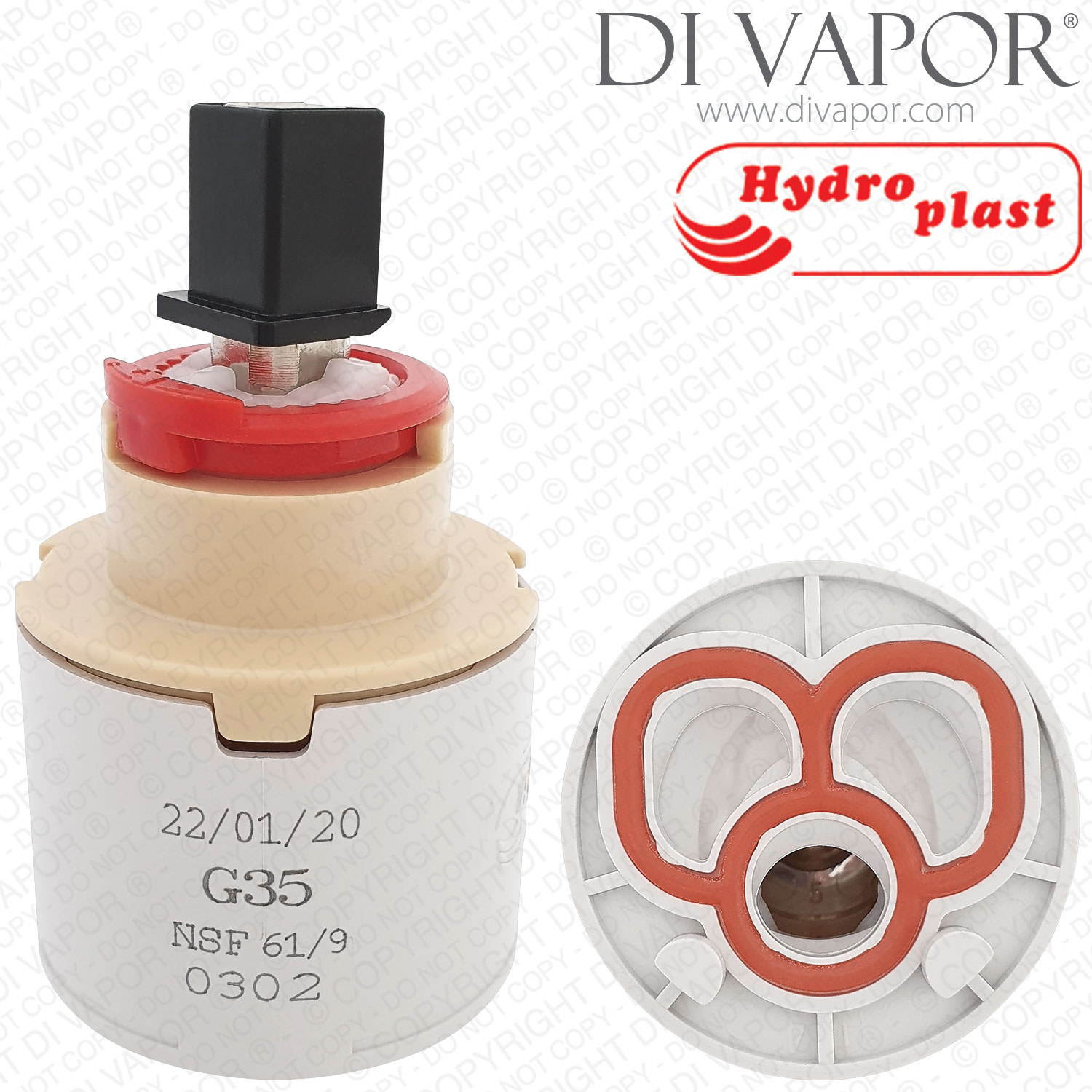

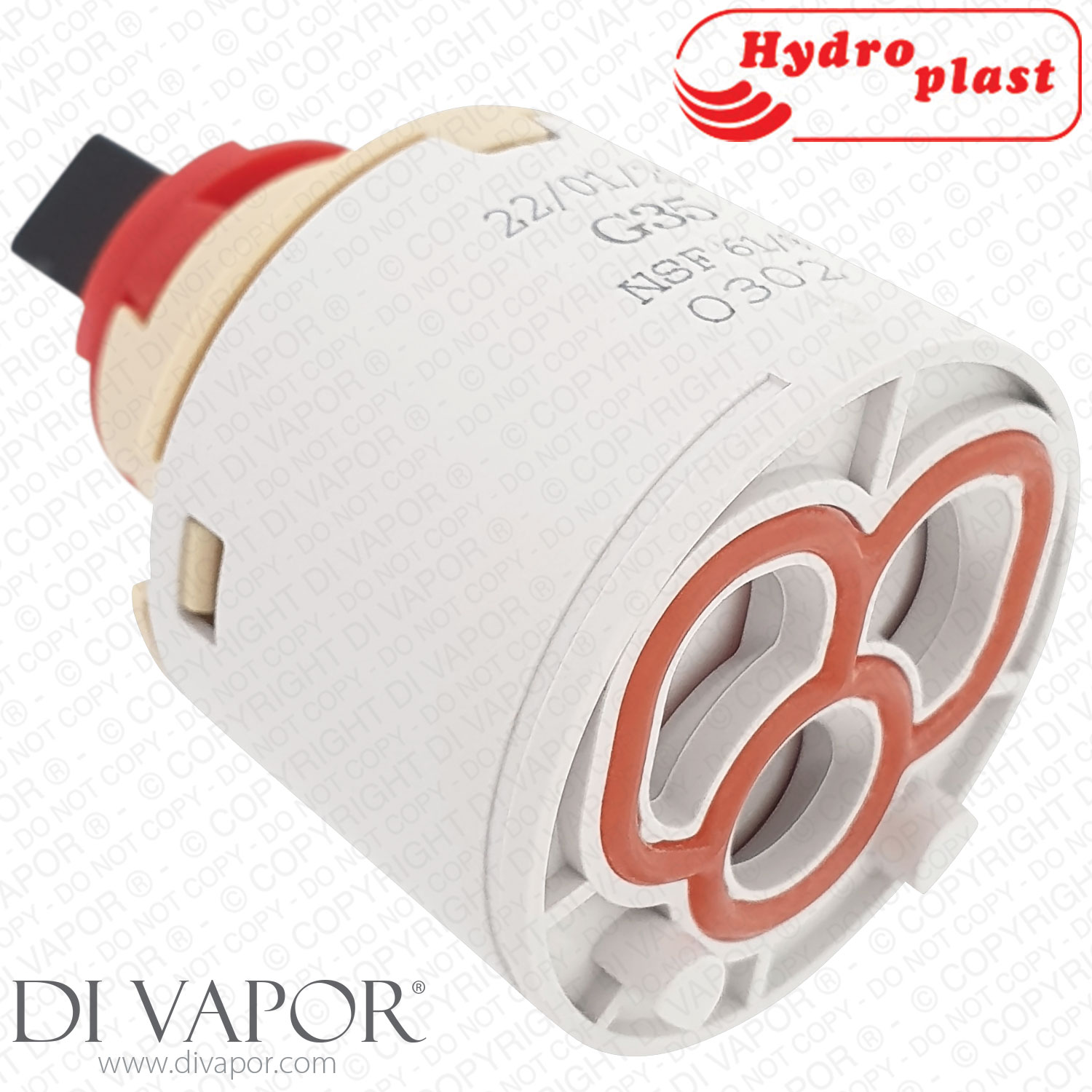

Hydroplast G.35 Q. 9x9 C/RT is a 35 mm ceramic disc lever cartridge for single-lever mixers that use the Hydroplast G.35 cartridge format. It controls both water flow and temperature mixing through the movement of the tap or mixer handle.

This cartridge is suitable for replacing a worn G.35 Q. 9x9 C/RT cartridge where the original part has the same body format, square stem, locating pins and seal arrangement. Common signs of cartridge wear include a stiff or loose handle, poor temperature control, reduced shut-off and water dripping from the spout when the mixer is turned off.

Technical Details

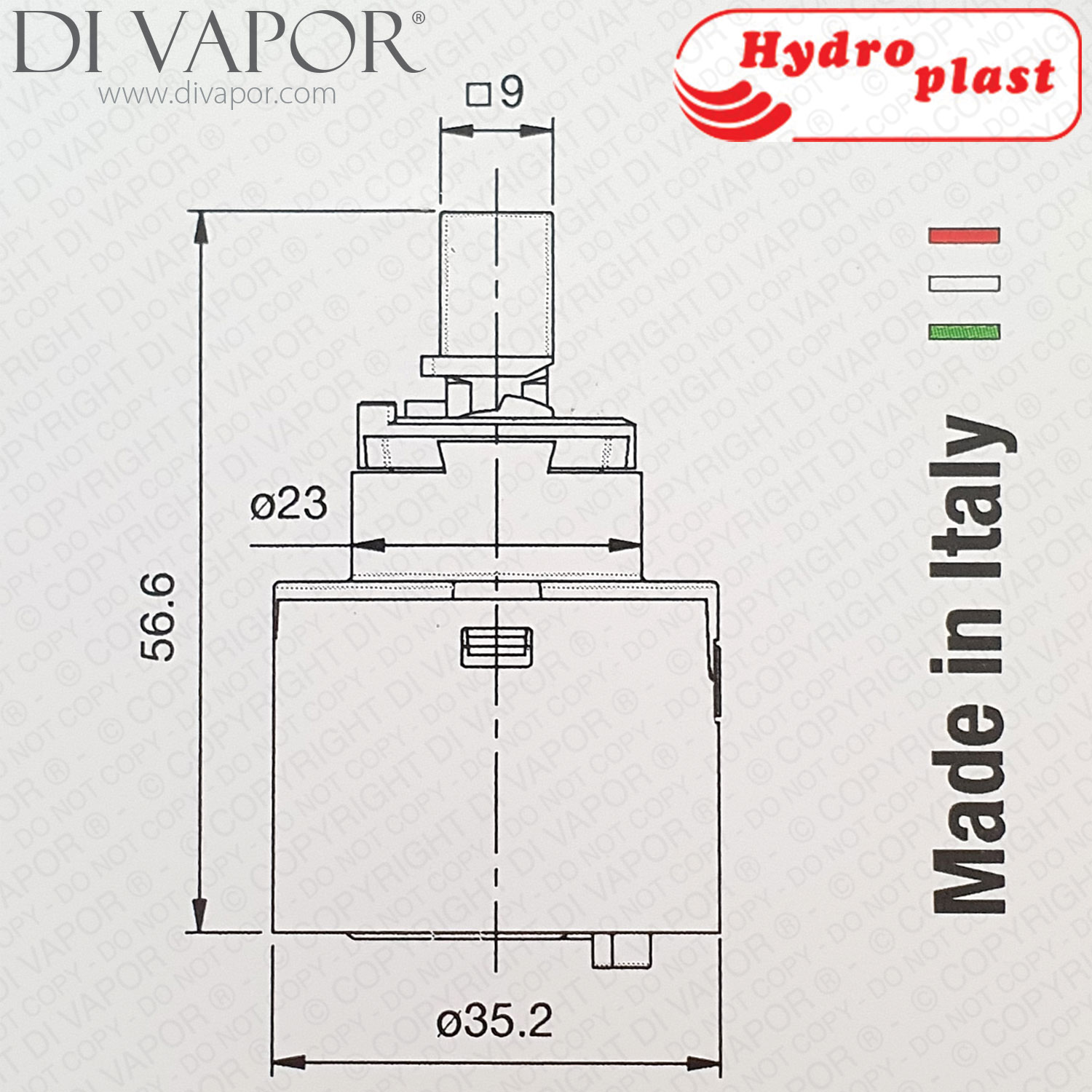

- - Cartridge type: 35 mm ceramic disc lever cartridge

- - Stem format: 9 mm x 9 mm square stem with plastic adaptor

- - Hydroplast format: G.35 Q. 9x9 C/RT

- - Part Number: HP-G35

- - Opening angle: 24 degrees

- - Mixing angle: 96 degrees

- - Maximum hot water temperature: 80 degrees C

- - Recommended hot water temperature: 60 degrees C to 65 degrees C

- - Minimum water pressure: 0.1 bar

- - Maximum continuous pressure: 5 bar

- - Maximum occasional pressure: 10 bar

- - Recommended maximum hot and cold pressure difference: 1.5 bar

- - Recommended retaining nut tightening torque: 10 Nm to 12 Nm

Before Ordering

- - Match the marking and format of the removed cartridge to G.35 Q. 9x9 C/RT or G35 before ordering

- - Check the 35 mm cartridge body and 9 mm x 9 mm square stem against the existing cartridge

- - Check the locating pins, bottom seal layout and retaining nut arrangement before fitting

- - GX.35 is a separate distributor version and should not be treated as the same cartridge

- - Do not order from cartridge diameter alone if the original cartridge code or layout is different

Installation Note

Clean the tap or mixer body before fitting the new cartridge and apply suitable silicone grease to the cartridge o-rings and seals. Do not overtighten the retaining nut, as excessive force can damage the cartridge or affect handle movement.

Related Spares You May Need

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved - for lubricating cartridge o-rings and seals during installation

- - Hydroplast Cartridge G.47 Q. 10x10.5 C/RT (G47) - related Hydroplast lever cartridge variant

- - Hydroplast Cartridge G.40 Q. 10x10.5 C/RT (G.40) - related Hydroplast lever cartridge variant
