Hansgrohe 95646000 Lever Cartridge. Diameter: 35mm - - Total Height: 66mm - - Distance between locating pins centre to centre: 24.5mm

SUMMARY

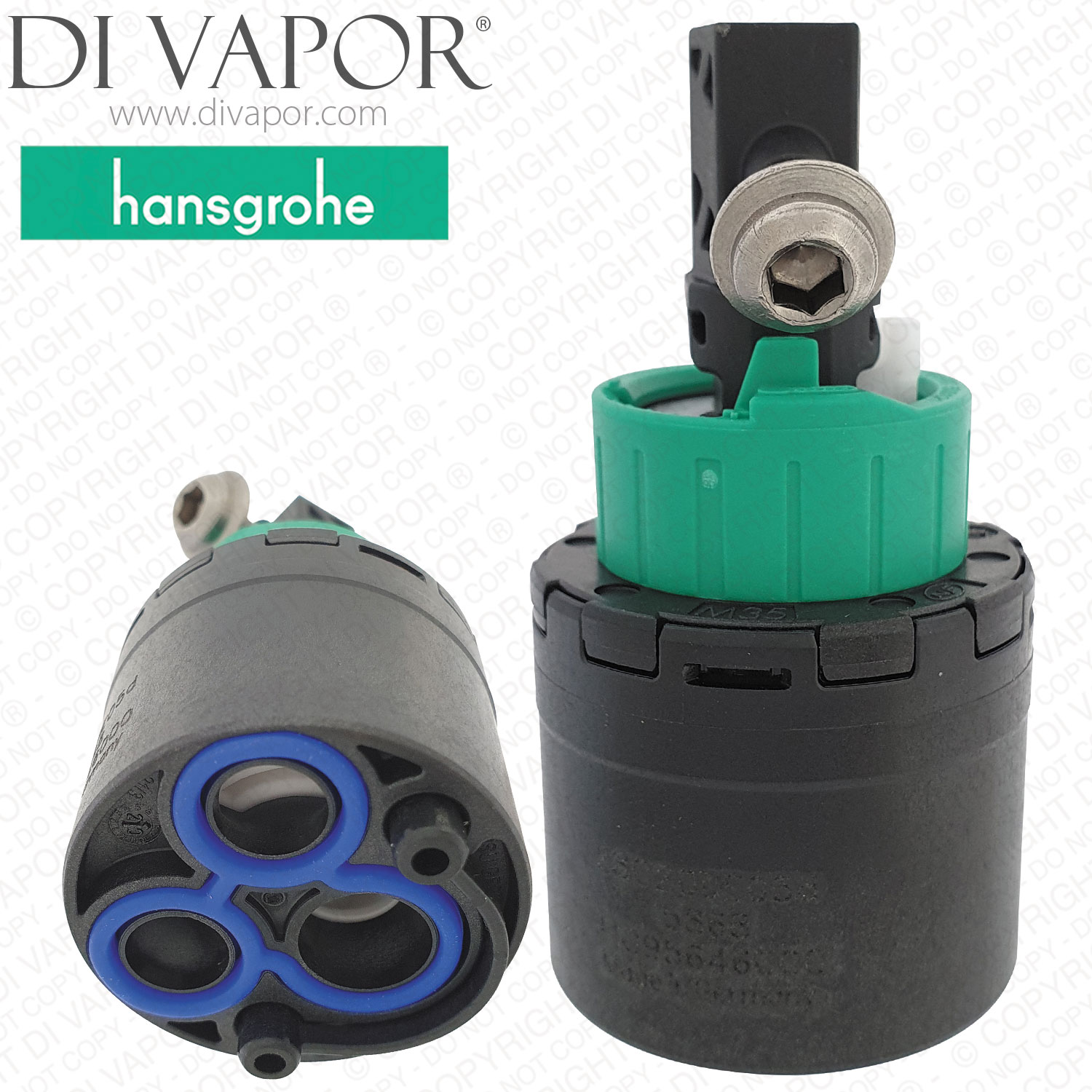

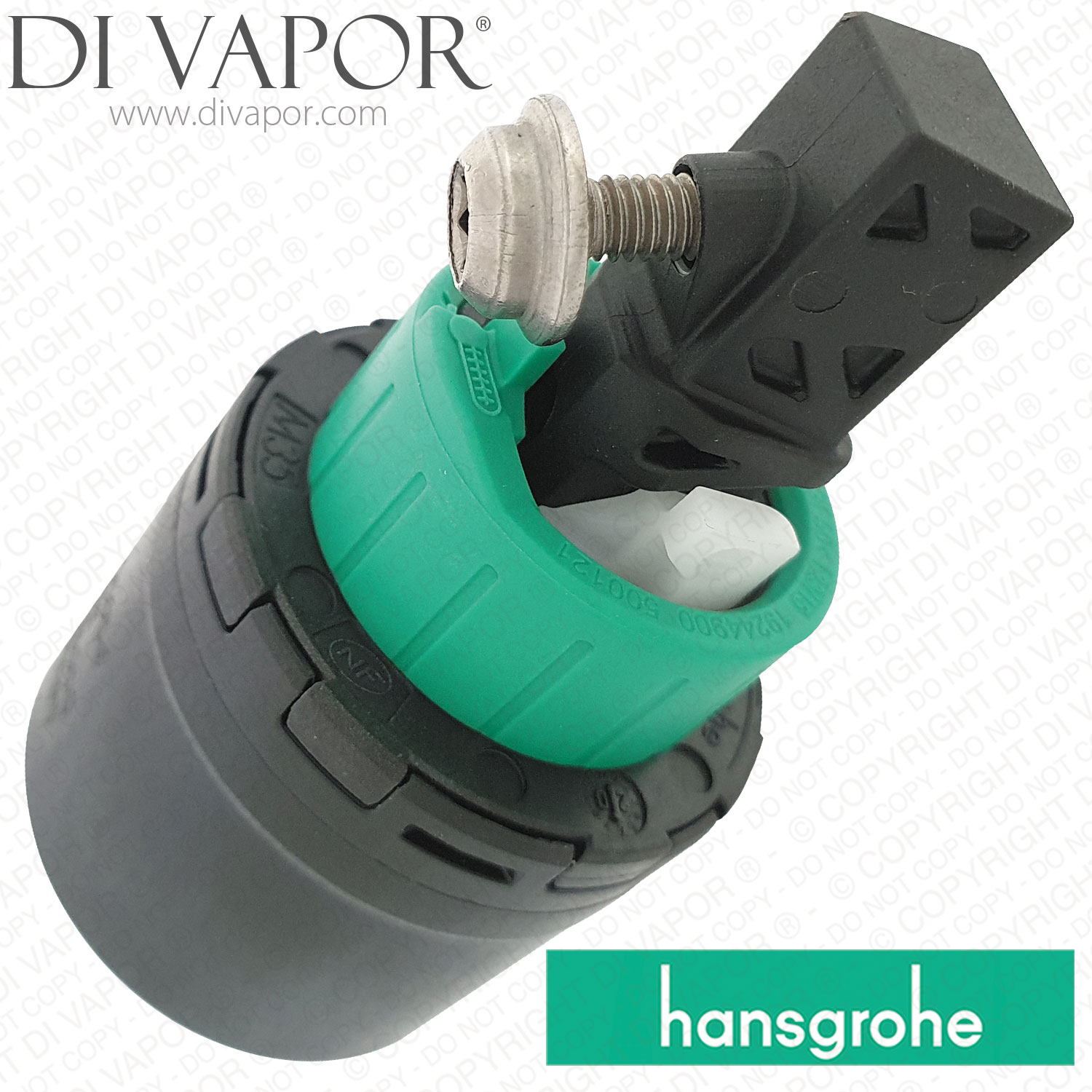

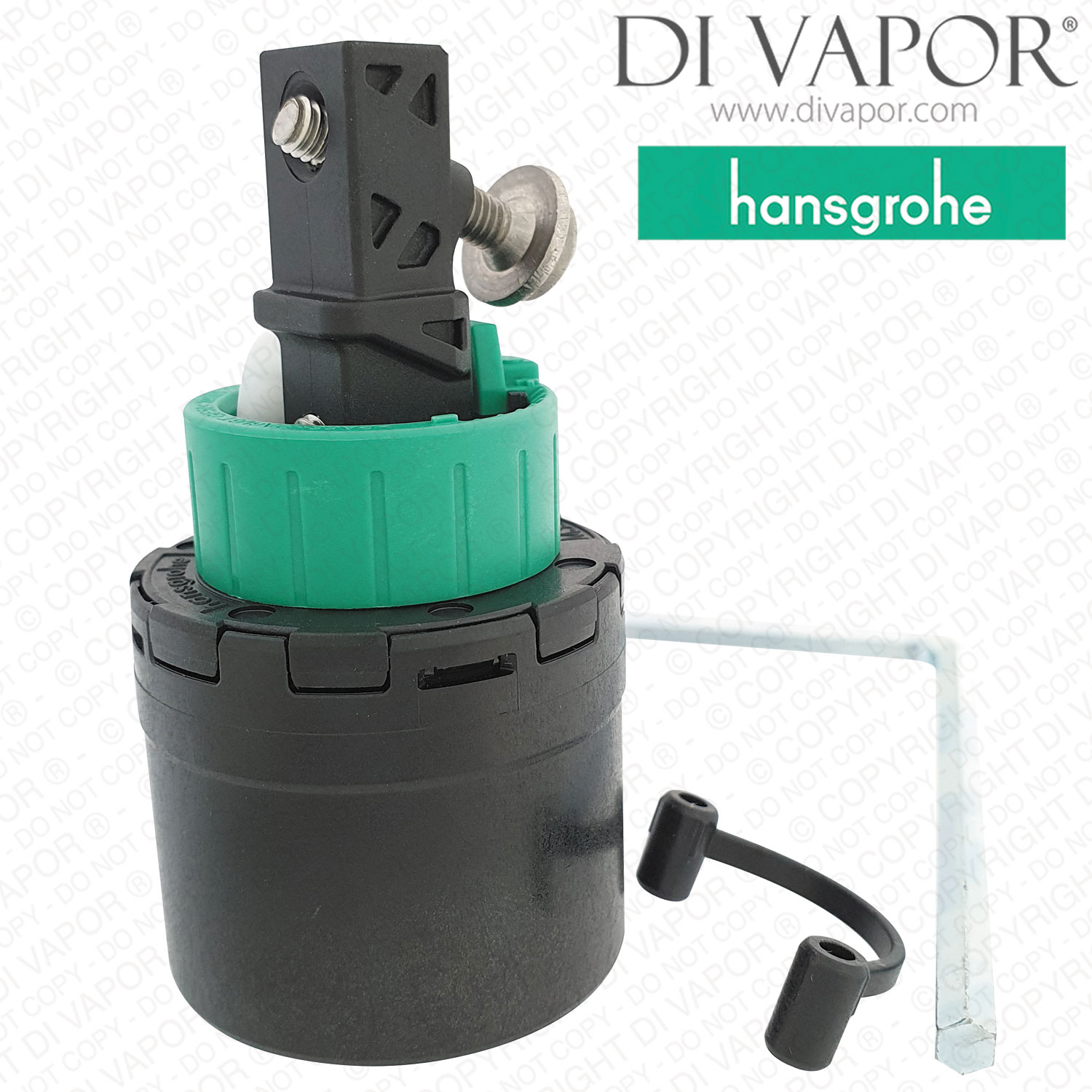

Hansgrohe 95646000 M35L 35mm Lever Mixer Cartridge

Hansgrohe 95646000 is an M35L lever mixer cartridge assembly used in selected Hansgrohe and AXOR single-lever basin, kitchen, bath and shower mixers. The cartridge is the internal operating component that regulates water flow and the hot-to-cold mix as the mixer lever is moved.

The 95646000 cartridge must be identified by the exact mixer article number and production version rather than diameter alone. Hansgrohe uses different cartridge codes across visually similar mixer models and revisions, so the existing cartridge and mixer details should be checked carefully before ordering.

Technical Details

- - Part code: 95646000

- - Di Vapor Part Number: HG-95646000

- - Manufacturer designation: M35L cartridge assembly

- - Cartridge diameter: 35mm

- - Total height: 66mm

- - Distance between locating pins centre-to-centre: 24.5mm

- - Used in selected single-lever basin, kitchen, bath and shower mixers

Before Ordering

- - Check the exact Hansgrohe or AXOR article number and production period of the mixer before ordering

- - Do not identify this cartridge from the 35mm diameter alone because similar Hansgrohe mixers can use different cartridge codes

- - Compare the locating-pin arrangement and overall cartridge dimensions with the removed cartridge where possible

Confirmed Compatible Models

- - Hansgrohe Focus M41 31826000 Single Lever Kitchen Mixer 160 EcoSmart 1jet

- - Hansgrohe Logis 71094009 Single Lever Basin Mixer 70 with Push-Open Waste Set 2 Ticks

- - Hansgrohe Logis E 71005009 Single Lever Basin Mixer 100 with Pop-Up Waste Set 2 Ticks

- - Hansgrohe Metropol 32536009 Floor-Standing Single Lever Bath Mixer with Lever Handle 2 Ticks

- - Hansgrohe Focus 31978009 Single Lever Basin Mixer 100 with Pop-Up Waste Set 3 Ticks

- - Hansgrohe Focus 31541009 Single Lever Basin Mixer 100 without Waste Set 2 Ticks

- - Hansgrohe Logis 71294009 Single Lever Basin Mixer 100 without Waste Set 3 Ticks

- - Hansgrohe Logis 71292009 Single Lever Basin Mixer 70 with Push-Open Waste Set 3 Ticks

- - Hansgrohe Focus 31924009 Single Lever Shower Mixer for Exposed Installation 2 Ticks

- - Hansgrohe Focus 31561009 Pillar Tap 70 without Waste Set 3 Ticks

- - Hansgrohe Focus 31977009 Single Lever Basin Mixer 100 with Pop-Up Waste Set 2 Ticks

- - Hansgrohe Logis 71297009 Single Lever Basin Mixer 100 with Pop-Up Waste Set 2 Ticks

- - Hansgrohe Focus 31540009 Single Lever Basin Mixer 230 with Pop-Up Waste Set 2 Ticks

- - Hansgrohe Metris 31203000 Single Lever Basin Mixer 110 LowFlow with Pop-Up Waste Set

- - Hansgrohe Metris 31251000 Wall-Mounted Single Lever Basin Mixer LowFlow

- - Hansgrohe Metris S 31063000 Single Lever Basin Mixer 100 LowFlow with Pop-Up Waste Set

- - Hansgrohe Focus 31603000 Single Lever Basin Mixer 100 LowFlow with Pop-Up Waste Set

- - Hansgrohe Focus 31951000 Single Lever Basin Mixer 70 LowFlow with Pop-Up Waste Set

- - Hansgrohe Talis 32146000 Single Lever Basin Mixer 80 LowFlow without Waste Set

- - Hansgrohe AXOR Uno 38622009 Single Lever Shower Mixer for Exposed Installation with Loop Handle 2 Ticks

- - Hansgrohe AXOR Uno 38623009

- - Hansgrohe AXOR Citterio 39832000 Single Lever Kitchen Mixer 250 with Pull-Out Spray EcoSmart

- - Hansgrohe AXOR Citterio 39832670 Single Lever Kitchen Mixer 250 with Pull-Out Spray EcoSmart

Related Spares You May Need

- - TACSIL 3g WRAS Approved Silicone Grease for Tap & Shower Cartridges - Part Number TAC86

A thin coating of suitable silicone grease on the cartridge O-rings can help the seals slide into position during installation and reduce the risk of twisting or pinching them. If the exact mixer article number cannot be confirmed, compare the original cartridge carefully or contact us before ordering.
