Crosswater CG110FL1 Ku Single Lever Ceramic Disc Cartridge

SUMMARY

Crosswater CG110FL1 Ku 35mm Single Lever Ceramic Disc Cartridge for Taps and Manual Shower Valves

Crosswater CG110FL1 is a 35mm single lever ceramic disc mixer cartridge for selected Crosswater basin taps, bath fillers, bath shower mixers and manual shower valves. It fits beneath the control lever to regulate water flow and the mix of hot and cold water.

A worn or scaled cartridge can cause a stiff lever or difficulty adjusting flow and temperature. Water dripping from the spout or shower head when the control is turned off can also indicate a cartridge fault, although trapped debris or incorrect seating may cause the same symptom.

Technical Details

- - Part number: CG110FL1

- - Cartridge type: single lever ceramic disc mixer cartridge

- - Control: manual water flow and hot/cold mixing

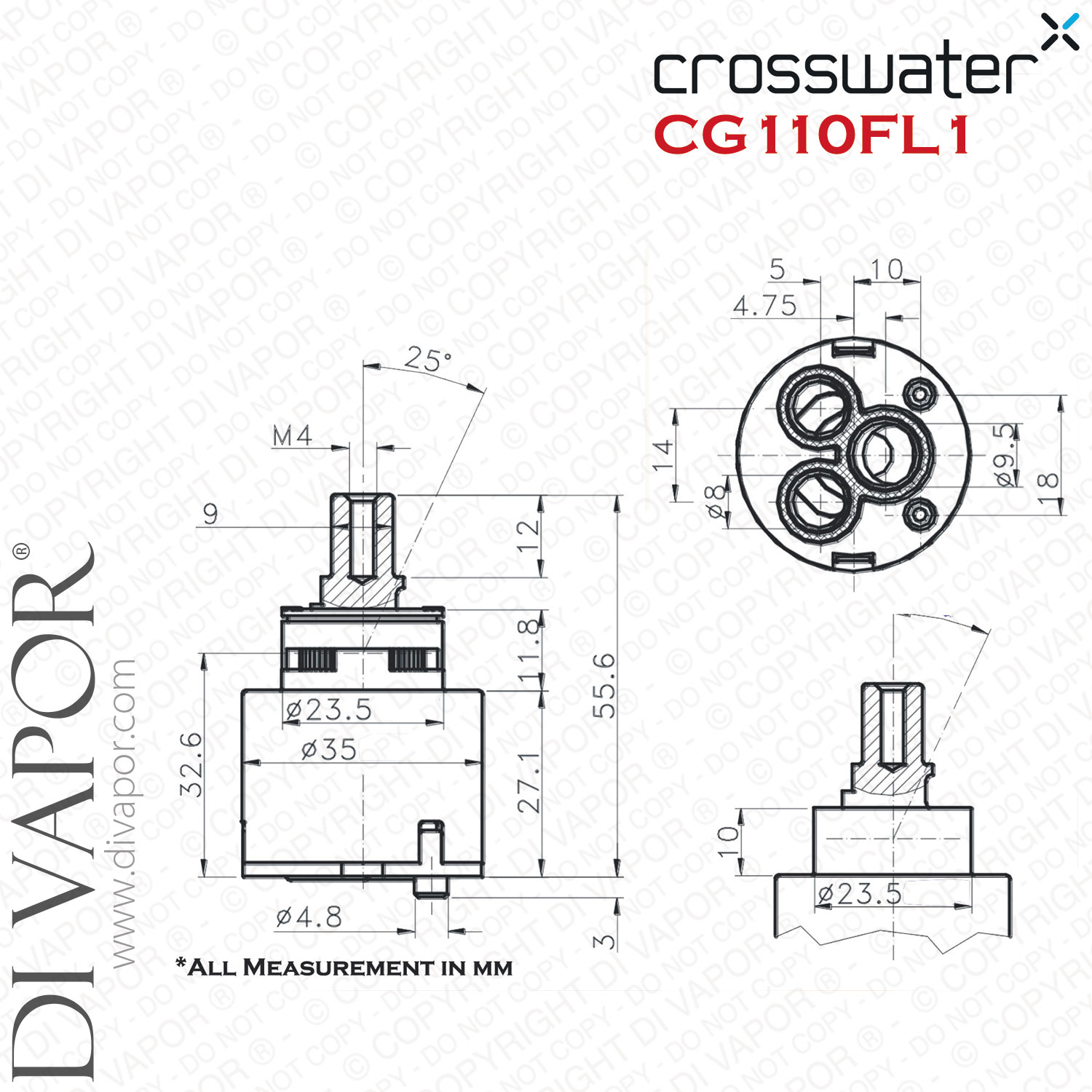

- - Body diameter: 35mm at the blue body

- - Locating-pin spacing: 18mm centre to centre

- - Overall length: 55.6mm excluding the locating pins

Confirmed Compatible Models

- - Crosswater DE0004RC Design Manual Shower Valve

- - Crosswater DE0005RC Design Manual Shower Valve with Diverter

- - Crosswater DE121WNC Design Wall-Mounted 2 Hole Basin Set

- - Crosswater DE321WC Design Wall-Mounted 2 Hole Bath Filler

- - Crosswater DE416FC Design Floor-Standing Bath Shower Mixer

- - Crosswater DE423WC Design 2 Hole Bath Set

- - Crosswater KL0004RC Kai Lever Manual Shower Valve

- - Crosswater KL0005RC Kai Lever Manual Shower Valve with Diverter

- - Crosswater LO121WNC Logic Wall-Mounted 2 Hole Basin Set

Check Before Ordering

Match the existing cartridge code, stem profile, base ports and locating pins as well as the measurements above. A 35mm body diameter alone does not confirm fitment. Do not assume that X1A030N or X1A024N can be replaced by CG110FL1.

For a Crosswater PRO416FC MPRO Bath Shower Mixer, confirm the required cartridge before ordering, particularly where the part reference is X1A105N.

Fitting and Maintenance

Isolate the water supplies and release pressure before removing the cartridge. Follow the instructions for your exact tap or valve when removing the handle, cartridge cover and retaining nut. Remove trapped debris, align the locating pins correctly and apply a light coating of silicone grease to the seals before refitting. Restore the supply and check for leaks and correct operation.

Related Spares You May Need

Choose related parts for the exact tap or valve being serviced.

- - TACSIL 3g WRAS Approved Silicone Grease - for lightly lubricating cartridge seals during fitting and servicing

- - Crosswater DV416FA1 Diverter Mechanism - separate diverter for the DE416FC bath shower mixer

- - Crosswater R2236 Backplate Screw Adaptor - for DE121WNC and DE321WC assemblies

- - Crosswater CC120FA2 Chrome Cartridge Collar - for the KL0004RC manual shower valve

- - Crosswater FT110FB1 10mm Flexitail - service part for the DE321WC assembly

If you are unsure which cartridge you need, use our part identification service.
