Bristan 08SN40L0001.04 Lever Cartridge

SUMMARY

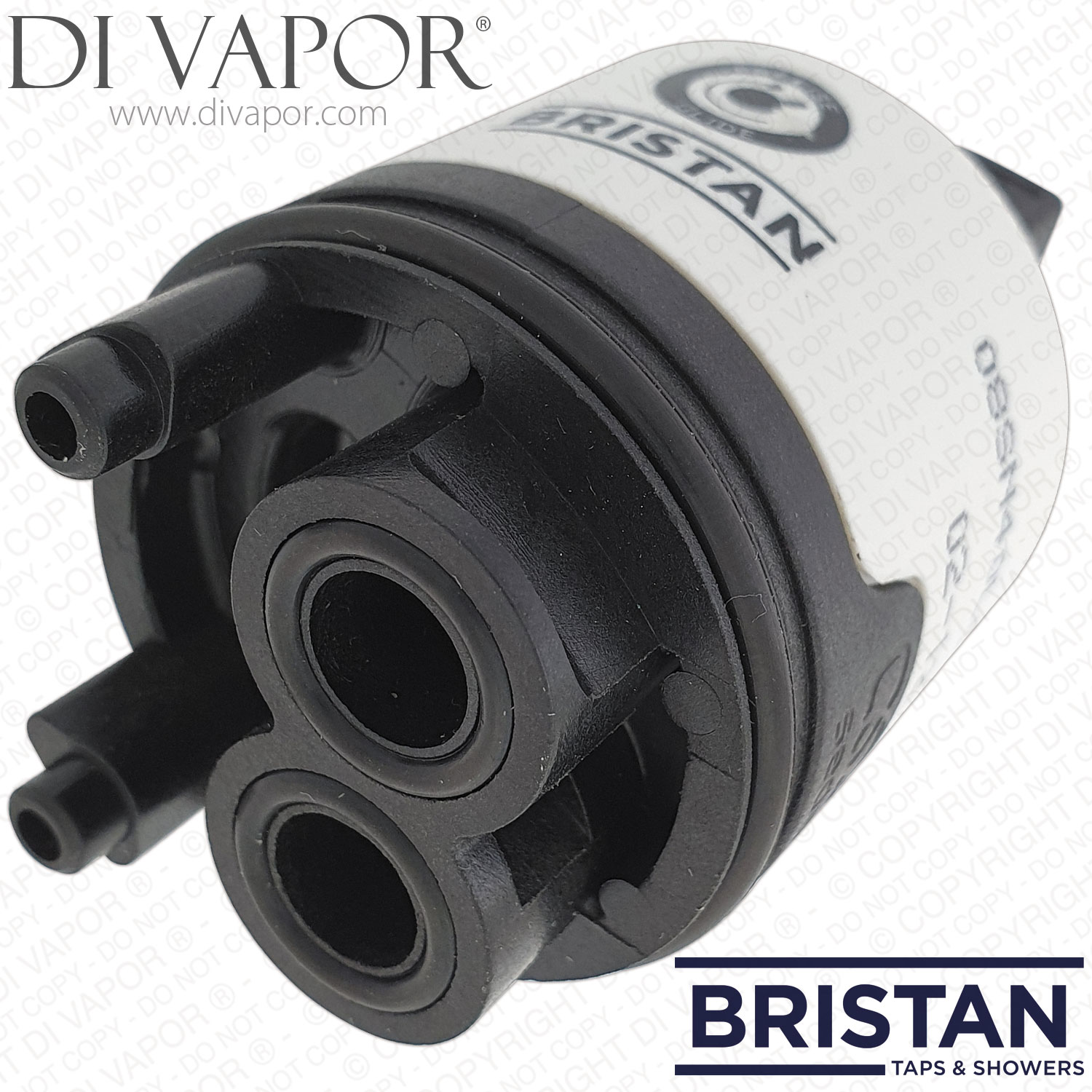

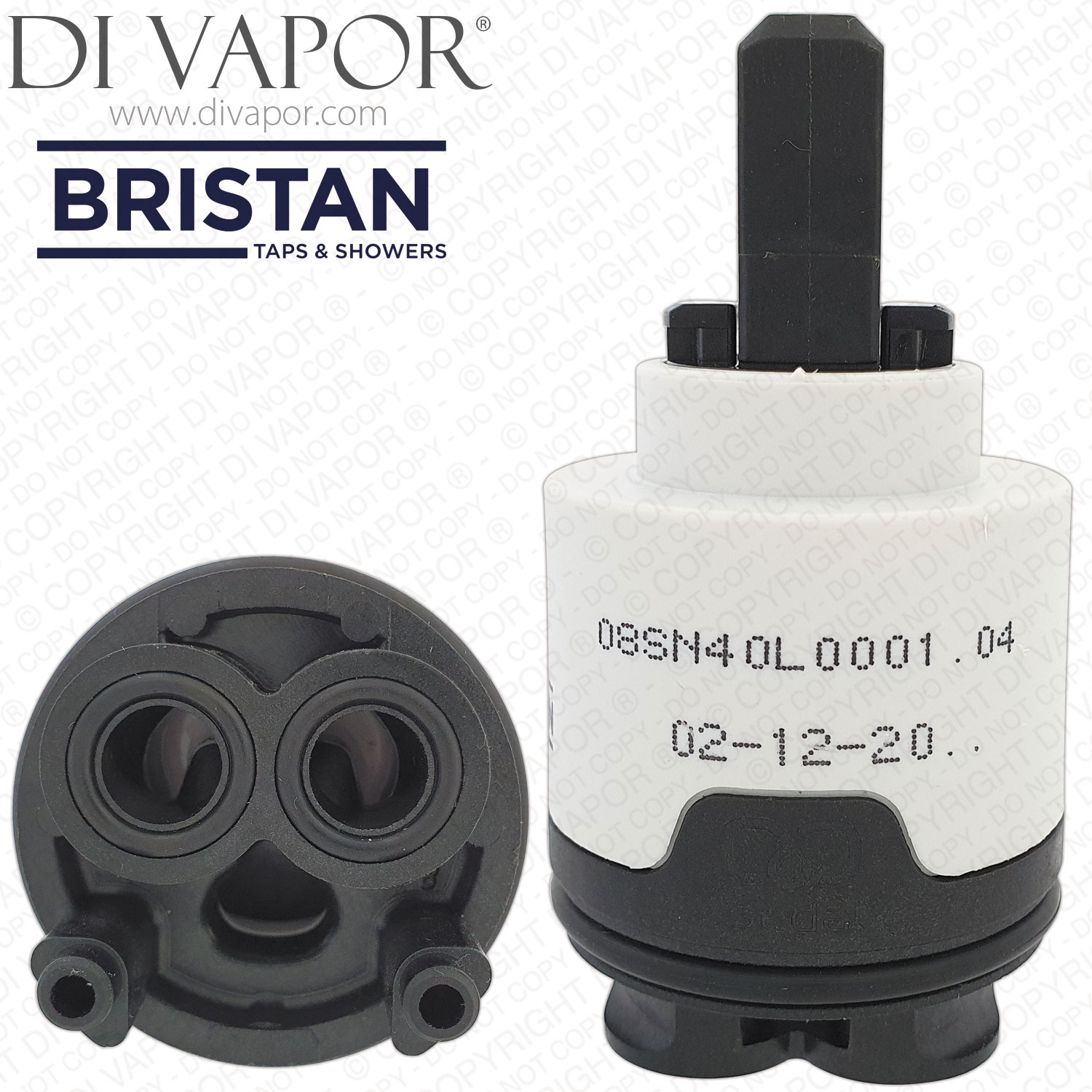

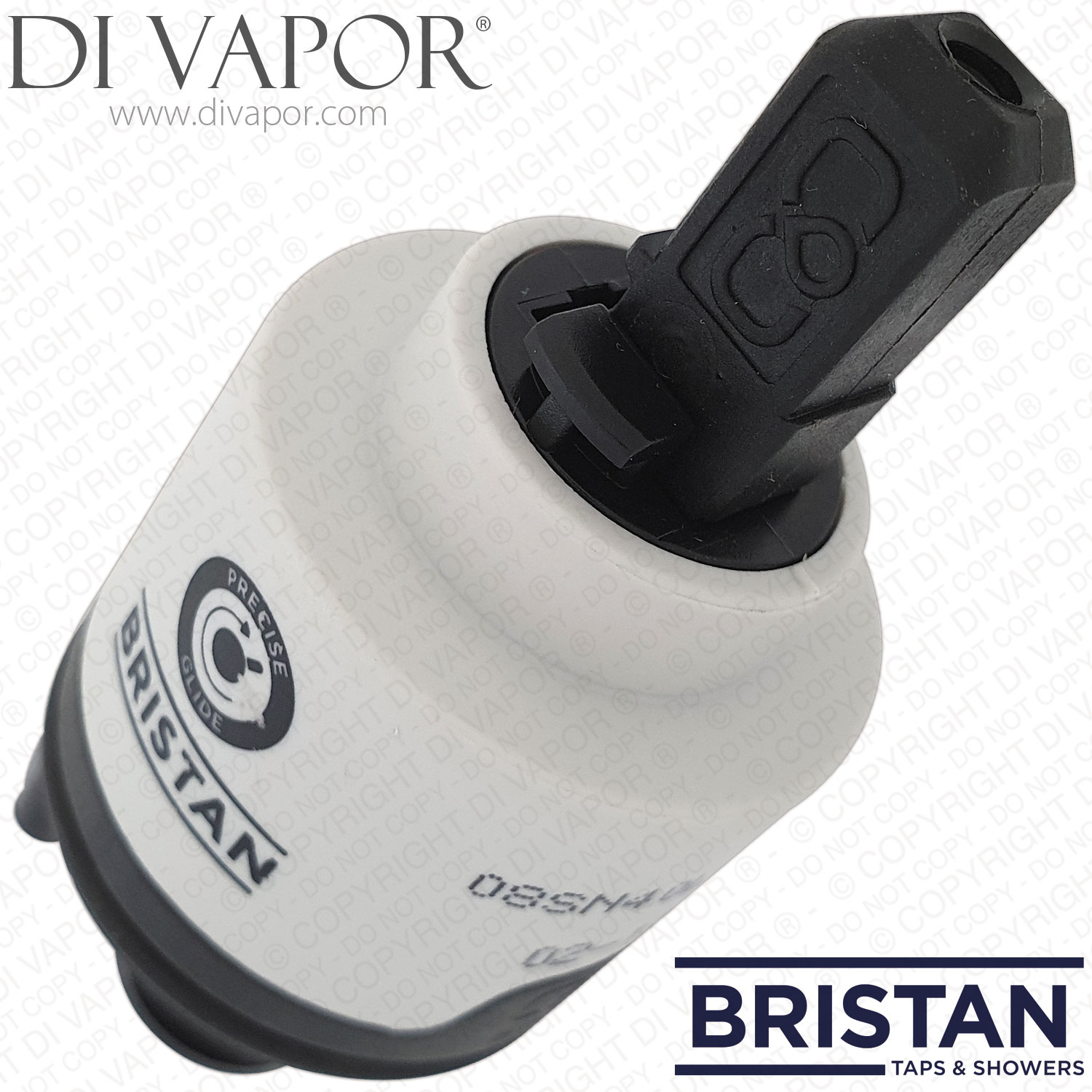

The Bristan 08SN40L0001.04 is a 40mm stepped lever cartridge used in selected single-lever basin mixer taps and bath/shower mixer taps. The cartridge controls mixed water flow through the tap body and helps restore smooth lever movement where the original cartridge has become stiff, worn or is allowing water to pass when the tap is turned off.

Technical Details

- - Brand: Bristan

- - Part Number: 08SN40L0001.04

- - Bristan spare name: 40mm Stepped Cartridge

- - Cartridge type: single lever mixer cartridge

- - Nominal size: 40mm

- - Application: selected single-lever basin mixer and bath/shower mixer taps

Before ordering, check the existing cartridge code, tap model and product revision where available. Bristan model revisions can use different internal cartridges, so do not order by diameter alone. Where a linked Di Vapor model spares page is shown, check the model revision against the existing tap before ordering.

Common Fault Symptoms

- - Symptom: Water dripping from the spout when the tap is turned off

- - Likely cause: Worn internal ceramic cartridge seals

- - Solution: Replace the cartridge and lightly grease the O-rings during installation

- - Symptom: Lever feels stiff or uneven when moving between hot and cold

- - Likely cause: Cartridge wear, scale build-up or dry O-rings

- - Solution: Replace the cartridge and check the tap body is clean before fitting the new part

Confirmed Compatible Models

- - Bristan J BAS C Java Basin Mixer with Clicker Waste

- - Bristan J BAS E4 C Java Basin Mixer with Clicker Waste 4 Litre Flow Limit

- - Bristan J EBAS C Java Eco Basin Mixer with Clicker Waste

- - Bristan PS BAS C Pisa Basin Mixer with Clicker Waste

- - Bristan PM BASNW C Prism Basin Mixer without Waste

- - Bristan PM BAS C Prism Basin Mixer with Pop-up Waste

- - Bristan PM EBAS C Prism Eco Basin Mixer with Pop-up Waste

- - Bristan PM TBAS C Prism Tall Basin Mixer without Waste

- - Bristan HOU 1HBF C Hourglass 1 Hole Bath Filler

- - Bristan DSC FSBSM C Descent Floor Standing Bath Shower Mixer

- - Heritage THPC171 Hemsby Floor Standing Bath Shower Mixer

Installation Note

Turn off the hot and cold water supplies before removing the handle and retaining nut. Clean out scale or debris from the tap body before installing the new cartridge. Apply a small amount of WRAS approved silicone grease to the O-rings to help the cartridge seat correctly and reduce installation friction.

Related Spares You May Need

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
