Summary

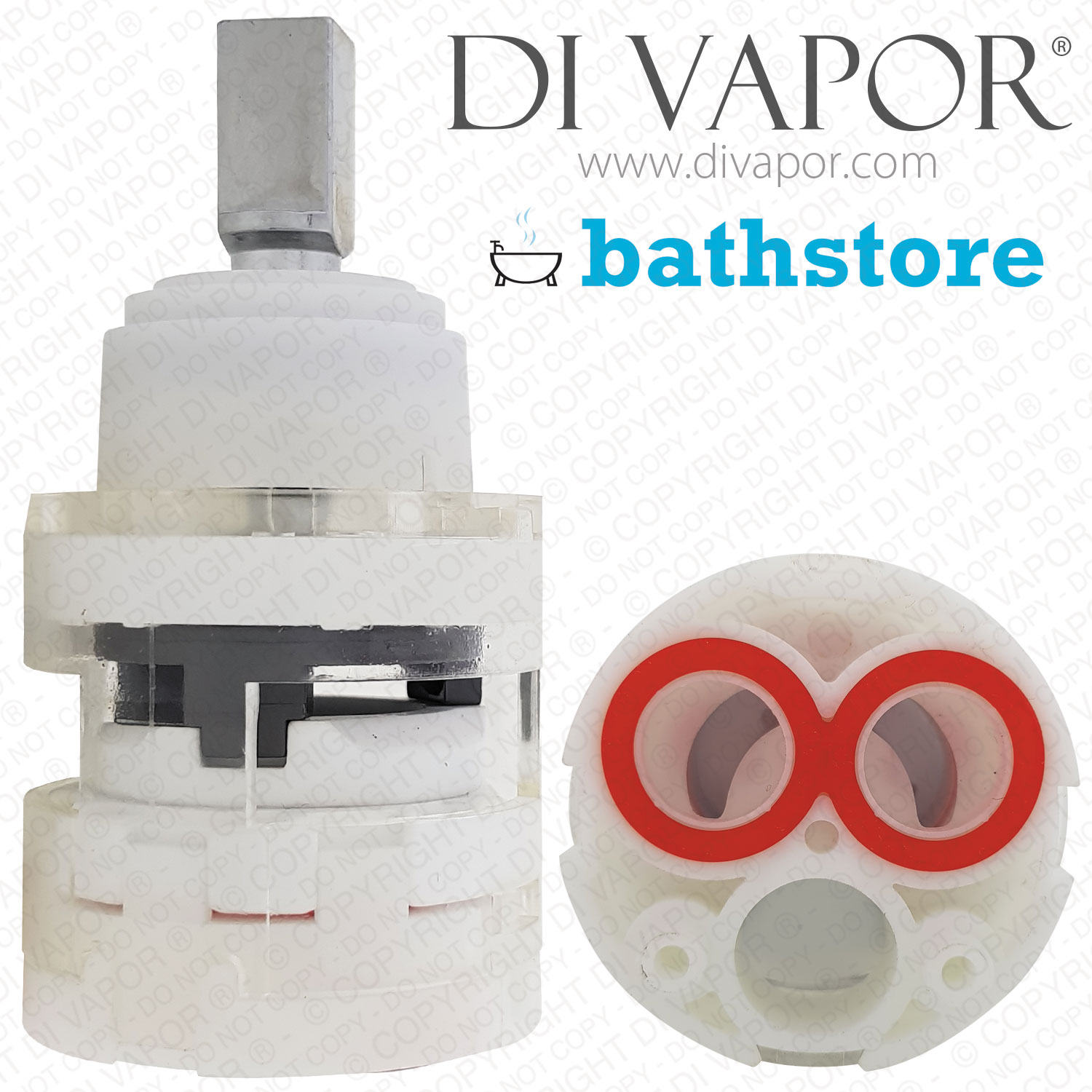

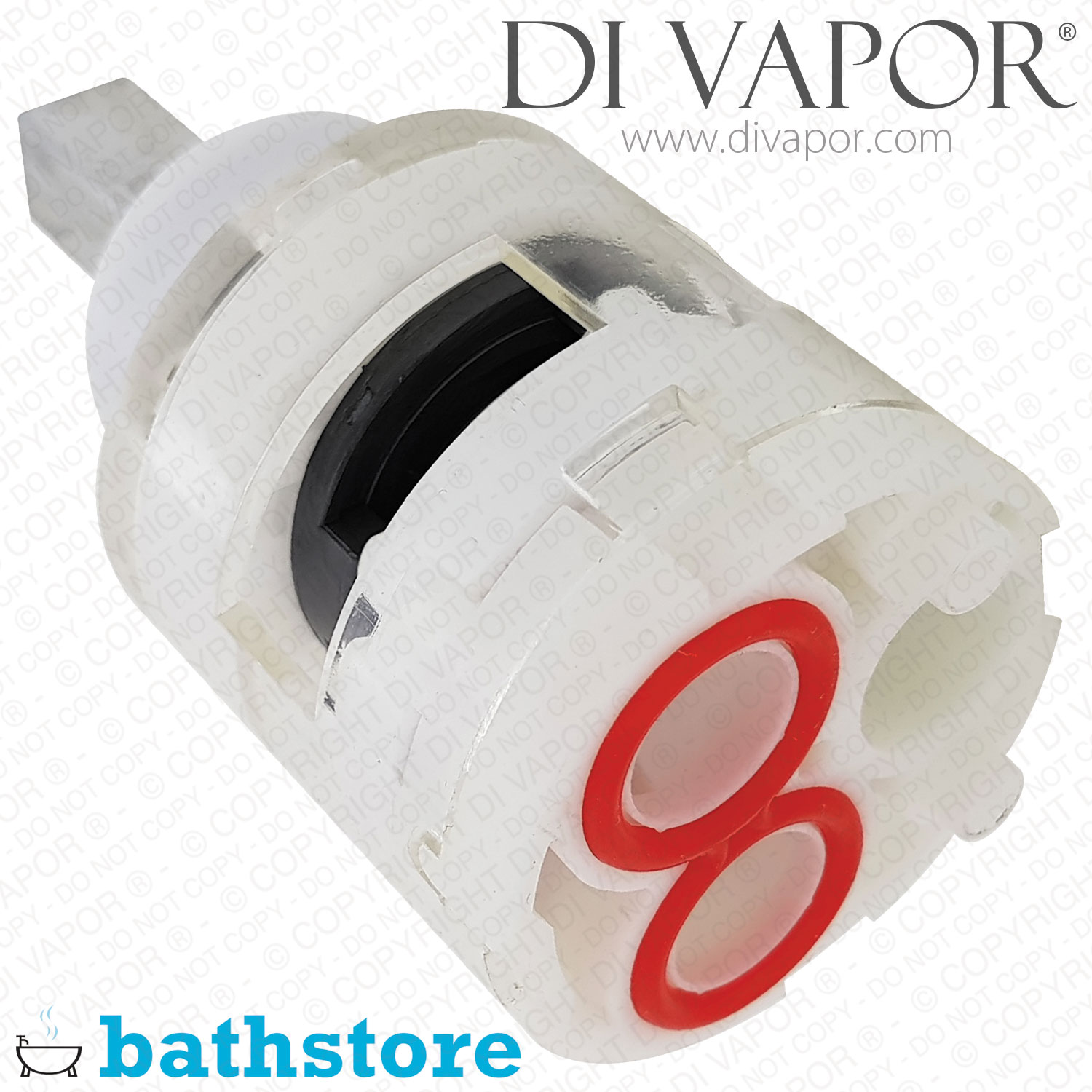

Bathstore Wave Mono Bath Filler 90000014310 Lever Cartridge - 45mm Diameter

Distance Between Locating Pins at Bottom (Centre to Centre): 25mm

Bathstore Spares Common Questions: 45mm Bathstore Wave Mono Bath Filler 90000014310 Lever Cartridge

The Bathstore Wave Mono lever cartridge 90000014310 can also be the spare part for other bath fillers. You can pop us a query via our Find a Part service. Di Vapor’s spares experts are always more than happy to assist you in spare part identification. (Messages received on the weekend will be attended to first on Monday.)

Question: Do you know how I can get the Bathstore Wave cartridge out of the bath filler?

Answer: Remove the handle by loosening the screw. There is a retaining collar/nut that holds the Bathstore Wave Mono lever cartridge 90000014310 in the bath filler.

• If there are slots in the retaining collar, use a flat tool (i.e. flat blade screwdriver) against the slots to turn it in an anti-clockwise motion to remove it. Pull the Bathstore 90000014310 out of the Bathstore Wave Mono bath filler.
• If the retaining collar/nut has flat sides, a spanner can be used to screw out the collar. Once the collar is out the 45mm Bathstore Wave Mono lever cartridge can be pulled out.

Question: We’ve been using the Bathstore Wave tap for many years and recently the handle has become stiff to turn. Do I need to replace the 90000014310 lever cartridge?

Answer: A new Bathstore Wave Mono lever cartridge (45mm) can likely get the handle to turn smoothly again. Limescale may have collected around the cartridge head and under the lever handle giving it some resistance.

If you find the handle difficult to remove from the bath filler, try spraying WD-40 and leave it to soak for a few hours to overnight.

Question: What are the definitive symptoms that call for a replacement Bathstore Wave Mono bath filler lever cartridge?

Answer: The Bathstore Wave Mono 90000014310 lever cartridge requires a replacement when:

• there is water dripping around the lever handle;
• you’re having a hard time adjusting water temperature;
• running water temperature keeps on changing even without moving the handle;
• the handle becomes stiff to control.

Di Vapor supplies spares that will help you fix bath fillers, taps and showers. You can browse our selection of Bathstore spares or chat us up for spares queries via WhatsApp (contact info: 07754 173340).

Why buy your spares from us? We provide:

+ Budget-friendly and quality spares.

+ Helpful customer care and support.

+ Speedy delivery.

The Bathstore Wave Mono bath filler lever cartridge (90000014310, 45mm) and every spare that is purchased before 3 PM (Monday - Friday) will be beginning its journey to your doorstep on the same business day.
