B960775NU Ideal Standard High Flow Basin Lever Cartridge - 40mm Diameter

Summary

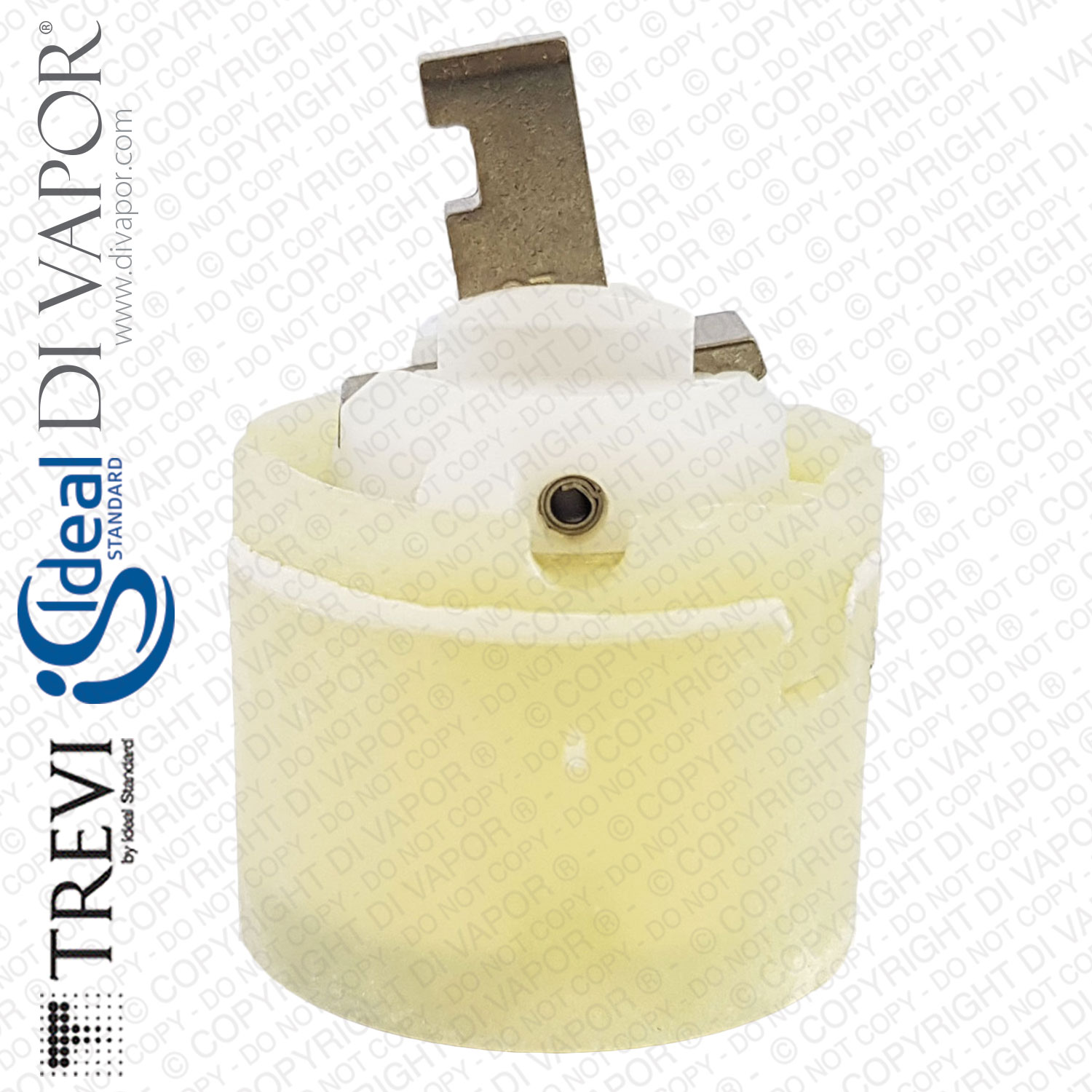

Ideal Standard B960775NU 40mm High Flow Single Lever Tap and Shower Mixer Cartridge

The B960775NU is a genuine Ideal Standard replacement part specifically made for the company’s lever head basin taps. Such taps have a single metal handle that also functions as a shroud to protect the internal structure of the tap. The list of compatible taps can be found below.

Genuine Ideal Standard B960775NU high flow single lever mixer cartridge for the selected basin taps, bidet mixers, kitchen sink mixers and early Tesi shower mixers listed below.

The cartridge sits inside the mixer body and controls water flow and hot and cold mixing through a single lever. It is not a thermostatic temperature-control cartridge or a diverter.

Technical Details

Before Ordering

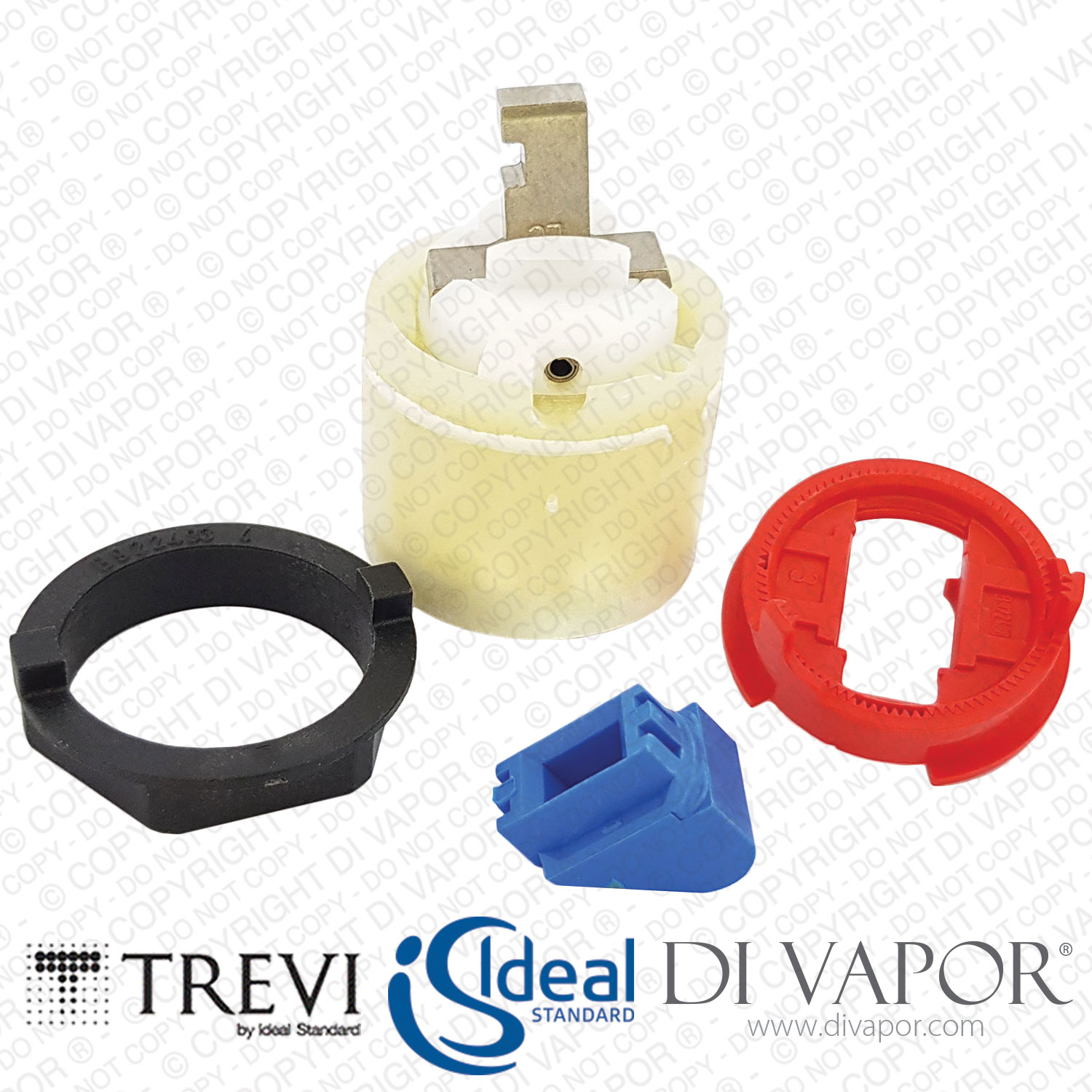

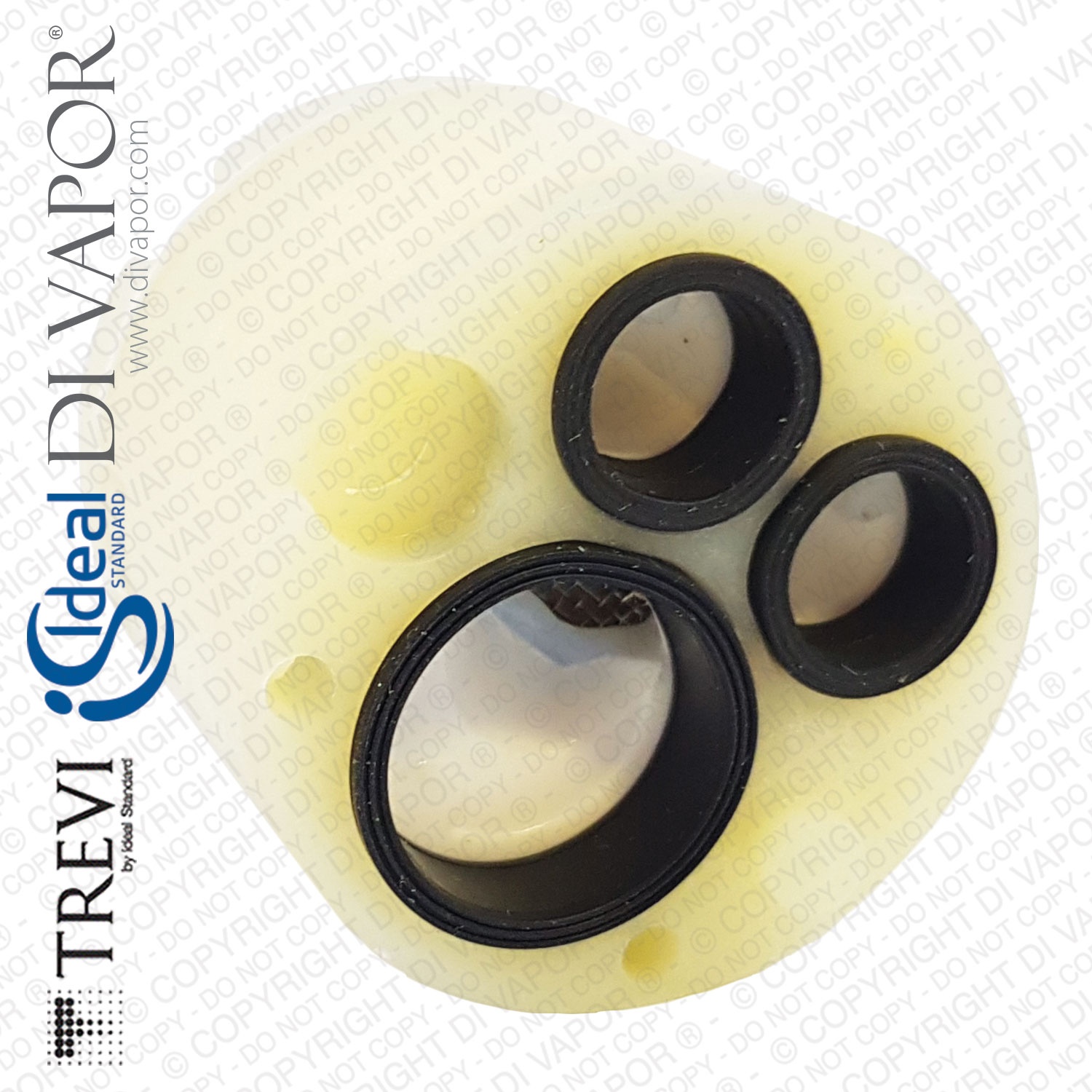

Check the exact mixer model, production version and original cartridge reference. Compare the handle connection, cartridge base, water ports and seals as well as the dimensions; a 40mm diameter alone does not establish fitment. Keep the original adapters and retaining components until the repair is complete, and check the product photographs for the supplied components.

The Tesi shower applications below are limited to the November 2015 to June 2019 version. For Tesino B1048AA and B1049AA, select the GEN1 assembly rather than assuming all production versions use the same cartridge.

Confirmed Compatible Models

• Ideal Standard A5648AA Ceramix Blue single lever basin mixer
• Ideal Standard A5649AA GEN1 Ceramix Blue single lever basin mixer
• Ideal Standard A5652AA Ceramix Blue Piccolo single lever basin mixer
• Ideal Standard B0245AA Active Blue basin mixer
• Ideal Standard B0246AA GEN1 Active single lever basin mixer
• Ideal Standard B0671AA Concept Blue basin mixer with pop-up waste
• Ideal Standard B0672AA Concept Blue basin mixer
• Ideal Standard B9915AA Concept Blue basin mixer with pop-up waste
• Ideal Standard B9918AA GEN1 Concept Blue basin mixer
• Ideal Standard B9988AA Concept Blue bidet mixer with pop-up waste
• Ideal Standard B0763AA Tempo basin mixer
• Ideal Standard B0764AA Tempo basin mixer without waste
• Ideal Standard B0765AA Tempo rim-mounted bidet mixer
• Ideal Standard B0766AA GEN1 Tempo kitchen sink mixer
• Ideal Standard B9678AA GEN1 Natos basin mixer
• Ideal Standard B9977AA Alto single lever basin mixer with pop-up waste
• Sottini B1048AA GEN1 Tesino single lever basin mixer
• Sottini B1049AA GEN1 Tesino single lever basin mixer without waste
• Sottini B1050AA Tesino bidet mixer
• Ideal Standard A6581AA GEN1 Tesi exposed shower mixer without accessories - November 2015 to June 2019 version only
• Ideal Standard A6582AA Tesi exposed shower mixer with accessories - November 2015 to June 2019 version only
• Ideal Standard B8529AA Alto Single Lever One Taphole Basin Mixer Tap
• Ideal Standard A6583AA Tesi 2H Wall Mounted Bath Shower Mixer

Fault Symptoms and Fitting

A worn single lever cartridge may cause stiff lever movement, difficulty adjusting flow or temperature, leakage around the handle or continued dripping from the spout or shower head when the mixer is switched off. Check the seals and outlet for other faults before replacing the cartridge; a blocked aerator or flow straightener can also restrict flow.

Isolate both hot and cold water supplies before dismantling the mixer. Follow the instructions for the exact model, remove debris from the cartridge housing and check operation and all disturbed connections for leaks after reassembly.

Related Spares You May Need

These are separate model-specific service parts, not a kit. Select each item for your exact mixer and fault; they are not all required for a cartridge change.

• TACSIL TAC86 3g cartridge silicone grease
• Ideal Standard A963309NU handle retaining screw - for the listed Ceramix Blue mixers and early Tesi shower mixer
• Ideal Standard B960754AA 5 litre/min regulated basin tap aerator
• Ideal Standard A960949NU basin mixer fixing kit - for Ceramix Blue A5648AA and A5652AA and Active B0246AA GEN1
• Ideal Standard A961230AA chrome pop-up waste - for Ceramix Blue A5648AA and A5652AA
• Ideal Standard A962713NU flow straightener insert - for selected Ceramix Blue, Active and Concept Blue basin mixers
• Ideal Standard B960231NU sink mixer manifold sealing set - for Tempo B0766AA GEN1
• Ideal Standard A961810NU seal kit - for early Tesi A6581AA shower mixer servicing
• Ideal Standard A962594NU non-return valves - for early Tesi A6581AA shower mixer servicing
• Ideal Standard A963651NU 1/2 inch outlet nipple - for early Tesi A6581AA shower mixer servicing
• B960775NUC cartridge-only alternative - supplied without extra adapters; this is an alternative purchase, not an additional component required alongside B960775NU

Not sure which part you need? Use our Di Vapor part identification service for help.
