Abode 35mm Cartridge ADX554 Compatible Spare
Send a photo of your item and we'll help confirm it.
Summary
Abode 35mm Cartridge ADX554 Compatible Spare

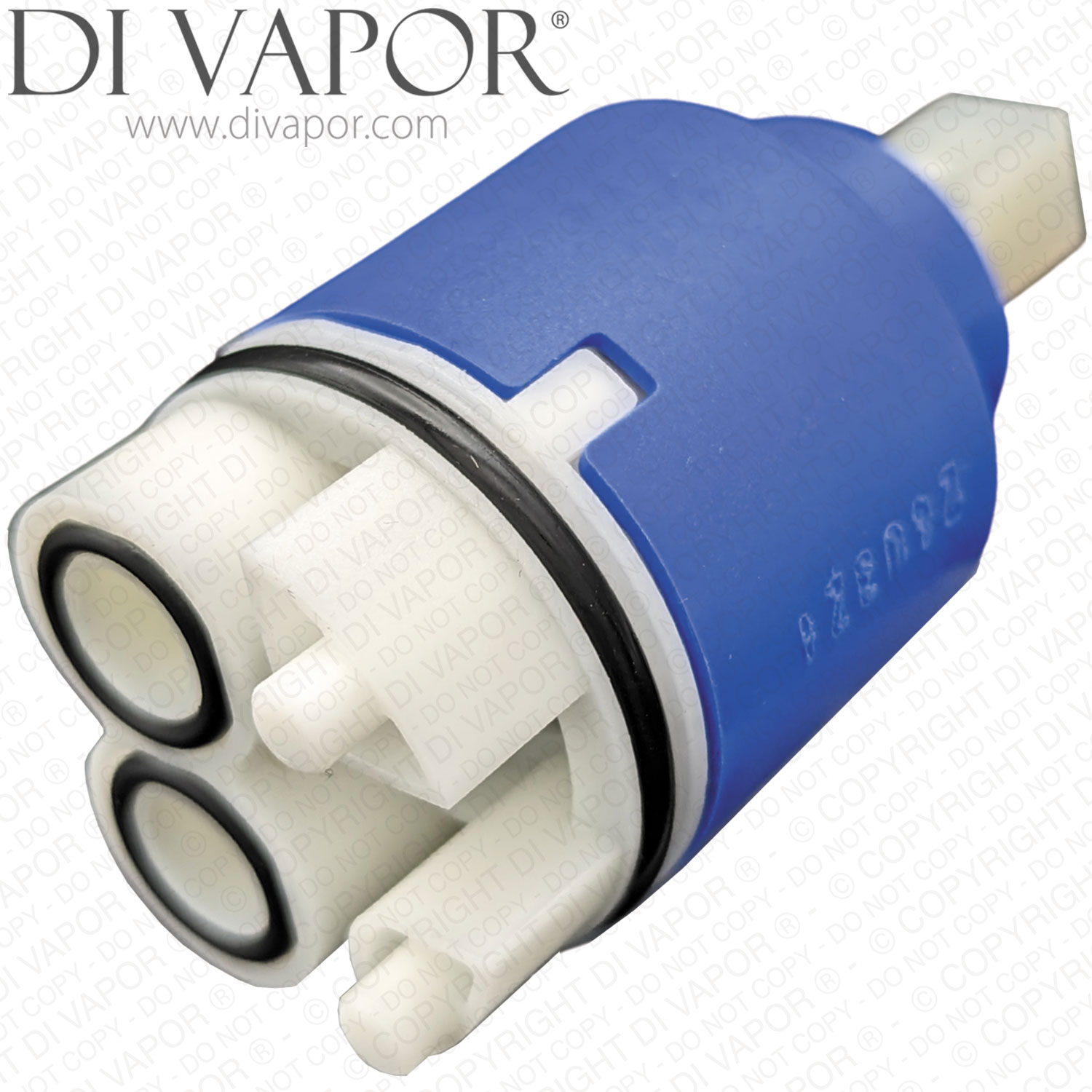

The Abode ADX554 is a 35mm lever cartridge compatible spare for matching Abode single lever mixer assemblies. It is the internal control cartridge that sits beneath the operating handle and helps regulate water flow and mixed temperature through the lever movement.
This cartridge should be matched against the removed part before ordering, as 35mm cartridge size alone does not confirm fitment. Check the cartridge body diameter, spindle shape, overall height, locating lug positions, underside port layout and seal positions against the existing cartridge.
Technical Details
| Brand | Abode |
|---|---|
| Part Number | ADX554 |
| Cartridge type | 35mm lever cartridge |
| Spare type | compatible spare |
| Function | controls flow and mixed water temperature in a matching single lever mixer assembly |

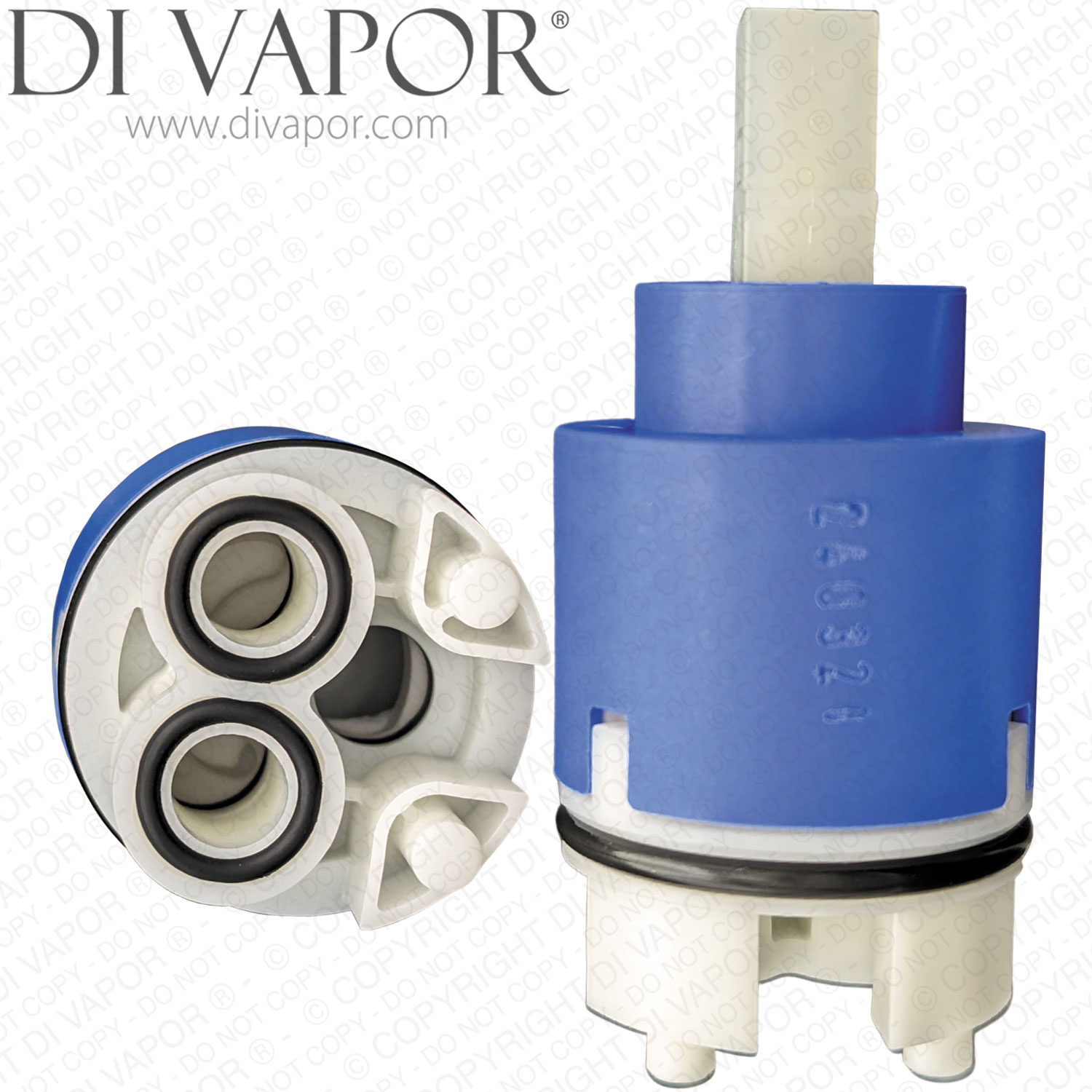

| Visual identification points | blue and white cartridge body, square operating stem and lower seal/port arrangement |
Common Fault Symptoms
- Stiff or uneven lever movement
- Poor control of flow or temperature through the mixer
- Water passing when the tap or valve is turned off where the cartridge seal or ceramic control section has worn
Before Ordering
Remove the existing cartridge and compare it carefully with ADX554 before purchase. If the existing part code is missing or the cartridge dimensions and underside layout do not match, use the Find a Part service for identification before ordering.
