Inta PU100008XX Flow Cartridge
Send a photo of your item and we'll help confirm it.
Summary

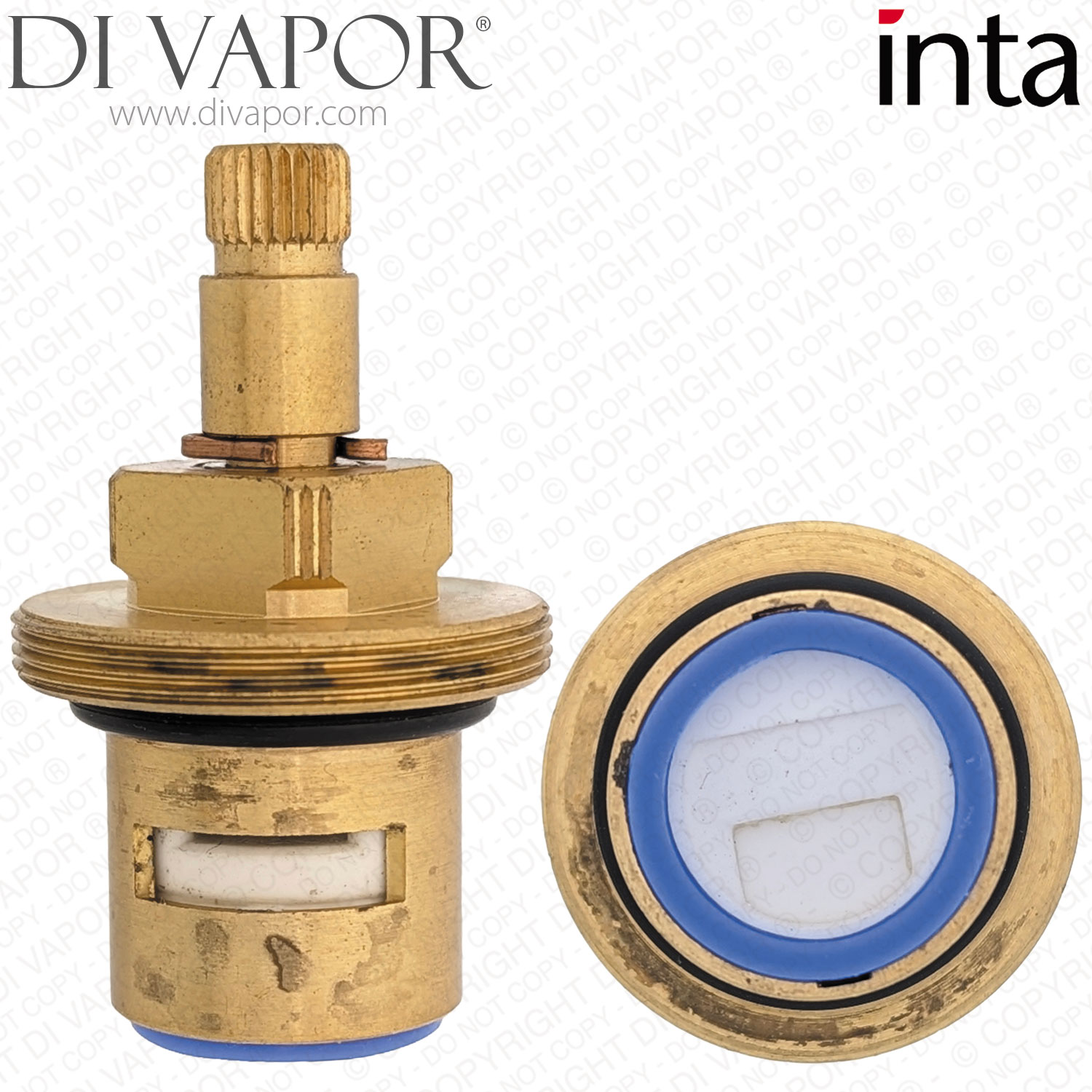

Inta PU100008XX Flow Cartridge for PU10031CP Puro Single Outlet Bar Shower Valve, PU10035CP Puro Deluxe Single Outlet Bar Shower Valve
The Inta PU100008XX is a flow cartridge used in selected Inta Puro thermostatic single outlet bar shower valves. It controls the on and off water flow through the shower valve and is separate from the thermostatic cartridge, which controls water temperature.
This cartridge is used where the existing PU100008XX flow cartridge has become stiff, restricted, worn or no longer shuts off correctly. A common symptom of flow cartridge wear can be water dripping from the shower head after the shower has been turned off, although supply pressure, debris and other valve components should also be checked before ordering.
Technical Details
| Brand | Inta |
|---|---|
| Part Number | PU100008XX |
| Part type | flow cartridge |
| Used for | water flow control in selected Puro single outlet thermostatic bar shower valves |

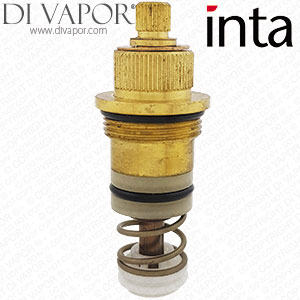

- Matching temperature-control cartridge for the same valve family: PU100007XX
| Valve connection context from the Puro valve guide | G3/4 inch body inlet connections and G1/2 inch outlet connection |
|---|---|
| Minimum operating pressure context for the Puro valve | 0.2 bar dynamic |
- Maximum dynamic inlet pressure context for the Puro valve: 5 bar
- Maximum static inlet pressure context for the Puro valve: 12 bar
Confirmed Used-In Models
- Inta PU10031CP Puro Safe Touch Thermostatic Shower Spare Parts
- Inta PU10035CP Puro Deluxe Thermostatic Shower with Flexible Slide Rail Kit Spare Parts
Before Ordering Checks
- Check the code on the old cartridge or the valve spares diagram before ordering.
- Confirm that the fault is on the flow-control side of the valve rather than the thermostatic temperature-control side.
- If the shower has low flow, check filters, isolation valves and supply pressure as well as the cartridge.
- Use a suitable silicone grease on the O-ring and bottom seal during installation.
