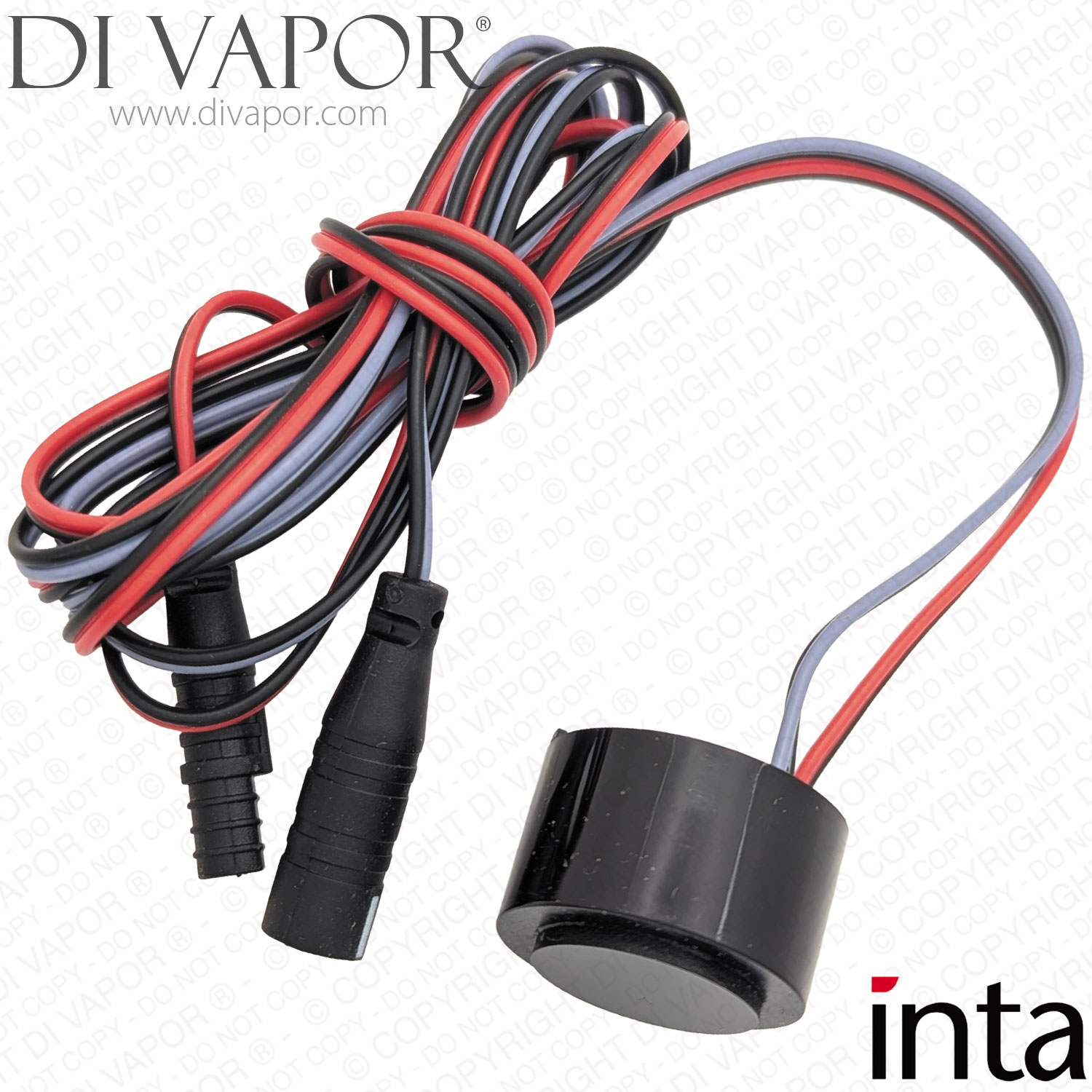

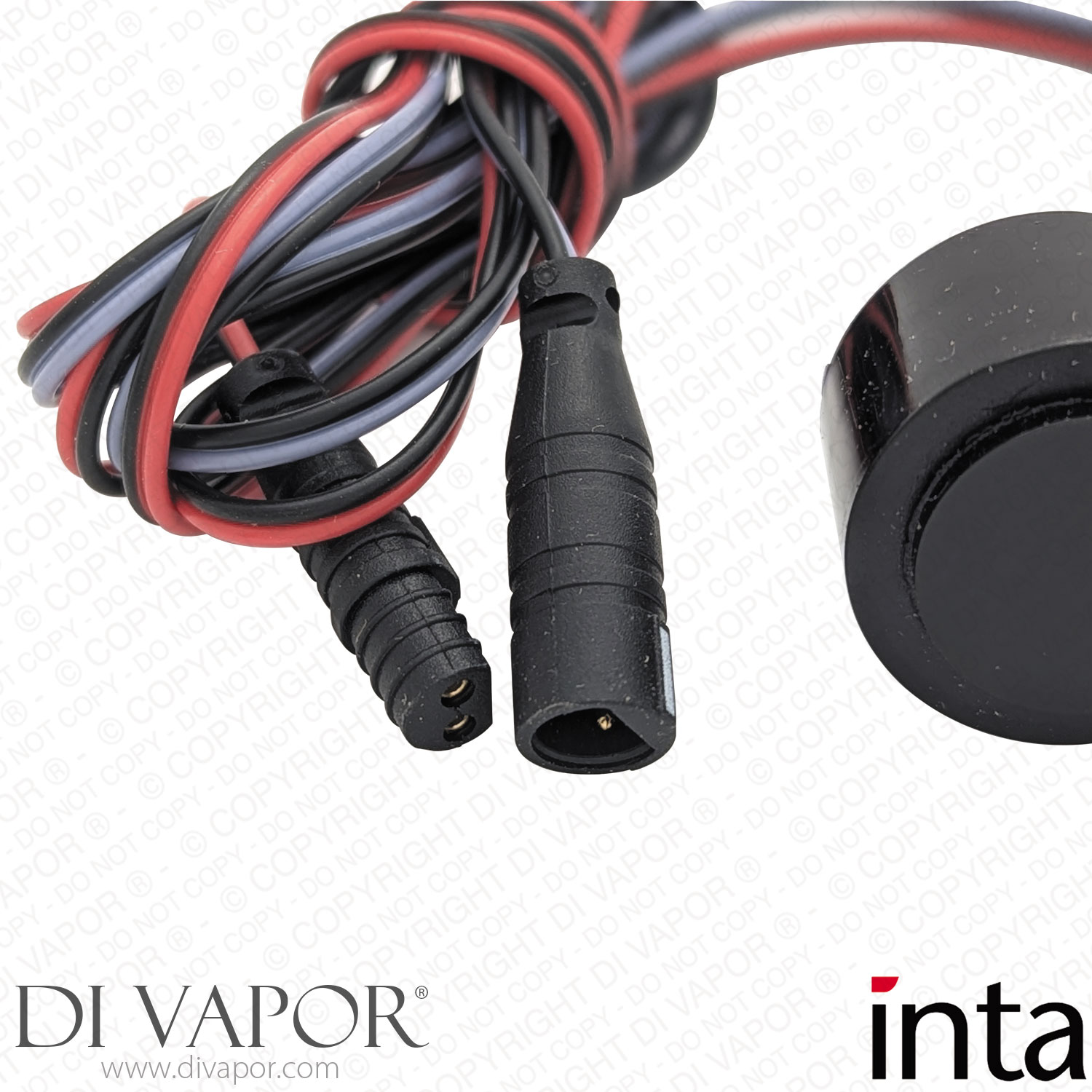

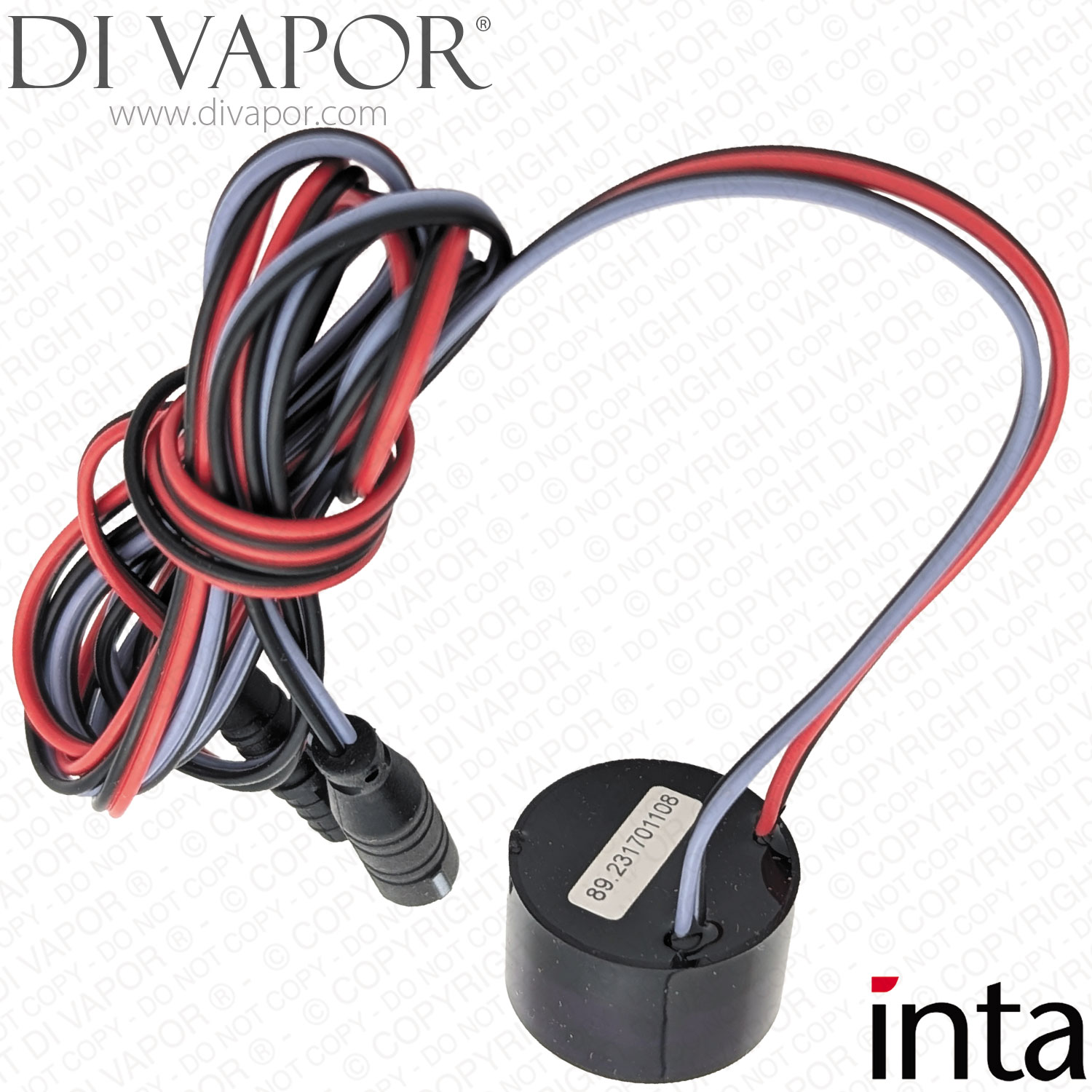

Inta IR02515SENE Infrared Sensor for IR120CP.1 and IR121CP.1 Taps

SUMMARY

Inta IR02515SENE is the infrared sensor used in the Inta IR120CP.1 and IR121CP.1 contemporary basin mounted tap platform.

This sensor is part of the contactless control system. It detects the user's hands in front of the tap and signals the tap system to operate the solenoid so water starts and stops automatically.

Technical Details

- - Part code: IR02515SENE.

- - Officially listed as the sensor for the IR120CP.1 and IR121CP.1 basin mounted tap platform.

- - The published tap platform is designed for contactless operation with a pre-set sensor range and a 24 hour anti-stagnation flushing cycle.

- - Published tap platform data: minimum operating pressure 1 bar, maximum static inlet pressure 8 bar, maximum inlet temperature 65C, G1/2 connections, and maximum basin thickness 26mm.

Before you order check

- - Check the exact part code IR02515SENE.

- - Check your tap is the IR120CP.1 or IR121CP.1 platform.

- - Check whether your installation is the battery operated IR120CP.1 or the mains operated IR121CP.1 so any related electrical spares are matched correctly.

Confirmed Compatible Models

- - Inta IR120CP.1 Infrared Contemporary Basin Mounted Tap Battery Operated Spare Parts

- - Inta IR121CP.1 Infrared Contemporary Basin Mounted Tap Mains Operated Spare Parts

Related Spares You May Need

- - Inta IR07230002 Solenoid Unit cw Diaphragm - solenoid unit used in the same tap system.

- - Inta IR07231001 Solenoid Housing cw Filter and 10mm Spigot Adaptor - related solenoid housing assembly listed for the tap platform.

- - Inta ID02812ELVK Solenoid for HTM64 Infra Red Thermostatic Hospital Taps - also listed for IR120CP.1 and IR121CP.1 tap systems.

- - INTA IR303 Remote Control - remote control accessory listed for this platform.

- - Inta IR08510010 Aerator / Flow Limiter for IR120CP - 0.35 GPM - outlet aerator assembly listed for the platform.

- - Inta IR06530020 Battery Box cw Batteries and Fixing Kit - battery box assembly for the IR120CP.1 battery operated version.

- - INTA ID02500AL6FL Transformer - transformer listed for the IR121CP.1 mains operated version.
