INSTINCT IN10032FF Deluge Dual Outlet TMV2 Shower Bar Diverter Flow Cartridge
Send a photo of your item and we'll help confirm it.
Summary

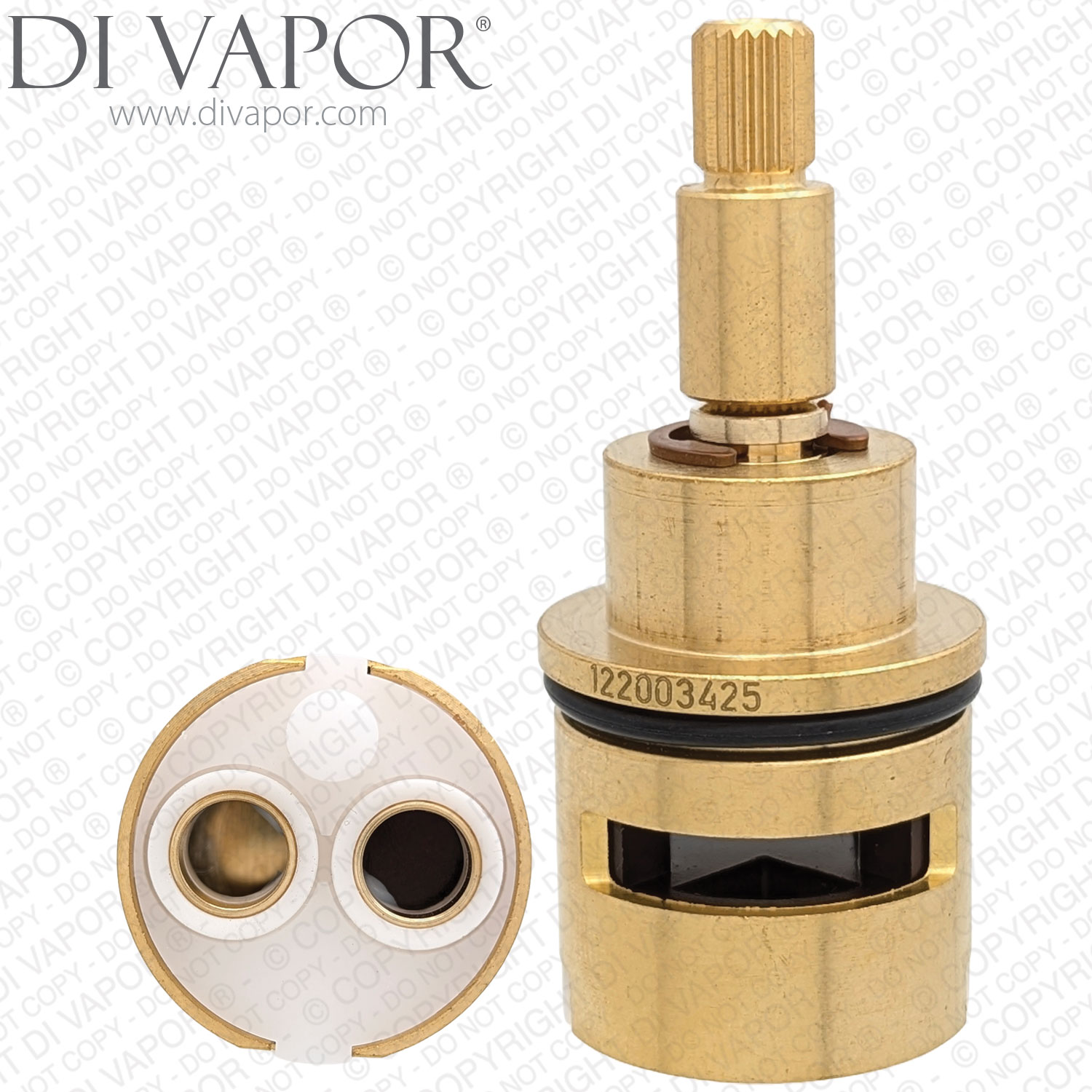

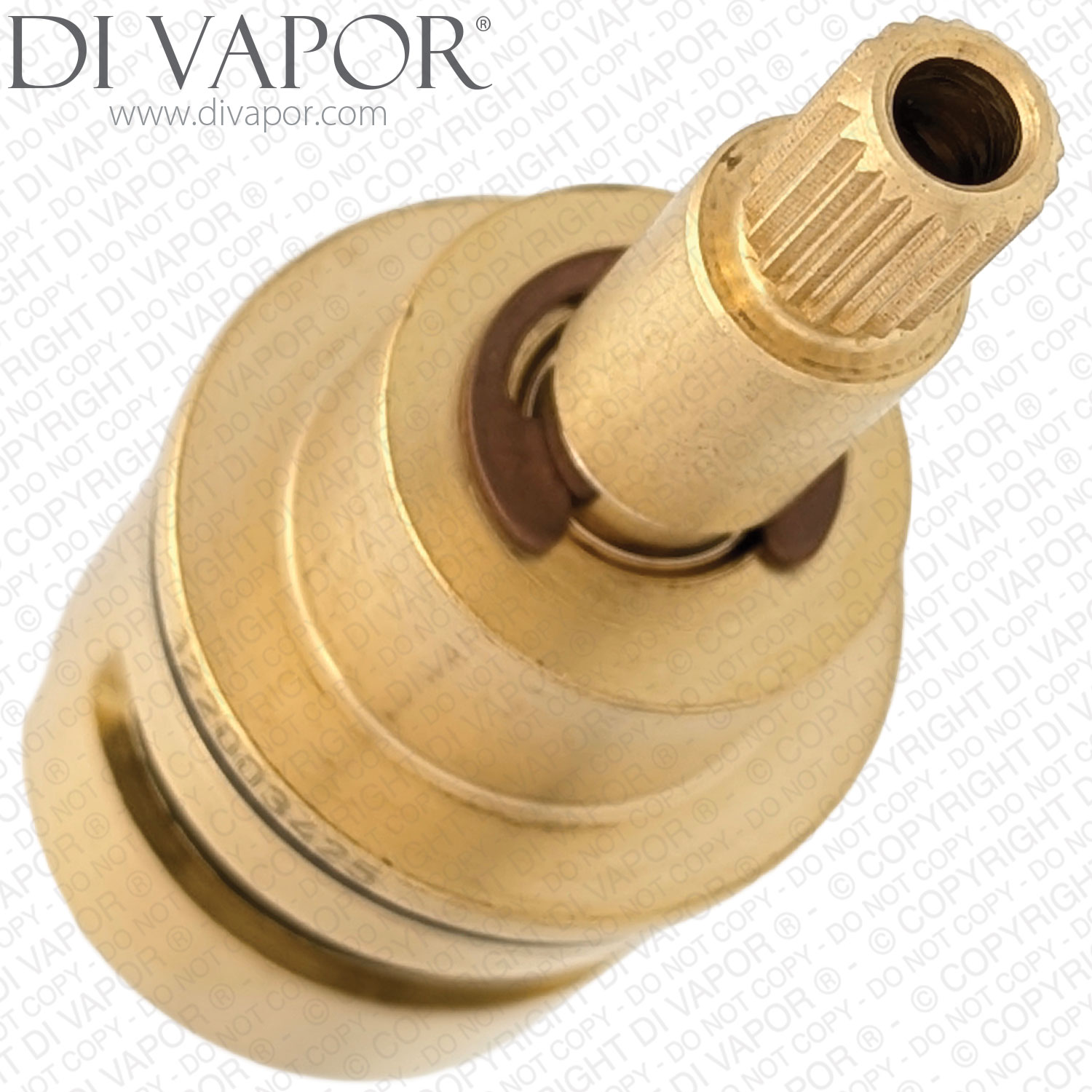

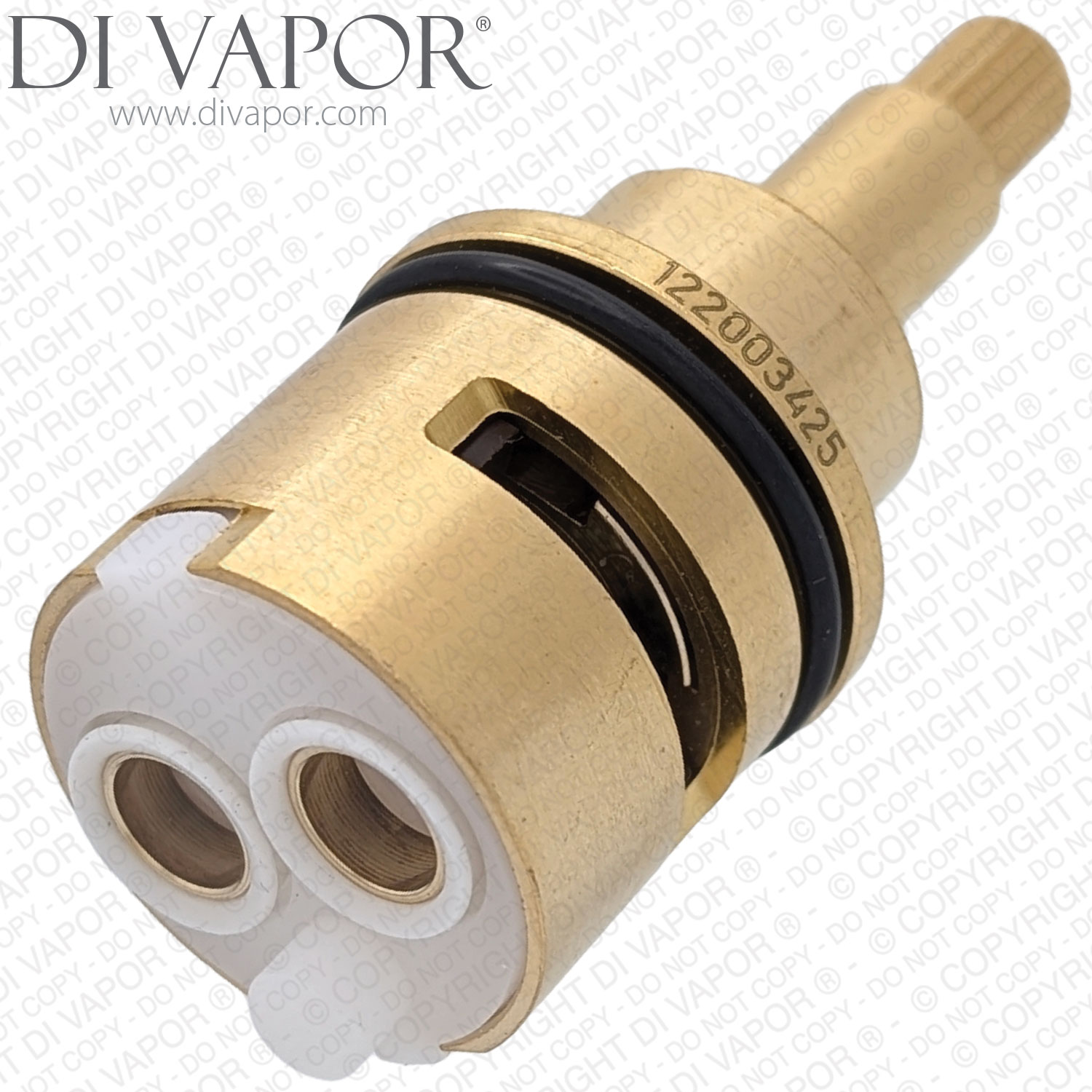

Instinct IN10032FFDV Diverter Flow Cartridge for IN10032FF Deluge Dual Outlet TMV2 Shower Bar
The Instinct IN10032FFDV is a diverter flow cartridge for the Instinct IN10032FF Deluge Dual Outlet TMV2 Shower Bar. It is used on the shower bar diverter and flow control side of the valve, helping control water flow and outlet selection between the overhead soaker and handset on this dual outlet thermostatic shower.
This cartridge is intended for the IN10032FF Deluge shower bar assembly. A worn diverter or flow cartridge can cause poor outlet selection, stiff control movement, reduced shut-off, or water dripping from the shower head when the shower is turned off.
Technical Details
| Brand | Instinct |
|---|---|
| Di Vapor Part Number | IN10032FFDV |
| Part type | diverter flow cartridge |
| Shower model | IN10032FF Deluge Dual Outlet TMV2 Shower Bar |
| Shower type | dual outlet TMV2 thermostatic shower bar |
| Shower outlets | telescopic overhead soaker and sliding handset |
| Minimum operating pressure for the shower | 0.4 bar |
| Maximum static inlet pressure for the shower | 5 bar |
| Maximum inlet temperature for the shower | 85 deg C |
| Inlet connections for the shower | 15mm compression |
| Outlet connections for the shower | G 1/2 inch BSP top and G 1/2 inch BSP bottom |
Confirmed Shower Model
- Instinct IN10032FF Deluge Dual Outlet TMV2 Shower Bar
Before You Order
Check that the shower is the Instinct IN10032FF Deluge Dual Outlet TMV2 Shower Bar and that the cartridge required is the diverter flow cartridge, not the thermostatic temperature cartridge. Compare the removed cartridge with the product image before ordering, especially where the shower has been previously repaired or modified.
