Ideal Standard A960159NU PC BOARD AC (Armitage Shanks)

SUMMARY

Ideal Standard A960159NU is a PC BOARD AC used in mains-powered electronic sensor tap control assemblies for selected Armitage Shanks Markwik 21 Markwik 21+ and Sensorflow 21 basin and sink fittings.

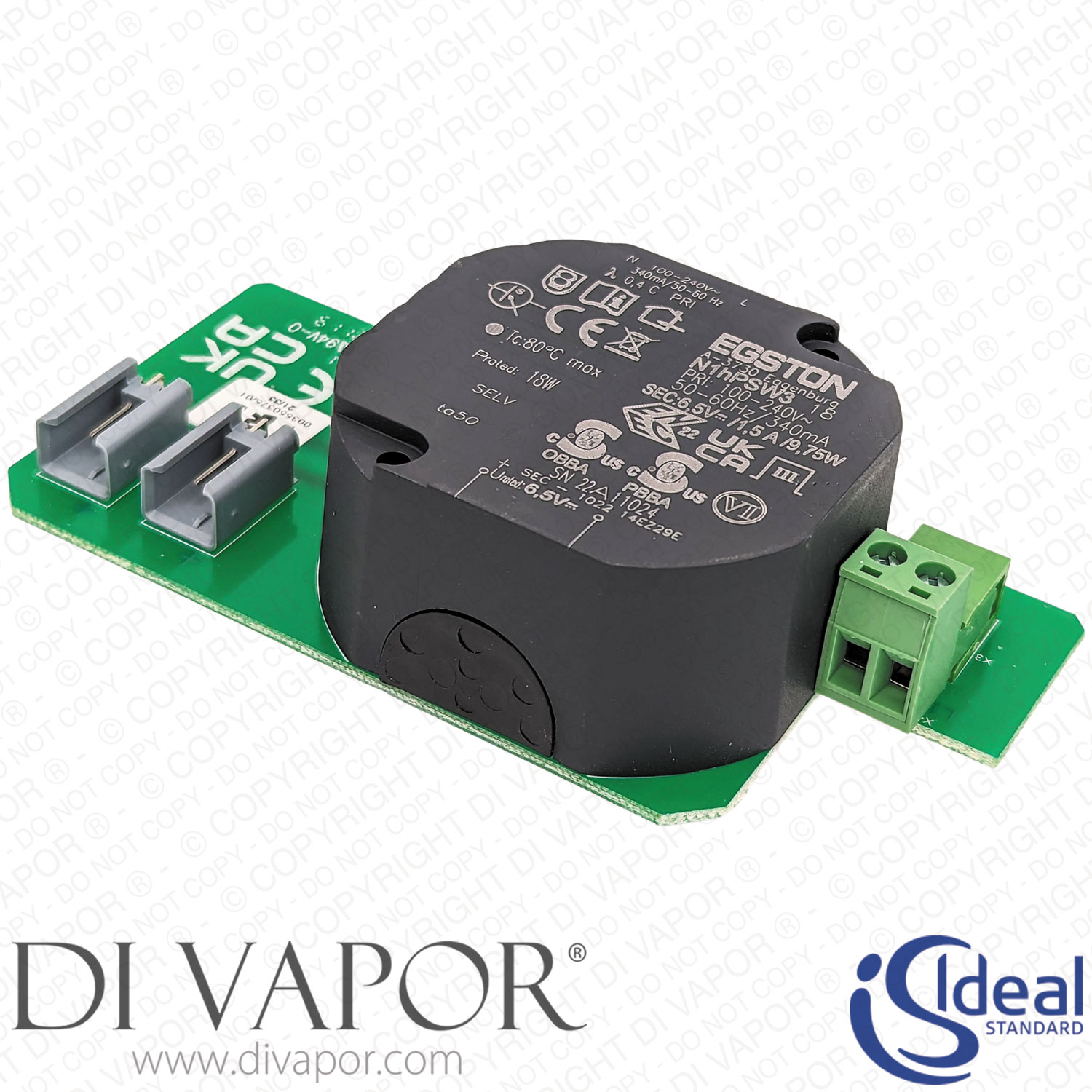

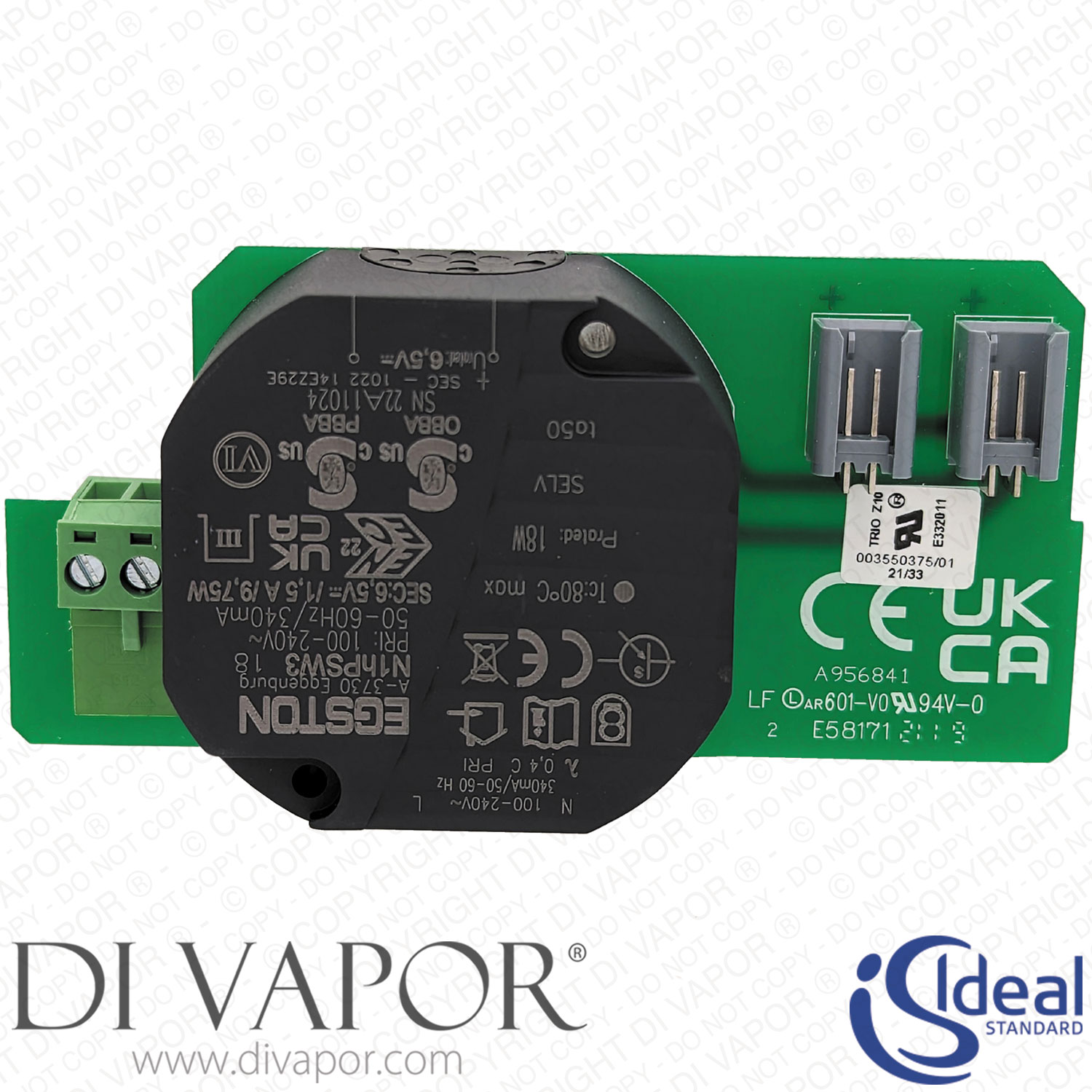

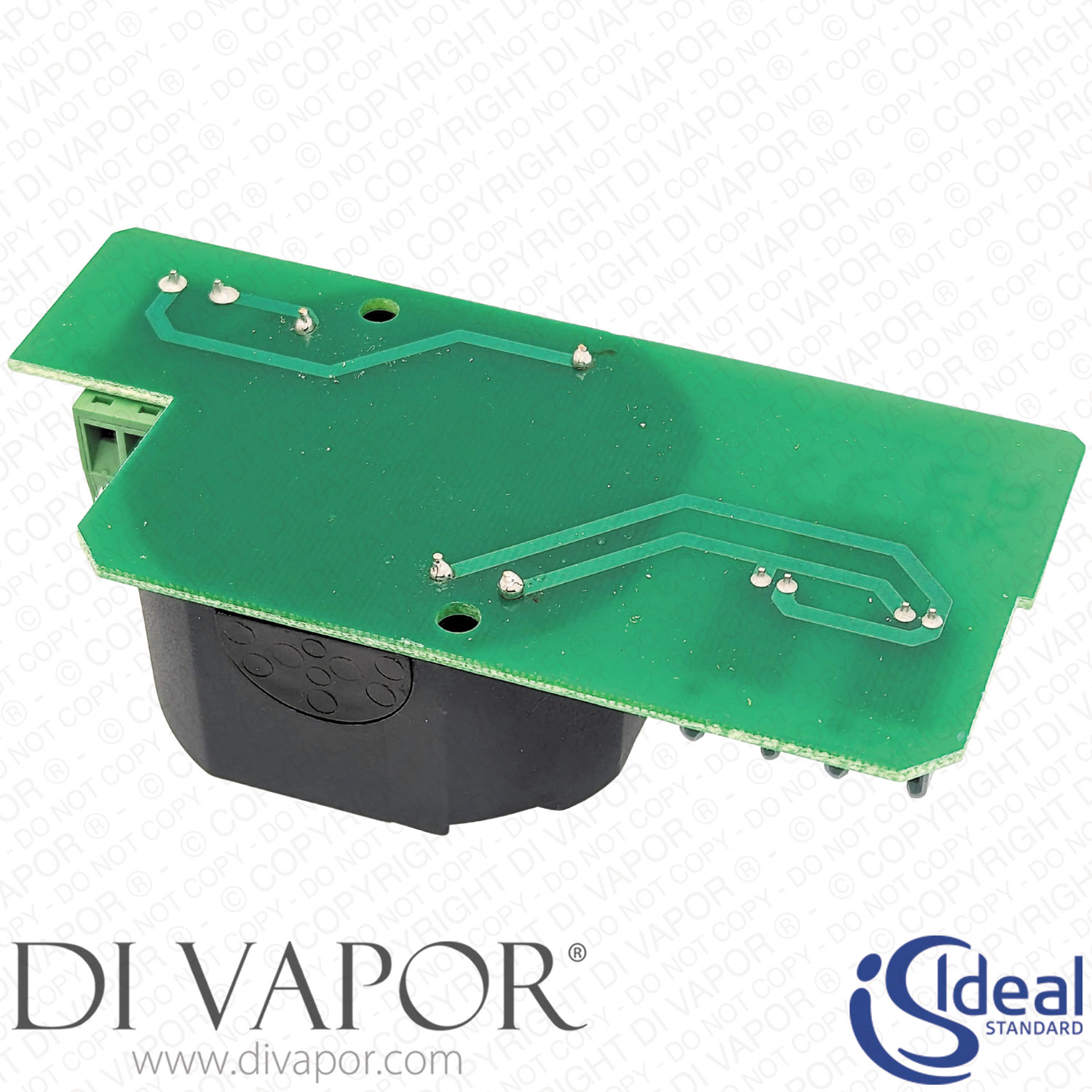

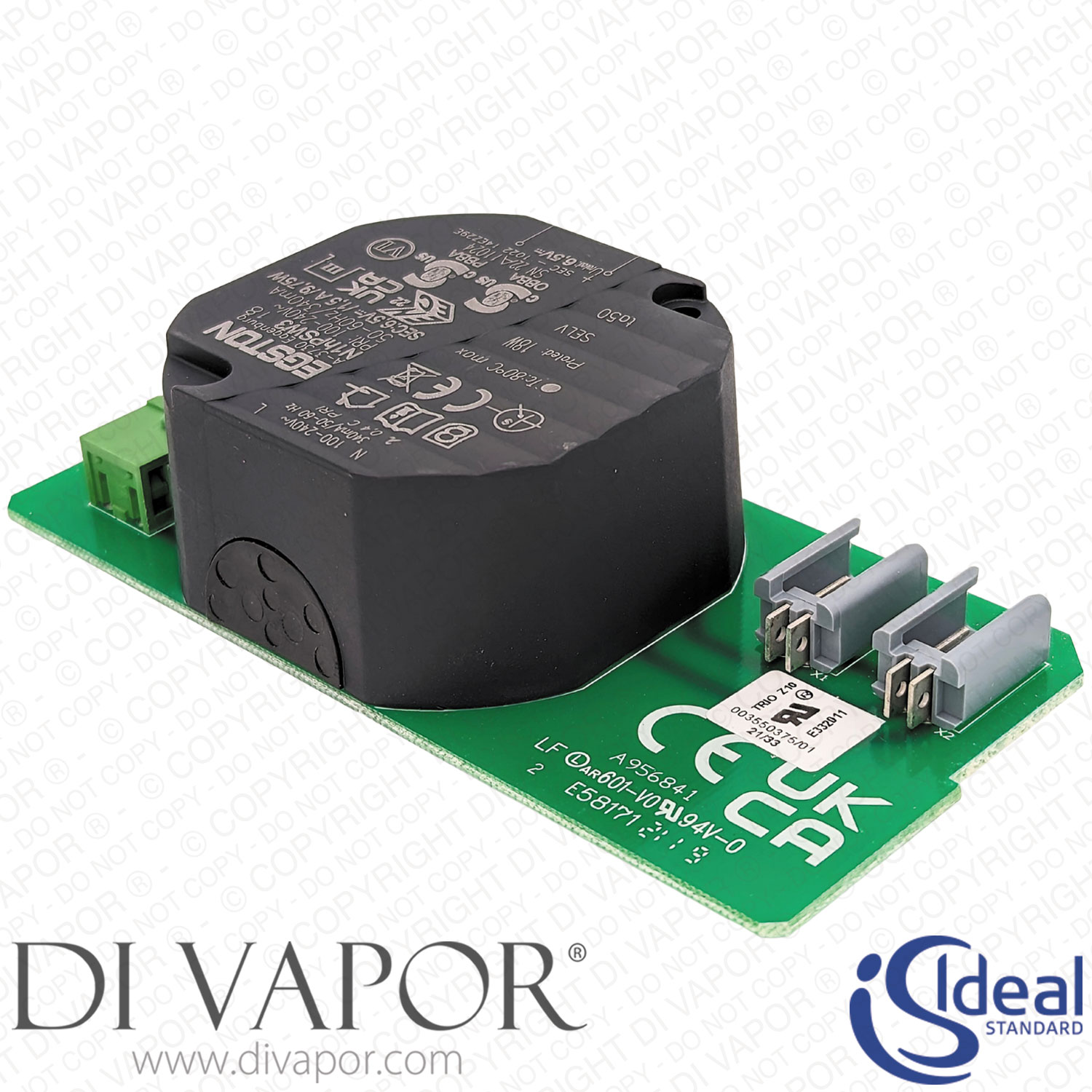

This part is the AC printed circuit board used inside the mains PSU/control assembly. Manufacturer spares diagrams may show the same board as A 960 159 NU and describe it as PCB only with transformer. It should not be confused with A962881NU which is the complete PCB CASE-MNS / PSU assembly.

Technical Details

- - Part Number: A960159NU

- - Part type: PC board AC / mains PCB

- - Application: mains-powered electronic sensor tap control systems

- - Manufacturer diagram wording: PCB only with transformer

- - Related complete mains PSU assembly: A962881NU

- - Separate battery PCB and linked-unit PCB versions must not be substituted for this AC board

Before You Order

- - Check the exact fitting code and confirm that the product is a mains-powered electronic model rather than a battery version.

- - Check whether you need the PCB-only part A960159NU or the complete mains PCB case assembly A962881NU.

- - Check wiring sensor solenoid service valve and power supply condition before diagnosing the PCB as faulty.

- - Mains electrical checks and fitting should be carried out by a suitably competent person.

Confirmed Models

- - A4554AA GEN1 Markwik 21 Wall Mounted Electronic Thermostatic Basin / Sink Mixer

- - A4555AA Markwik 21 Electronic Thermostatic Basin / Sink Mixer with Time Flow Sensor

- - A6244AA Markwik 21 Integral Thermostat Tap

- - A6245AA Markwik 21 Demountable Panel Mixer Flow Sensor Tap

- - A6684AA Markwik 21+ Panel Mount Sensor Operated Timed Flow Detachable Spout Tap

- - A6737AA Markwik 21+ Panel Mount Sensor Operated Timed Flow Fixed Spout Tap

- - A4171AA Sensorflow 21 Electronic Basin Tap

- - A4178AA Sensorflow 21 Wall Mounted 15cm Spout with Built-In Sensor - Mains

- - A4846AA Sensorflow 21 compact 150mm wall / panel spout with sensor PC-Board AC

- - A4849AA Sensorflow 21 compact 230mm wall / panel spout with sensor PC-Board AC

- - A4798AA Sensorflow 21 compact basin spout with integral sensor mains

Fault Check

- - Symptom: sensor tap does not respond or operates inconsistently. Likely Cause: power supply sensor PCB solenoid or wiring fault. Solution: confirm incoming mains power connector condition sensor output and solenoid function before replacing the PCB.

- - Symptom: water continues to run. Likely Cause: solenoid valve or service valve fault may be present as well as control-board issues. Solution: inspect the solenoid valve service valve filters and wiring before ordering electronic parts.

Related Spares You May Need

- - Ideal Standard F960970NU Remote Control Sensor Programmer 2013

- - Ideal Standard E960619AA Sensor Housing Proximity Version Chrome

- - Ideal Standard A962881NU PCB CASE-MNS Complete Type A950628NU

- - Armitage Shanks A962478NU Solenoid Valve for Sensorflow Taps Complete G1/2

- - Ideal Standard A860704NU Fixation Set For ELECTR.BOX J. NOUVEL

- - Ideal Standard A962499NU Straight Couplers Short 2 Pcs.

- - Ideal Standard E960086NU Service Valve and Inline Filter

- - Ideal Standard A962477NU CABLE PLUG 500MM LG.

- - Ideal Standard A960219NU Infrared Sensor with Connection Wires

- - Ideal Standard A962345NU O-RING 8.1 X 1.6

- - Ideal Standard A962346AA ESCUTCHEON WITH O-RING / CHROME

- - Ideal Standard A861284NU SPARES KIT SERVICE VLV:STRAINERS+O-RINGS
