Hansgrohe HG 3.06665.10 Cartridge (HG 30666510) Compatible Spare

SUMMARY

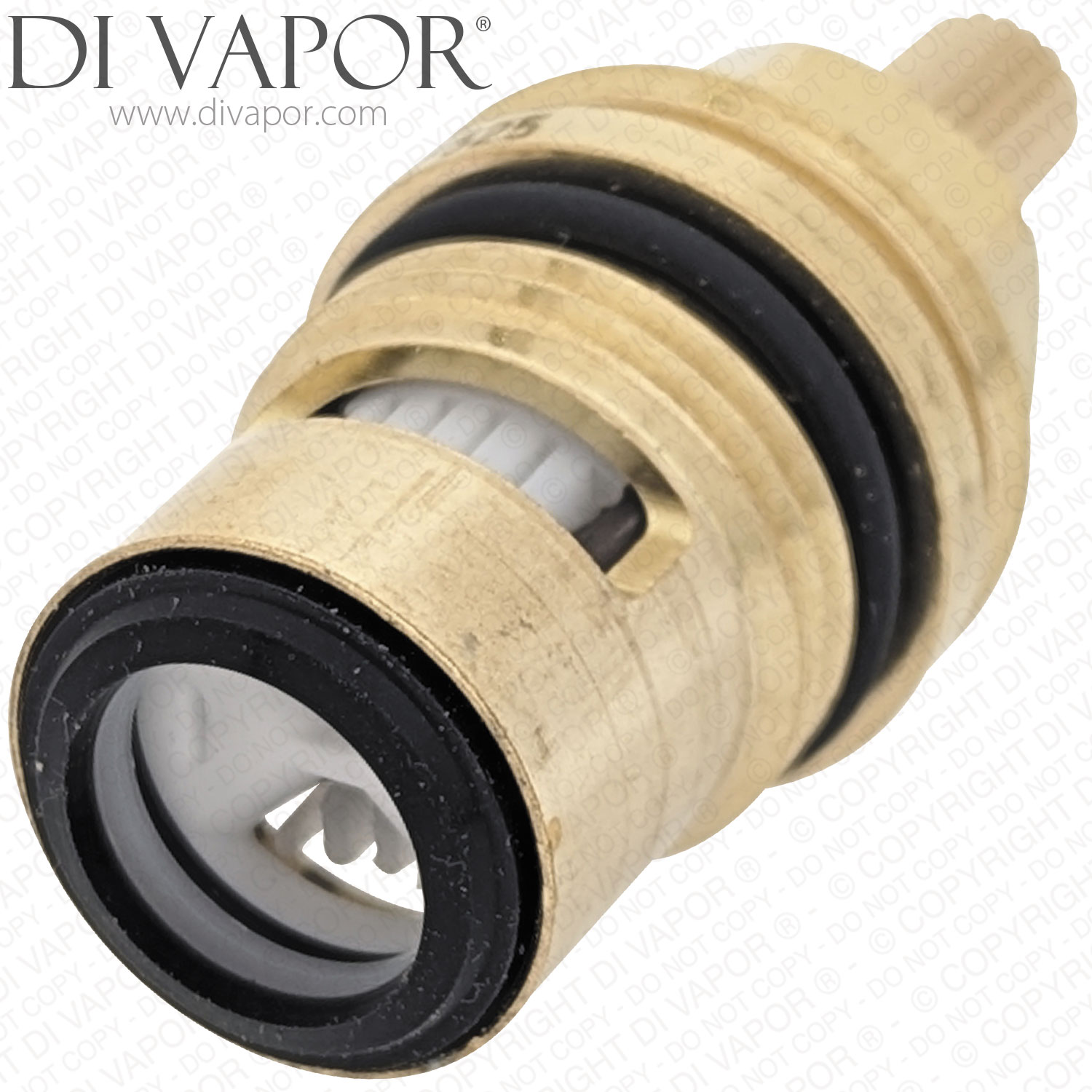

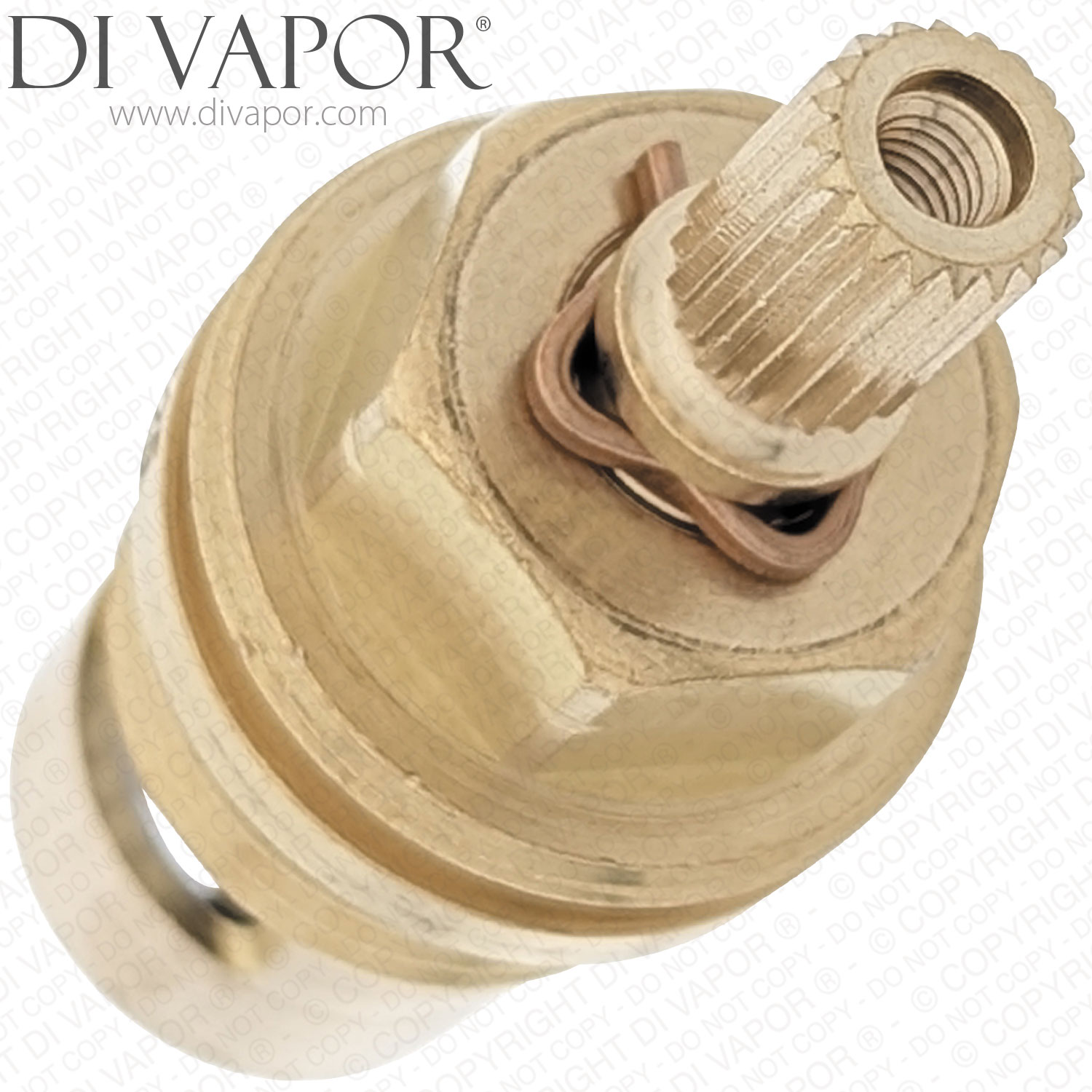

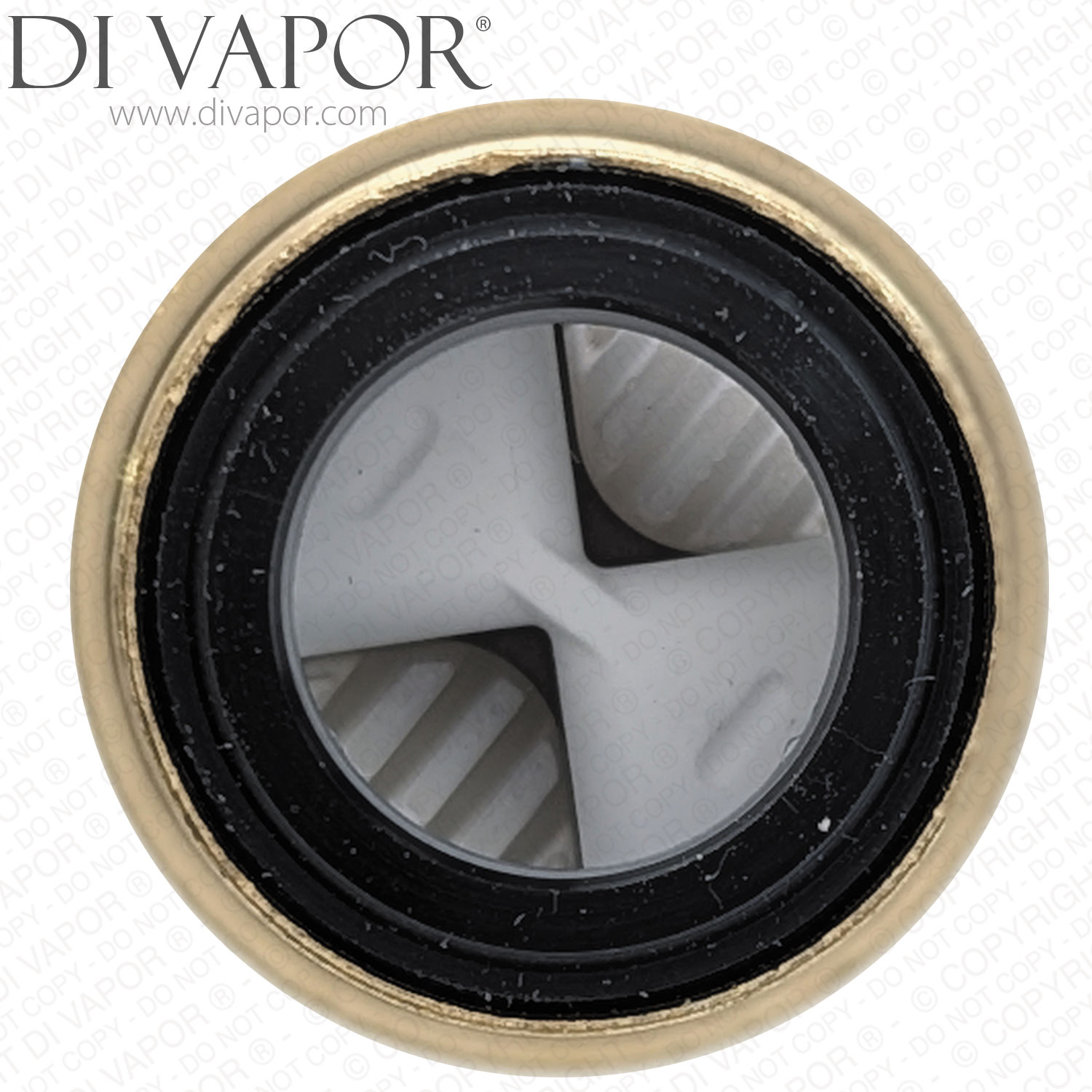

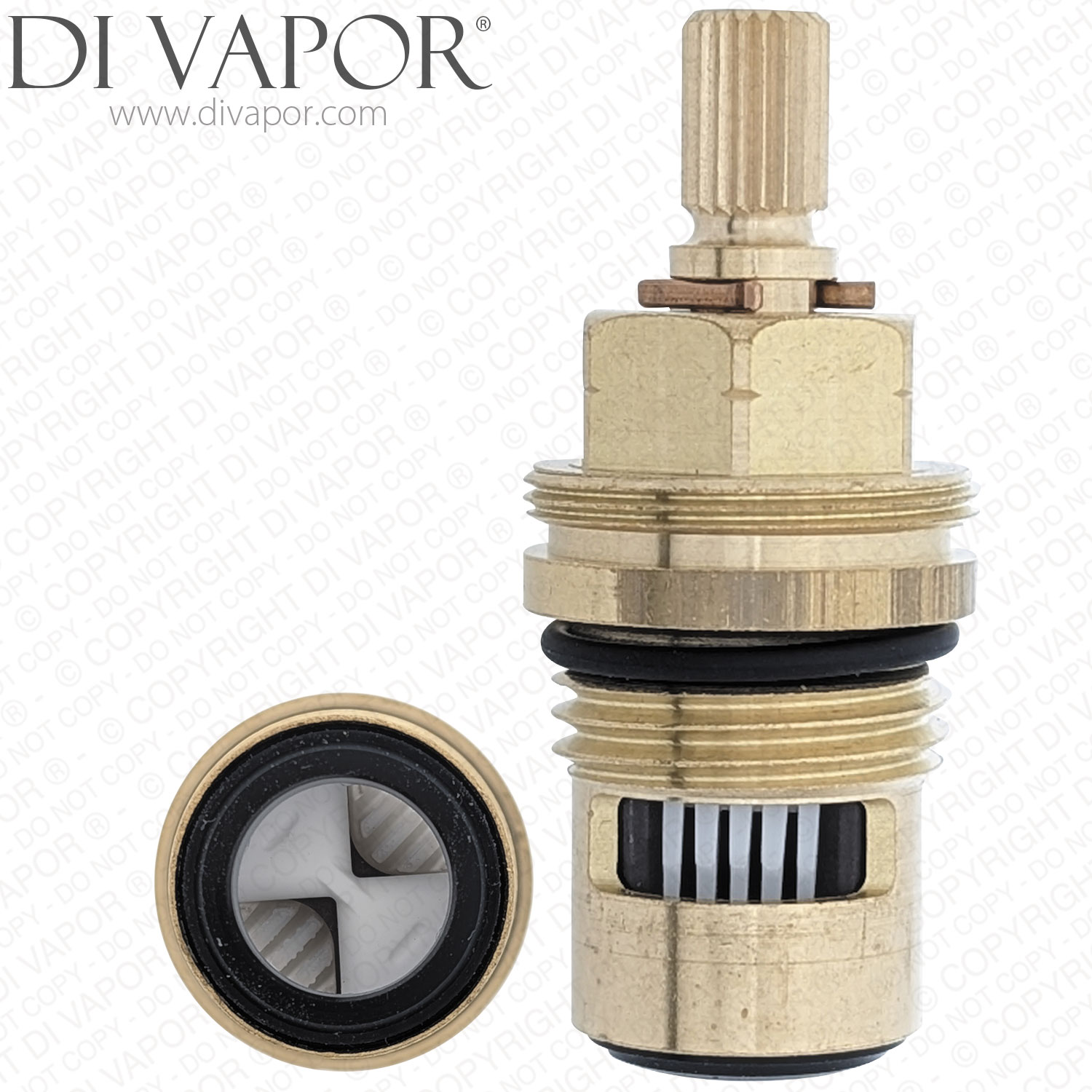

Hansgrohe HG 3.06665.10 cartridge is a compatible spare ceramic disc flow cartridge for tap or shower valve applications that use part code 3.06665.10, also shown as HG 30666510.

This cartridge controls on/off water flow through the valve using a quarter-turn ceramic disc mechanism. It is used to restore shut-off and smooth flow control where the existing cartridge is worn, stiff, leaking or no longer closing fully.

Technical Details

- - Brand: Hansgrohe

- - Part Number: 3.06665.10

- - Also referenced as: HG 30666510

- - Cartridge type: quarter-turn ceramic disc flow cartridge

- - Threaded collar: 1/2 BSP

- - Spline: 20 teeth

- - Overall height: 56mm

- - Spline height: 14mm

- - Spline diameter: 7.6mm

Common Fault Symptoms

A worn flow cartridge can cause water to continue dripping from the shower head or tap spout when the valve is turned off. Other symptoms can include a stiff handle, poor shut-off, inconsistent flow control or difficulty turning the valve through its normal quarter-turn movement.

Before Ordering

Check the part number, thread size, spline count, spline diameter and overall cartridge height against the cartridge being replaced. Do not order from size alone, as visually similar Hansgrohe cartridges can differ by orientation, spline, thread or valve application.
