Vola VR697K 3-15mm On/Off Ceramic Disc Cartridge (Hastings) - Anti-Clockwise Turn to Open
Part number: VR697K
Out of stock - Ask a Question now
Price: £109.79
Sale: £66.71
You save: £43.08 (39%)
Price includes UK VAT (Region: UK▼)
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary
This Vola / Hastings VR697K 3-15mm on/off ceramic disc cartridge is a quarter-turn flow cartridge used in selected Vola build-in valves, stop valves, mixers and basin tap assemblies.
It is the anti-clockwise-turn-to-open version and closes clockwise. When the original cartridge is worn or scaled, common symptoms include poor shut-off, dripping from the outlet when the valve is turned off, or stiff operation.
Technical Details
| Part code | VR697K |
|---|---|
| Part type | on/off ceramic disc flow cartridge |
| Turn direction | anti-clockwise to open and clockwise to close |
| Total length | 91.5 mm |
| Diameter at thread | 20.5 mm |
| Splines | 20 splines at 7.6 mm diameter |
| Wall range | 3-15 mm version |
Before ordering check
- Check the original part code is VR697K
- Check your valve uses the anti-clockwise opening version and not the opposite-turn VR698K
- Check the overall length, spline count and thread diameter match your original cartridge
Confirmed Compatible Models
- Vola Two-Handle Build-in Mixer (700V) Spare Parts
- Vola Two-Handle Build-in Mixer with Diverter (800V) Spare Parts
- Vola Build-in Stop Valve with Fixed Outlet Socket (900) Spare Parts
- Vola 1/2 Inch Build-in Stop Valve with Ceramic Disc Technology (S20) Spare Parts
- Vola Build-in Stop Valve 1/2 Inch (S20V) Spare Parts
- Vola Two-Handle Build-In Mixer with Quarter Turn Ceramic Disc Technology (631) Spare Parts
- VOLA Two-Handle Built-In Mixer with Quarter Turn Ceramic Disc Technology and Diverter (871R) Spare Parts
- Vola Build-In Basin Tap with Quarter Turn Ceramic Disc Technology (921) Spare Parts
Related Spares You May Need
- Vola VR698K Ceramic Disc Cartridge (Hastings) - Clockwise Turn to Open

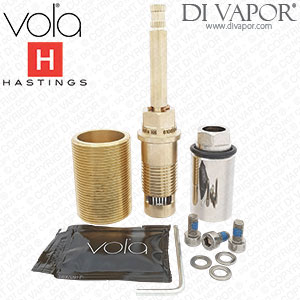

- Vola VR697K+20 On/Off Ceramic Disc Cartridge - VR697K+20 has a spindle 20 mm longer than the standard VR697K cartridge
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved - Silicone grease helps protect seals and O-rings during installation
