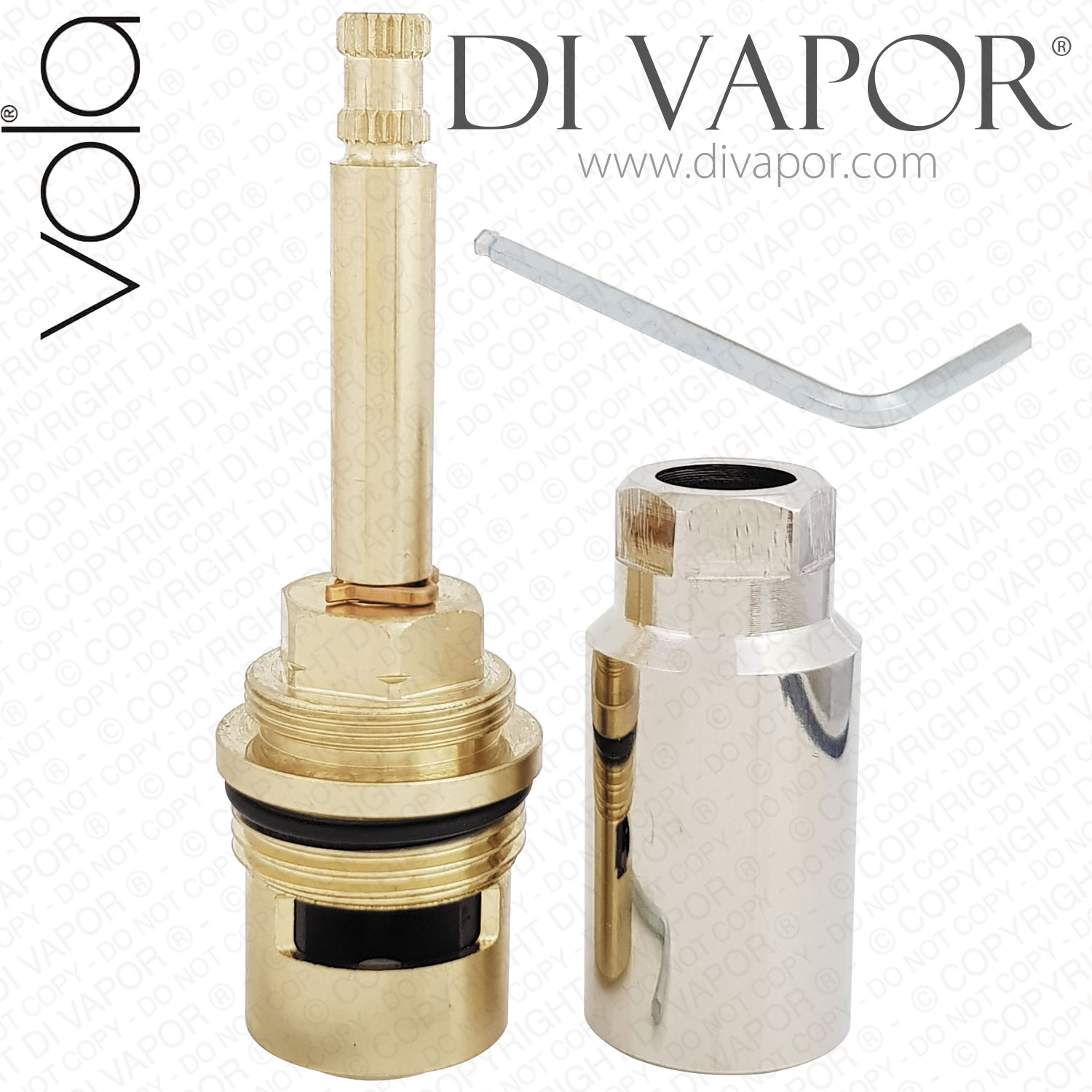

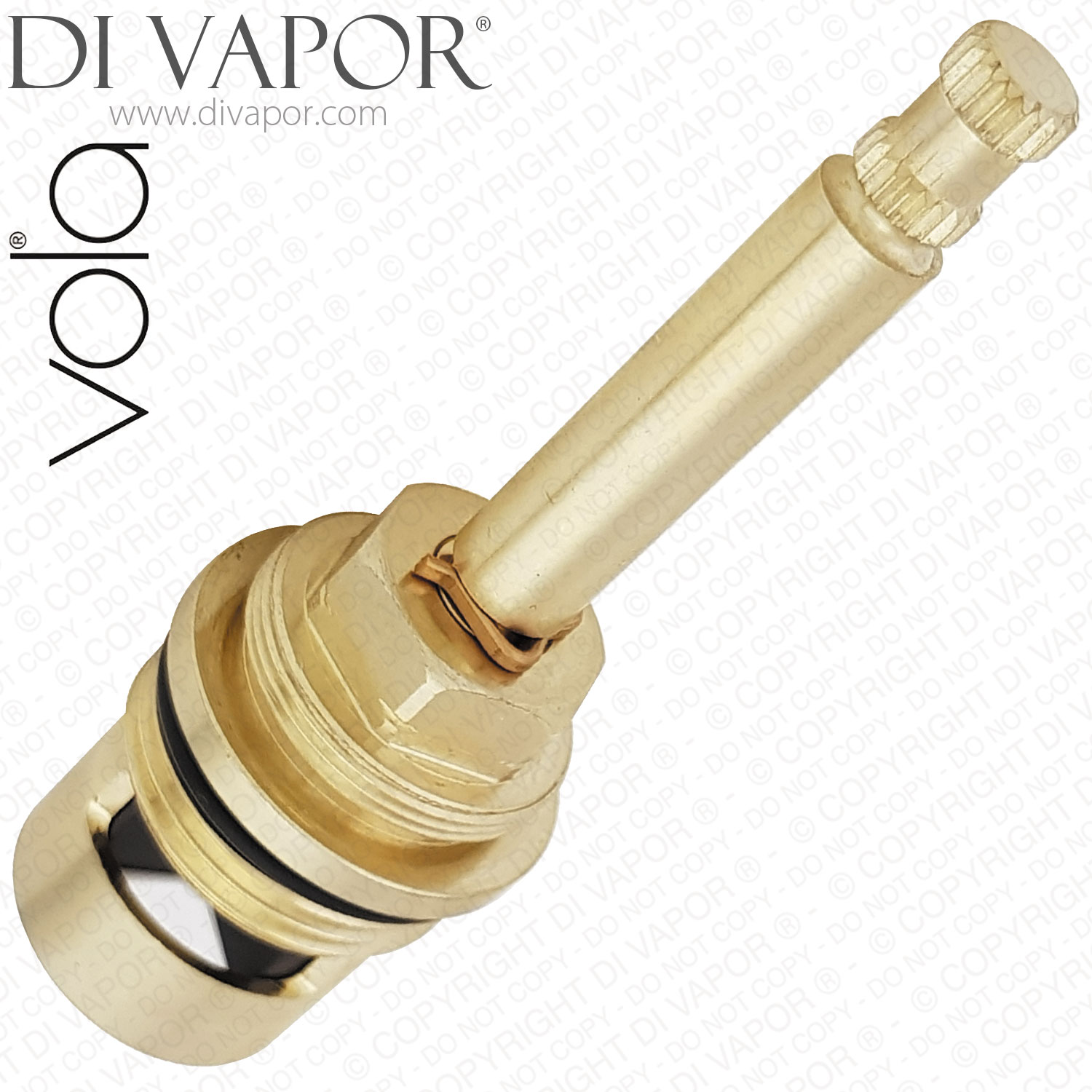

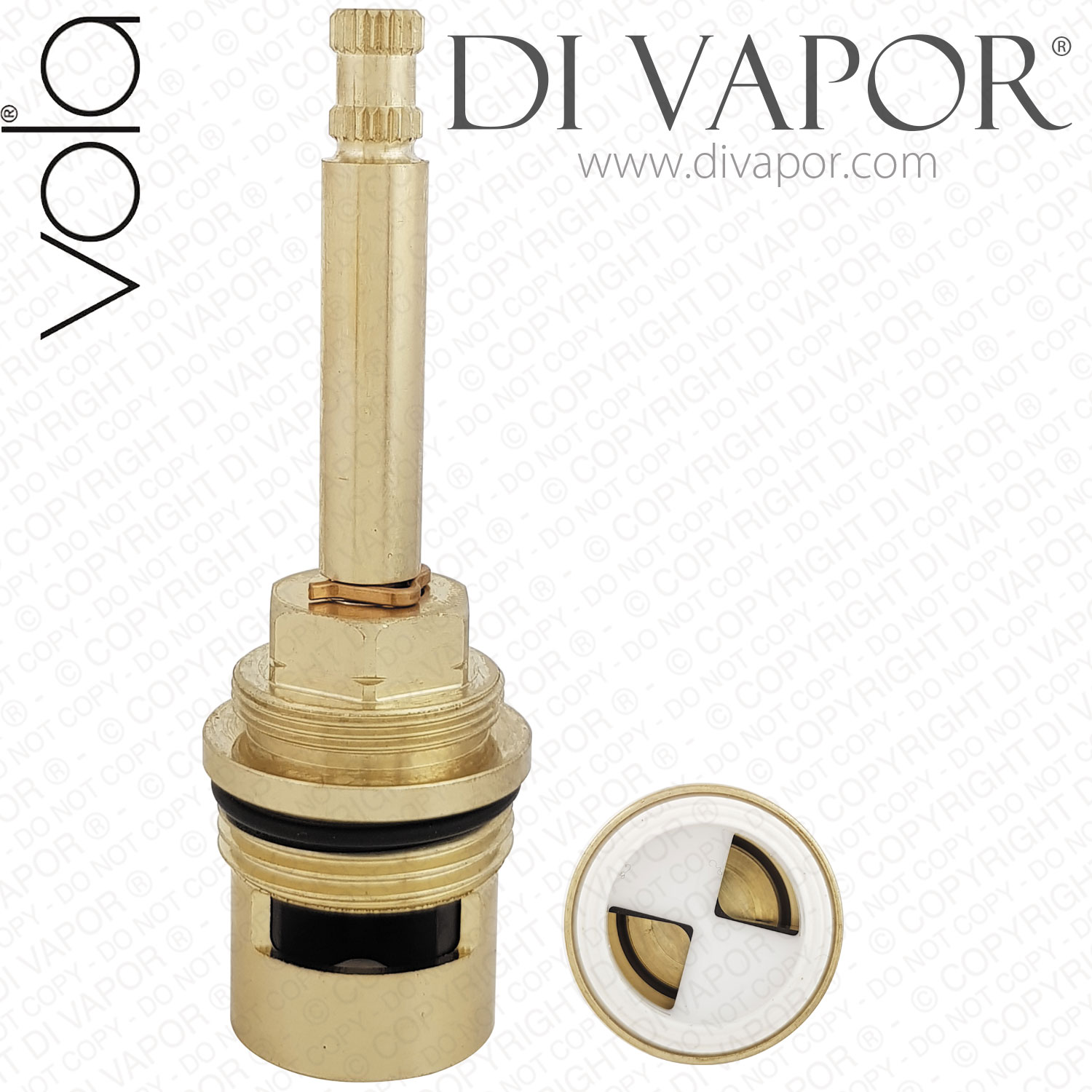

Vola / Hastings VR699K Long On/Off Ceramic Disc Cartridge
SUMMARY
Vola Hastings VR699K is a long on/off ceramic disc cartridge for selected Vola and Hastings 3/4 inch build-in valve assemblies. It is used to control water flow through the valve and is intended for the standard VR699K installation depth.
A failed flow cartridge can cause stiff operation, poor shut-off, or water dripping from the shower head or outlet when the shower valve is turned off. Match the part code and finished-wall depth before ordering because Vola lists separate VR699K extension variants for deeper installations.
Technical Details
- - Brand: Vola / Hastings
- - Part Number: VR699K
- - Part type: long on/off ceramic disc cartridge
- - Valve application: Vola 3/4 inch valves for S21, S42, 2700, 2800 and 2900 valve families
- - Standard wall covering range T: 3-15 mm
- - X measurement: 39-54 mm from spindle end to finished wall including wall covering
- - Y measurement: 110-98 mm from cover cap end to finished wall including wall covering
- - VR699K depth variants to check for deeper installations: VR699K + 10, VR699K + 20, VR699K + 30, VR699K + 40, VR699K + 50
Confirmed Compatible Models
- - Vola 3/4 Inch Build-in Stop Valve with Ceramic Disc Technology (S21) Spare Parts
- - Vola Build-in Stop Valve, 3/4 Inch(S21V) Spare Parts
- - Vola Build-in Double Stop Valve, 3/4 Inch 2 x S21 Valves (S42) Spare Parts
- - Vola Two-Handle Build-in Mixer for High Flow (2700V) Spare Parts
- - Vola Stop Valve and Single Valve with Fixed Outlet (2800V) Spare Parts
- - Vola Single Valve with Fixed Outlet (2900) Spare Parts
- - Vola Kneipp Hose and Build-In Stop Valve (COMBI-30) Spare Parts
- - Vola Waterfall Shower and Build-In Stop Valve (COMBI-31) Spare Parts
- - Vola Waterfall Shower, Kneipp Hose, and Build-In Stop Valve (COMBI-32) Spare Parts
Before You Order Check
- - Confirm the installed valve is a Vola 3/4 inch valve application and not a 1/2 inch S20, S40 or 1500 valve.
- - Check the finished-wall depth before ordering because the standard VR699K and the VR699K + extension variants cover different installation depths.
- - Use a suitable silicone grease on seals and o-rings during installation where required.
Related Spares You May Need
- - Vola VR698K Ceramic Disc Cartridge (Hastings) - Clockwise Turn to Open
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
