Vado C-302-LTC Hot Flow Cartridge for ZOO Valves (On/​Off Valve)

Summary

Vado C-302-LTC Hot Flow Cartridge for ZOO and Other Vado Mixer Valves

The Vado C-302-LTC is a three quarter inch ceramic disc hot flow cartridge for selected Vado shower bath and mixer valves. It controls hot water flow on and off in valve bodies that were originally specified to use this cartridge code.

Function

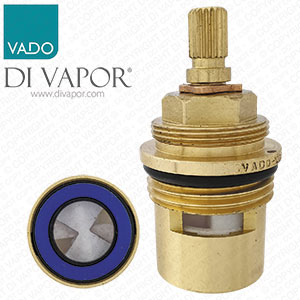

This cartridge forms the hot side flow control inside the valve. When the handle is turned it opens or closes the hot water supply and works together with the matching cold cartridge such as C-302-RTC where fitted.

Confirmed Compatible Vado Models

• PHO-137-C/P Photon two hole bath filler or bridge bath mixer deck mounted hot cartridge C-302-LTC cold cartridge C-302-RTC
• TE-137-C/P Te two hole bath filler deck mounted hot cartridge C-302-LTC cold cartridge C-302-RTC
• LIF-137-C/P Life two hole bath filler or bridge bath mixer deck mounted hot cartridge C-302-LTC cold cartridge C-302-RTC
• PHA-137-C/P Phase two hole bath filler or bridge bath mixer deck mounted hot cartridge C-302-LTC cold cartridge C-302-RTC
• AX-IRO-137-CP Irlo bath filler deck mounted specification lists hot ceramic cartridge C-302-LTC and cold ceramic cartridge C-302-RTC
• AX-ROW-137-CP Rowe bath filler deck mounted technical sheet lists hot ceramic cartridge C-302-LTC and cold ceramic cartridge C-302-RTC
• ZOO-142/PR-3/4-C/P Zoo pair of deck mounted valves spare parts list hot ceramic cartridge C-302-LTC and cold ceramic cartridge C-302-RTC
• IND-EDI130+K-BRZ Edit two hole bath shower mixer with Atmosphere shower kit brushed bronze documentation lists hot ceramic cartridge C-302-LTC and cold ceramic cartridge C-302-RTC
• IND-EDI130+K-BLK Edit two hole bath shower mixer with Atmosphere shower kit brushed black documentation lists hot ceramic cartridge C-302-LTC and cold ceramic cartridge C-302-RTC

Other Photon Te Life Phase Irlo Rowe Edit and Zoo valves may also use this cartridge where their individual specification or spare parts diagram names C-302-LTC as the hot ceramic cartridge. Always confirm by checking the product documentation or the code on the removed cartridge.

Selection and Identification

To confirm compatibility check the valve spare parts diagram or technical sheet for the exact code C-302-LTC or inspect the existing hot side cartridge body for this marking. Vado uses several three quarter inch ceramic disc formats so similar looking parts are not guaranteed to interchange.

When Replacement Is Required

Replacement of the hot flow cartridge is usually required when the tap or valve fails to shut off fully on the hot side when hot water drips from the outlet when closed when hot flow is weak or inconsistent or when handle movement feels rough or tight.

Purpose of Replacement

Fitting a new Vado C-302-LTC hot flow cartridge in a confirmed compatible Photon Te Life Phase Irlo Rowe Edit or Zoo valve can restore smooth handle operation reliable shut off and stable hot water flow without needing to replace the complete tap or valve assembly.
