Ultra SPR10 3/​4" Hot and Cold Flow Ceramic Disc CD Cartridges (Hudson Reed)

SUMMARY

Ultra SPR10 3/4 Inch Hot and Cold Ceramic Disc Tap Cartridge Pair - Hudson Reed

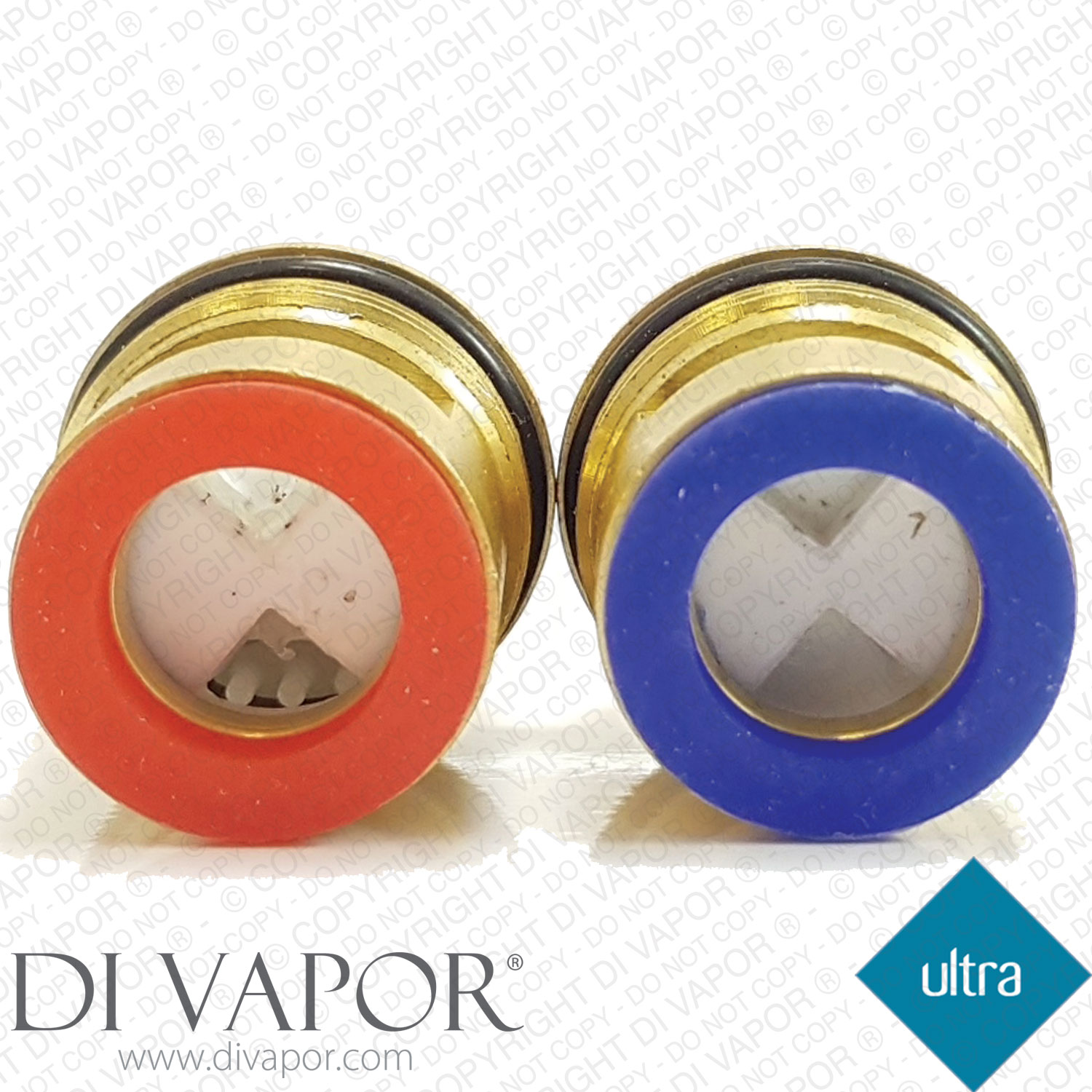

Ultra SPR10 is a pair of 3/4 inch ceramic disc flow cartridges for hot and cold water control in selected Ultra and Hudson Reed taps and mixers. The set contains one hot cartridge and one cold cartridge, each with a 24-spline connection.

Each cartridge controls water flow and provides the shut-off function for its supply. A worn or damaged flow cartridge can allow water to drip from the spout after the tap is turned off. Replacing the correctly identified cartridge can restore flow control and shut-off.

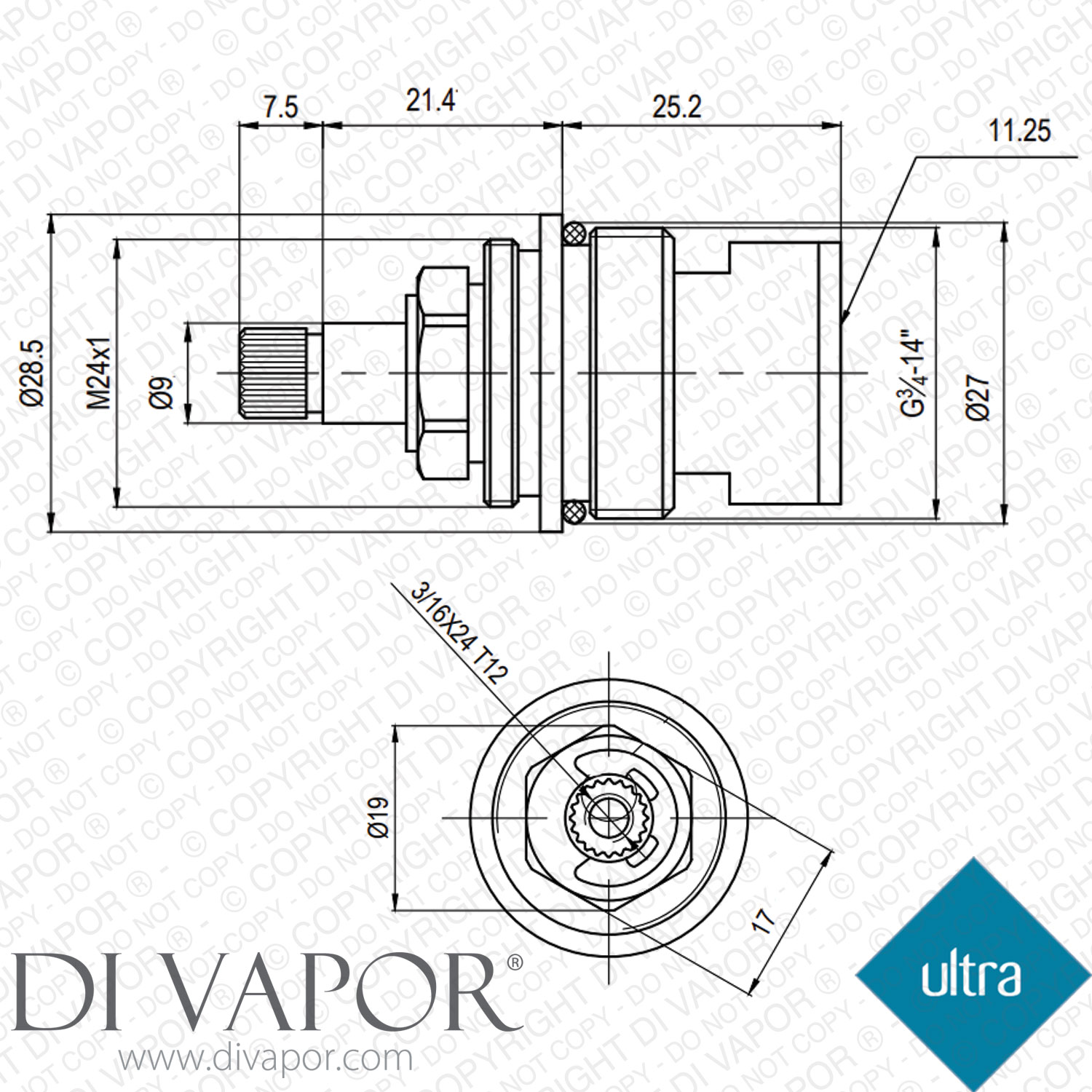

Technical Details

- - Nominal cartridge size: 3/4 inch

- - Total length: 54mm

- - Unthreaded body width: 19mm

- - Body width at widest point: 25mm

- - Number of splines: 24

- - Closing directions: Clockwise and anticlockwise

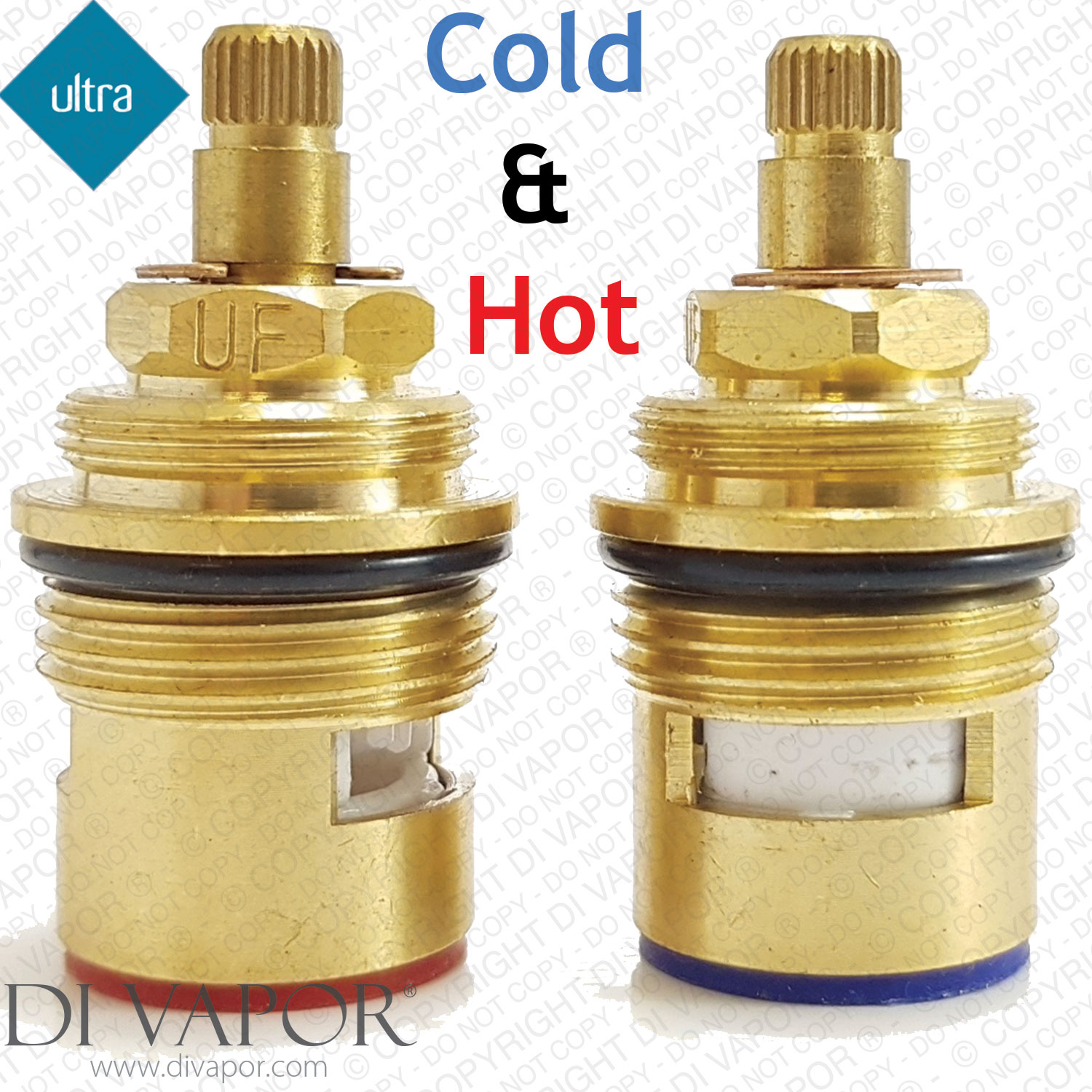

- - Supplied as one hot cartridge and one cold cartridge

Before Ordering

Check the original part code and compare the cartridge shape, dimensions, thread arrangement, spindle, spline connection, seal positions and closing direction before ordering. Match each cartridge to the original hot or cold control.

Installation Notes

Isolate the hot and cold water supplies before removing the cartridges. Apply a small amount of suitable silicone grease to appropriate O-rings and seals during fitting to help them seat without twisting or pinching. After fitting, restore the supplies and check for leaks and correct operation.

Related Spares You May Need

- - TACSIL 3g WRAS Approved Silicone Grease - TAC86 - For lubricating suitable cartridge O-rings and seals during installation

If you are unsure which cartridge you need, use the Di Vapor part identification service.
