SP-075-0014 Ceramic Cartridge for 911m, 911EQ NewTeam, Bristan and ShowerForce Shower Valves
Send a photo of your item and we'll help confirm it.
Summary
SP-075-0014 Ceramic Cartridge for 911m, 911EQ NewTeam, Bristan and ShowerForce Shower Valves.
PLEASE READ - The colour of the cartridge is now cream. The brass nut it no longer supplied with the cartridge.

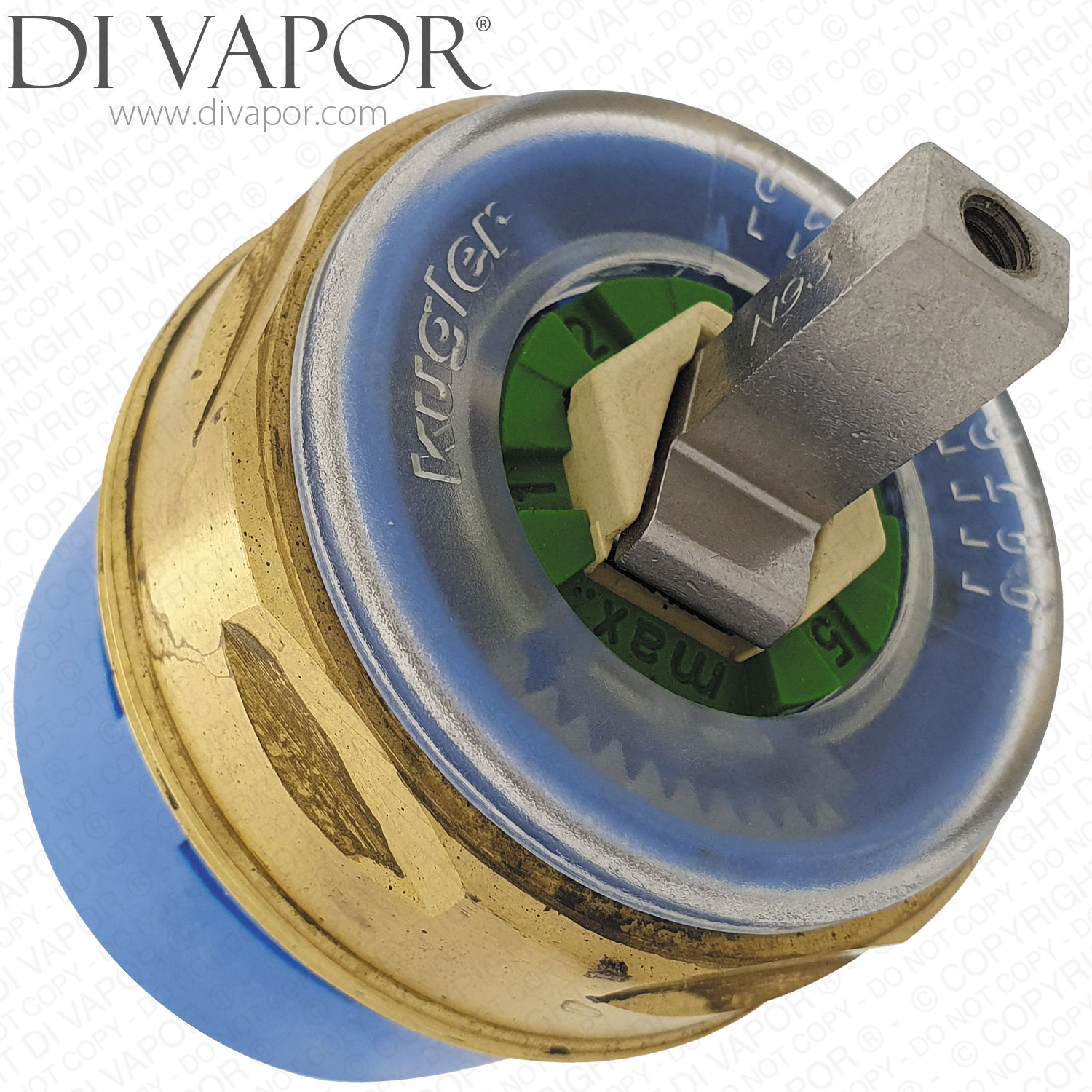

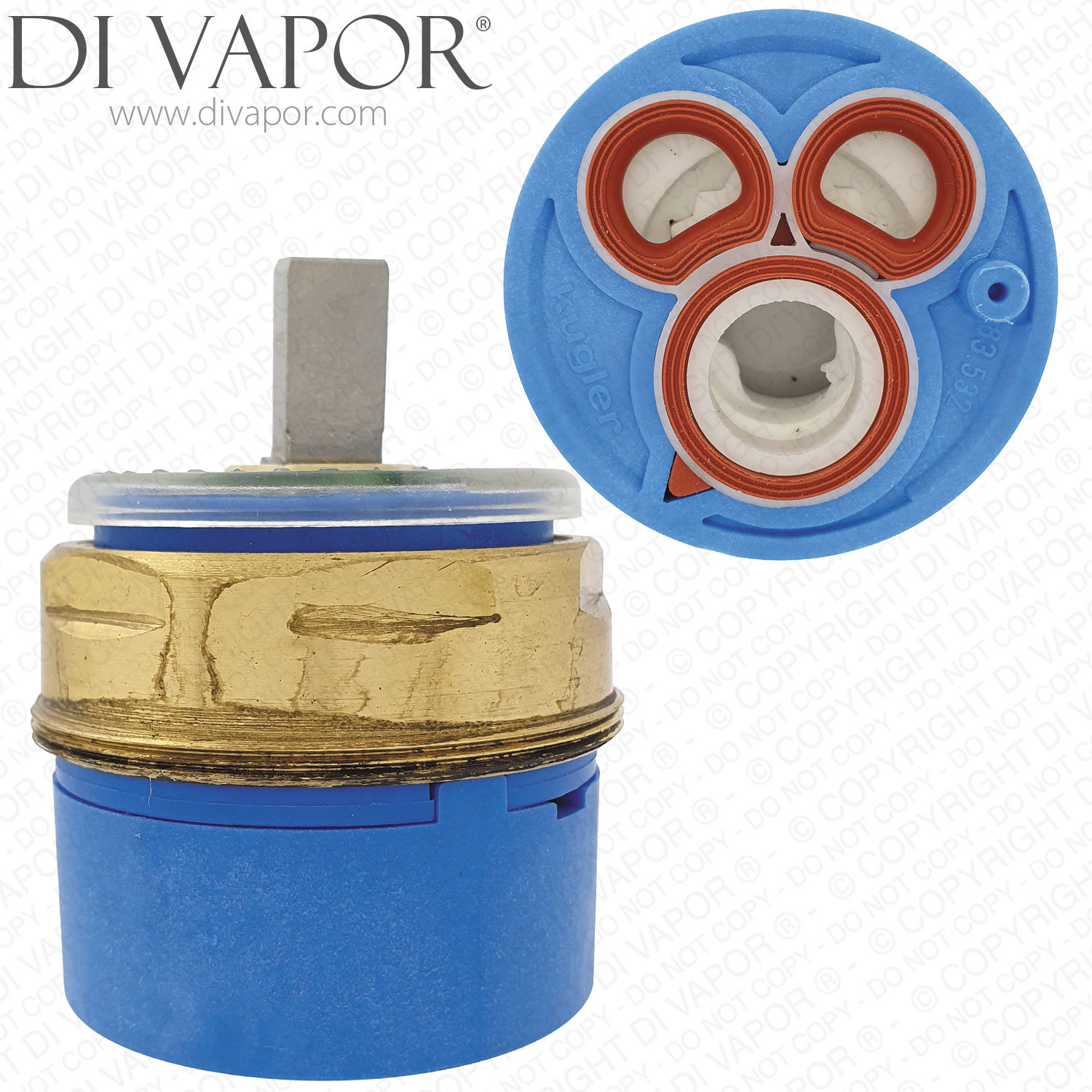

The SP-075-0014 is a ceramic mixer and flow cartridge used in selected NewTeam and ShowerForce manual shower valves and is also listed by Di Vapor for Bristan shower valve applications. It is used within the manual water-control mechanism and is not a thermostatic cartridge.
A worn or damaged flow cartridge can cause poor shut-off and may result in water continuing to drip from the shower head when the shower is turned off.
Technical Details
| Part Number | SP-075-0014 |
|---|---|
| Cartridge type | ceramic mixer / flow cartridge |
| Total length | 61.5mm |
| Total width | 48.3mm |
| Colour | cream |
| Material | plastic |
| O-rings | 3 |
| Brass retaining nut | not supplied with the current cartridge |
| Legacy reference format also found | SP075.0014 |
Confirmed Models and Applications
- NewTeam 911 Manual Shower Mixer NT911-M
- NewTeam 911EQ
- NewTeam Manual Shower / Orion
- NewTeam Ceramic Power Shower
- Showerforce SF911 Manual Shower Mixer SF 911-M
Before Ordering
Check the valve model and compare the cartridge dimensions and physical layout with the cartridge being removed before ordering. Do not identify the correct cartridge from the 48.3mm width alone. The current cartridge is cream and the brass retaining nut is no longer supplied.
Related Spares You May Need
- TACSIL 3g WRAS Approved Silicone Grease for Tap & Shower Cartridges - Part Number TAC86
Apply a thin coating of suitable silicone grease to the cartridge O-rings and seals during installation to help the cartridge seat correctly and reduce the risk of twisting or damaging the seals.
Not sure this is the right cartridge? Use the Di Vapor part identification service and send us a photo and dimensions.
