Roper Rhodes SP11321 Valve Anti-Clockwise Open Cartridge
Send a photo of your item and we'll help confirm it.
Summary

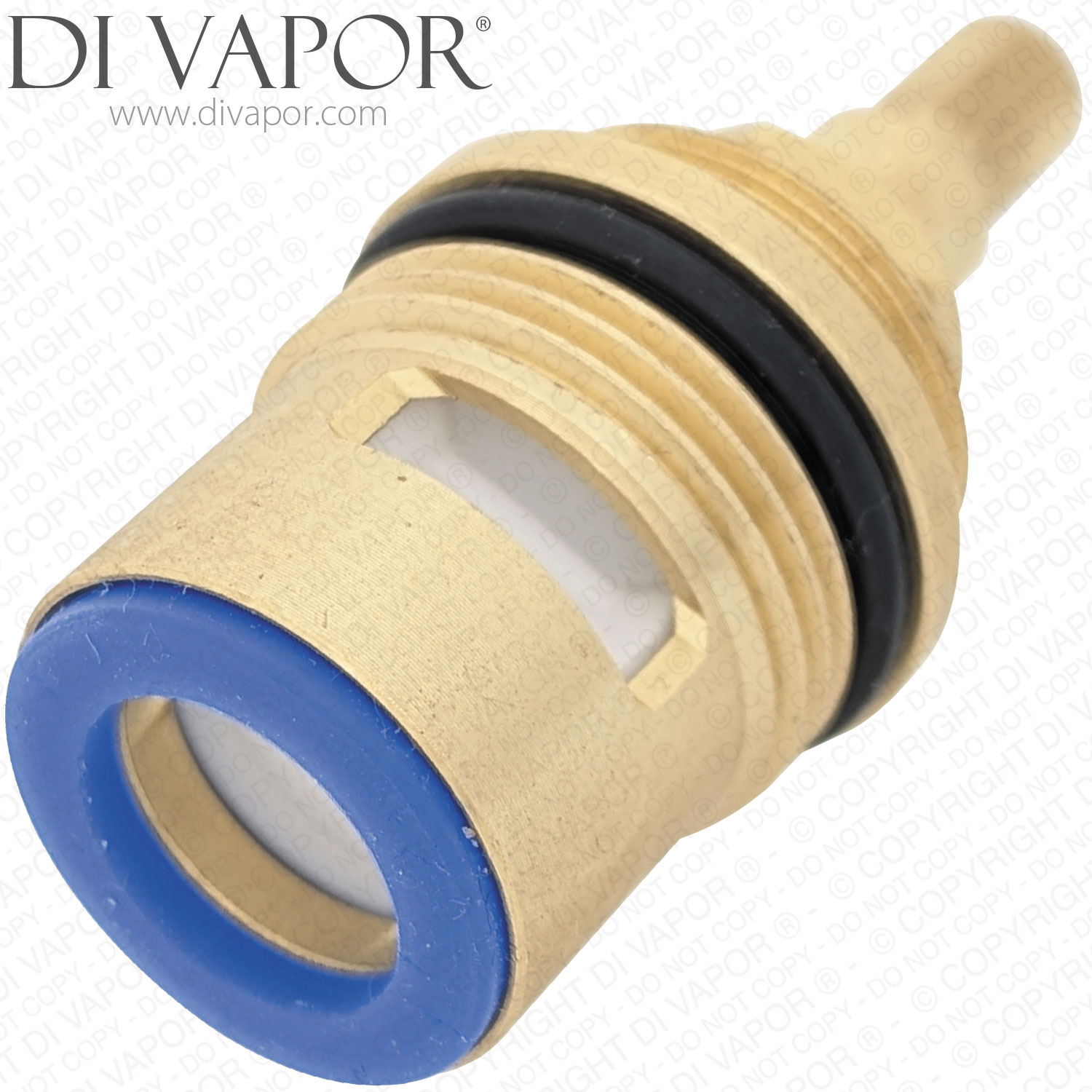

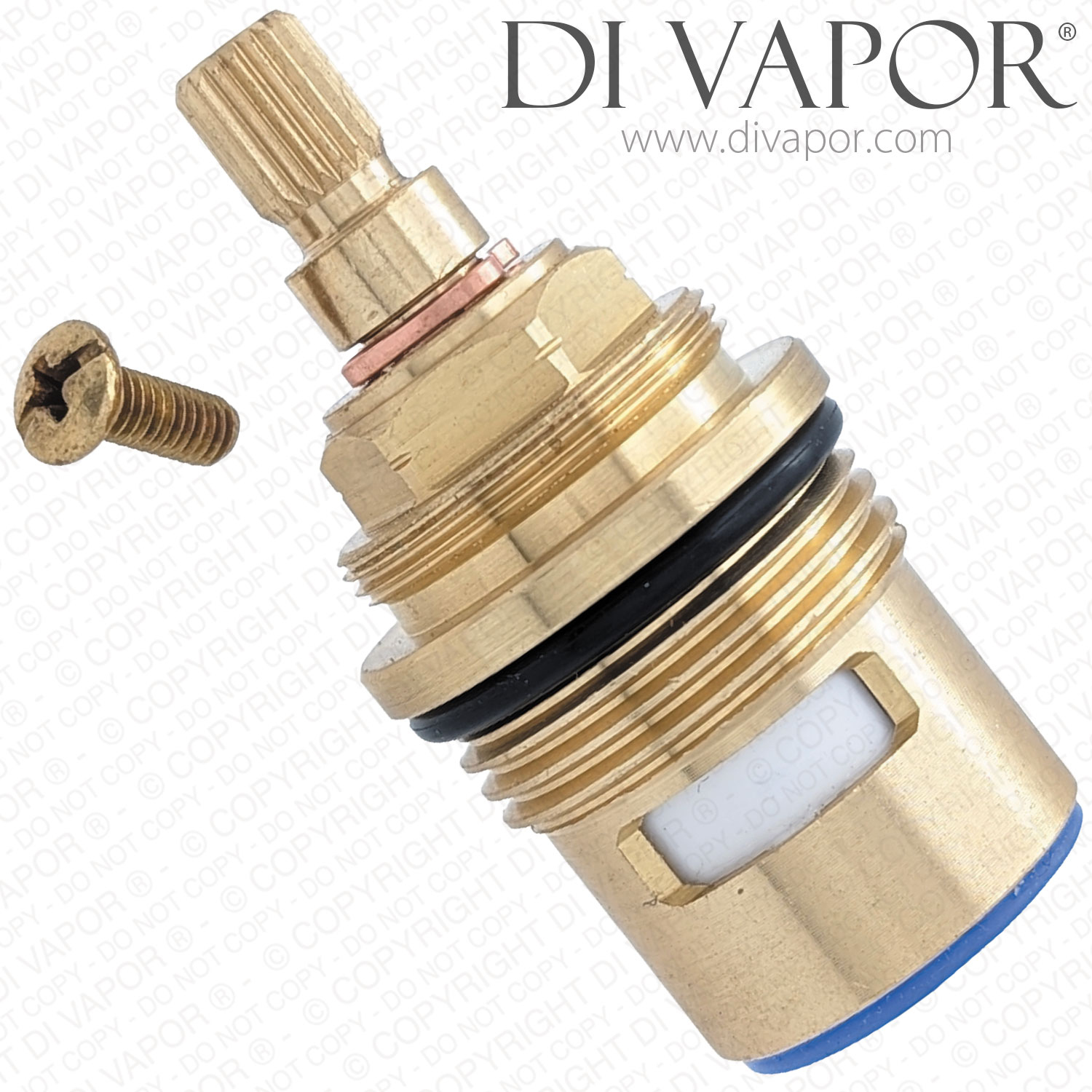

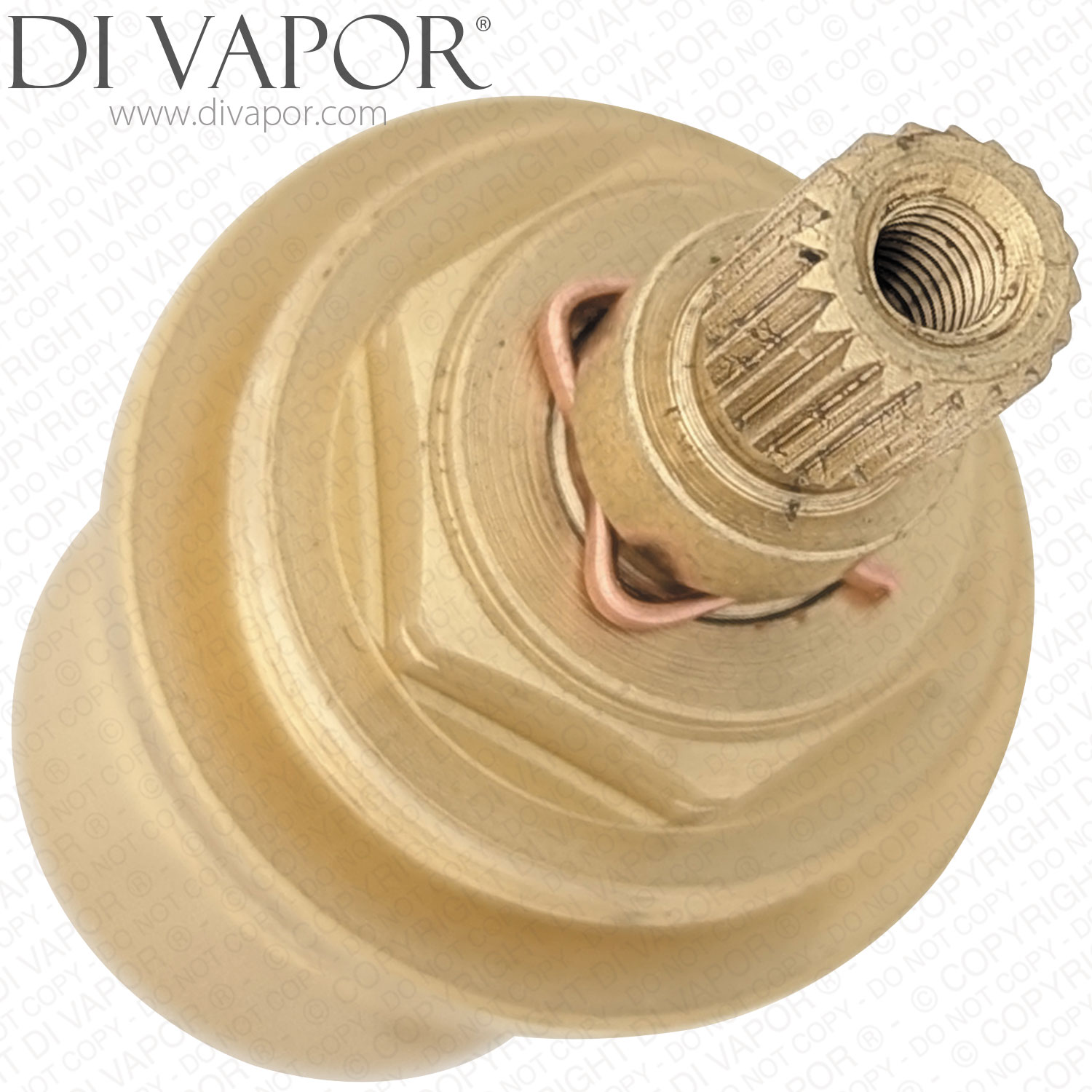

Roper Rhodes SP11321 Anti-Clockwise Open Flow Cartridge for Storm SV2204 Shower Valve
The Roper Rhodes SP11321 is an anti-clockwise-open quarter-turn flow cartridge used to control water flow in the Roper Rhodes Storm SV2204 concealed dual control shower valve.
This ceramic valve cartridge is used on the flow side of the shower valve. A worn flow cartridge can cause stiff operation, poor shut-off or water continuing to drip from the shower head when the shower is turned off.
Technical Details
| Part Number | SP11321 |
|---|---|
| Opening direction | anti-clockwise open |
| Cartridge type | quarter-turn flow cartridge |
| Spline count | 20 spline |
| Spline diameter | 7.6mm |
Technical Details
- Overall cartridge height: 56mm
- Upper section height from the top of the spline to the main shoulder: 30mm
- Lower body height from the main shoulder to the base: 26mm
- Spline height: 11mm
These are height and section-height measurements only. They are not width measurements.
Check the part number, turn direction, spline count and dimensions against the removed cartridge before ordering. Do not identify this cartridge by spline count or diameter alone, as similar-looking flow cartridges can differ internally.
Confirmed Compatible Models
Fitting Notes
Isolate the hot and cold water supplies before removing the cartridge. When refitting the flow handle, make sure it closes the valve without excessive force, as over-tightening the flow control can damage the cartridge and cause leaks.
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- Roper Rhodes SP11319 Valve Clockwise Open Cartridge
- Roper Rhodes Storm Concealed Dual Control Shower Valve SV2204 Thermostatic Cartridge Compatible Spare - 20 Spline Version
- Roper Rhodes Storm Concealed Dual Control Shower Valve SV2204 Thermostatic Cartridge Compatible Spare - 32 Spline Version
- Roper Rhodes Storm Concealed Dual Control Shower Valve SV2204 Diverter Cartridge Compatible Spare
