PHL035 Pair of 1/2" Quarter Turn Cartridges for Lefroy Brooks - Compatible Spare
Send a photo of your item and we'll help confirm it.
Summary

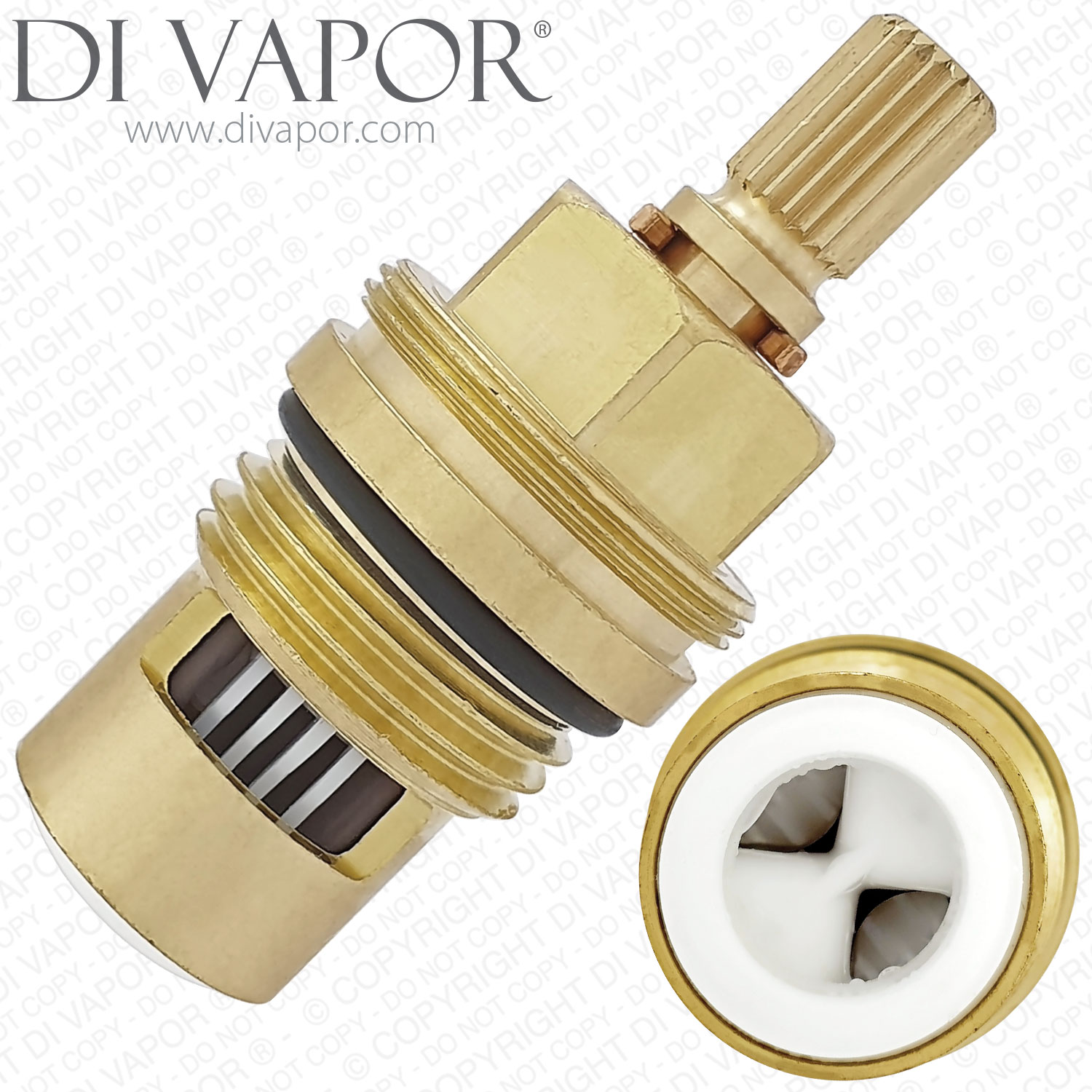

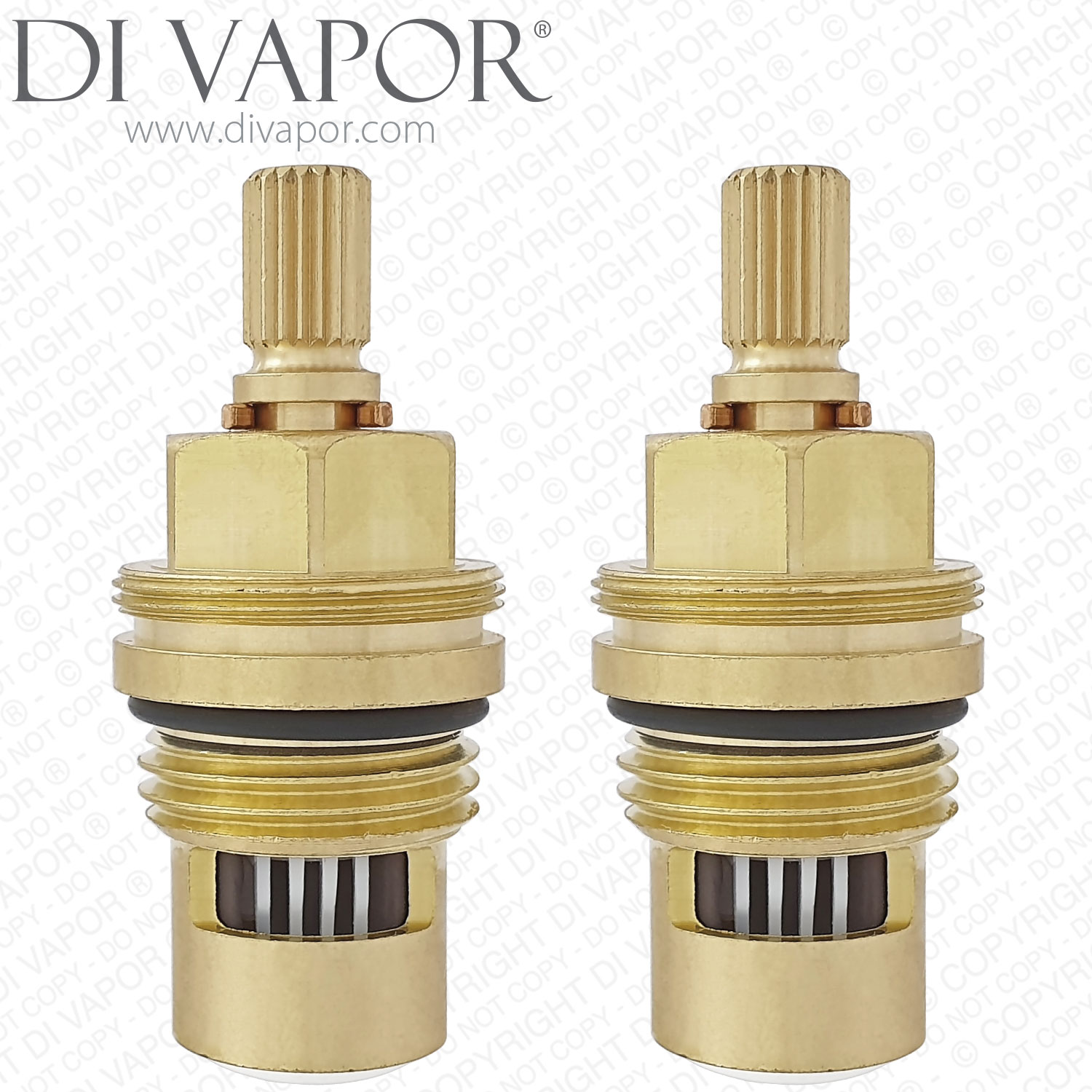

PHL035 is a pair of 1/2" x 1/4 turn ceramic flow cartridges for Lefroy Brooks lever-operated tap and valve applications. This Di Vapor compatible spare pair is used to restore hot and cold water flow control where the original quarter turn ceramic cartridges are worn, stiff, seized or allowing water to pass when the tap or valve is turned off.
The set is intended for Lefroy Brooks lever models that use 1/2" quarter turn ceramic cartridges. Check the existing cartridge size, handle type, opening direction and the exact Lefroy Brooks model or spares diagram before ordering, especially where the same tap family was supplied in both lever and handwheel versions.

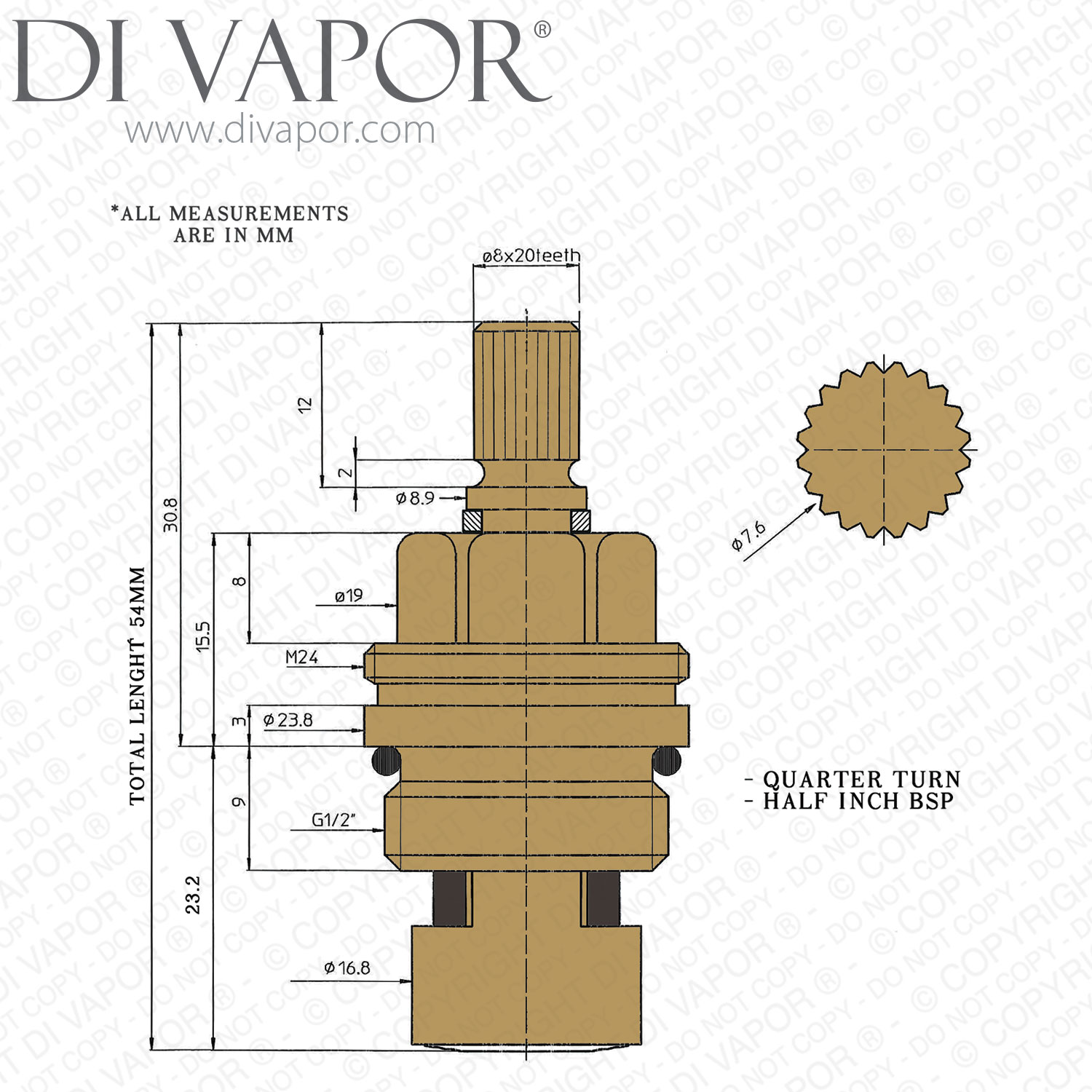

Technical Details
| Part code | PHL035 |
|---|---|
| Cartridge type | ceramic flow cartridge pair |
| Size | 1/2" |
| Operation | 1/4 turn |
| Supplied as | hot and cold cartridge pair |
| Application | selected Lefroy Brooks lever taps, basin mixers, bridge mixers, bidet mixers, pillar taps and wall valve applications using PHL035 |
A common symptom of worn flow cartridges is water dripping from the spout or outlet when the tap or valve is turned off. If only one side has failed, check whether the hot-side or cold-side single cartridge is required before replacing the pair.
Installation Notes
Isolate the water supply before removal. Flush pipework and clean the valve body before fitting the new cartridges, as debris can damage ceramic discs. Apply suitable silicone grease to cartridge O-rings and bottom seals during installation.
Confirmed Compatible Models
- Lefroy Brooks Classic Tubular Mono Basin Mixer With Black Levers BL 1180
- Lefroy Brooks Classic Tubular Mono Basin Mixer With White Levers WL 1180
- Lefroy Brooks Classic Kitchen Mono Mixer With Black Levers BL 1550
- Lefroy Brooks Classic Kitchen Mono Mixer With White Levers WL 1550
- Lefroy Brooks La Chapelle Basin Mixer With Pop-up Waste FH 1204
- Lefroy Brooks La Chapelle Basin Mixer With Black Crystal Levers And Pop-up Waste CR 1204
- Lefroy Brooks La Chapelle Basin Mixer With White Torpille Levers And Pop-up Waste FW 1204
- Lefroy Brooks La Chapelle Flared Spout Basin Mixer With Crystal Levers And Pop-up Waste CR 1205
- Lefroy Brooks Edwardian Black Lever Three Hole Basin Mixer With Pop-up Waste BL 1216
- Lefroy Brooks Classic Basin Mixer With Pop-up Waste LB 1220
- Lefroy Brooks Classic Basin Mixer With Connaught Levers And Pop-up Waste CL 1220
- Lefroy Brooks Classic Basin Mixer With Star Handles And Pop-up Waste LS 1220
- Lefroy Brooks Janey Mac Basin Mixer With Levers And Pop-up Waste JL 1222
- Lefroy Brooks Connaught Basin Mixer With White Levers And Pop-up Waste WL 1224
- Lefroy Brooks Connaught Basin Mixer With Pop-up Waste CH 1224
- Lefroy Brooks Connaught Basin Mixer With Star Handles And Pop-up Waste LS 1224
- Lefroy Brooks Mackintosh Basin Mixer With Classic White Levers And Pop-up Waste WL 1228
- Lefroy Brooks Mackintosh Basin Mixer With Classic Black Levers And Pop-up Waste BL 1228
- Lefroy Brooks Mackintosh Basin Mixer With Black Levers And Pop-up Waste MB 1228
- Lefroy Brooks Mackintosh Basin Mixer With Metal Levers And Pop-up Waste ML 1228
- Lefroy Brooks Mackintosh Basin Mixer With Pop-up Waste MH 1228
- Lefroy Brooks Classic Mono Basin Mixer And Pop-up Waste LB 1185
- Lefroy Brooks Classic Mono Basin Mixer With Black Levers And Pop-up Waste BL 1185
- Lefroy Brooks Mackintosh Mono Basin Mixer With Pop-up Waste MH 1185
- Lefroy Brooks La Chapelle Mono Basin Mixer With Pop-up Waste FH 1189
- Lefroy Brooks Connaught Mono Basin Mixer With Pop-up Waste CH 1189
- Lefroy Brooks Connaught Mono Basin Mixer With Stay Chain And Waste Kit CHS 1189
- Lefroy Brooks Connaught Mono Basin Mixer With Star Handles And Pop-up Waste LS 1189
- Lefroy Brooks Mackintosh Mono Bidet Mixer With Pop-up Waste MH 1195
- Lefroy Brooks La Chapelle Mono Bidet Mixer With Pop-up Waste FH 1199
- Lefroy Brooks Connaught Mono Bidet Mixer With Pop-up Waste CH 1199
- Lefroy Brooks Connaught Mono Bidet Mixer With Stay Chain And Waste Kit CHS 1199
- Lefroy Brooks Connaught Mono Bidet Mixer With Star Handles And Pop-up Waste LS 1199
- Lefroy Brooks Connaught Lever Kitchen Bridge Mixer CL 1517
- Lefroy Brooks Classic Kitchen Bridge Mixer LB 1517
- Lefroy Brooks Classic Kitchen Bridge Mixer With White Levers WL 1517
- Lefroy Brooks Classic Wall Mounted Kitchen Bridge Mixer BL 1518
- Lefroy Brooks Classic Basin Bridge Mixer With Black Levers BL 9007
- Lefroy Brooks Classic Basin Bridge Mixer With White Levers WL 9007
- Lefroy Brooks Classic Wall Mounted Basin Bridge Mixer With Black Levers BL 9008
- Lefroy Brooks Classic Wall Mounted Basin Bridge Mixer With White Levers WL 9008
- Lefroy Brooks Single Classic Cloakroom Basin Short Nose Pillar Tap LBX 1135
- Lefroy Brooks Classic Basin Pillar Taps LB 1422
- Lefroy Brooks Single Classic Cloakroom Basin Pillar Tap LBX 1422
- Lefroy Brooks Connaught Basin Pillar Taps CH 8022
- Lefroy Brooks Single Connaught Cloakroom Basin Pillar Tap CHX 8022
- Lefroy Brooks Classic Long Nose Basin Pillar Taps With Black Levers BL 8030
- Lefroy Brooks Classic Long Nose Basin Pillar Taps With White Levers WL 8030
- Lefroy Brooks Single Connaught Long Nose Cloakroom Basin Pillar Tap CHX 8030
- Lefroy Brooks Ten Ten Wall Mounted Basin Bridge Mixer With Levers TL 9005
- Lefroy Brooks Ten Ten Wall Mounted Basin Bridge Mixer With Handwheels TH 9005
- Lefroy Brooks Ten Ten Mono Bidet Mixer With Levers TL 1198
- Lefroy Brooks Ten Ten Mono Bidet Mixer With Handwheels TH 1198
- Lefroy Brooks Fifth Single Plinth Basin Mixer With Click-up Waste DP 1226
