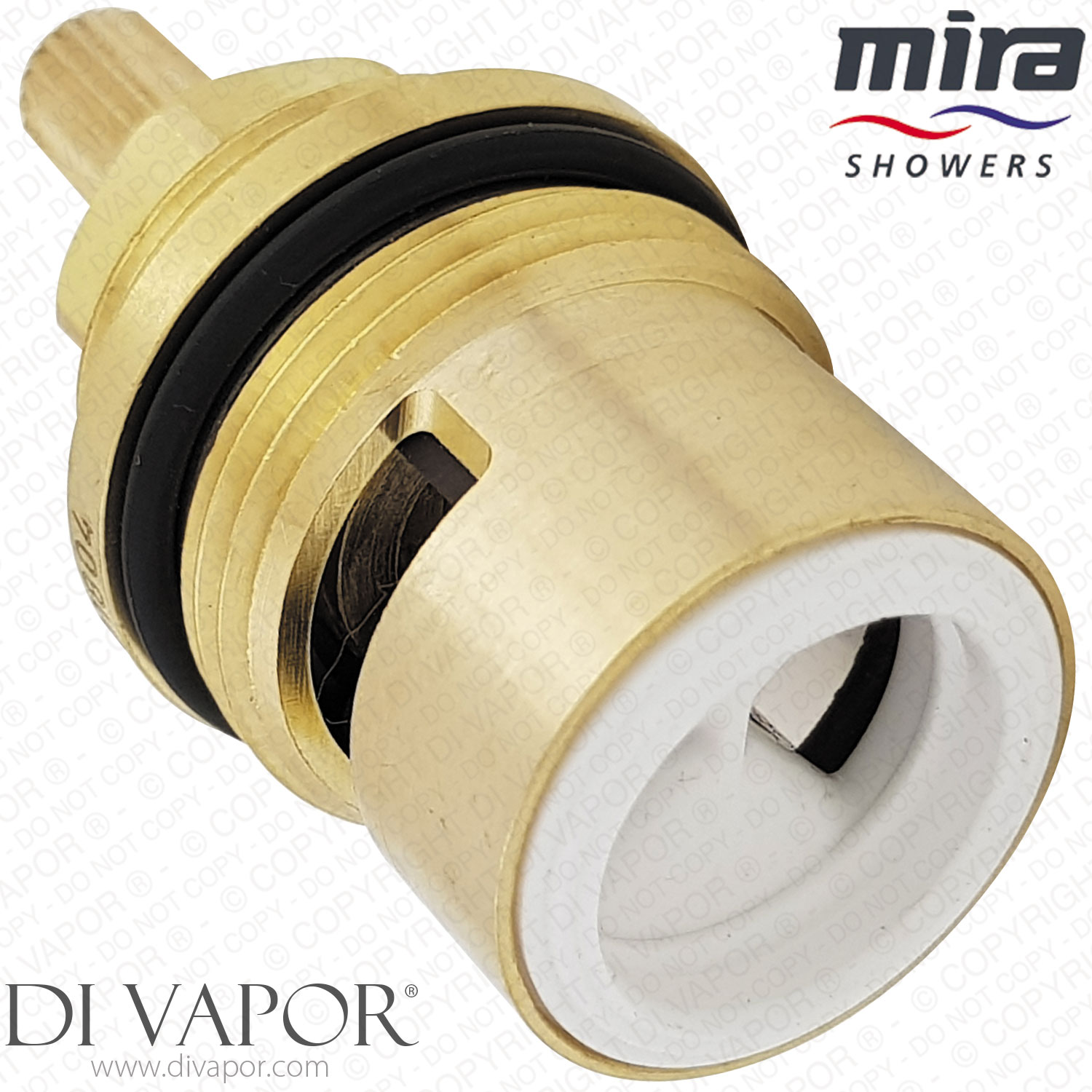

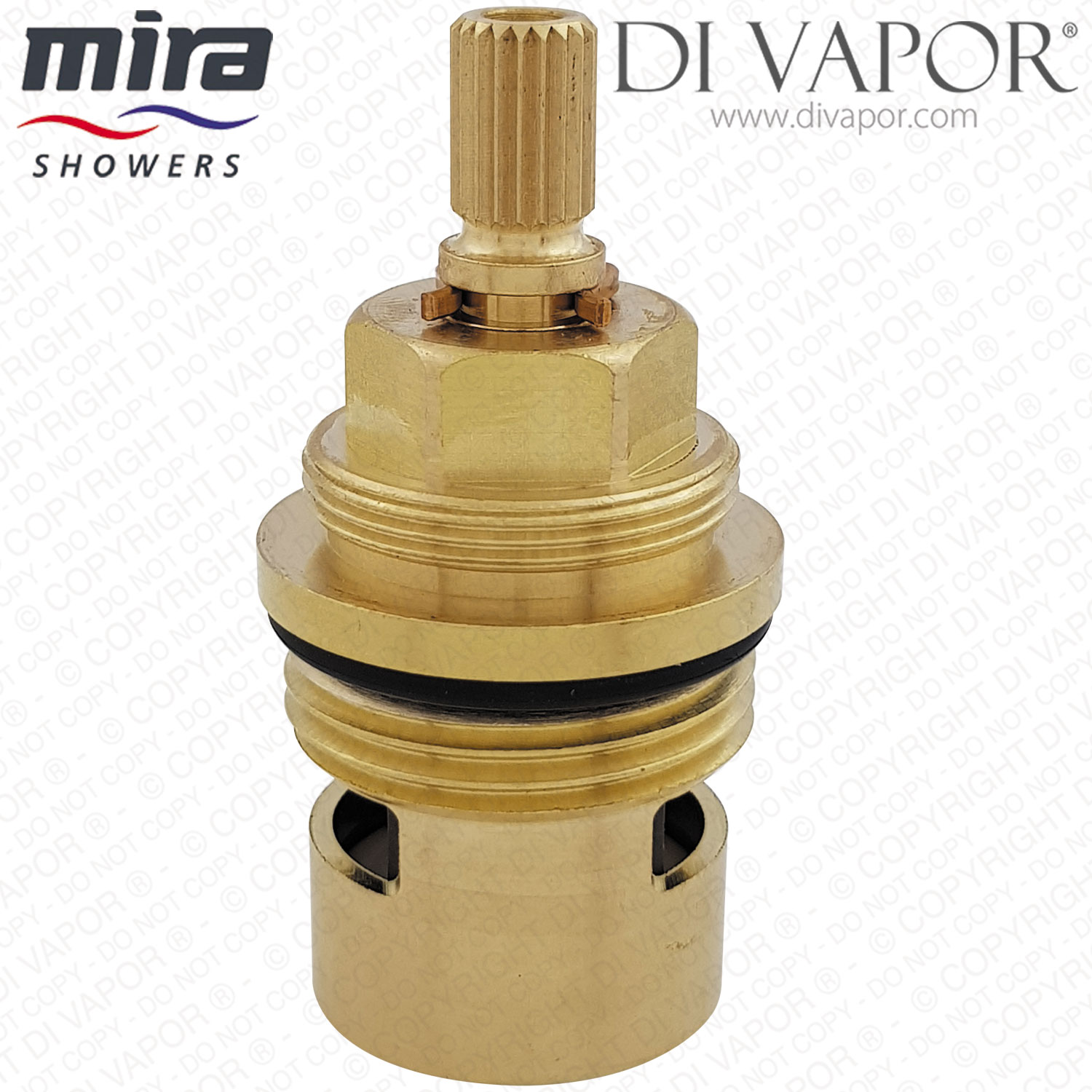

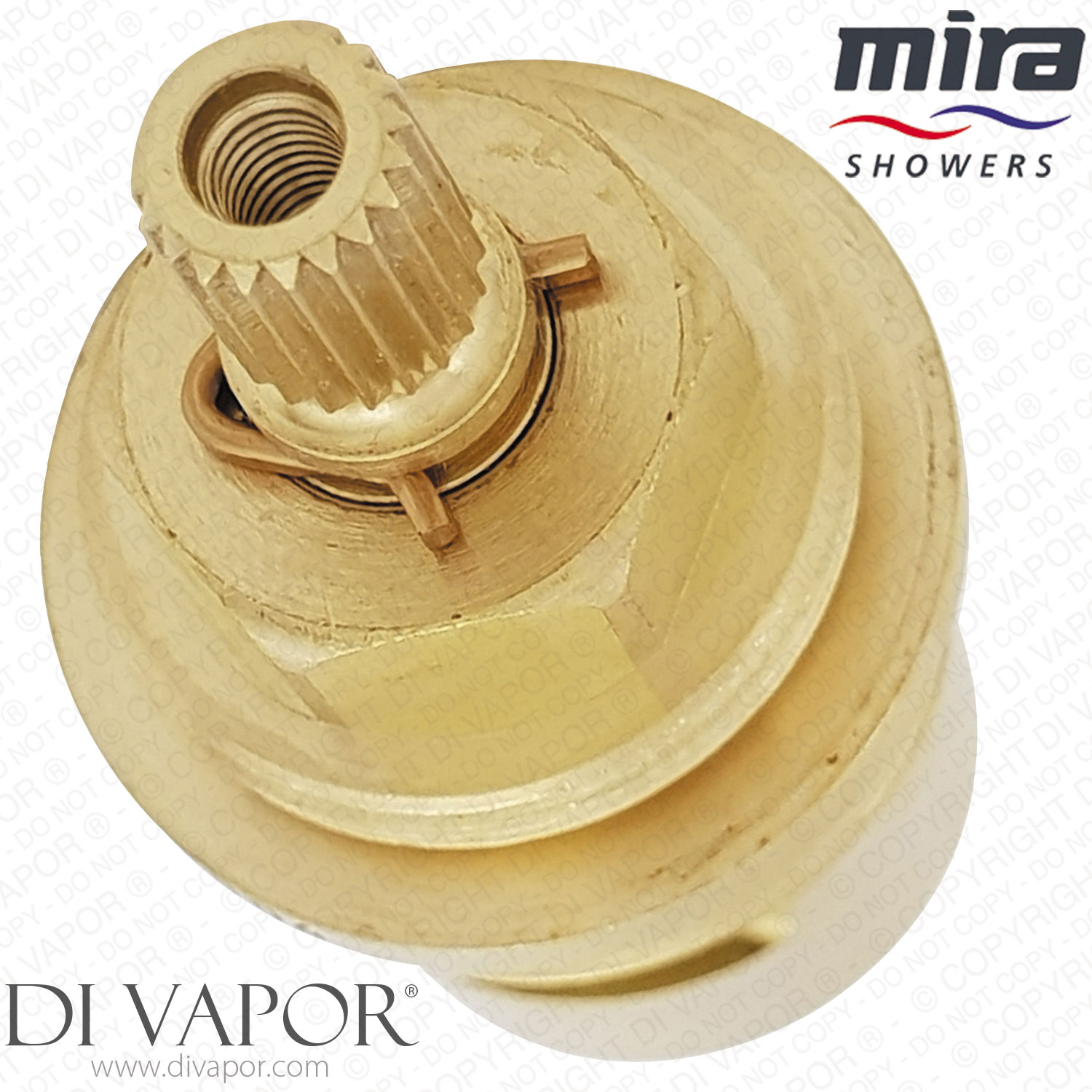

Mira 1836.181 Flow Cartridge for Atom MK3, Coda and Honesty Shower Bars

SUMMARY

Mira 1836.181 Flow Cartridge for Atom, Coda and Honesty Shower Bars

The Mira 1836.181 flow cartridge is a replacement flow control cartridge used in selected Mira thermostatic shower bar valves. This cartridge controls the on and off water flow from the flow selector side of the valve and is used where the original cartridge has become worn stiff seized or unable to shut the water off correctly.

A common symptom of a failing flow cartridge is water continuing to drip from the shower handset after the shower has been turned off once normal residual water has drained from the hose and handset. Check the cartridge code valve model and handle side before ordering because Mira Atom Coda Honesty Relate and related bar valves can use different flow cartridge codes depending on version and production type.

Technical Details

- - Brand: Mira

- - Product code: 1836.181

- - Di Vapor Part Number: M-1836.181

- - Part type: Flow cartridge

- - Application: Flow control side of selected Mira thermostatic shower bar valves

- - Material: Brass

- - Diameter: 28.9mm

- - Length: 56.54mm

- - Spline teeth: 20

- - Number of O-rings: 2

- - Grub screw hole: No

- - Long spline: No

Confirmed Compatible Models

- - Mira Coda Pro EV (1.1836.005) Spare Parts

- - Mira Coda Pro Valve Only (1.1836.007) Spare Parts

- - Mira Coda Pro ERD (1.1836.006) Spare Parts

- - Mira Atom EV Thermostatic Bar Valve

- - Mira Honesty EV (1.1901.001) Spare Parts

- - Mira Relate EV (2.1878.001) Spare Parts

Installation and Ordering Notes

Isolate the hot and cold water supplies before removing the old cartridge. Compare the removed cartridge with the replacement before fitting and lightly lubricate the O-rings with WRAS approved silicone grease to help protect the seals during installation. Do not order from the diameter alone because similar Mira bar valves can use different flow cartridges.

Related Spares You May Need

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
