Lefroy Brooks PHL043 Cold 1/4 Turn 3/4" Cartridge - Compatible Spare
Send a photo of your item and we'll help confirm it.
Summary
Lefroy Brooks PHL043 is a cold 3/4 inch quarter-turn ceramic flow cartridge used in selected Lefroy Brooks manual bath and shower mixers and flow control valves.
It controls cold water flow on the valve and closes clockwise / opens anti-clockwise. A common symptom of failure is water dripping from the spout or shower outlet when the shower or tap is turned off.
Technical Details
| Part code | PHL043 |
|---|---|
| Type | cold ceramic flow cartridge |
| Size | 3/4 inch |
| Operation | 1/4 turn |
| Turn direction | clockwise close; anti-clockwise open |
| Installation note | apply silicone grease to the O-rings before fitting |
| Before ordering check | match the cartridge code and turn direction to your valve because cartridge side position varies by model |
Confirmed Compatible Models
Lefroy Brooks Janey Mac Wall Mounted Lever Five Hole Bath Filler With Diverter & Hand Shower JL 1247
Lefroy Brooks Ten Ten Deck Mounted Bath Bridge Mixer With Handwheels TH 1117
Lefroy Brooks Ten Ten Deck Mounted Bath Bridge Mixer With Levers TL 1117
Lefroy Brooks Classic Flow Control Valve WL 5000
Lefroy Brooks Classic Black Concealed Thermostatic Valve With Hand Shower BL 8712
Lefroy Brooks Fifth Bath Filler DP 1239
Lefroy Brooks Ten Ten Wall Mounted Bath Bridge Mixer With Levers TL 1157
Lefroy Brooks Fifth Bath Filler With Wall Mounted Spout DP 1268
Related Spares You May Need
- Lefroy Brooks PHL042 Hot 1/4 Turn 3/4" Cartridge - Compatible Spare
- Lefroy Brooks PHL036 Pair of BSM 1/4 Turn 3/4 Cartridges (Hot & Cold) - Compatible Spare
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved

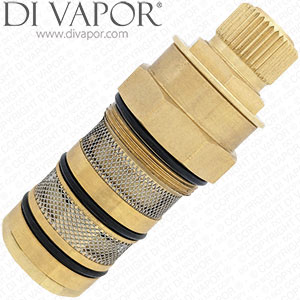

- Lefroy Brooks LB1750 Thermostatic Cartridge - LB-1750 Compatible Spare for applicable Lefroy Brooks thermostatic valve assemblies that use this flow cartridge
