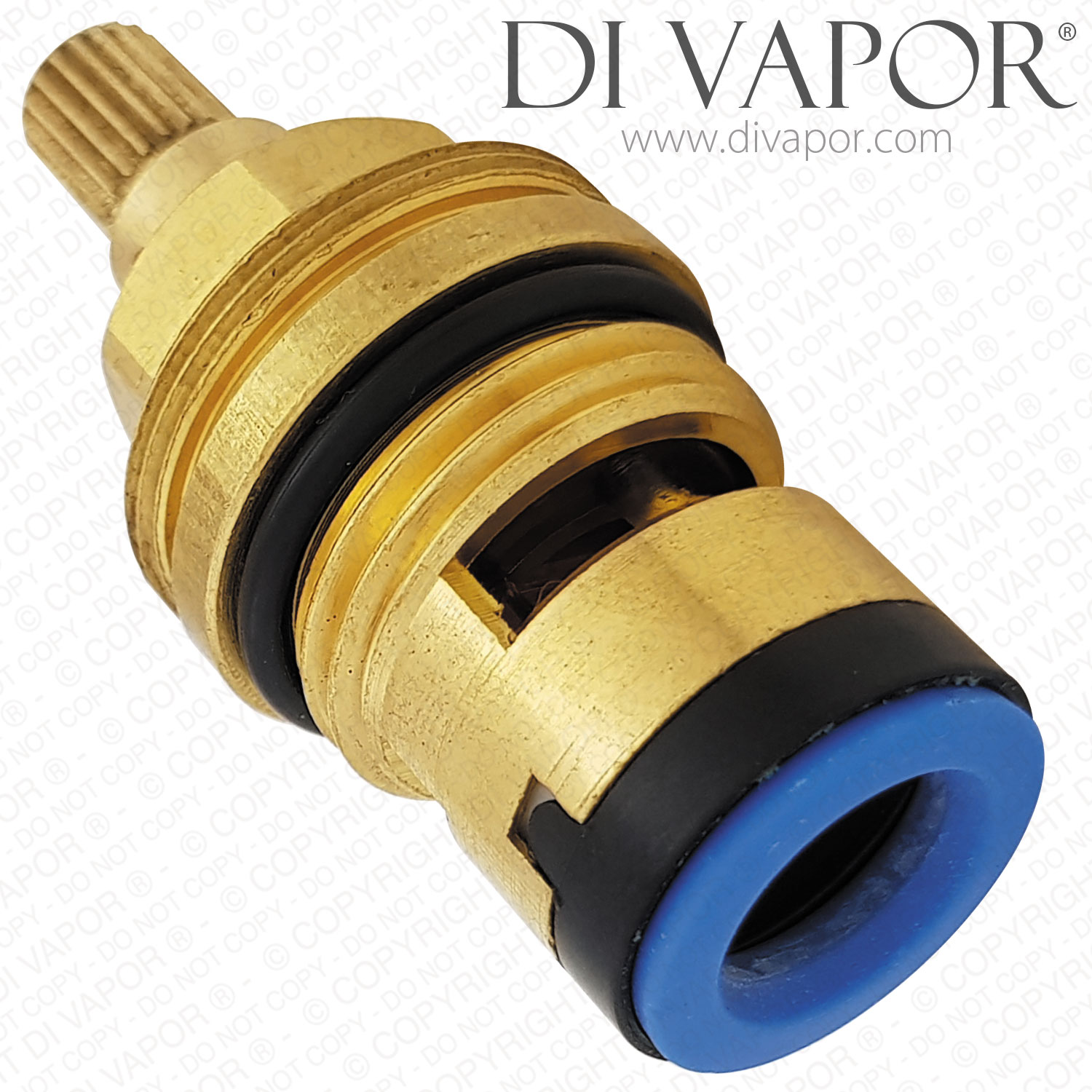

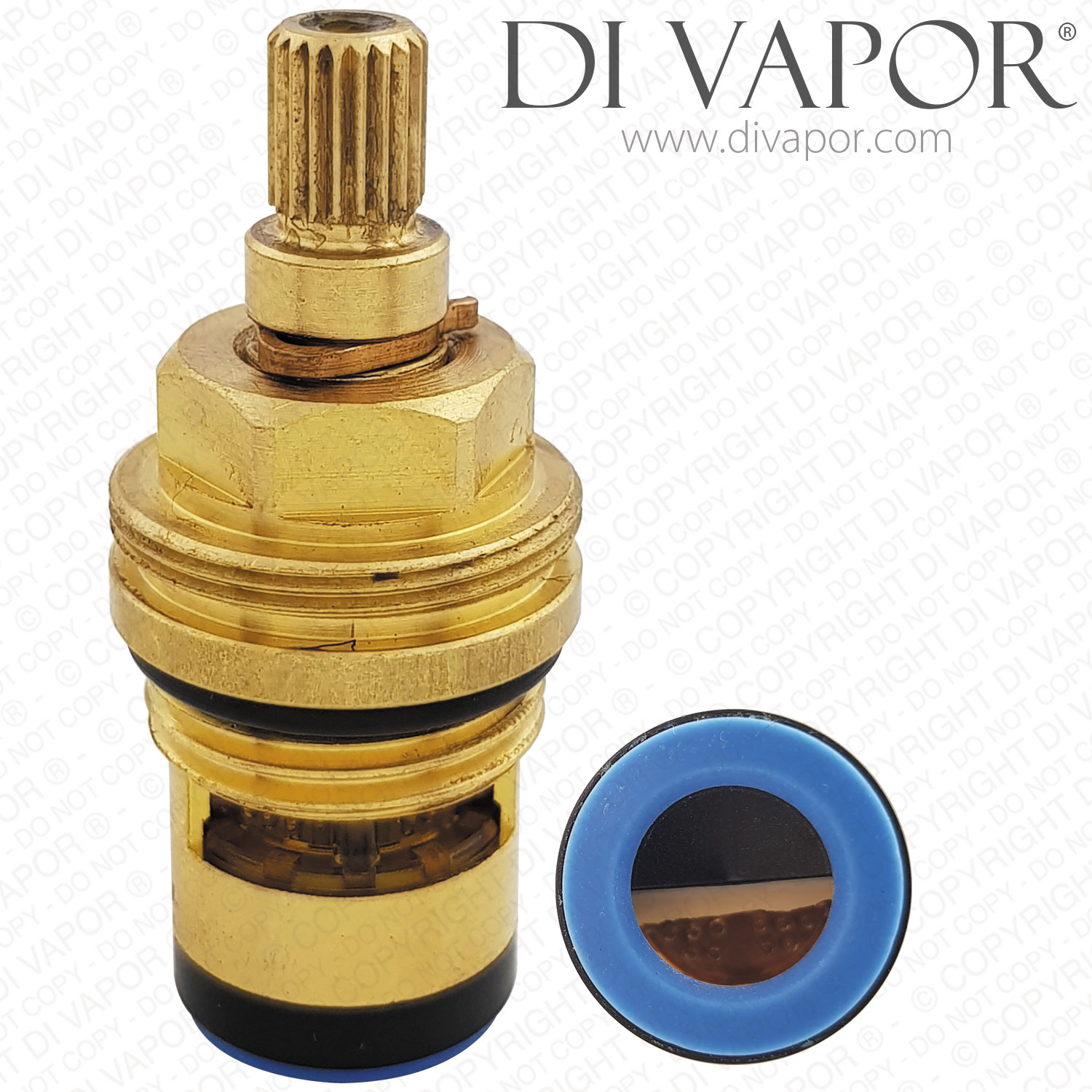

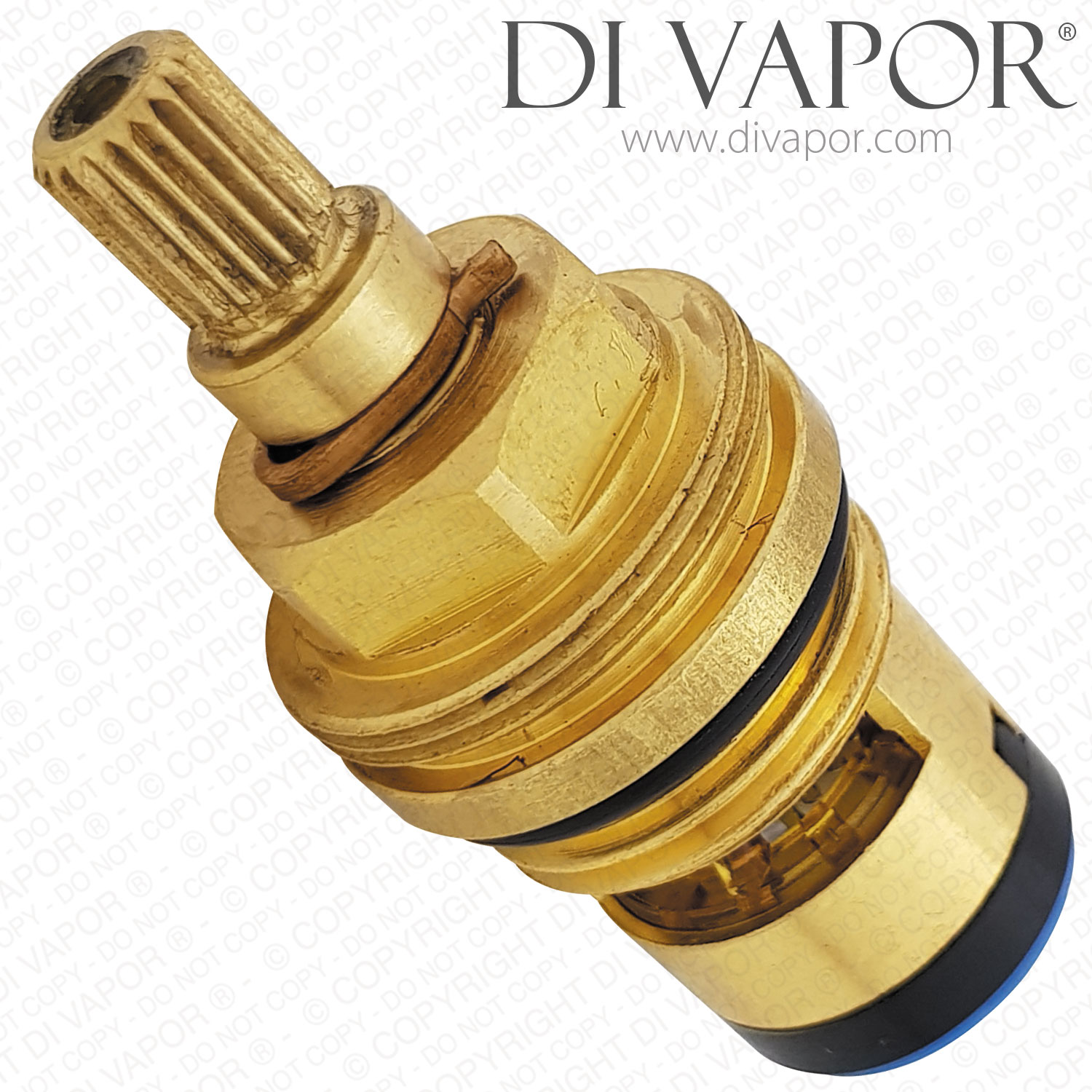

JH90940 1/2" Flow Cartridge - Half Turn - 20 Splines - Anti-Clockwise Open
Part number: JH90940
Price: £45.00
Sale: £29.63
You save: £15.37 (34%)
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary
Please note that the version of the cartridge you will receive is aesthetically different, but is a suitable replacement, made in Germany.
Cartridge Measurements:
| Total Length (including bottom seal) | 53.1mm |
|---|---|
| Diameter at Widest Point | 23.9mm |
| Top Spline Diameter | 7.8mm |
| Top Spline Teeth / Notches | 20 |
| Barrel Diameter | 18.5mm |
| Lower Thread | 1/2" |
| Bottom Seal Colour | Blue (for Cold Side) |
| Close Direction | Clockwise Close (Anti-Clockwise Open) |
| Upper Thread (closer to spline) | 23.4mm |
