Jado A961761NU Cartridge 1/2" Inch Counter Clockwise On/Off Ceramic Disc Cartridge (Ideal Standard)
Send a photo of your item and we'll help confirm it.
Summary
Jado A961761NU 1/2 Inch Right-Closing Ceramic Disc Flow Cartridge for Taps and Concealed Valves

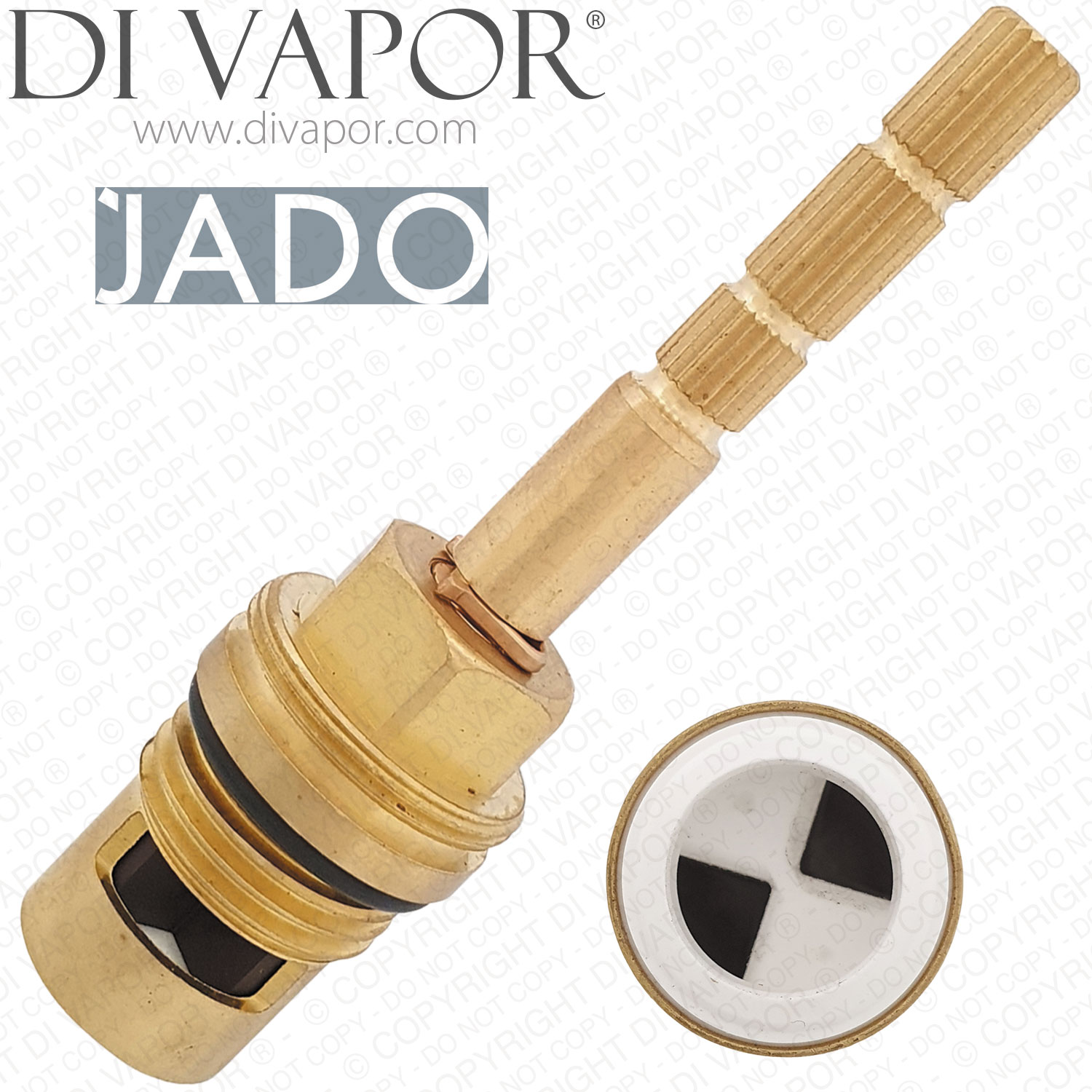

Jado A961761NU is a 1/2 inch ceramic disc flow cartridge used as a right-closing on/off headwork in selected Jado, Ideal Standard and Sottini taps and concealed valve assemblies. The cartridge operates through a quarter turn, closing clockwise and opening anti-clockwise.
The cartridge controls water flow and shut-off through the valve. A worn or damaged ceramic headwork can cause poor shut-off, stiff operation or water continuing to drip from the tap or spout after the control has been turned off.
Technical Details
| Part Number | A961761NU |
|---|---|
| Manufacturer's alternative code format | A 961 761 NU |
| Part type | ceramic disc flow cartridge / right-closing headwork |
| Connection | G1/2 / 1/2" BSP |
| Operation | quarter turn |
| Rotation | 90 degrees |
| Close direction | clockwise |
| Open direction | anti-clockwise |
| Total length including bottom seal | 89mm |

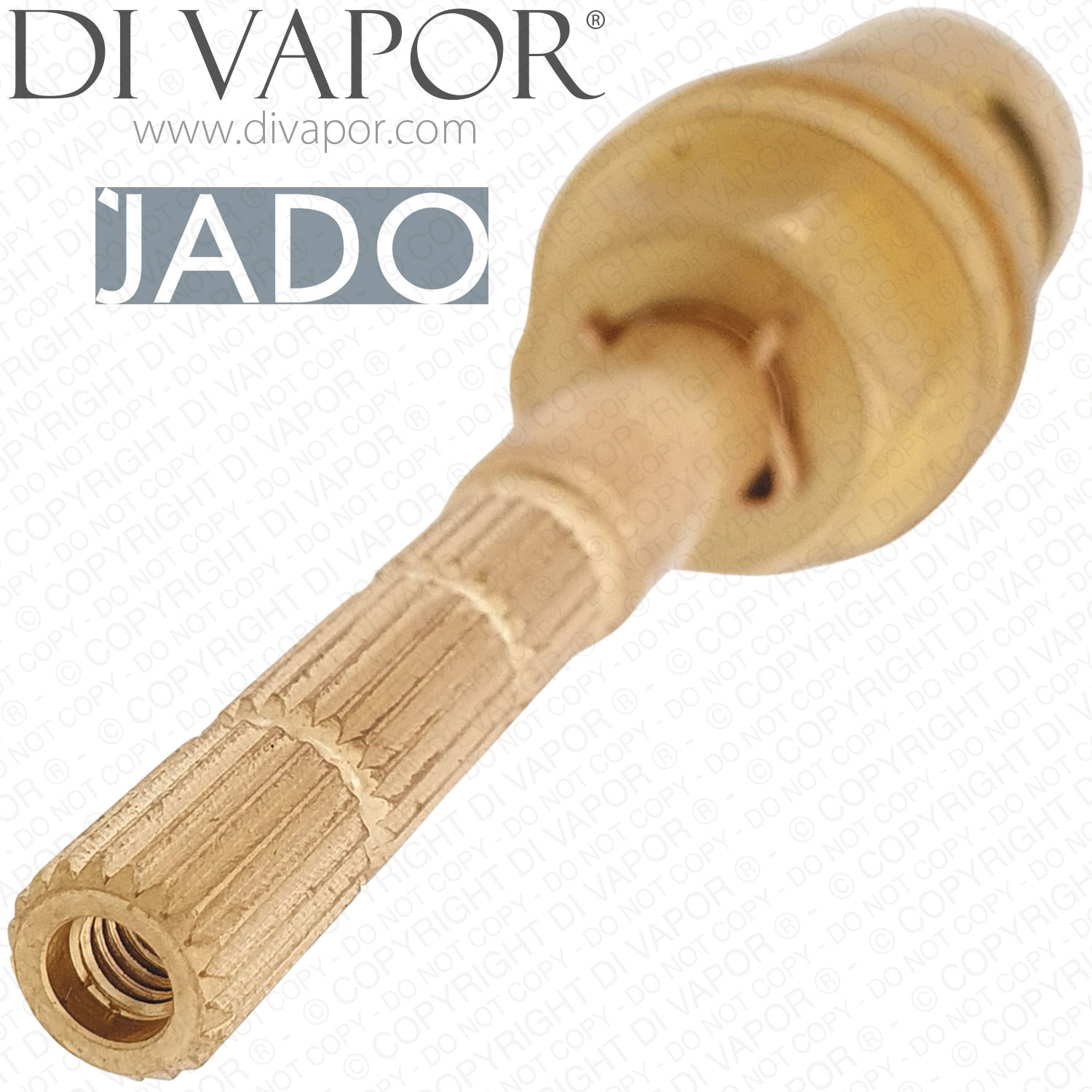

| Top spline diameter | 7.6mm |
| Top spline count | 20 |
| Lower fitting thread diameter | 20.6mm |
| Barrel diameter below lower thread | 18.3mm |
| Upper thread diameter | 23.8mm |

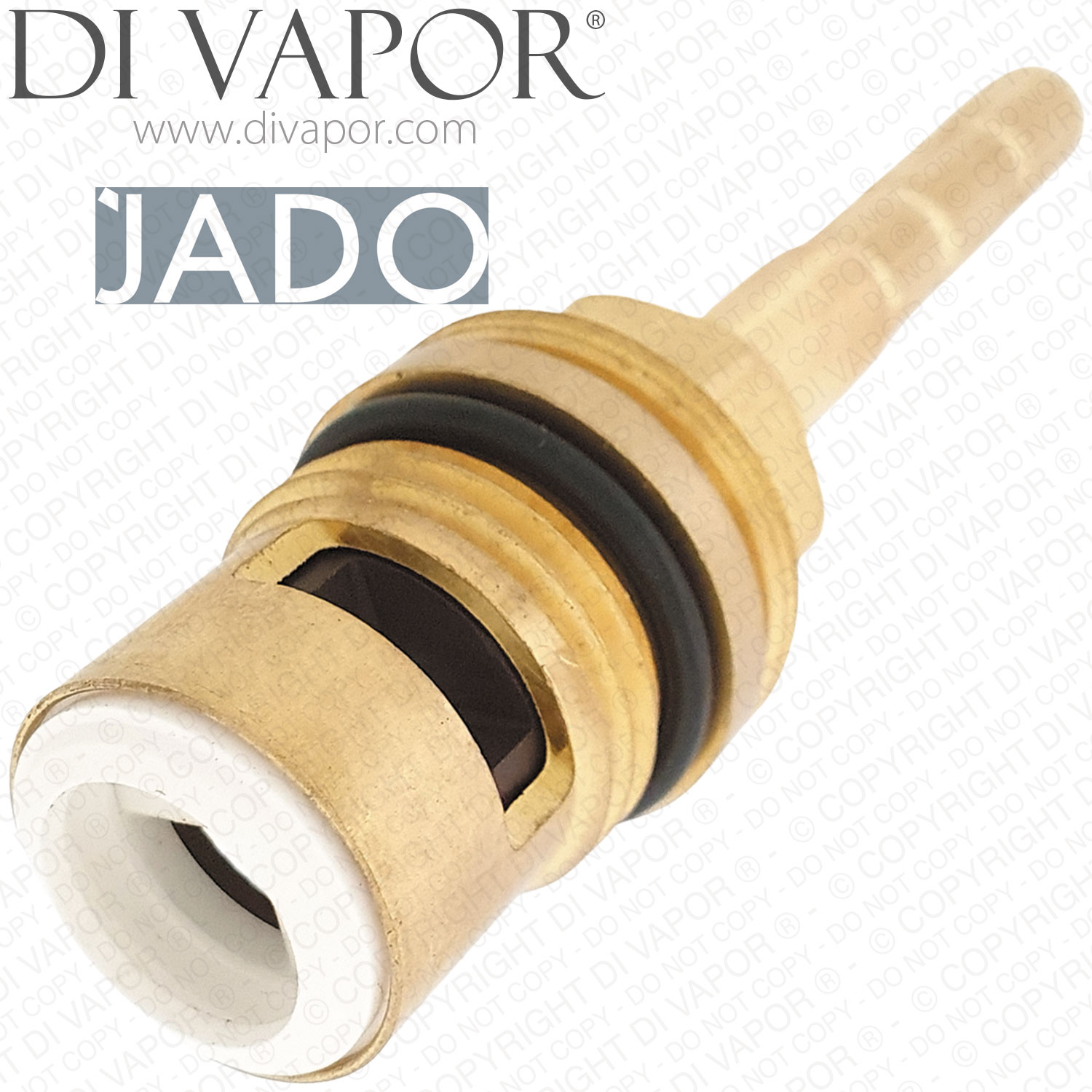

| Bottom seal colour | white |
Confirmed Compatible Models
- Sottini Mazaro A6475AA GEN1 wall-mounted washbasin mixer
- JADO Glance H2106AA G1/2 concealed valve
- JADO Neon A5586AA G1/2 concealed valve
- JADO IQ H2047AA G1/2 concealed valve
- JADO IQ H2057AA G1/2 concealed valve
- JADO New Haven L4500AA G1/2 concealed valve
- JADO New Haven L4534AA G1/2 concealed valve
- JADO Perlrand Cristal H3968A4 G1/2 concealed valve
- JADO Neon A5715AA G1/2 stop valve
Before Ordering
Check the code, overall length, G1/2 fitting, spline dimensions and operating direction against the cartridge being removed. Similar Jado concealed valves can use different headworks, and G3/4 versions use different cartridges. H2634AA IQ installations should also be checked against the existing cartridge because the headwork varies by generation.
Related Spares You May Need
- TACSIL 3g WRAS Approved Silicone Grease for Tap and Shower Cartridges - TAC86
- JADO H960521NU Ceramic Disc Valve Cartridge 1/2" Left Side - 90mm
- Ideal Standard A962869NU Pair of O-Rings
Use silicone grease on suitable O-rings and seals during installation to help the cartridge seat correctly and reduce damage to the seals.
If you are unsure which cartridge you need, use the Di Vapor part identification service.
