INTA VT01V1 On/Off Flow Cartridge
Send a photo of your item and we'll help confirm it.
Summary

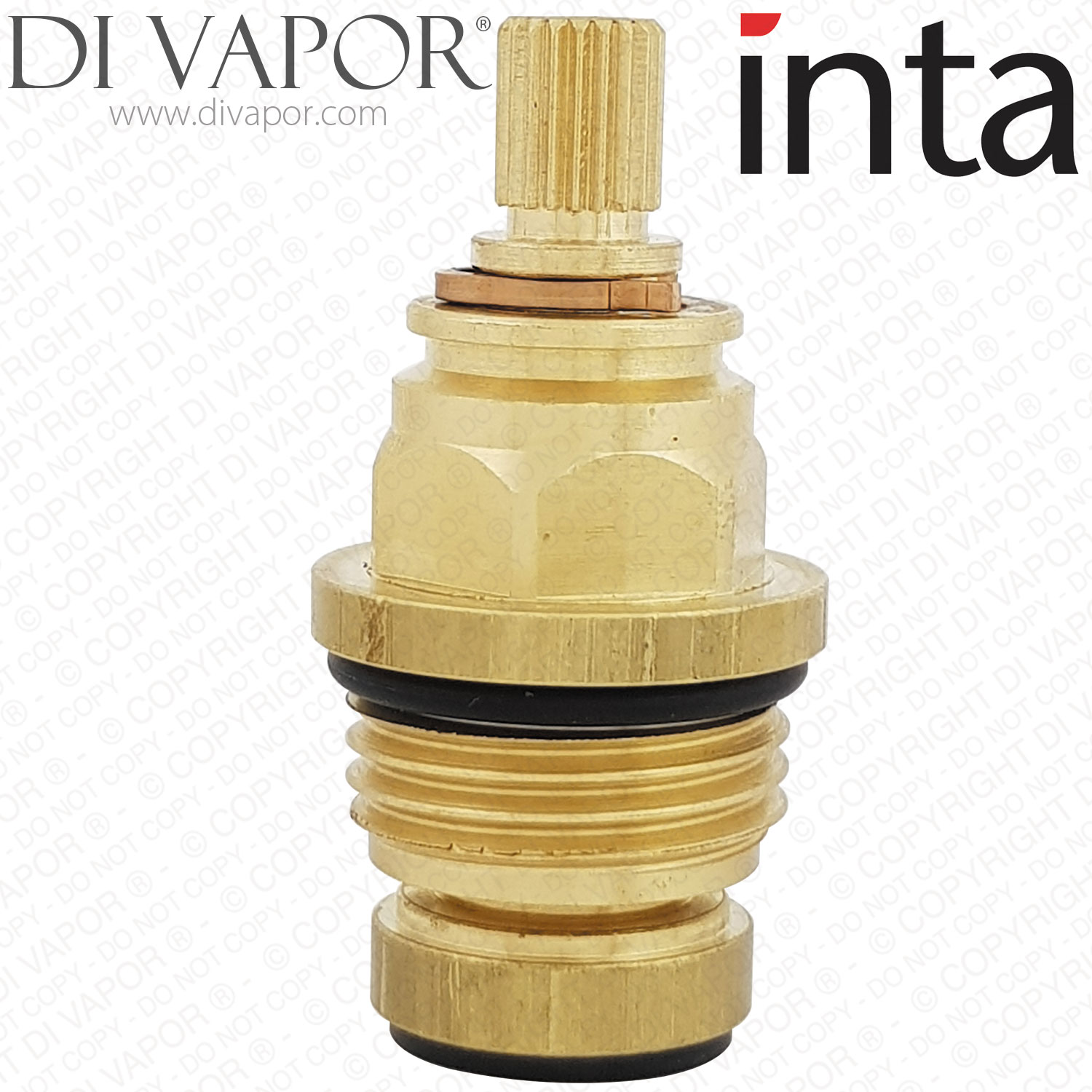

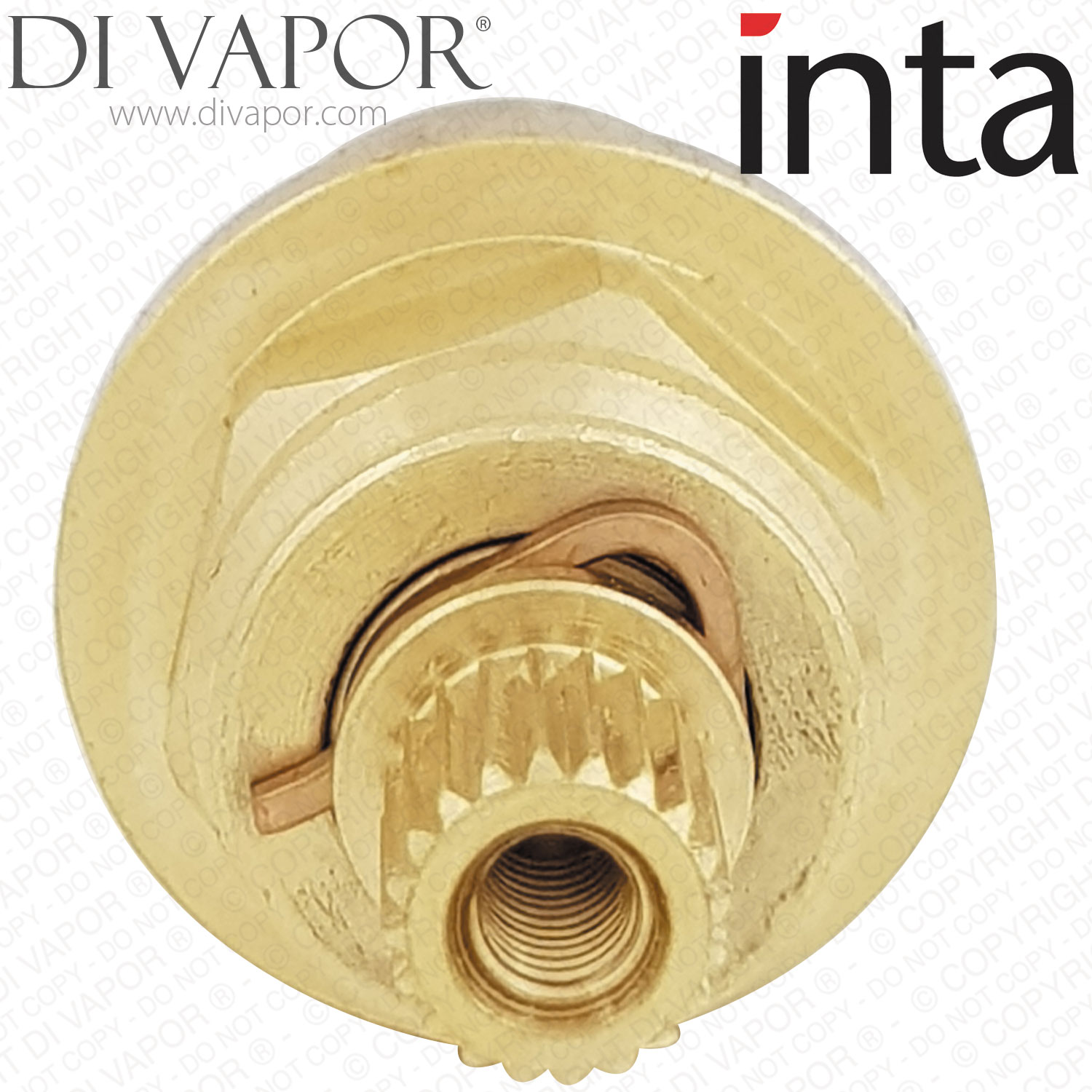

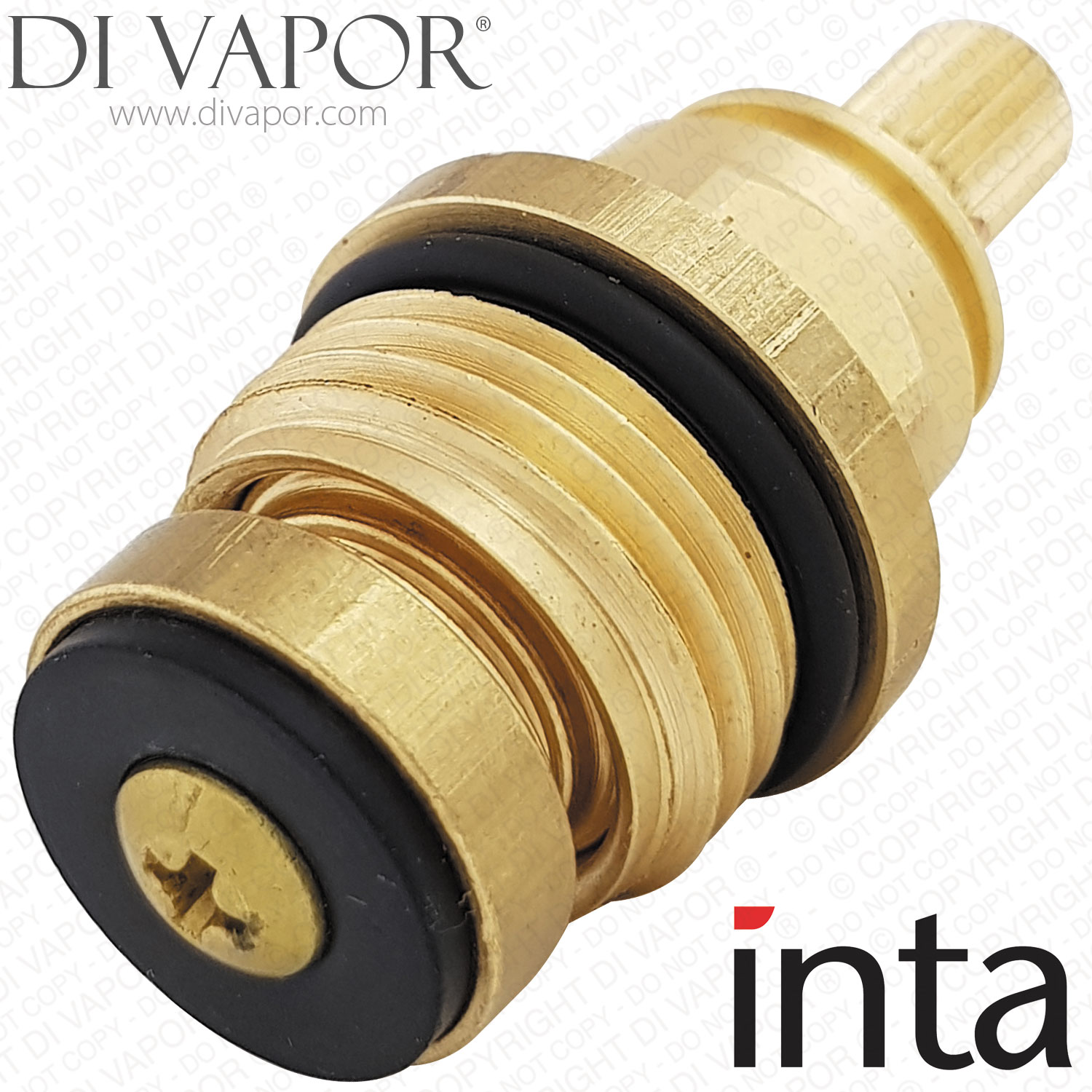

INTA VT01V1 On/Off Flow Cartridge
INTA VT01V1 is an on/off flow cartridge for selected Inta / Intatec thermostatic shower valves, bar showers, bath fillers and bath shower mixer assemblies. It controls the water flow through the valve and is used where the original flow cartridge has become worn, stiff, scaled or unable to shut off cleanly.
A common sign of flow cartridge failure is water continuing to drip from the shower head or bath spout when the shower or tap is turned off. Match the removed cartridge, valve code and spline before ordering, especially where a valve range has more than one cartridge position or more than one generation.
Technical Details
| Brand | Inta / Intatec |
|---|---|
| Di Vapor Part Number | IN-VT01V1 |
| Manufacturer cartridge code | VT01V1 |
| Part type | on/off flow cartridge |
| Function | controls water flow through the valve |
| Body material | brass |
| Diameter | 23.99mm |
| Length | 49.17mm |
| Spline | 20 teeth |
| Spline tiers | 1 |
| O-rings | 2 |
| Grub screw hole | no |
Confirmed Compatible Models
- Inta TL10010CP Telo Thermostatic Bar Shower
- Inta TL50020CP Telo Thermostatic Bath Filler with Deck Mounting Legs
- Inta 10010CP Ion Thermostatic Bar Shower
- Inta 10014CP Ion Thermostatic Bar Shower CW Flexible Slide Rail
- Inta 910000CP Ion Thermostatic Bath Shower Mixer
- Inta AC50010CP Acura Thermostatic TMV3 Wall Mounted Bath Filler
- Inta AC50020CP Acura Thermostatic Bath Filler with Deck Mounting Legs
- Inta TR30024CP Trade-Tec Bath Shower Mixer with Flexible Slide Rail Kit and Deck Mounting Legs
Before Ordering
- Confirm the valve model code before ordering.
- Compare the removed flow cartridge with VT01V1 including length, diameter, 20-tooth spline and O-ring positions.
- Isolate the hot and cold water supplies before removing the old cartridge.
- Apply suitable silicone grease to the O-rings during installation to help the cartridge seat correctly and protect the seals.
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- Inta 10017 Thermostatic Cartridge for Ion | Mio | Deluge | Optimo Thermostatic Bar
- GROHE Premium Plumbers Silicone Grease - 2g - SYNTHESO LM 220 (18007031)
- Inta LI.05.RR Stop Ring for 10017 Thermostatic Cartridge
- 150mm Universal Shower Hose - NXT734
- INTA 20002CP Round Deck Mounting Pillars
- INTA 30003CPX Metal Shower Hose Complete CP 1500mm
