Inta ID0009 Cartridge for LO990CP Inta Standard Lever Minimalistic Tap
SUMMARY
Inta ID0009 Cartridge for LO990CP Inta Standard Lever Minimalistic Tap

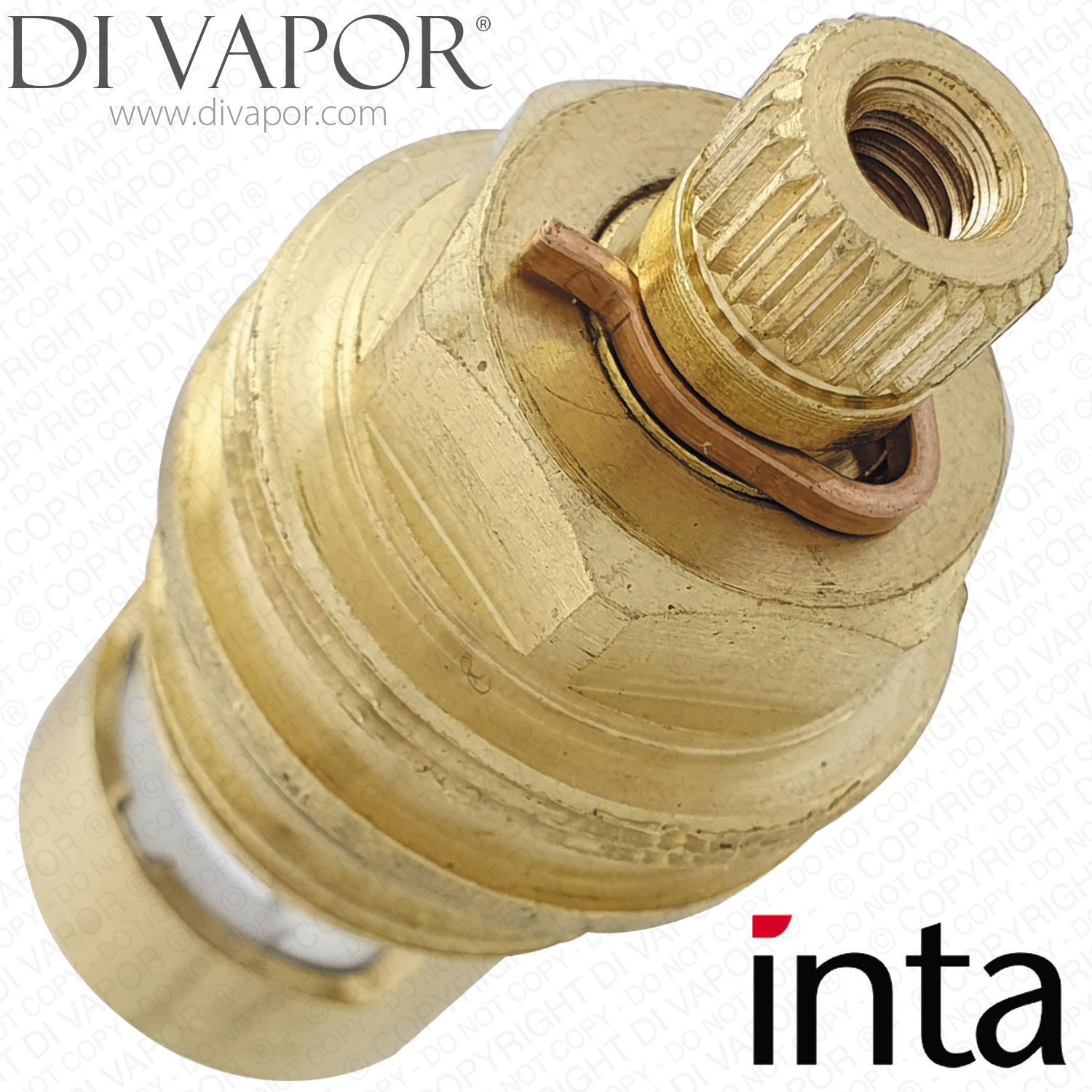

The Inta ID0009 is a cold-side manual tap cartridge for the LO990CP Inta Minimalistic lever operated basin tap. It controls water flow through the cold side of the tap and is identified by its blue bottom seal, 24 spline top and clockwise-close operation.
This cartridge is used when the original cold-side cartridge is worn, stiff, leaking from the tap outlet, or no longer shutting off correctly. Check the spline count, thread, seal colour and close direction against the removed cartridge before ordering.
Technical Details
- - Total length including bottom seal: 46.5mm
- - Diameter at widest point: 24mm
- - Top spline diameter: 8.9mm

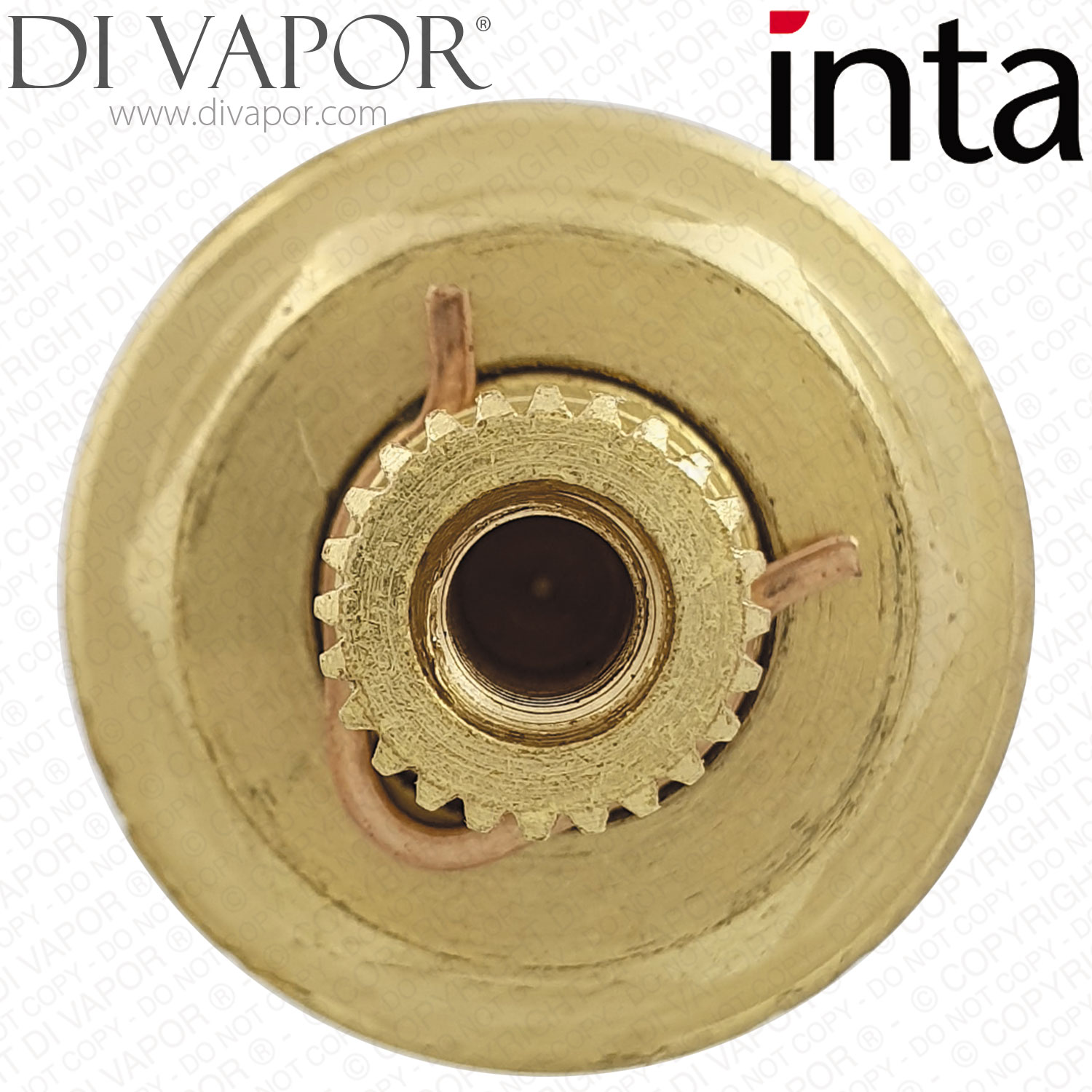

- - Top spline teeth / notches: 24
- - Barrel diameter: 18.5mm
- - Lower thread: 1/2"
- - Bottom seal colour: blue for cold side
- - Close direction: clockwise close and anti-clockwise open
- - Upper thread closer to spline: 24mm
Confirmed Model
- - Inta LO990CP Minimalistic Lever Operated Basin Taps Spare Parts
Installation Note
Apply a suitable silicone grease to the O-ring and bottom seal during installation. Turn off the water supply before removing the old cartridge, avoid over-tightening the replacement cartridge and test the tap for leaks after refitting.
Related Spares You May Need
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
