Ideal Standard H960170NU Ideal Standard 3/​4" Cartridge (Clockwise On)

SUMMARY

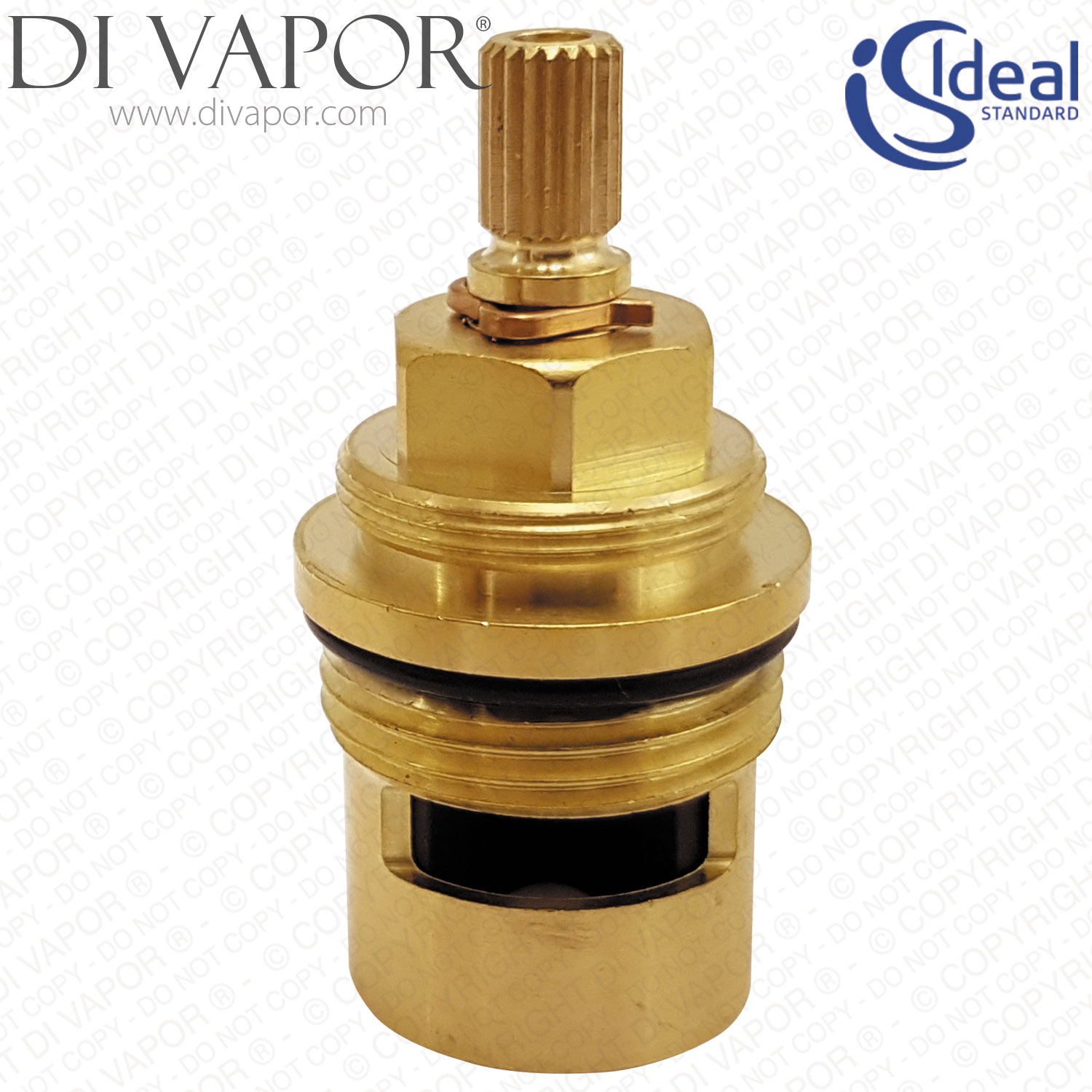

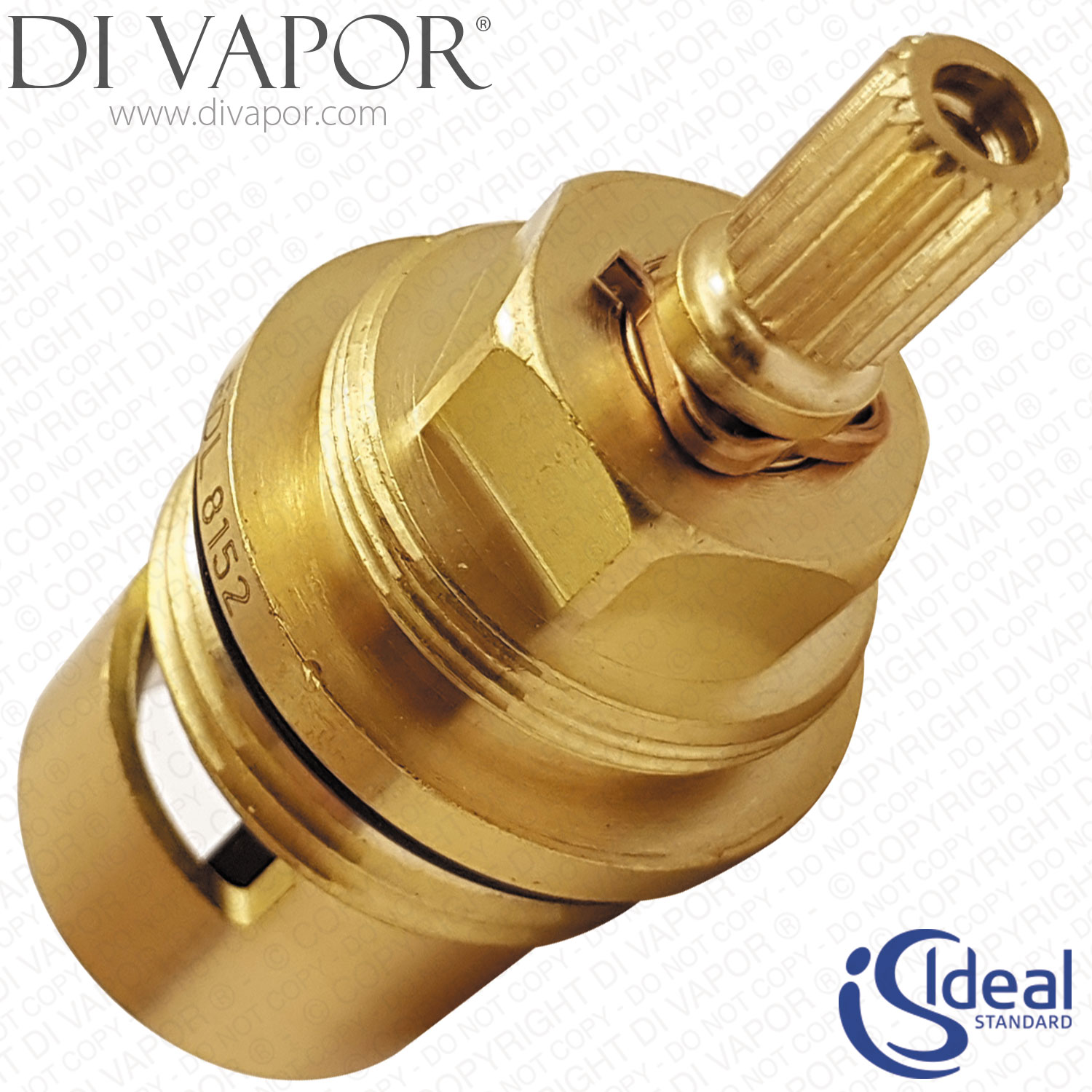

Ideal Standard H960170NU 3/4 Inch Ceramic Flow Cartridge - Clockwise Opening

Ideal Standard H960170NU is a ceramic flow-control cartridge, also known as a valve headpart. This is the clockwise-opening version, which closes anticlockwise.

The cartridge controls the water flow through the valve rather than providing thermostatic temperature regulation. Persistent dripping from a shower head or tap spout after the control is turned off can indicate a flow cartridge that is no longer sealing correctly.

Technical Details

- - Part Number: H960170NU

- - Part type: ceramic flow-control cartridge / valve headpart

- - Nominal size: 3/4 inch

- - Main connection thread: G3/4

- - Upper thread: M24 x 1

- - Upper-section height: 32 mm, not the overall cartridge length

- - Opening direction: clockwise

- - Closing direction: anticlockwise

Before You Order

Check that your valve requires H960170NU and compare the removed cartridge's threads, spindle and opening direction. The nominal size alone does not establish fit, and a cartridge that opens anticlockwise must not be assumed to be interchangeable with this version.

Fitting Notes

Isolate the water supplies before removing the cartridge and follow the servicing instructions for your valve. Apply suitable silicone grease sparingly to the appropriate seals during reassembly.

Related Spares You May Need

- - TACSIL TAC86 3g WRAS Approved Silicone Grease - for lubricating cartridge seals and O-rings during fitting

- - GROHE GR-18007031 2g SYNTHESO LM 220 Silicone Grease (18007031) - an alternative lubricant for cartridge seals and O-rings

For help finding the right cartridge, use the Di Vapor part identification service.
