Ideal Standard A952552N11 Hot & Cold 3/4" Inch Ceramic Disc Cartridges for Dualux, Monolux and Domi Duo Bath Fillers
Send a photo of your item and we'll help confirm it.
Summary

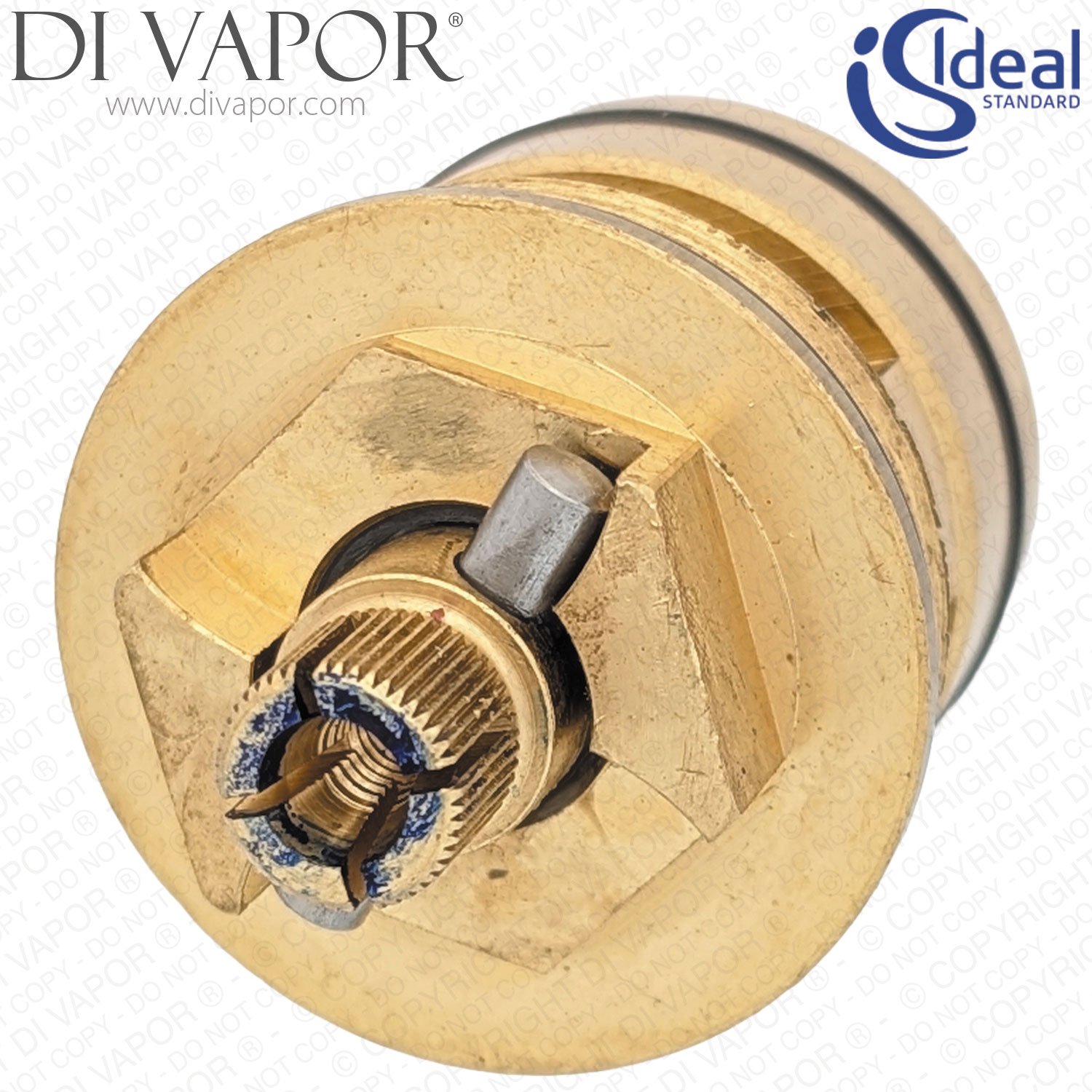

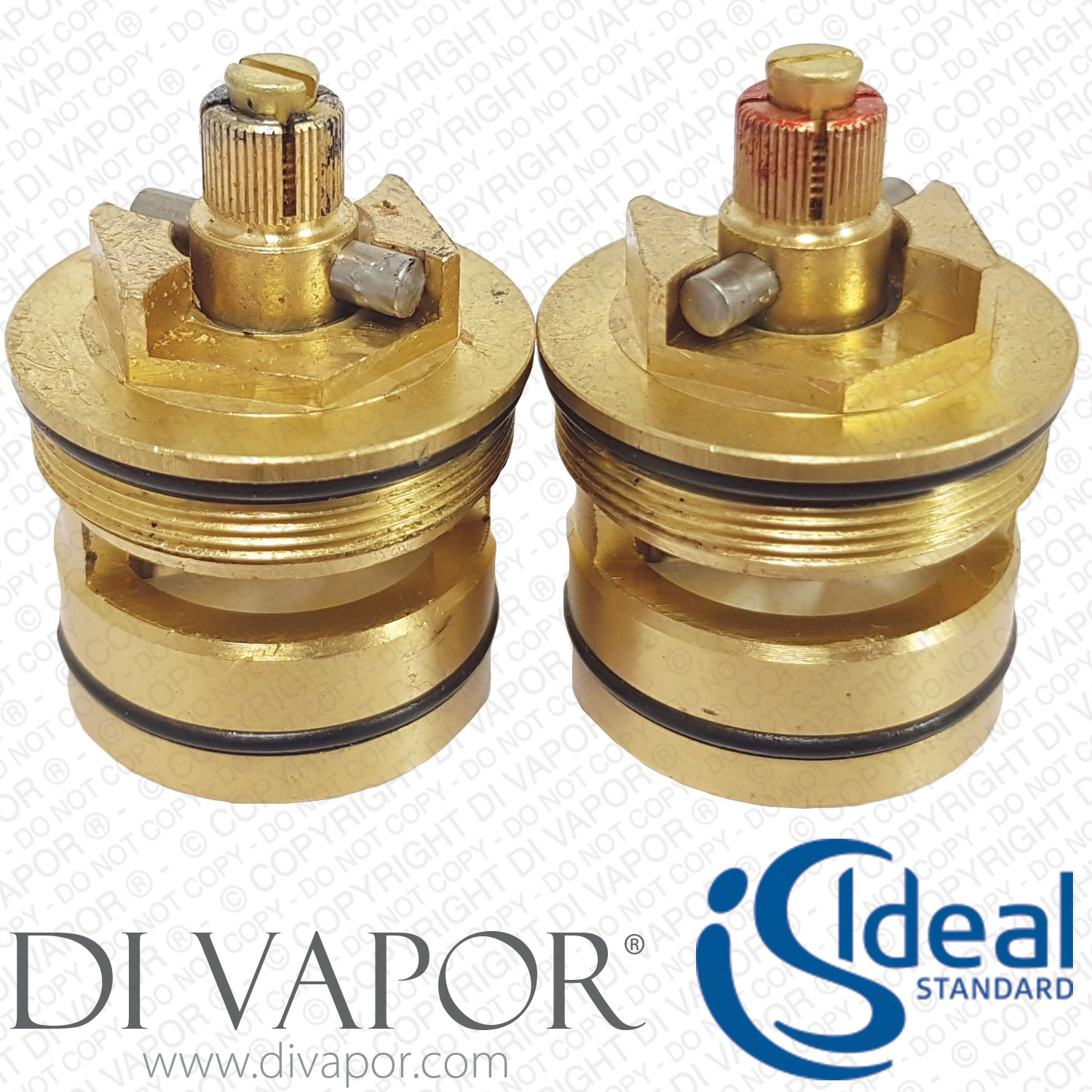

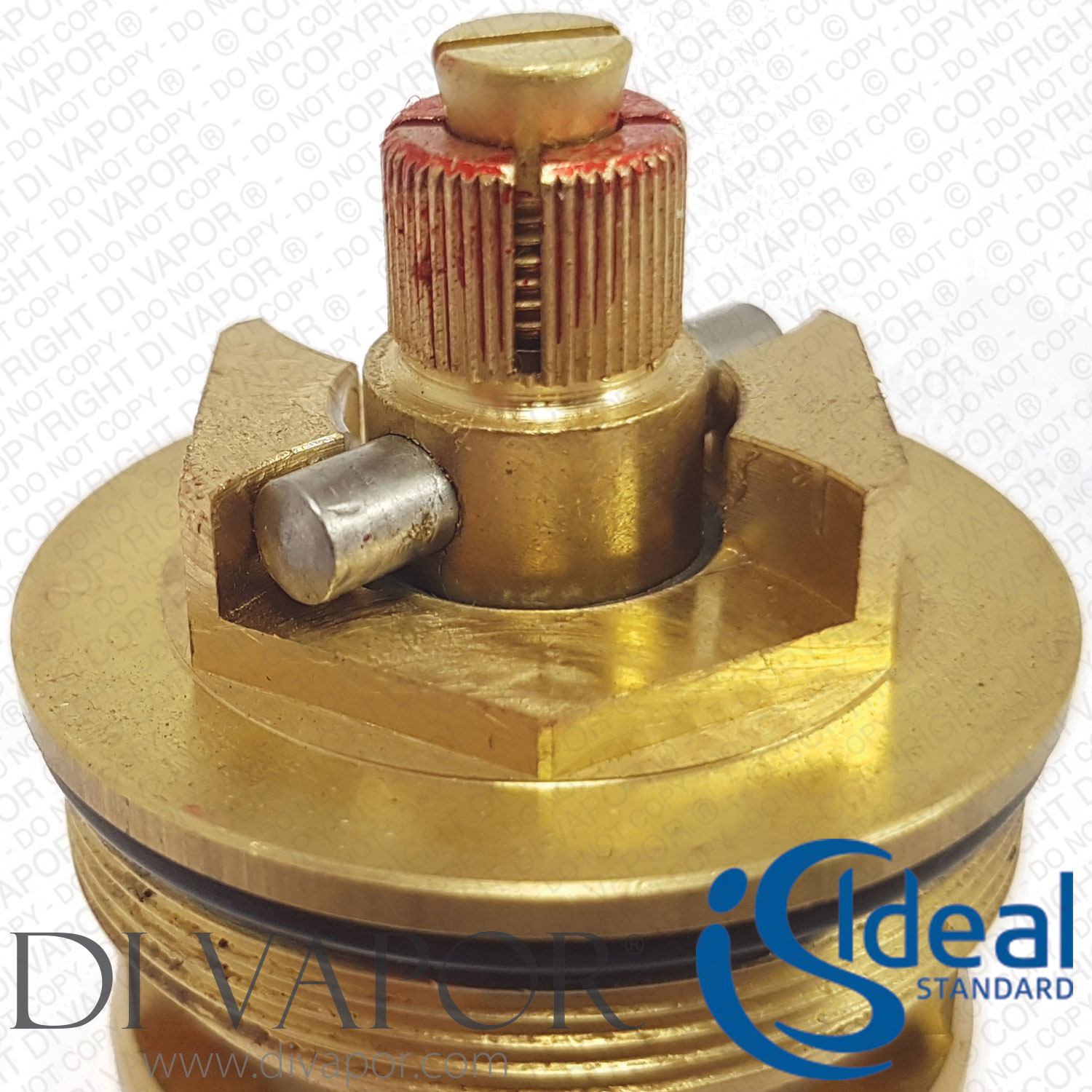

Ideal Standard A952552N11 3/4 Inch Hot and Cold Ceramic Disc Cartridge Pair for Dualux, Monolux and Domi Duo Bath Fillers
The Ideal Standard A952552N11 is listed as a hot and cold pair of 3/4-inch M33 DX ceramic disc flow cartridges for selected Ideal Standard Dualux, Monolux and older Domi Duo bath fillers. These screw-in cartridges control the on/off water supply through the separate tap handles.
The ceramic disc mechanism allows water to flow when the tap is opened and shuts off the supply when the handle is closed. Worn or damaged cartridges can cause water to drip from the bath spout when the taps are turned off, difficulty operating the handles or incomplete water shut-off. Fitting the correct cartridges can help restore reliable operation without replacing the complete bath filler.
Technical Details
| Part Number | A952552N11 |
|---|---|
| Manufacturer hot and cold cartridge pair reference | S8741NU |
| Cartridge type | M33 DX ceramic disc on/off flow cartridge |
| Nominal cartridge size | 3/4 inch |
| Fitting type | Screw-in cartridge headwork |
| Manufacturer pair contents | 1 x A952552NU11 and 1 x A952553NU11 |
| A952552NU11 operating direction | Anti-clockwise close |
| A952553NU11 operating direction | Clockwise close |
| Screw thread diameter | 32.8 mm |
| Shoulder diameter | 34.9 mm |
| External spline diameter at handle fitting | 9.1 mm |
- Main cartridge body height excluding the central notch at the base: 44 mm
Confirmed Compatible Models
- Ideal Standard Dualux A5698888 valve
- Ideal Standard Domi Duo E7645 bath filler with the earlier M33 DX cartridge arrangement
- Ideal Standard Domi Duo bath fillers manufactured before 2003
- Selected Ideal Standard Dualux and Monolux bath fillers using M33 DX ceramic disc cartridges
Before Ordering
Check the existing cartridges and confirm the bath filler model before ordering. The production date is particularly important for Domi Duo fittings, as later versions can use a different cartridge arrangement. Compare the screw thread diameter, shoulder diameter, handle spline, cartridge body height and operating directions with the removed cartridges. The 3/4-inch nominal size alone is not sufficient to identify the correct parts.
Isolate the hot and cold water supplies before removing the existing cartridges. Check that the cartridge seating surfaces are clean and that the seals are correctly positioned. Apply a small amount of suitable silicone grease to the O-rings and seals where required during installation.
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved - TAC86
- Ideal Standard A952553NU11 3/4 Inch Clockwise-Close Hot-Side Ceramic Disc Flow Cartridge - A952553NU11 (individual cartridge listing, currently discontinued)
Not sure which cartridge you need? Use the Di Vapor Part Identification Service and send us a photo of your existing part.
