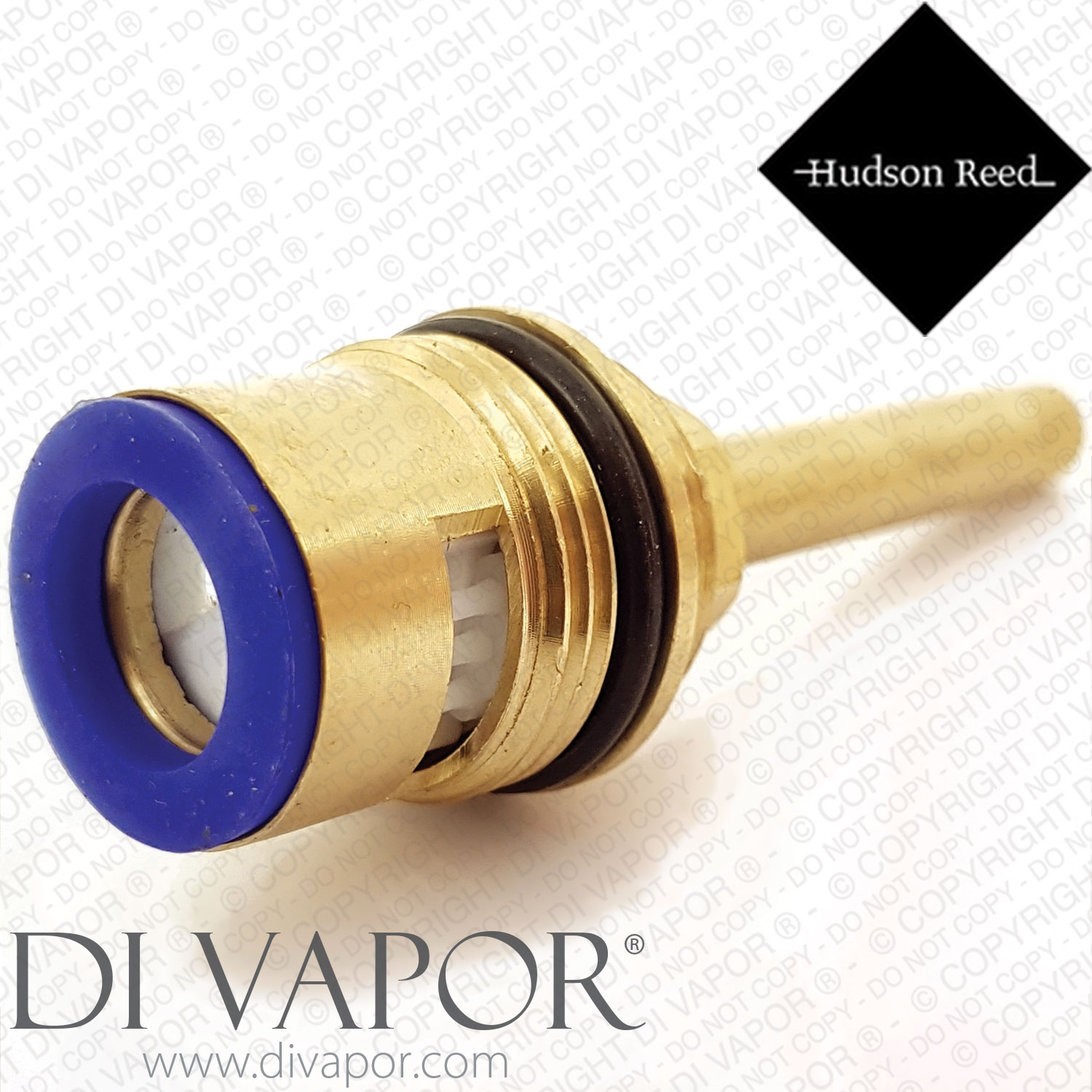

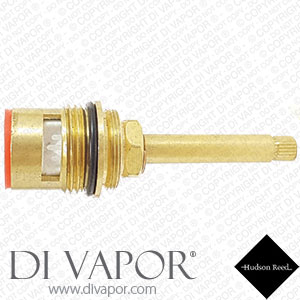

Hudson Reed 3/4" Ceramic Disk Flow Cartridge On and Off for Triple Shower Valves (Cold Side - Clockwise Close)
Send a photo of your item and we'll help confirm it.
Summary

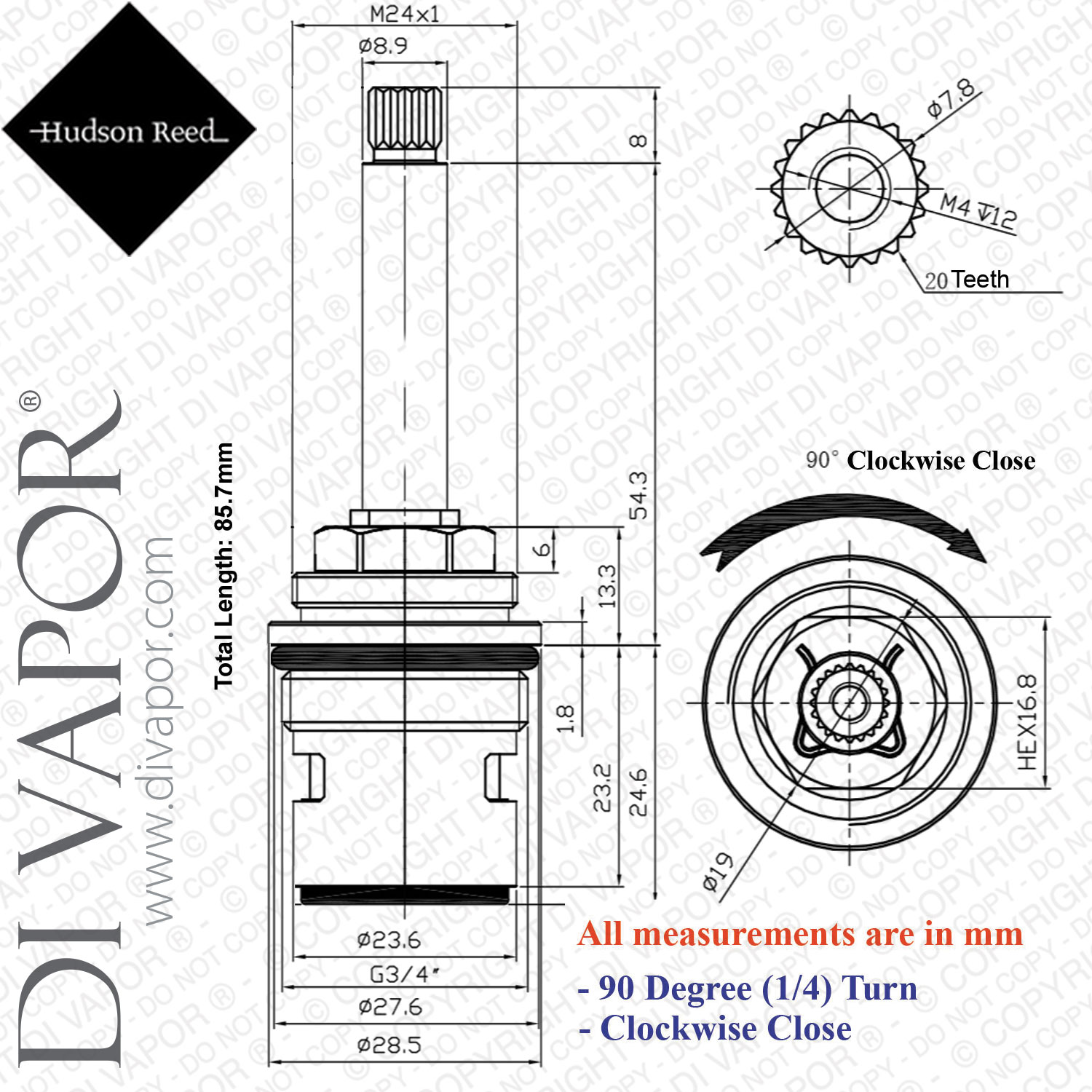

| Total Length (incl. blue seal) | 87.2mm |
|---|---|
| Spindle Length (from top of circlip to end) | 48mm |
| Spindle Diameter | 9mm |
| Spindle teeth head Diameter | 7.8mm |
| Barrel Diameter | 23.8mm |
| Lower Thread | 26mm |
| Upper Thread (closer to spline) | 23.8mm |
This is a long stem replacement flow cartridge for Hudson Reed triple shower valves. If the shower valve has a thermostatic cartridge there will usually be two of this ceramic disk cartridges installed on either side of the cartridge, therefore if you need both you'll need to buy two as the cartridges are sold individually.
This cartridge is a 3/4" (inch) quarter turn on / off, with ceramic discs which turn anti clockwise. (Cold Side - Clockwise Close)
This CD valve cartridge has a threaded collar.
