Hansgrohe 96339000 Cartridge for Axor & PuraVida Single Lever Mixer
SUMMARY
Hansgrohe 96339000 J27 Joystick Cartridge for AXOR and PuraVida Single Lever Mixers

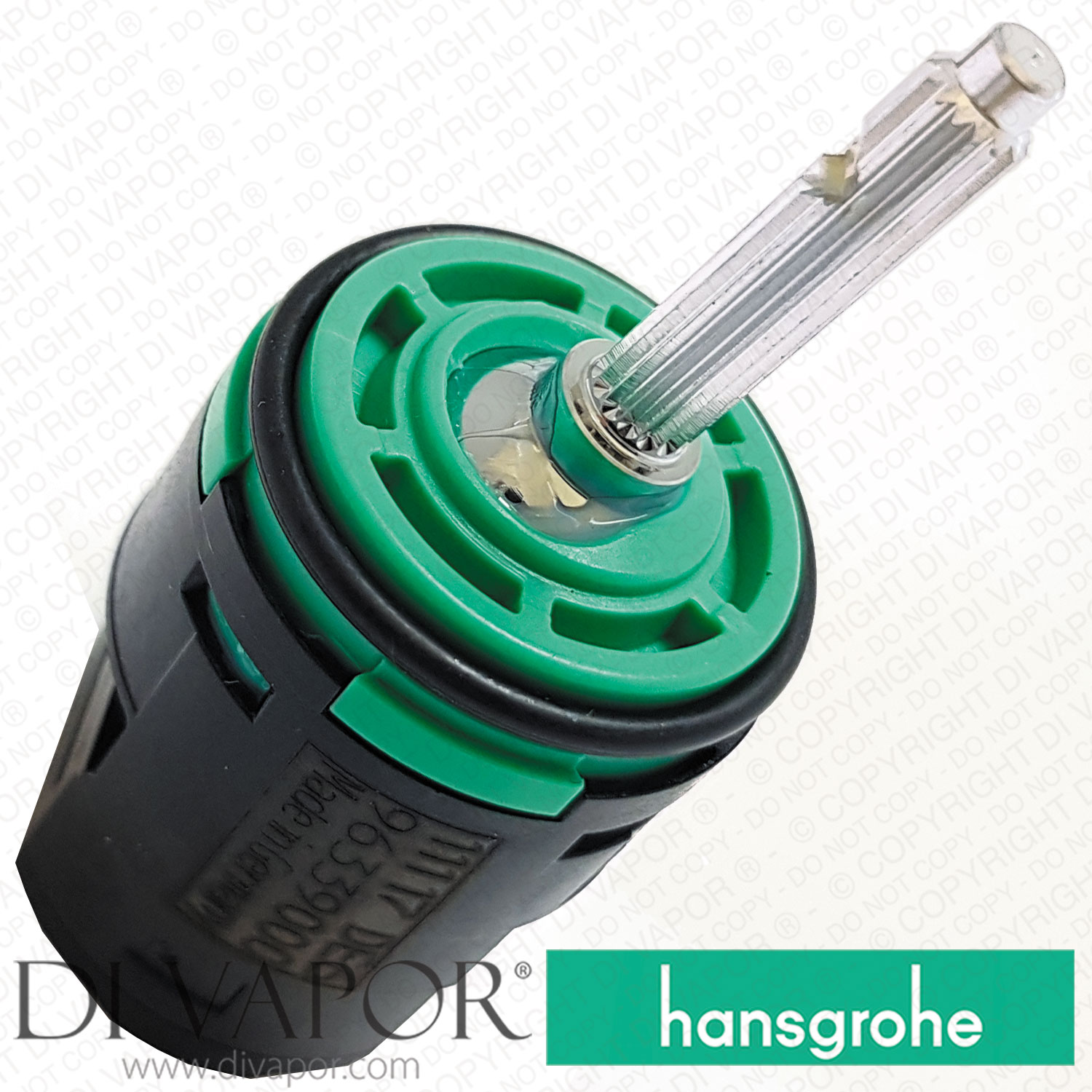

Hansgrohe 96339000 is a J27 push-fit joystick cartridge used to control water flow and temperature in selected AXOR and Hansgrohe PuraVida single-lever basin mixers, bidet mixers, bath mixers, shower mixers and kitchen mixers.
The cartridge is fitted inside the mixer body beneath the operating lever and retaining nut or ring. A worn cartridge can cause water to continue dripping from the tap spout, shower head or other outlet after the mixer has been turned off.
Technical Details
- - Manufacturer article code: 96339000.

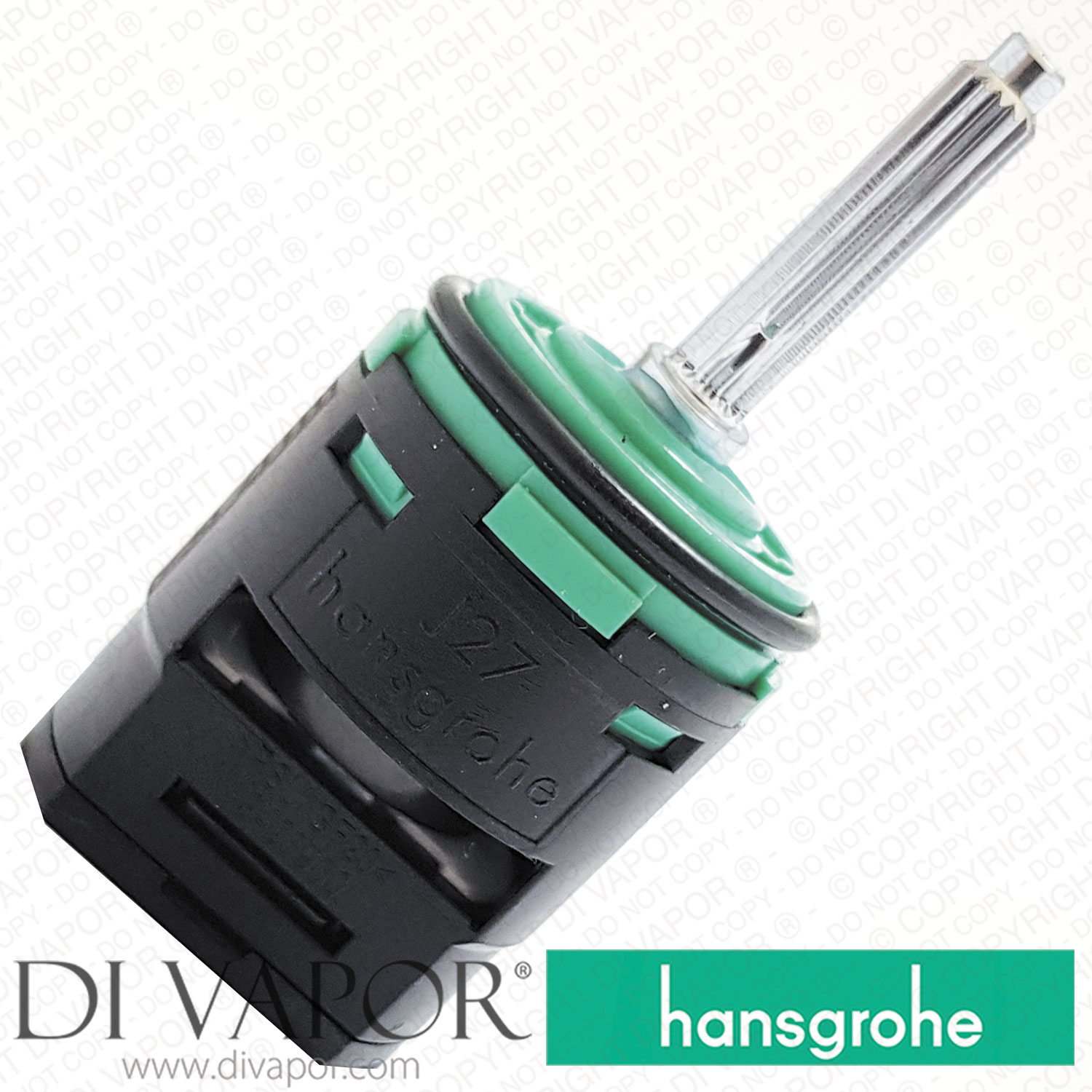

- - Cartridge identification: J27 joystick cartridge.
- - Installation type: push fit.

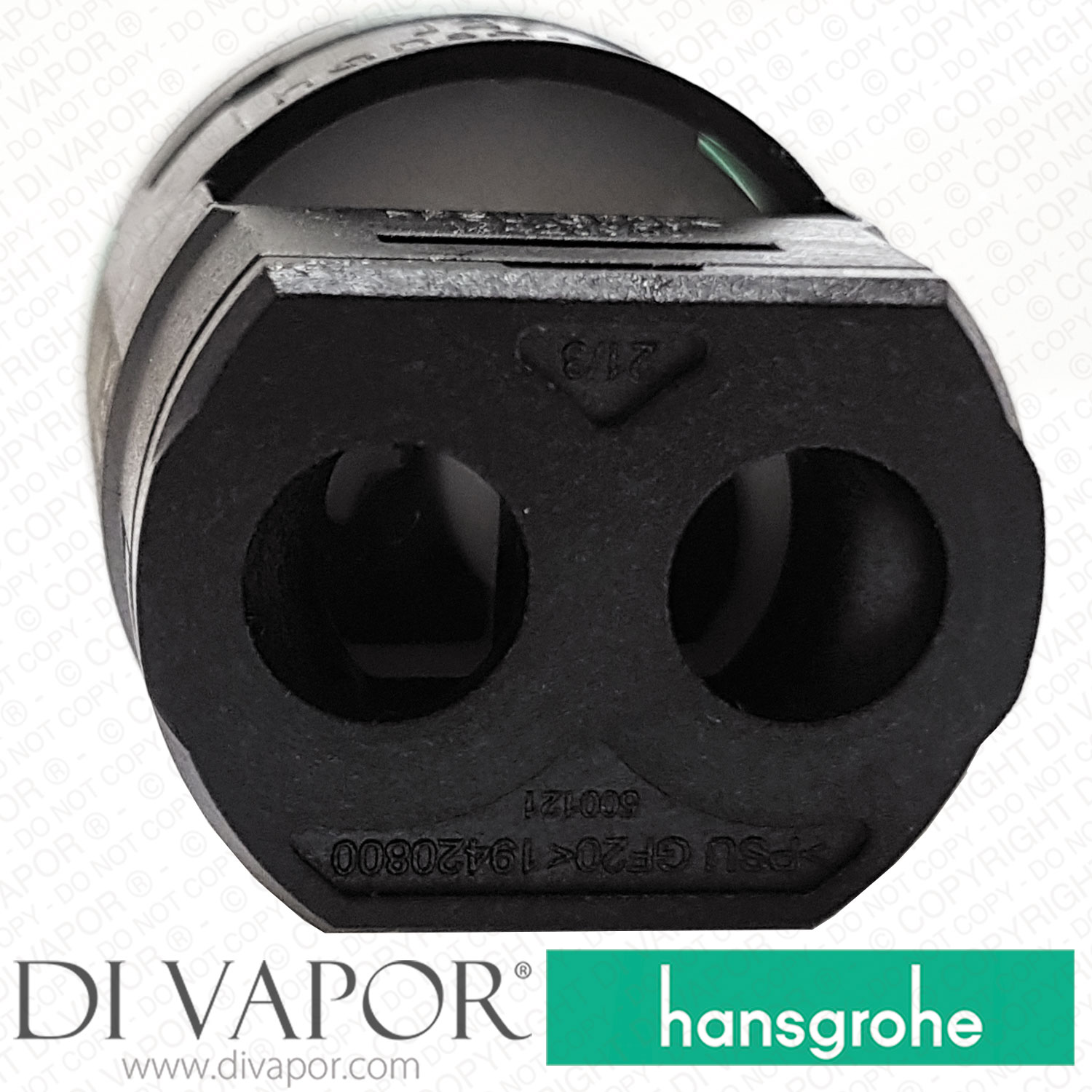

- - Recorded cartridge markings can include J27 Hansgroh, PSU GF20, 19420900 and 21/3 501148.

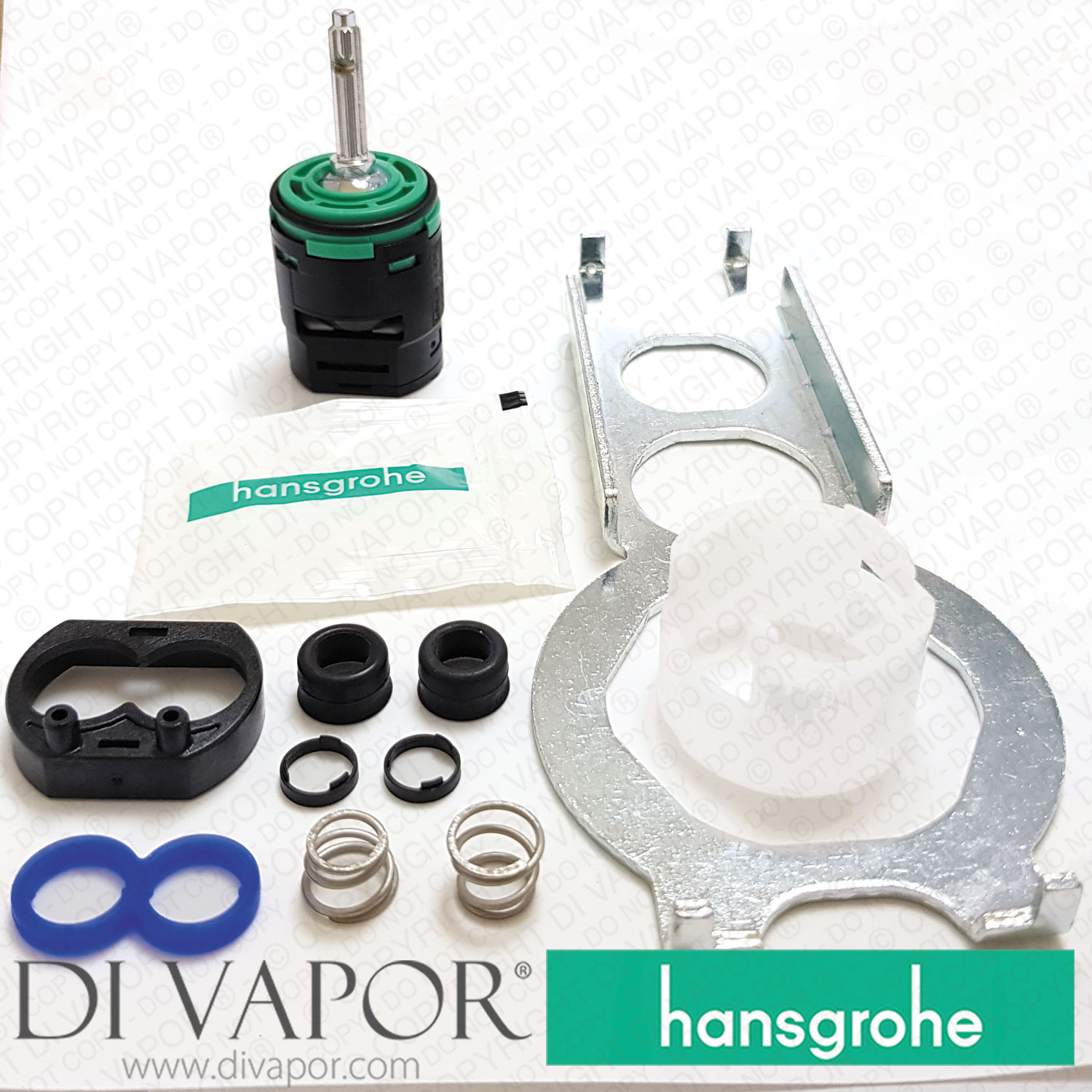

- - A silicone grease packet is supplied with the cartridge.
- - Applicable PuraVida assemblies use two Hansgrohe 95169000 O-rings measuring 21.95 x 1.78 mm beneath the cartridge.
- - Applicable PuraVida service procedures use a 2 mm Allen key and a 27 mm retaining-ring tool.
- - The retaining ring is tightened to 10 Nm and the handle screw to 0.7 Nm on applicable PuraVida assemblies.
- - AXOR Citterio installations commonly use a 3 mm Allen key and a 24 mm or 27 mm retaining tool. The required tool and dismantling procedure vary between mixer models.
Before Ordering
Check the complete mixer article number, finish code and construction period before ordering. PuraVida and AXOR ranges were produced with different cartridge arrangements. Some low-flow or later revisions use cartridges including 92930000 or 96783000 instead of 96339000.
Do not identify the cartridge from the range name, handle shape or a partial measurement alone. Compare the existing cartridge markings and confirm the exact mixer code wherever possible.
Confirmed Models and Article Numbers
Depending on the Hansgrohe valve's flow rate or revision, some versions use part 92930000 or 96783000 rather than this 96339000.
- - AXOR Uno 38112000 single-lever concealed basin mixer with 165 mm spout and plate - from 01/2010. The manufacturer also lists production from 06/2003 to 12/2009.
- - AXOR Uno 38115000 single-lever concealed basin mixer with 225 mm spout and plate - production 06/2003 to 12/2009. The manufacturer also lists production from 01/2010.
- - AXOR Uno single-lever concealed basin mixer with 165 mm spout and escutcheons 38113000 - production 06/2003 to 12/2009.
- - AXOR Uno single-lever concealed basin mixer with 225 mm spout and escutcheons 38116000 - production 06/2003 to 12/2009.
- - AXOR Uno single-lever concealed kitchen mixer for wall-mounted installation 38815000 - production from 11/2011.
- - AXOR Uno single-lever concealed basin mixer with 225 mm spout and plate 38115340 in Brushed Black Chrome - production from 07/2017.
- - AXOR Uno single-lever concealed kitchen mixer for wall-mounted installation 38815800 in Stainless Steel Finish - production from 11/2011.
- - AXOR Citterio single-lever concealed basin mixer with pin handle 160 mm spout and plate 39112000 - production from 01/2010.
- - AXOR Citterio single-lever concealed basin mixer with pin handle 160 mm spout and escutcheons 39113000 - production from 01/2010.
- - AXOR Citterio single-lever concealed basin mixer with pin handle 220 mm spout and plate 39115000 - production from 01/2010.
- - AXOR Citterio single-lever concealed basin mixer with pin handle 220 mm spout and escutcheons 39116000 - production from 01/2010.
- - AXOR Citterio single-lever basin mixer 110 with pin handle and pop-up waste set 39010000 - production 04/2003 to 04/2008.
- - AXOR Citterio single-lever basin mixer 110 with pin handle and waste set 39018000 - production 01/2005 to 04/2008.
- - AXOR Citterio single-lever basin mixer 160 with pin handle and pop-up waste set 39031000 - production 06/2010 to 12/2010.
- - AXOR Citterio single-lever basin mixer 160 with pin handle and waste set 39032000 - production 06/2010 to 12/2010.
- - AXOR Citterio Bidette set with 1jet hand shower and single-lever basin mixer 39220000 - production 09/2008 to 05/2014.
- - AXOR Citterio single-lever bidet mixer with pop-up waste set 39200000 - production 04/2003 to 01/2008.
- - AXOR Citterio single-lever basin mixer 280 with pin handle and pop-up waste set 39020000 - production 12/2009 to 09/2010.
- - AXOR Citterio single-lever basin mixer 80 with pin handle and pop-up waste set 39015000 - production 04/2003 to 04/2008.
- - AXOR Citterio single-lever basin mixer 280 with pin handle and pop-up waste set 39020140 in Brushed Bronze - production from 10/2016.
- - AXOR Citterio E single-lever concealed basin mixer with pin handle 221 mm spout and plate 36114000 - production from 12/2014.
- - AXOR Citterio E single-lever basin mixer 250 with pin handle for wash bowls and waste set 36104800 in Stainless Steel Optic - production from 11/2016.
- - AXOR Citterio E single-lever basin mixer 130 with pin handle and waste set 36101800 in Stainless Steel Optic - production from 11/2016.
- - AXOR Citterio E single-lever basin mixer 130 with pin handle and pop-up waste set 36100000 - production from 11/2014.
- - AXOR Citterio E single-lever basin mixer 130 with pin handle and waste set 36101000 - production from 11/2014.
- - AXOR Citterio E single-lever basin mixer 190 with pin handle for wash bowls and waste set 36103000 - production from 11/2014.
- - AXOR Citterio E single-lever basin mixer 250 with pin handle for wash bowls and waste set 36104000 - production from 11/2014.
- - AXOR Citterio E single-lever bidet mixer with pin handle and pop-up waste set 36120000 - production from 11/2014.
- - Hansgrohe 36101330 AXOR Citterio E Single Lever Basin Mixer 130 with Pin Handle and Waste Set - production >11/16
- - Hansgrohe 36101990 AXOR Citterio E Single Lever Basin Mixer 130 with Pin Handle and Waste Set - production >11/16
- - Hansgrohe 36104300 AXOR Citterio E Single Lever Basin Mixer 250 with Pin Handle for Wash Bowls with Waste Set - production >11/16
- - Hansgrohe 36104330 AXOR Citterio E Single Lever Basin Mixer 250 with Pin Handle for Wash Bowls with Waste Set - production >11/16
- - AXOR Citterio E single-lever basin mixer 190 with pin handle for wash bowls and waste set 36103300 in Polished Red Gold - production from 11/2016.
- - AXOR Citterio E single-lever basin mixer 190 with pin handle for wash bowls and waste set 36103130 in Polished Bronze - production 11/2016 to 12/2019.
- - AXOR Citterio E single-lever basin mixer 190 with pin handle for wash bowls and waste set 36103990 in Polished Gold Optic - production from 11/2016.
- - AXOR Citterio E single-lever basin mixer 250 with pin handle for wash bowls and waste set 36104130 in Polished Bronze - production 11/2016 to 12/2019.
- - AXOR Citterio E single-lever basin mixer 250 with pin handle for wash bowls and waste set 36104830 in Polished Nickel - production 11/2016 to 12/2019.
- - AXOR Citterio E single-lever basin mixer 250 with pin handle for wash bowls and waste set 36104930 in Polished Brass - production 11/2016 to 12/2019.
- - AXOR Citterio E single-lever basin mixer 130 with pin handle and waste set 36101340 in Brushed Black Chrome - production from 11/2016.
- - AXOR Citterio E single-lever basin mixer 190 with pin handle for wash bowls and waste set 36103250 in Brushed Gold Optic - production from 11/2016.
- - AXOR Citterio E single-lever basin mixer 250 with pin handle for wash bowls and waste set 36104260 in Brushed Chrome - production from 11/2016.
- - AXOR Citterio E single-lever basin mixer 130 with pin handle and waste set 36101300 in Polished Red Gold - production from 11/2016.
- - AXOR Citterio E single-lever basin mixer 250 with pin handle for wash bowls and waste set 36104990 in Polished Gold Optic - production from 11/2016.
- - AXOR Citterio E single-lever concealed basin mixer with pin handle 221 mm spout and plate 36114300 in Polished Red Gold - production from 11/2016.
- - AXOR Citterio E single-lever concealed basin mixer with pin handle 221 mm spout and plate 36114330 in Polished Black Chrome - production from 11/2016.
- - AXOR Citterio E single-lever concealed basin mixer with pin handle 221 mm spout and plate 36114990 in Polished Gold Optic - production from 11/2016.
- - AXOR Citterio E single-lever basin mixer 130 with pin handle and waste set 36101140 in Brushed Bronze - production from 11/2016.
- - AXOR Citterio E single-lever basin mixer 130 with pin handle and waste set 36101310 in Brushed Red Gold - production from 11/2016.
- - AXOR Citterio E single-lever basin mixer 130 with pin handle and waste set 36101250 in Brushed Gold Optic - production from 11/2016.
- - AXOR Citterio E single-lever basin mixer 130 with pin handle and waste set 36101820 in Brushed Nickel - production from 11/2016.
- - AXOR Citterio E single-lever basin mixer 130 with pin handle and waste set 36101950 in Brushed Brass - production from 11/2016.
- - AXOR Citterio E single-lever basin mixer 250 with pin handle for wash bowls and waste set 36104250 in Brushed Gold Optic - production from 11/2016.
- - AXOR Citterio E single-lever basin mixer 250 with pin handle for wash bowls and waste set 36104140 in Brushed Bronze - production from 11/2016.
- - AXOR Citterio E single-lever basin mixer 250 with pin handle for wash bowls and waste set 36104820 in Brushed Nickel - production from 11/2016.
- - AXOR Citterio E single-lever basin mixer 250 with pin handle for wash bowls and waste set 36104310 in Brushed Red Gold - production from 11/2016.
- - AXOR Citterio E single-lever basin mixer 250 with pin handle for wash bowls and waste set 36104340 in Brushed Black Chrome - production from 11/2016.
- - AXOR Citterio E single-lever basin mixer 250 with pin handle for wash bowls and waste set 36104950 in Brushed Brass - production from 11/2016.
- - AXOR Citterio E single-lever concealed basin mixer with pin handle 221 mm spout and plate 36114250 in Brushed Gold Optic - production from 11/2016.
- - AXOR Citterio E single-lever concealed basin mixer with pin handle 221 mm spout and plate 36114140 in Brushed Bronze - production from 11/2016.
- - AXOR Citterio E single-lever concealed basin mixer with pin handle 221 mm spout and plate 36114310 in Brushed Red Gold - production from 11/2016.
- - AXOR Citterio E single-lever concealed basin mixer with pin handle 221 mm spout and plate 36114340 in Brushed Black Chrome - production from 11/2016.
- - AXOR Citterio E single-lever concealed basin mixer with pin handle 221 mm spout and plate 36114820 in Brushed Nickel - production from 11/2016.
- - AXOR Citterio E single-lever concealed basin mixer with pin handle 221 mm spout and plate 36114950 in Brushed Brass - production from 11/2016.
- - AXOR Citterio E single-lever concealed basin mixer with pin handle 221 mm spout and plate 36114800 in Stainless Steel Optic - production from 11/2016.
- - AXOR Starck 10116000 single-lever basin mixer 70 with pin handle and pop-up waste set - production 10/2010 to 07/2012. The manufacturer also lists 04/2004 to 12/2009, 01/2010 to 09/2010 and production from 08/2012.
- - Hansgrohe 10801000 AXOR Starck Single Lever Kitchen Mixer 130 With Swivel Spout - production >10/10
- - Hansgrohe 10801000 AXOR Starck Single Lever Kitchen Mixer 130 With Swivel Spout - production 01/08 - 09/10
- - Hansgrohe 10801000 AXOR Starck Single Lever Kitchen Mixer 130 with Swivel Spout - production 08/00 - 12/07
- - AXOR Starck single-lever basin mixer 90 with pin handle and pop-up waste set 10111003.
- - AXOR Starck single-lever bidet mixer with pin handle and pop-up waste set 10211000 - production from 08/2012.
- - AXOR Starck single-lever basin mixer 250 for wash bowls with pop-up waste set 10120000 - production 04/2004 to 12/2009.
- - AXOR Starck single-lever basin mixer 90 with pin handle and pop-up waste set 10111000 - production 10/2010 to 07/2012.
- - AXOR Starck single-lever basin mixer 250 with pin handle for wash bowls and waste set 10129000 - production 04/2004 to 12/2009.
- - AXOR Starck single-lever basin mixer 90 with pin handle and waste set 10117000 - production 10/2010 to 07/2012.
- - AXOR Starck single-lever basin mixer 170 with pin handle and waste set 10123000 - production 04/2011 to 07/2012.
- - AXOR Starck single-lever kitchen mixer 270 with pull-out spray 10821000 in Chrome - production from 09/2017.
- - AXOR Starck single-lever kitchen mixer 270 with pull-out spray 10821340 in Brushed Black Chrome - production from 11/2019.
- - AXOR Starck single-lever kitchen mixer 270 with pull-out spray 10821800 in Stainless Steel Finish - production from 08/2013.
- - AXOR Starck single-lever kitchen mixer 300 with swivel spout 10822000 in Chrome - production from 05/2012.
- - AXOR Starck Classic 10020000 single-lever basin mixer 220 with pop-up waste set - production 09/1997 to 09/1999.
- - AXOR Starck Classic 10020000 single-lever basin mixer 220 with pop-up waste set - production 01/2001 to 09/2010.
- - AXOR Starck Classic single-lever basin mixer 220 for wash bowls with pop-up waste set 10020000 - production 10/1999 to 12/2000.
- - AXOR Starck Classic single-lever basin mixer 220 for wash bowls with pop-up waste set 10020000 - production 10/2010 to 09/2012.
- - AXOR Starck Classic single-lever basin mixer 220 for wash bowls with pop-up waste set 10020000 - production from 10/2012.
- - AXOR Starck Classic single-lever basin mixer 70 with pop-up waste set 10010000 - production 12/1995 to 09/1999.
- - AXOR Starck Classic single-lever basin mixer 70 with waste set 10018000 - production 10/2000 to 12/2009.
- - AXOR Starck Classic single-lever basin mixer 220 for wash bowls with waste set 10028000 - production 01/2003 to 09/2010.
- - AXOR Starck Classic single-lever bidet mixer with pop-up waste set 10200000 - production 07/1997 to 09/1999.
- - AXOR Starck X 10070000 single-lever basin mixer 80 with pop-up waste set - production 10/2010 to 02/2012. The manufacturer also lists 04/2005 to 09/2010 and 03/2012 to 07/2020.
- - AXOR Starck X 10071000 single-lever basin mixer 190 with waste set - production 04/2005 to 09/2010. The manufacturer also lists 10/2010 to 08/2012 and 09/2012 to 03/2021.
- - AXOR Starck X 10080000 single-lever basin mixer 280 without pull rod - production 04/2005 to 09/2010. The manufacturer also lists 10/2010 to 08/2012 and 09/2012 to 12/2017.
- - Hansgrohe 12112820 AXOR Starck V Single Lever Basin Mixer 140 with Glass Spout and Waste Set - production >11/16
- - Hansgrohe 12112950 AXOR Starck V Single Lever Basin Mixer 140 with Glass Spout and Waste Set - production >11/16
- - AXOR Starck V single-lever basin mixer 140 with glass spout and waste set 12112003 in Chrome - production from 06/2017.
- - AXOR Starck V single-lever basin mixer 140 with glass spout and waste set 12112250 in Brushed Gold Optic - production from 11/2016.
- - AXOR Starck V single-lever basin mixer 140 with glass spout and waste set 12112140 in Brushed Bronze - production from 11/2016.
- - AXOR Starck V single-lever basin mixer 140 with glass spout and waste set 12112310 in Brushed Red Gold - production from 11/2016.
- - AXOR Starck V single-lever basin mixer 140 with glass spout and waste set 12112300 in Polished Red Gold - production from 11/2016.
- - AXOR Starck V single-lever basin mixer 140 with glass spout and waste set 12112330 in Polished Black Chrome - production from 11/2016.
- - AXOR Starck V single-lever basin mixer 140 with glass spout and waste set 12112340 in Brushed Black Chrome - production from 11/2016.
- - AXOR Starck V single-lever basin mixer 140 with glass spout and waste set 12112990 in Polished Gold Optic - production from 11/2016.
- - AXOR Starck V single-lever basin mixer 140 with glass spout and waste set 12112800 in Stainless Steel Optic - production from 11/2016.
- - AXOR Starck V single-lever basin mixer 140 with glass spout and waste set 12112000 in Chrome - production from 07/2016.
- - AXOR Starck V single-lever basin mixer 220 with glass spout for wash bowls and waste set 12114000 in Chrome - production from 07/2016.
- - Hansgrohe 12112450 AXOR Starck V Single Lever Basin Mixer 140 with Glass Spout and Waste Set - production >07/16
- - Hansgrohe 12112450 AXOR Starck V Single Lever Basin Mixer 140 with Glass Spout and Waste Set - production 03/15 - 06/16
- - AXOR Massaud single-lever basin mixer 110 with waste set 18010000 - production 07/2006 to 09/2010.
- - AXOR Massaud single-lever basin mixer 220 for wash bowls with waste set 18020000 - production 10/2010 to 03/2013.
- - AXOR Massaud single-lever bidet mixer with pop-up waste set 18210000 - production 07/2006 to 09/2010.
- - AXOR Terrano 37015000 single-lever basin mixer DN15 - production 07/1999 to 09/2000.
- - AXOR Terrano 37200810 single-lever bidet mixer DN15 - production 10/2000 to 10/2009.
Installation Note
Isolate both hot and cold water supplies before dismantling the mixer. Remove the operating handle and retaining component using the procedure specified for the exact mixer. Remove the old cartridge and associated seals, clean the valve seat and apply suitable silicone grease sparingly to the O-rings before assembly.
Related Spares You May Need
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved - additional single-use grease sachet for cartridge O-rings and seals.

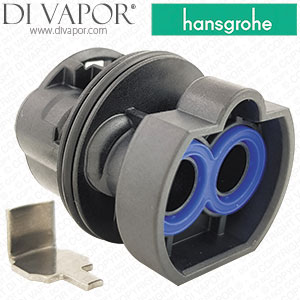

- - Hansgrohe 92186000 Cartridge Adapter - application-specific adapter that is only required by selected mixer assemblies.
- - Hansgrohe 95287000 Joystick Lever - chrome external operating lever used on selected PuraVida mixers.
- - Hansgrohe 95282000 M24 Aerator - spout aerator used on applicable PuraVida basin and bidet mixer assemblies.
