H960520NU Ideal Standard / Trevi Ceramic Valve 1/2 Inch Right
Send a photo of your item and we'll help confirm it.
Summary

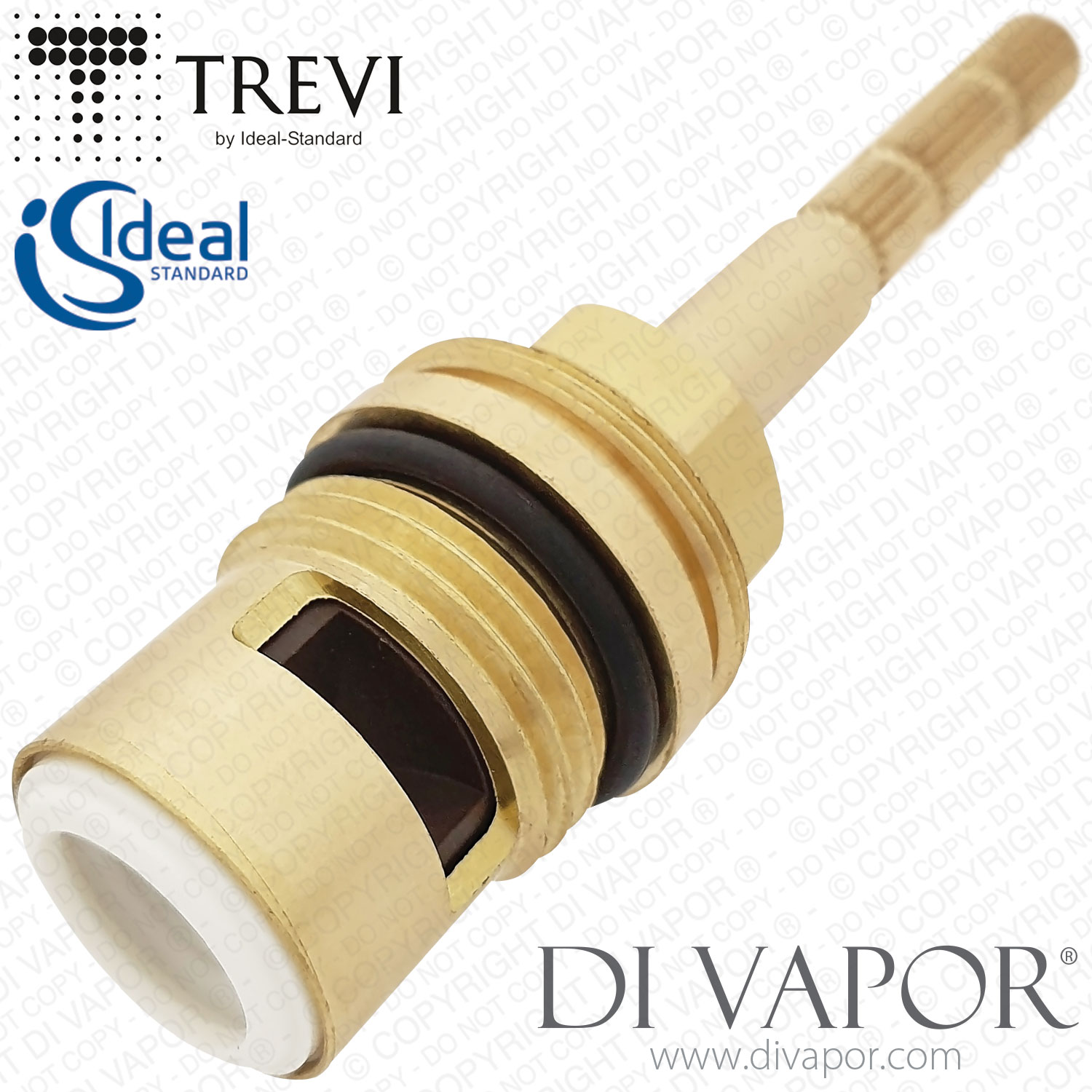

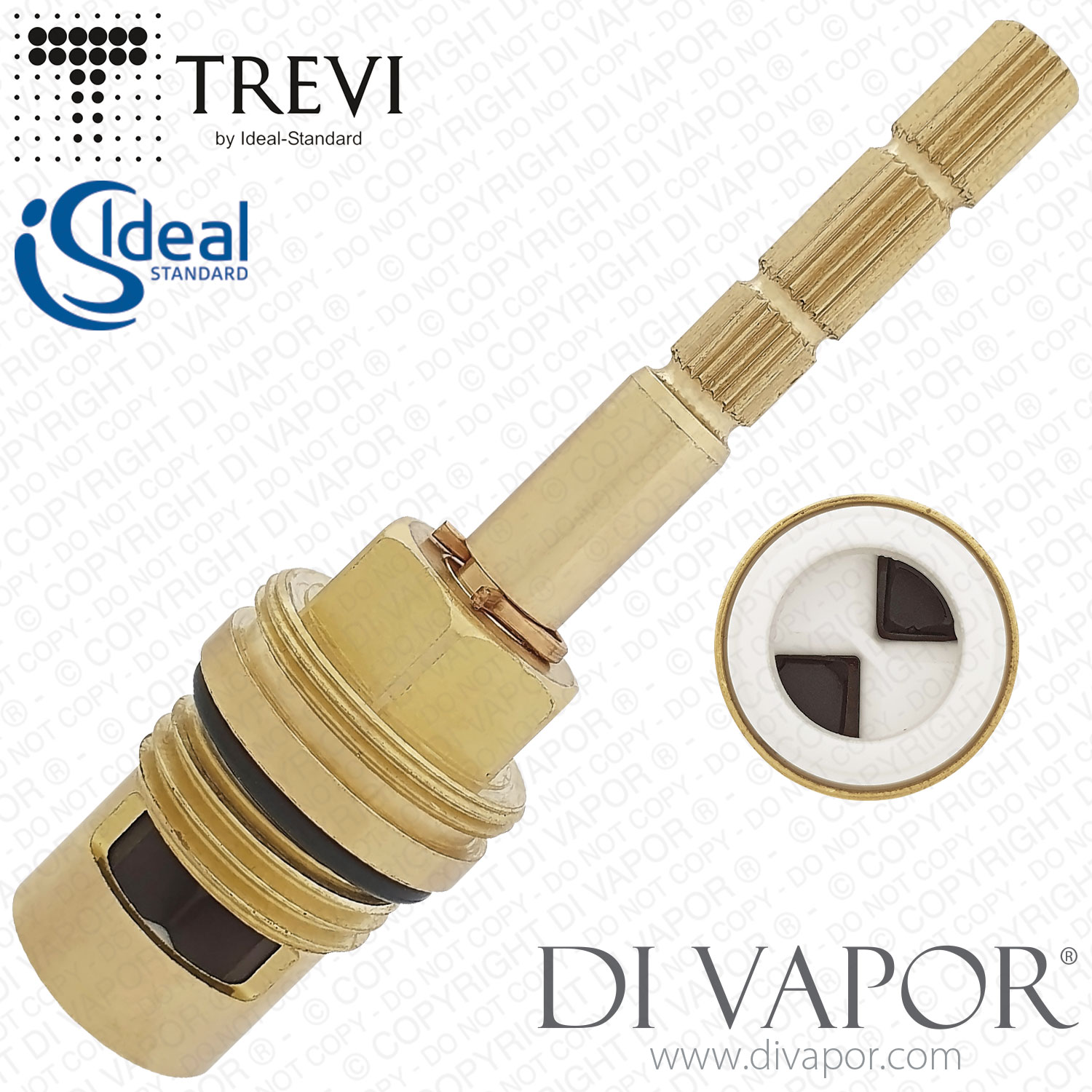

H960520NU Ideal Standard Trevi JADO 1/2 Inch Right-Hand Ceramic Valve 90mm
H960520NU is a G1/2 right-hand ceramic valve used for quarter-turn flow control in selected JADO concealed valves and wall-mounted dual-control basin mixers. The ceramic headwork opens anti-clockwise and closes clockwise to control and shut off the water supply.
A worn or damaged ceramic valve can cause stiff or unreliable operation, poor shut-off or water continuing to drip from the tap spout when the fitting is turned off. Replacing the correct headwork can restore smooth flow control and positive shut-off without replacing the complete tap or valve.
Technical Details
| Part Number | H960520NU |
|---|---|
| Manufacturer's alternate code format | H 960 520 NU |
| Part type | G1/2 right-hand ceramic valve / ceramic disc flow headwork |
| Total length including bottom seal | 89.6mm / approximately 90mm |
| Connection size | G1/2 / 1/2 inch BSP |
| Lower thread diameter | approximately 20.8mm |
| Barrel diameter below lower thread | 18.5mm |
| Upper thread (closer to spline) | 23.7mm |

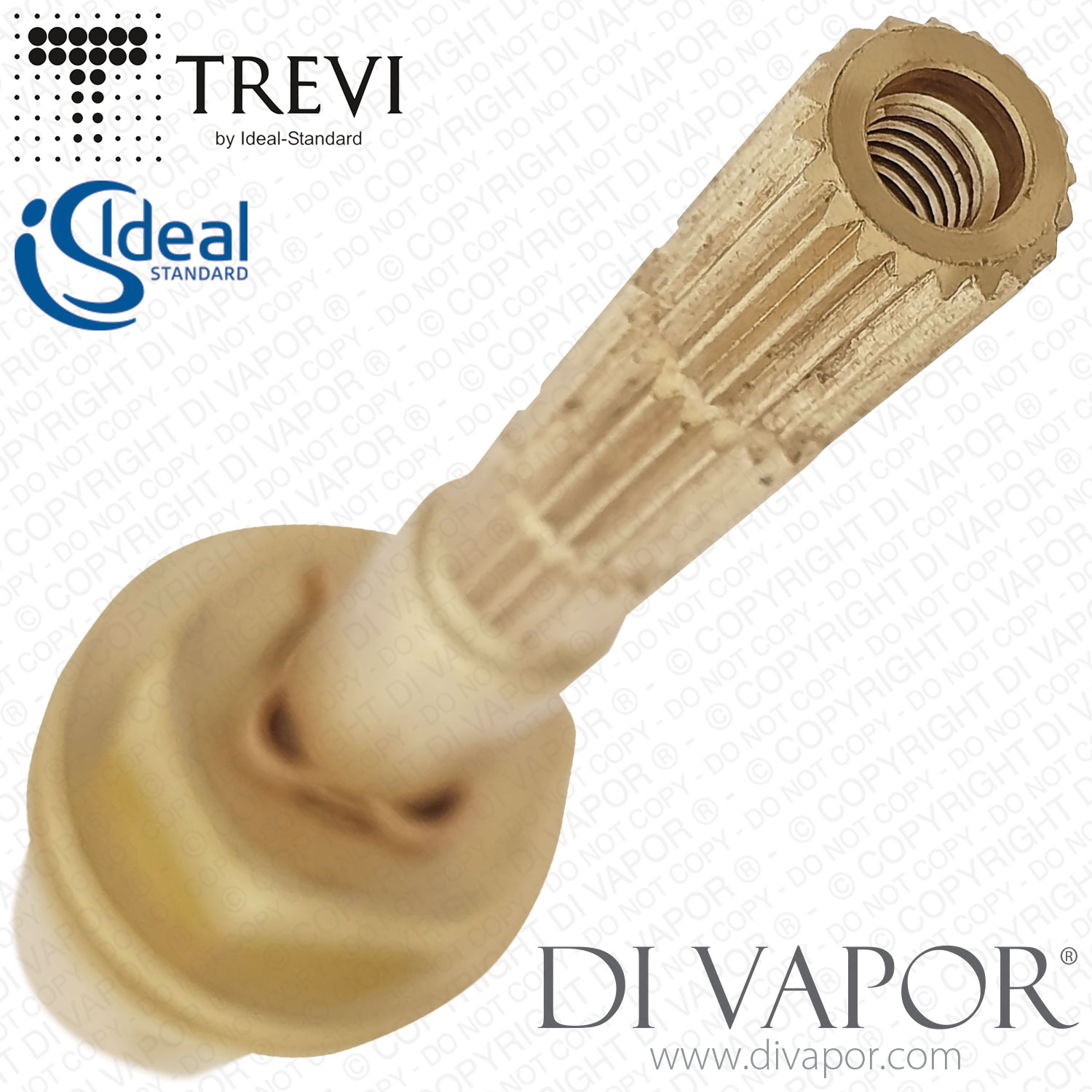

| Top spline | 20 teeth |
| Top spline diameter | approximately 7.6mm |
| Operation | quarter turn / 90 degrees |
| Closing direction | clockwise close |
| Opening direction | anti-clockwise open |
| Handedness | right-hand |
| Finish code | NU - Neutral |
| Net weight | 0.07 kg |
Before ordering, check the original part number, G1/2 fitting, 20-tooth spline and operating direction against the valve being removed. Similar JADO fittings and different product generations can use different ceramic headworks, so overall dimensions alone should not be used to identify the part.
Confirmed Models Using H960520NU
- JADO Jes H4507AA concealed valve - G1/2 configuration only
- JADO Joy H4562AA concealed valve - G1/2 configuration only
- JADO Glance H2109AA 3-H Wall Mounted Basin Mixer
- JADO Glance H2618AA Dual Control Built-In Wall Mounted Basin Mixer
- JADO IQ H2049AA wall-mounted basin mixer - round controls
- JADO IQ H2059AA wall-mounted basin mixer - cross controls
- JADO IQ H2635AA wall-mounted basin mixer - cross handles
- JADO New Haven H2483AA Concealed Three Hole Wall Mounted Basin Mixer
If you are unsure which part you need, use the Di Vapor part identification service.
