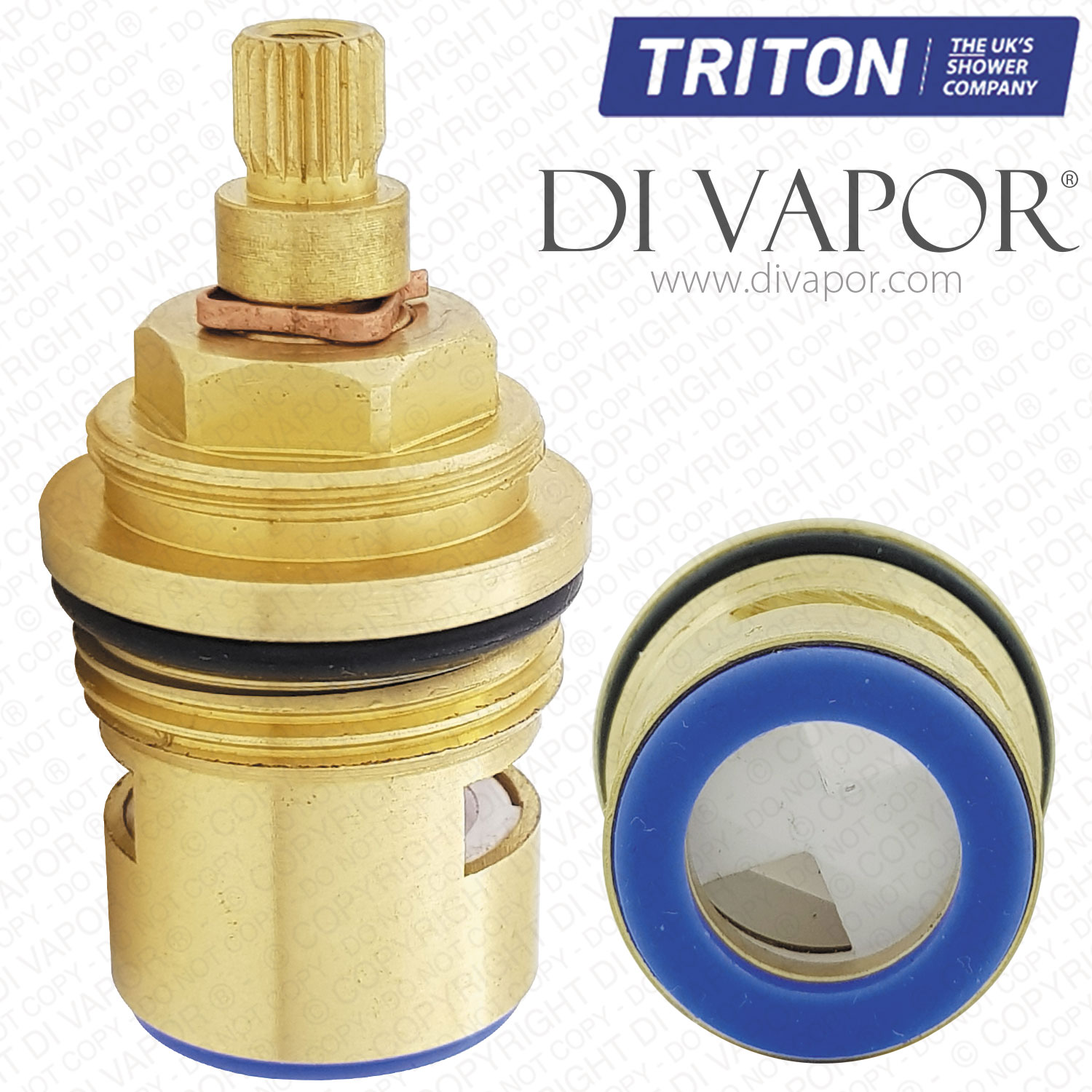

Flow Cartridge for Triton 83315530 - Exe Shower Valves

SUMMARY

This Triton 83315530 flow cartridge is the on off flow control cartridge used in selected Triton exposed bar mixer shower valves. It controls water flow through the valve and is not the thermostatic temperature cartridge.

This Di Vapor spare is sold as Part Number T-83315530. A worn flow cartridge can cause stiff operation poor shut off or water continuing to drip from the shower head after the valve is turned off.

Technical Details

- - Di Vapor Part Number: T-83315530

- - Cartridge type: flow cartridge

- - Valve application: exposed bar mixer shower valves

- - Operation: anti-clockwise open

- - Shut off direction: clockwise close

- - Top splines: 20

- - Top spline diameter: approximately 6.65mm to 7.65mm

- - Total length including bottom seal: approximately 53mm

- - Diameter at widest point: approximately 28.8mm

- - Nut height: approximately 4.8mm

- - Bottom seal colour: blue

- - Fitting type: screw in ceramic disc style flow cartridge

What To Check Before Ordering

- - Match the original cartridge code where available

- - Check the 20 spline top the spline diameter the overall length and the widest body diameter against your original cartridge

- - Check that your old cartridge opens anti-clockwise and closes clockwise

- - Check that you need the flow cartridge and not the thermostatic temperature cartridge from the same valve

Verified Model Pages

- - Triton Caroli Bar Mixer Shower Spare Parts - TR DV 306

- - Triton ECODETHBM Dene Eco Bar Mixer Shower Spare Parts

- - Triton Benito Bar Mixer Shower Spare Parts - TR DV 323

- - Triton REASTTHBM Asti Bar Mixer Shower Spare Parts

- - Triton REASTTHBMINC Asti Lever Bar Mixer Shower Spare Parts

- - Triton UNDETHBM Dene Hi-Flo Bar Mixer Shower Spare Parts

- - Triton Florino Bar Mixer Shower Spare Parts - TR DV 297

- - Triton Portico Bar Mixer Shower Spare Parts - TR DV 305

- - Triton Pirlo Hi-Flow Bar Mixer Shower Spare Parts - TR DV 402

- - Triton Tesla 2 Bar Mixer Shower Spare Parts - TR DV 350

- - Triton Tian Bar Mixer Shower Spare Parts - TR DV 316

- - Triton UNEXTHBM Exe MK2 Bar Mixer Shower Spare Parts

- - Triton Exe Lever Inclusive Bar Mixer Shower Spare Parts - TR DV 463

Troubleshooting

- - Symptom: Water continues to drip from the shower head after shut off or the flow control becomes stiff

- - Likely Cause: Worn ceramic discs damaged seals or general cartridge wear inside the flow control

- - Solution: Replace the flow cartridge and lightly lubricate the o-rings and bottom seal during installation

Related Spares You May Need

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved - for lubricating o-rings and bottom seals during installation

- - Triton 83315540 Thermostatic Temperature Cartridge for Benito & Caroli Valves - temperature control cartridge used in the same valve family

- - 150mm Universal Shower Hose - NXT734 - related hose shown on verified Triton model pages using this cartridge

- - Triton 86004450 Pair of Control Handles for Exe Valve - handle set shown on verified Triton model pages in this valve family

Need Help Checking Your Valve

Please compare your old cartridge carefully before ordering. If your valve has a different spline count different opening direction or different body dimensions then this will not be the correct part.
