Dornbracht 9090032040090 Cartridge - A953549NU1180

SUMMARY

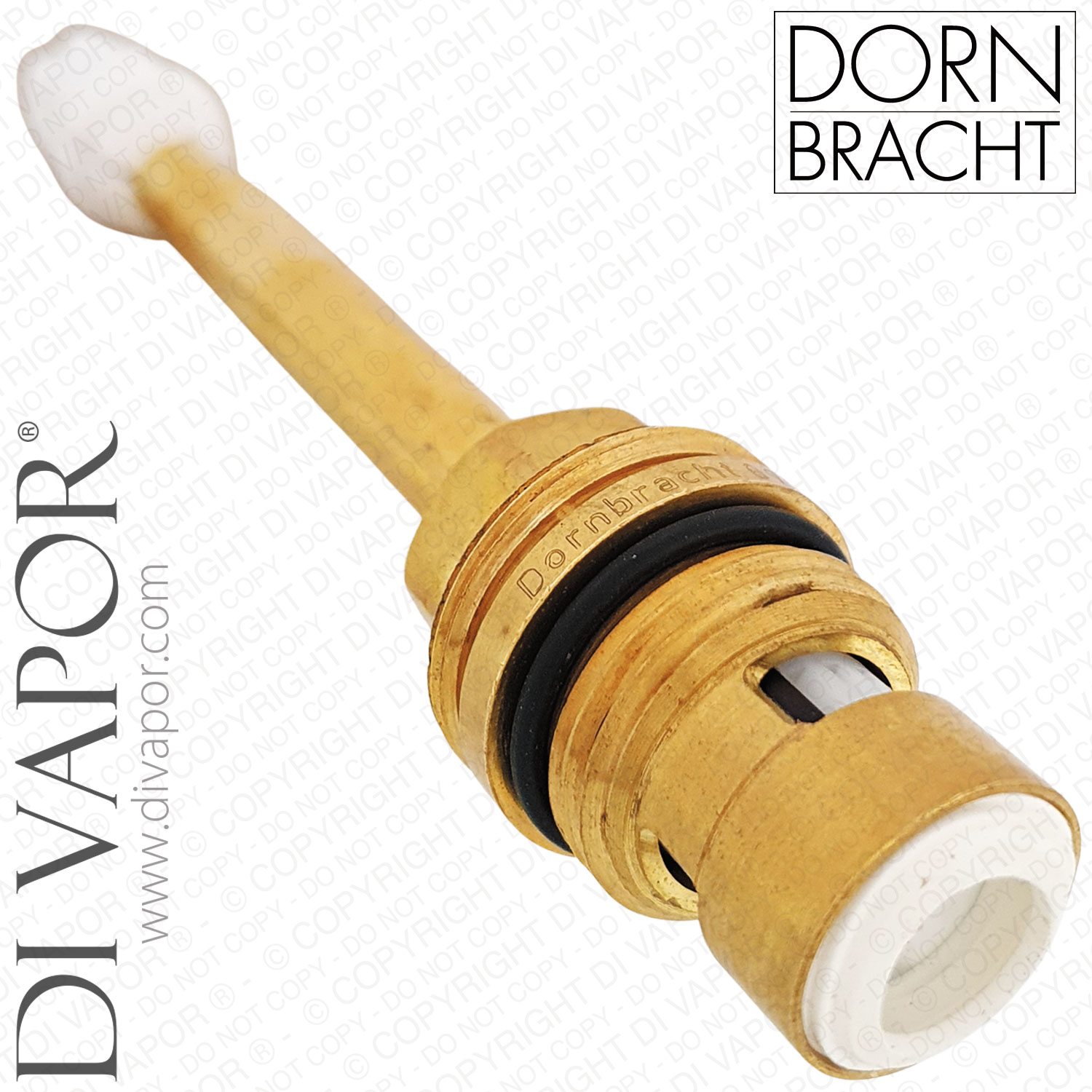

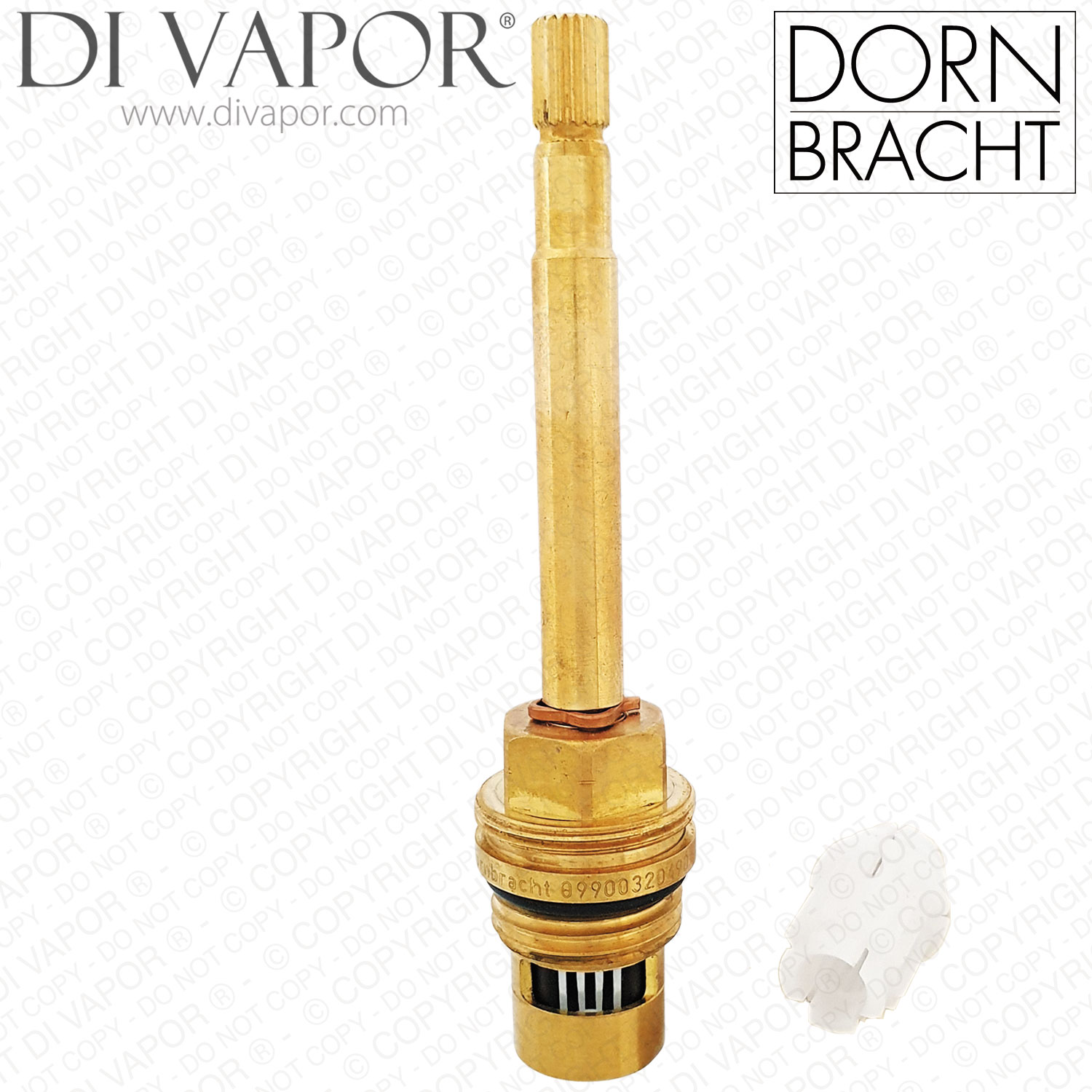

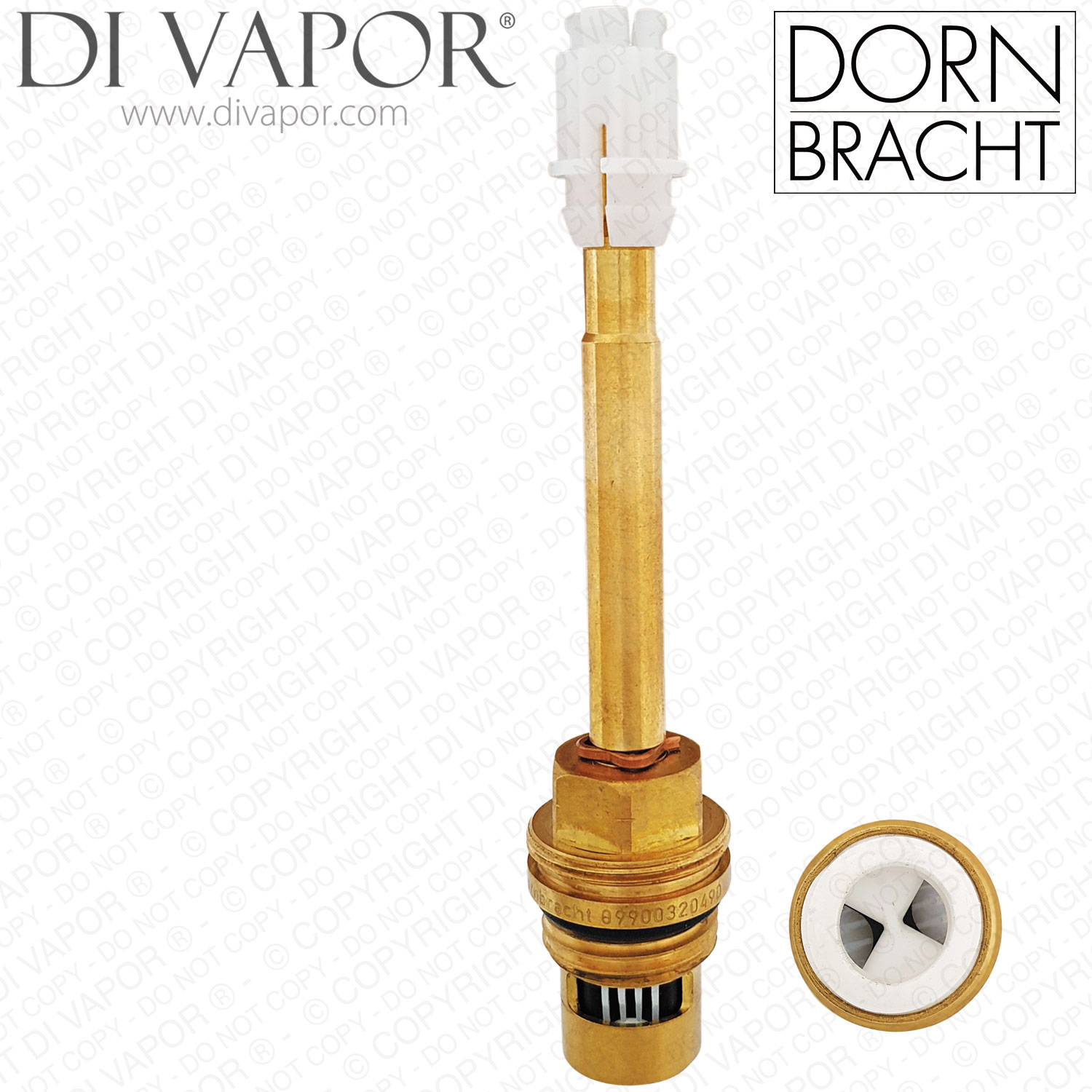

Dornbracht 9090032040090 is a 1/2 inch ceramic flow cartridge for selected Dornbracht deck valves and Symetrics xGATE mixing or volume-control assemblies. The cartridge is also shown as code variant 90 90 03 204 00 90 in Dornbracht spare-parts drawings, while A953549NU1180 appears as an additional identifier in the Di Vapor product title.

This anti-clockwise close cartridge controls water flow through the valve. It is a clockwise open quarter-turn cartridge, and a common symptom of flow cartridge failure is water continuing to drip from the shower head, spout or outlet when the valve is turned off.

Technical Details

- - Total length including bottom seal: 108mm

- - Diameter at widest point: 23.8mm

- - Top spline diameter: 7.6mm

- - Top spline teeth / notches: 20

- - Lower fitting thread diameter: 1/2 inch BSP

- - Barrel diameter below lower thread: 16.85mm

- - Close direction: Anti-Clockwise Close

- - Open direction: Clockwise Open

- - Turn: Quarter turn / 1/4 turn / 90 degrees

- - Upper thread closer to spline: 23.8mm

Confirmed Compatible Models

- - Dornbracht Symetrics Deck valve counter-clockwise closing hot or cold 20000980

- - Dornbracht Symetrics Deck valve counter-clockwise closing hot 20000985

- - Dornbracht IMO Deck valve anti-clockwise closing cold or hot 20 000 980-08

- - Dornbracht Symetrics xGATE mixing valve with volume regulation for deck mounting 20020980

- - Dornbracht Symetrics xGATE mixing valve with volume regulation for deck mounting 20020985

- - Dornbracht Symetrics Deck Valve Counter-Clockwise Closing Hot - Chrome 20000985-00

- - Dornbracht Symetrics Deck Valve Counter-Clockwise Closing Hot Or Cold - Chrome 20000980-00

- - Dornbracht Symetrics Xgate Mixing Valve Volume Control For Deck-Mounted Installation - Chrome 20020980-00

- - Dornbracht Symetrics Xgate Mixing Valve Volume Control For Deck-Mounted Installation - Chrome 20020985-00

- - Dornbracht Symetrics Volume Controls For Deck-Mounted Installation With Two Volume Controls With Diverter - Chrome 29335980-00

- - Dornbracht Symetrics Volume Controls For Deck-Mounted Installation With Two Volume Controls With Diverter - Chrome 29335985-00

Before Ordering Check

Before ordering, compare the old cartridge with the measurements above, especially the total length, 20-tooth top spline, 1/2 inch BSP lower thread and anti-clockwise close operating direction. Do not order by valve appearance alone, as similar Dornbracht valves can use different head parts.

Installation Note

Shut off the water supply before removal. Clean the valve body seat before fitting the new cartridge and apply a suitable silicone grease to the O-rings and bottom seal to help protect the seals during installation.
