Dornbracht 9090031650090 1/2" Ceramic Cartridge
Send a photo of your item and we'll help confirm it.
Summary

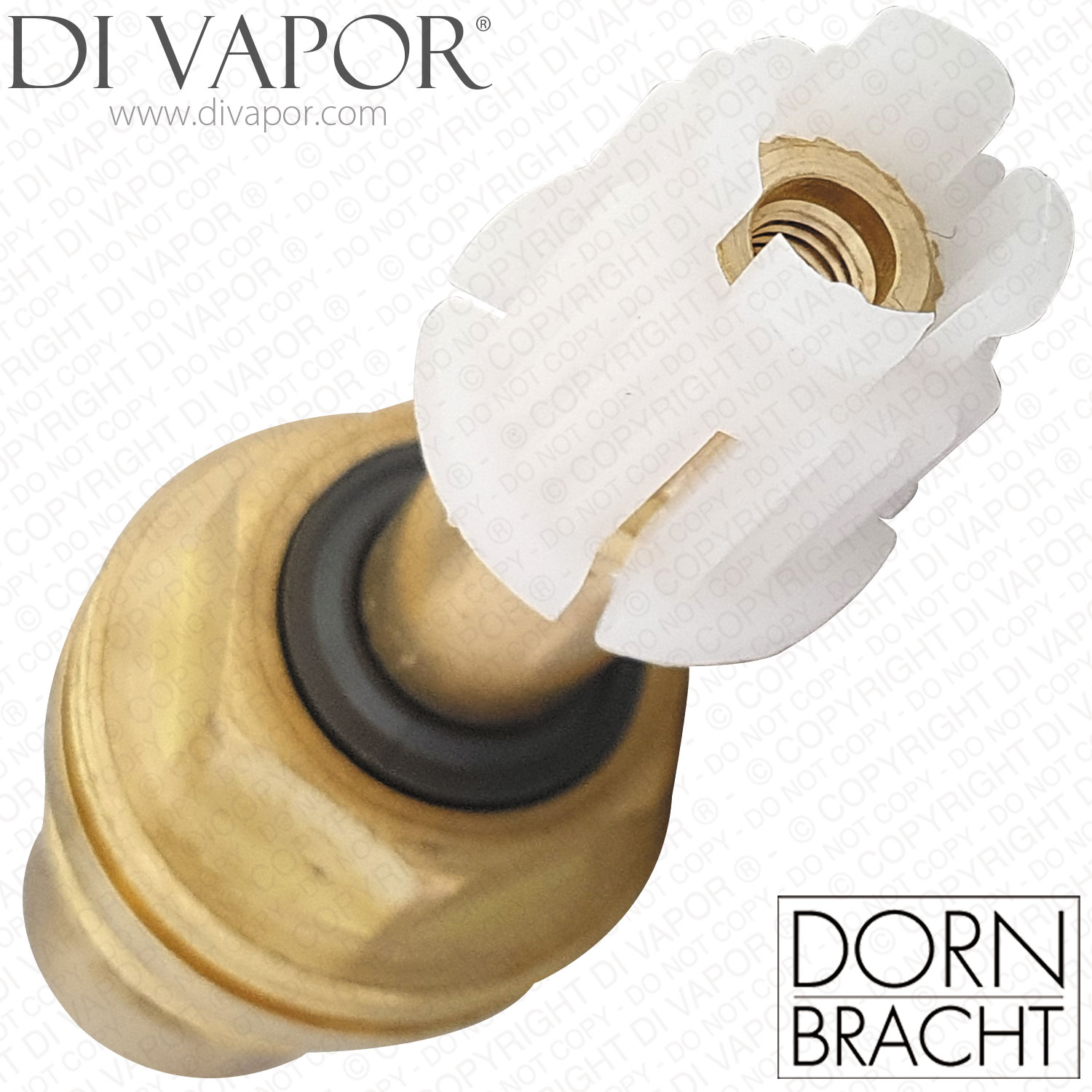

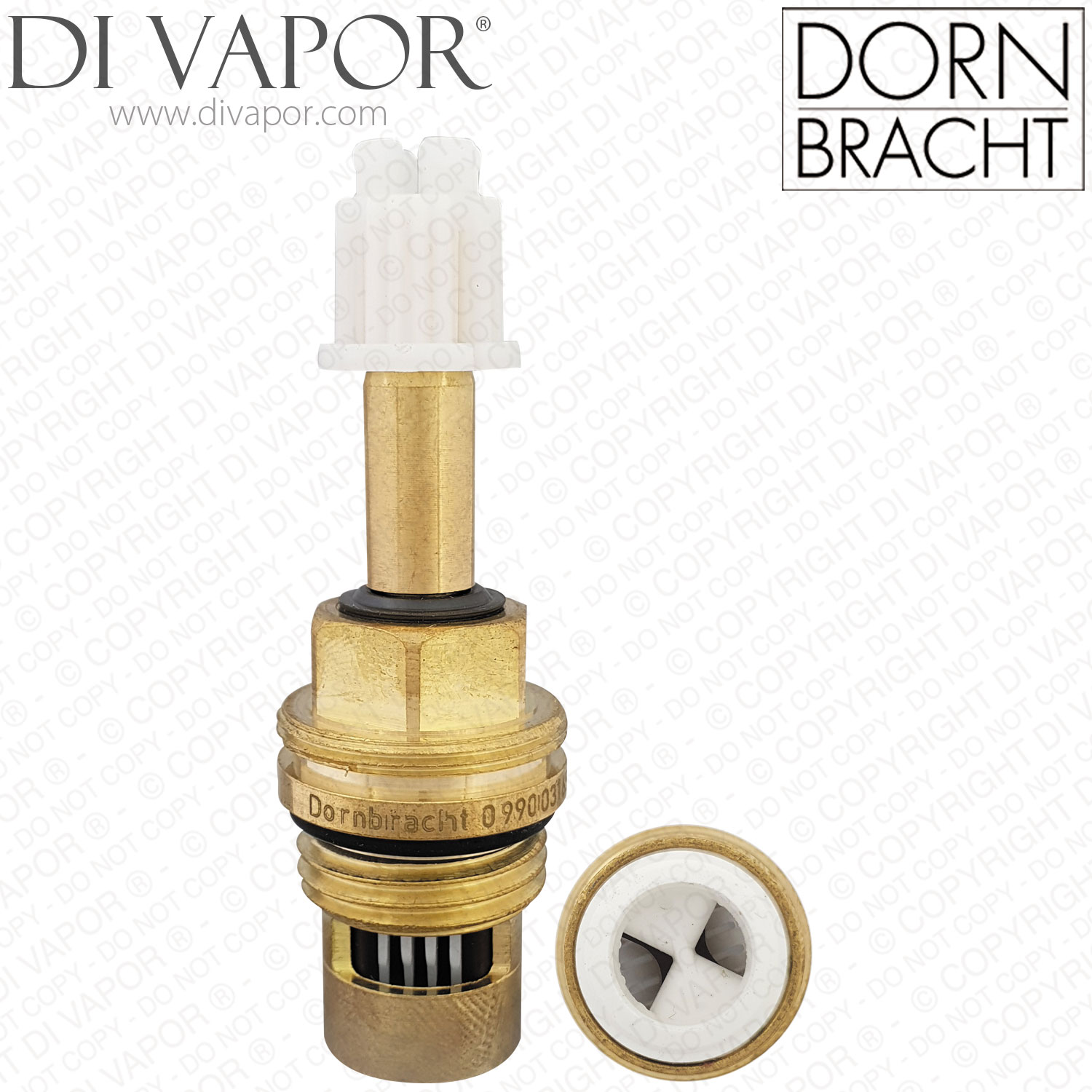

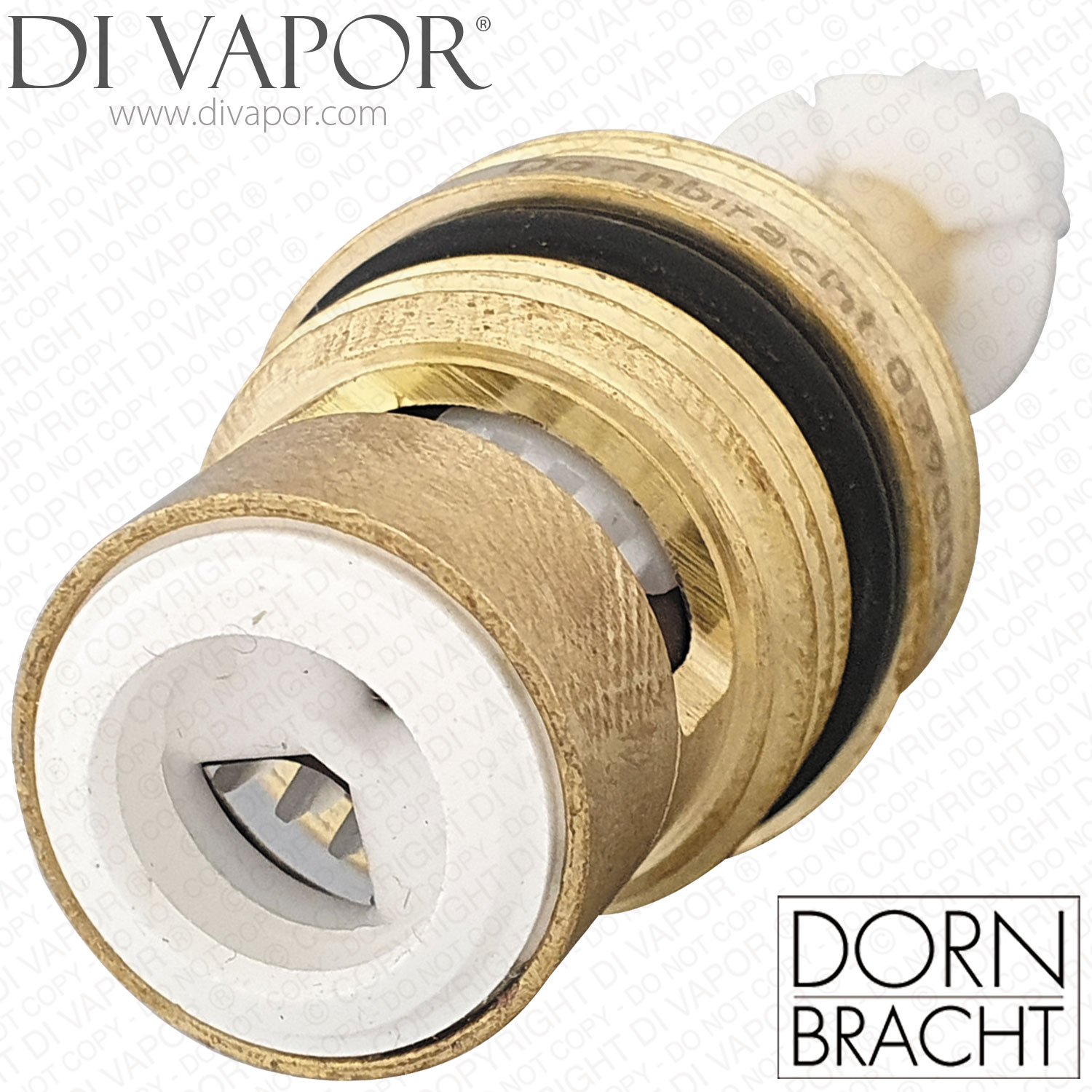

The Dornbracht 9090031650090 is a 1/2 inch ceramic cartridge for Dornbracht deck valve and side valve assemblies. It is used as the ceramic head part that controls water flow through the valve and helps restore correct shut-off where the original cartridge is worn or passing water.
This cartridge is also identified in Dornbracht format as 90 90 03 165 00 90. It is an extended 15mm 1/2 inch ceramic head part and is listed by Di Vapor with an anti-clockwise turn to open. A common symptom of a worn flow cartridge is water continuing to drip from the tap spout when the tap is turned off.
Technical Details
| Brand | Dornbracht |
|---|---|
| Manufacturer code | 9090031650090 | 90 90 03 165 00 90 |
| Cartridge size | 1/2 inch |
| Cartridge type | ceramic head part / ceramic disc flow cartridge |
| Operation | anti-clockwise turn to open |
| Total length excluding white spline adapter | 69mm |
| Extended form | 15mm extended head part |
Confirmed Model Use
- Dornbracht 90 17 11 040 02 90 side valve / deck valve assembly
- Dornbracht Madison 20 715 360-00 0010 three-hole lavatory mixer with drain
- Dornbracht Madison 20 715 360-06 0010 three-hole lavatory mixer with drain
- Dornbracht Madison 20 715 360-08 0010 three-hole lavatory mixer with drain
- Dornbracht Madison 20 715 360-09 0010 three-hole lavatory mixer with drain
- Dornbracht Madison 20715360 three-hole basin mixer
- Dornbracht Madison 20715360-00 three-hole basin mixer
- Dornbracht Madison 20715360-06 three-hole basin mixer
- Dornbracht Madison 20715360-08 three-hole basin mixer
- Dornbracht Madison 20715360-09 three-hole basin mixer
Before Ordering
Compare the existing cartridge code, 1/2 inch connection, opening direction and total cartridge length with the removed part. The listed 69mm length excludes the white spline adapter, so check the brass cartridge body rather than measuring the adapter as part of the cartridge length.
Installation Note
Clean the valve seat before fitting the new cartridge and apply suitable silicone grease to the O-rings and lower seal area. Do not overtighten the cartridge into the valve body, as this can damage the seal faces or make future servicing difficult.
