Dornbracht 9090031340090 Flow Cartridge

SUMMARY

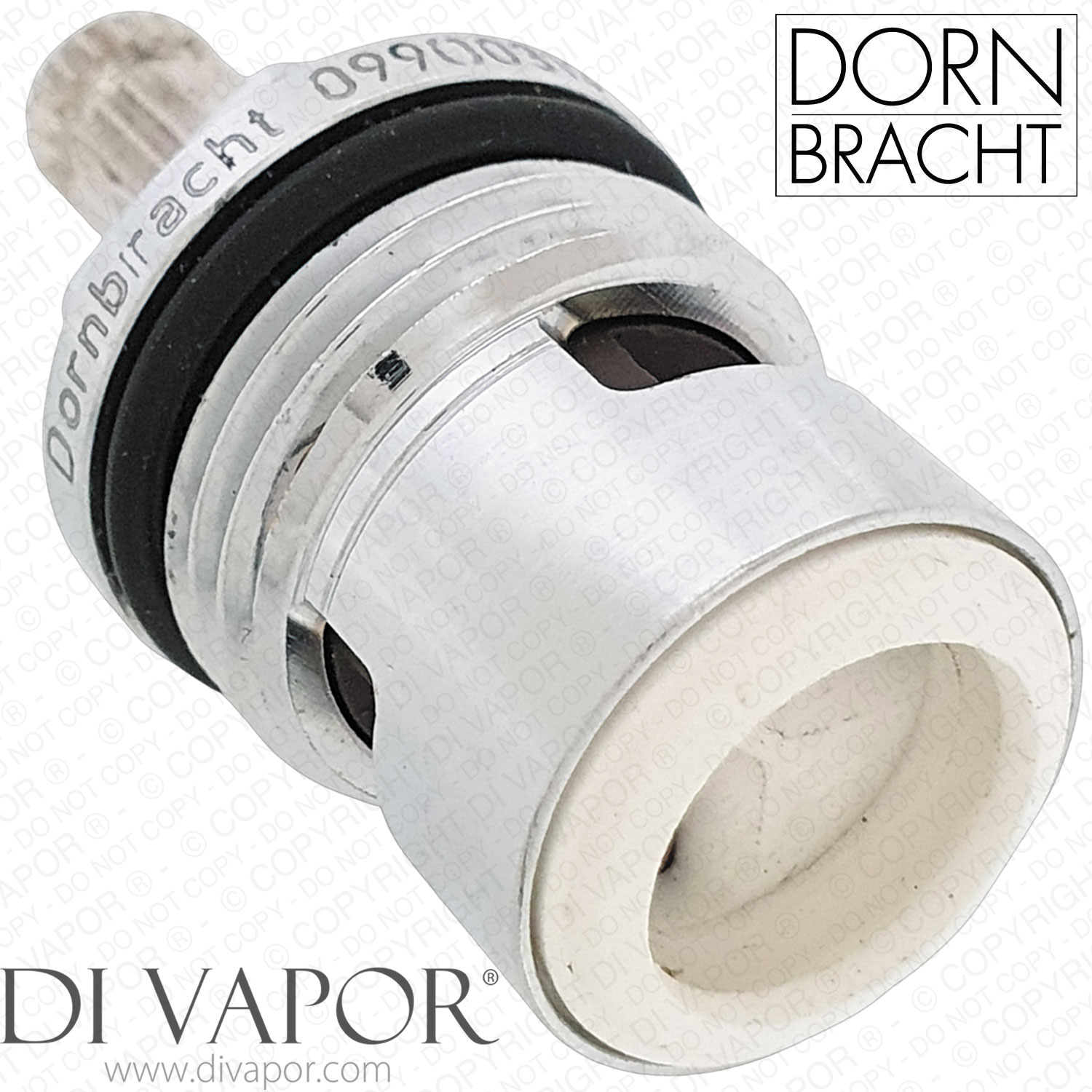

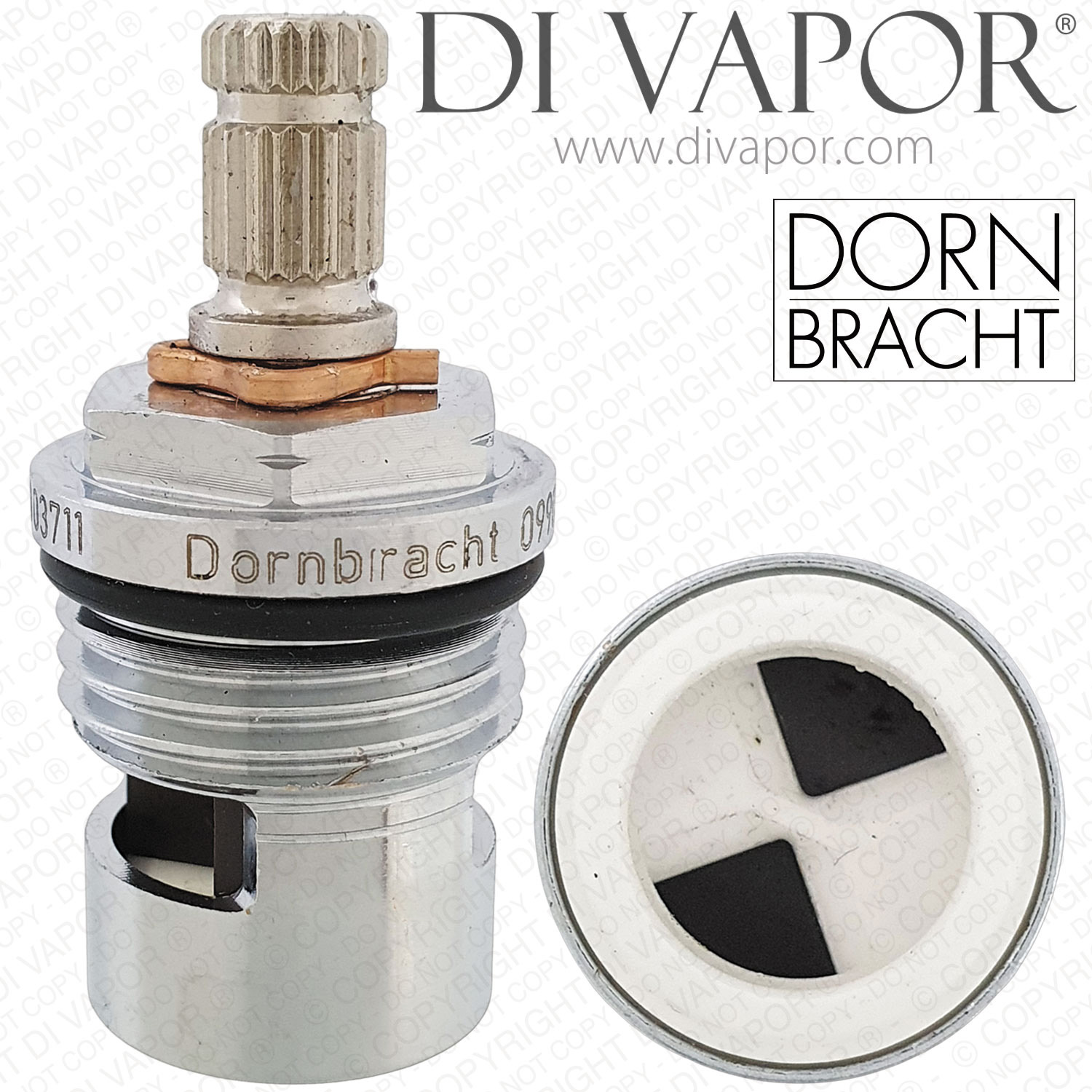

Dornbracht 9090031340090 is a 1/2 inch quarter-turn ceramic flow cartridge used as a left-closing ceramic upper part in selected Dornbracht pillar valve and basin tap assemblies.

This cartridge controls on and off water flow. A worn flow cartridge can cause poor shut-off or water dripping from the tap spout when the tap is turned off.

The verified operating direction is anti-clockwise close and clockwise open.

Technical Details

- - Part Number: 9090031340090

- - Superseded code: 09900313490

- - Total length including bottom seal and excluding the plastic adapter at the top: 44mm

- - Widest diameter: 22.6mm

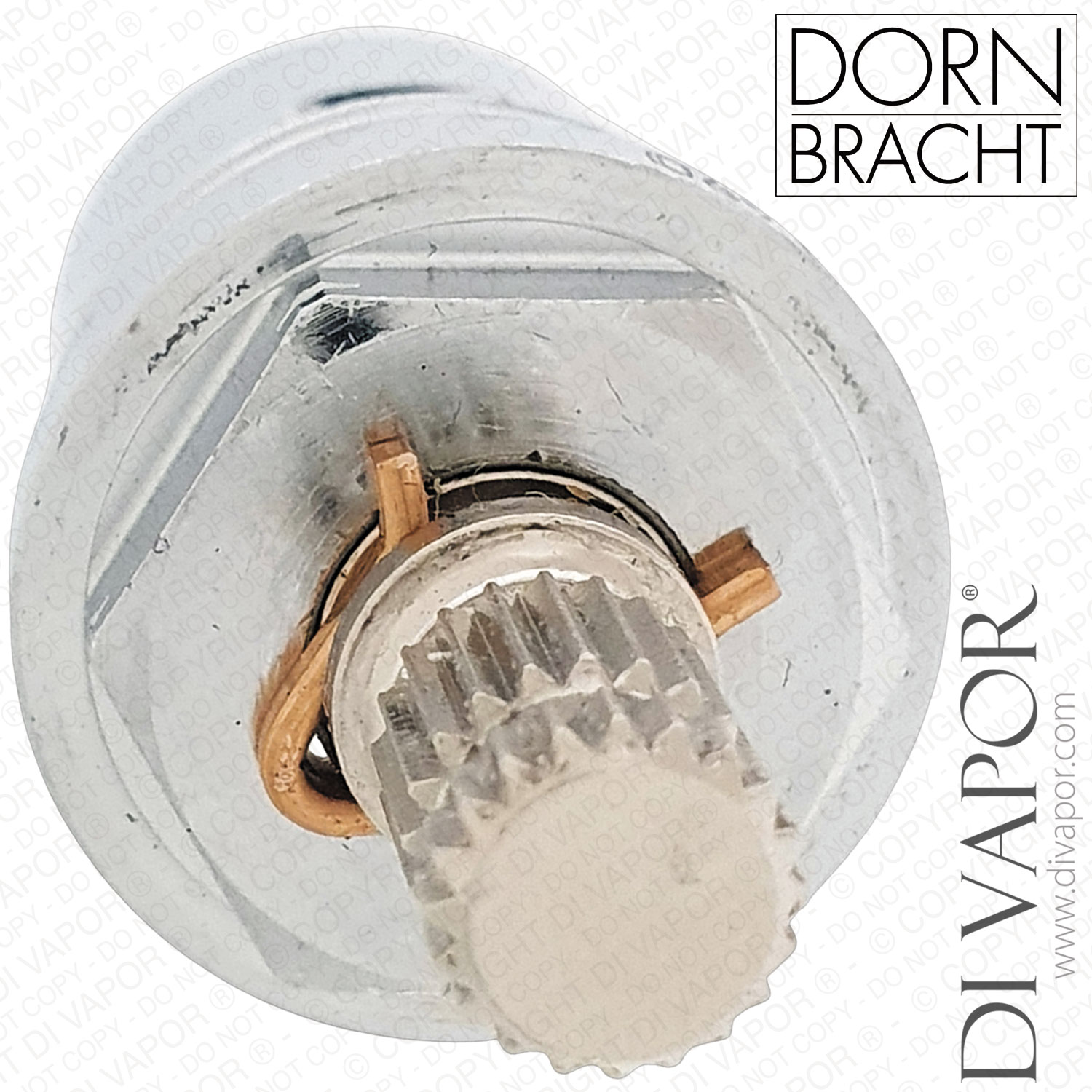

- - Top spline diameter: 7.6mm

- - Top spline teeth / notches: 20

- - Lower fitting thread diameter: 20.6mm 1/2 inch BSP

- - Barrel diameter below lower thread: 18.6mm

- - Bottom seal colour: White

- - Turn: Quarter turn 90 degrees

- - Close direction: Anti-clockwise close, clockwise open

Before you order check

- - Check the full part code 9090031340090 on the original part or exploded parts information where available

- - Check the opening and closing direction matches your original cartridge

- - Check the spline detail thread size and main body measurements against your original part before ordering

Confirmed Compatible Models

- - Dornbracht TARA CLASSIC Standventil Kaltwasser 17 510 881-00

- - Dornbracht TARA CLASSIC Waschtisch-Einlochbatterie 22 321 880-00

Related Spares You May Need

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
