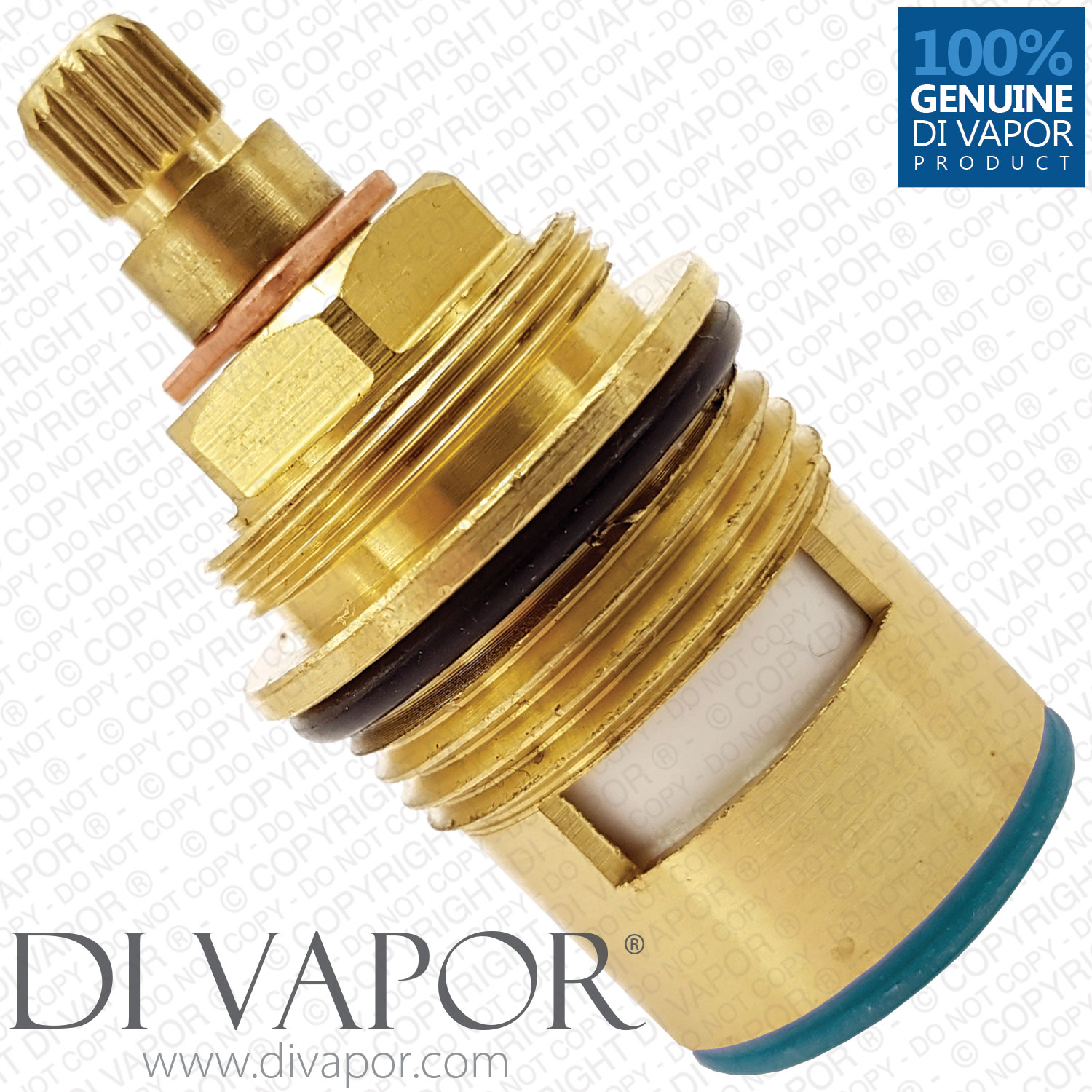

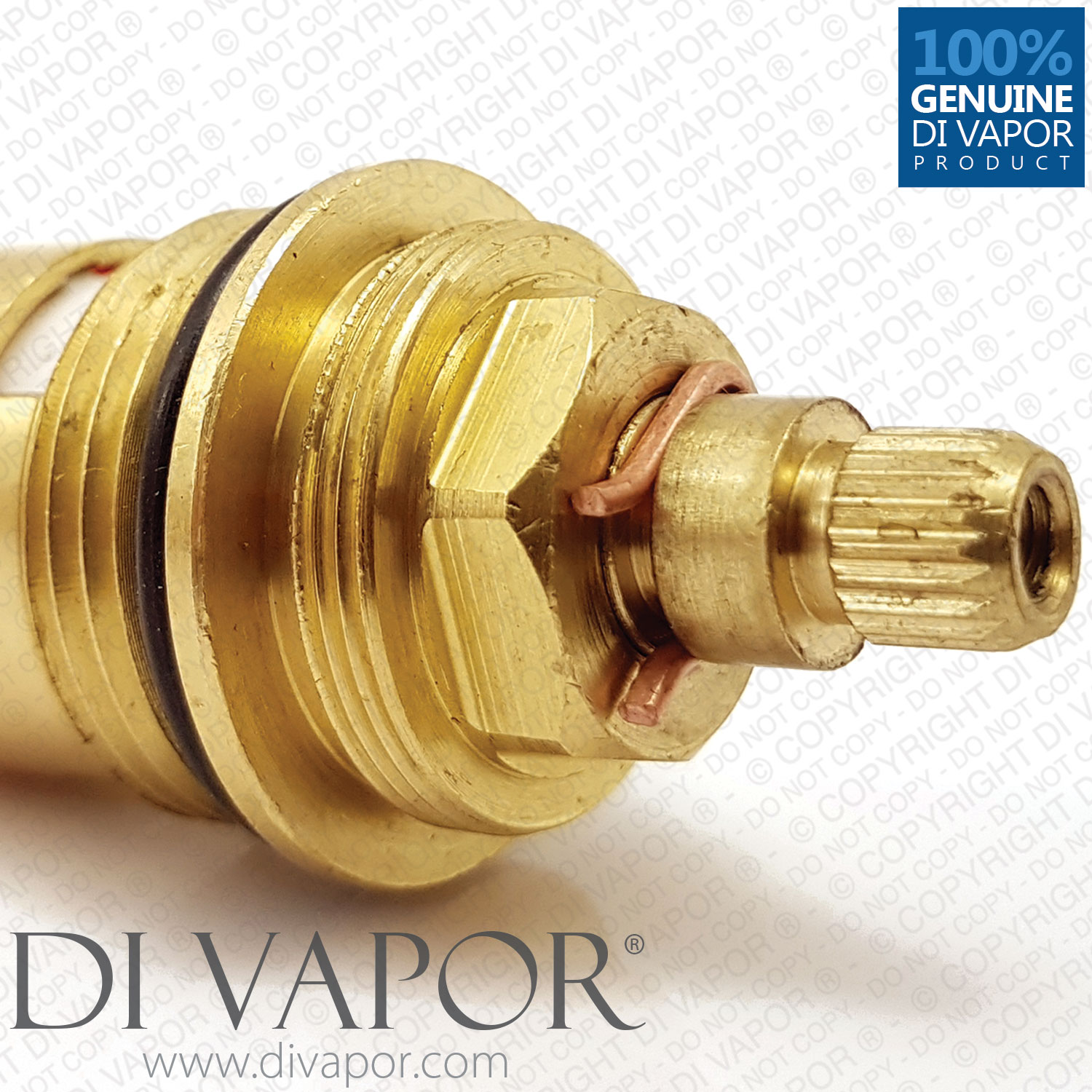

Ceramic Disc Tap Valve Cartridge Insert - 3/4" BSP, Quarter Turn Clockwise Close - 53mm Height, 20 Teeth Spline - Cold Side
Part number: DF8189
Price: £29.98
Sale: £19.83
You save: £10.15 (34%)
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary
Ceramic Disc Tap Valve Cartridge Insert - 3/4" BSP, Quarter Turn Clockwise Close - 53mm Height, 20 Teeth Spline - Cold Side
| Total Length (including bottom seal) | 52.9mm |
|---|---|
| Diameter at Widest Point | 28.8mm |
| Top Spline Diameter | 7.65mm |
| Top Spline Teeth / Notches | 20 |
| Barrel Diameter | 23.6mm - Three Quarter Inch BSP |
| Lower Thread | 27.6mm |
| Bottom Seal Colour | Blue (for Cold Side) |
| Close Direction | Clockwise Close (Anti-Clockwise Open) |
| Upper Thread (closer to spline) | 24mm |
