Bristan VLV XB079BD000O Flow Cartridge for Bristan 1901 Valves
Part number: VLV-XB079BD0000
Only 1 left in stock.
Price: £34.16
Sale: £13.57
You save: £20.59 (60%)
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary

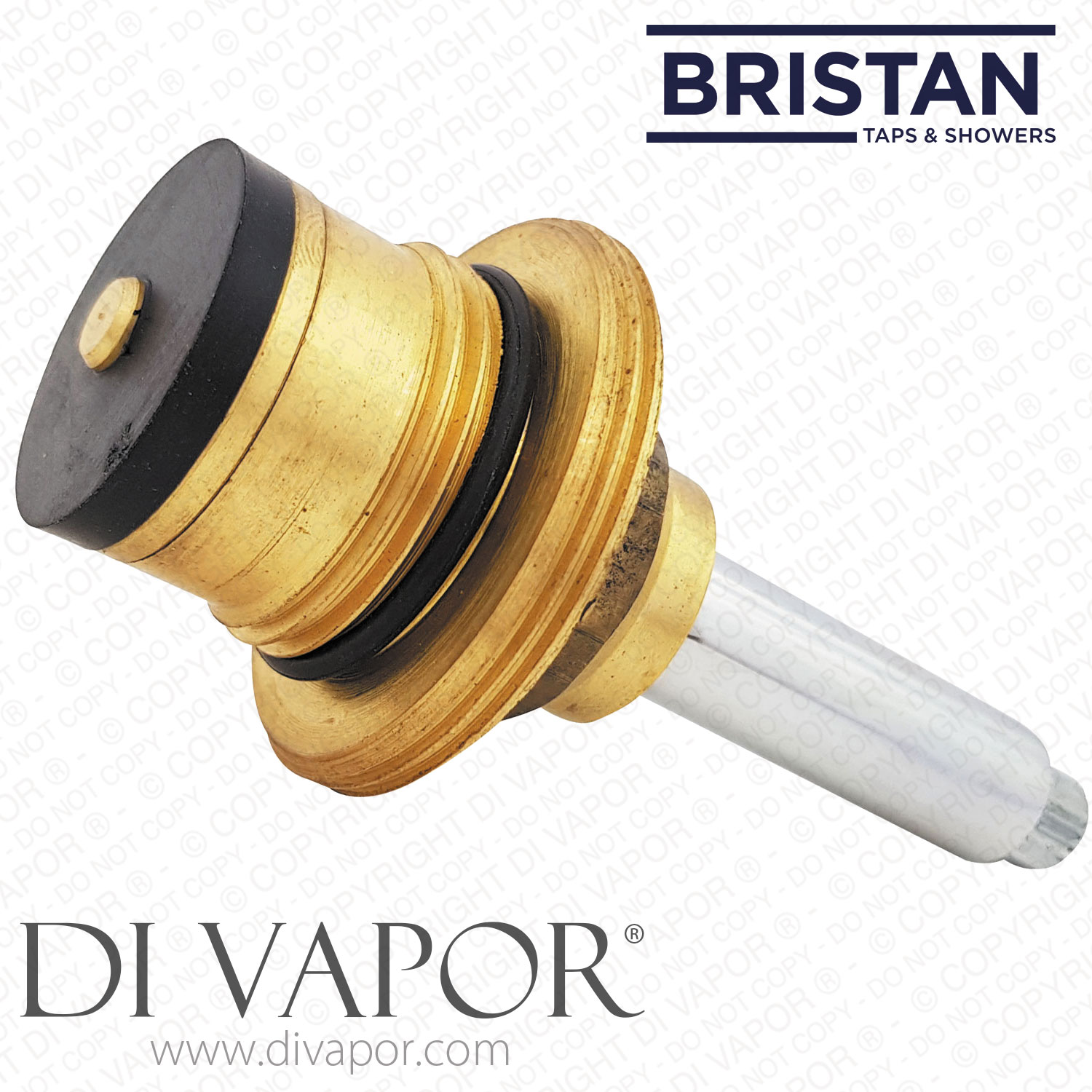

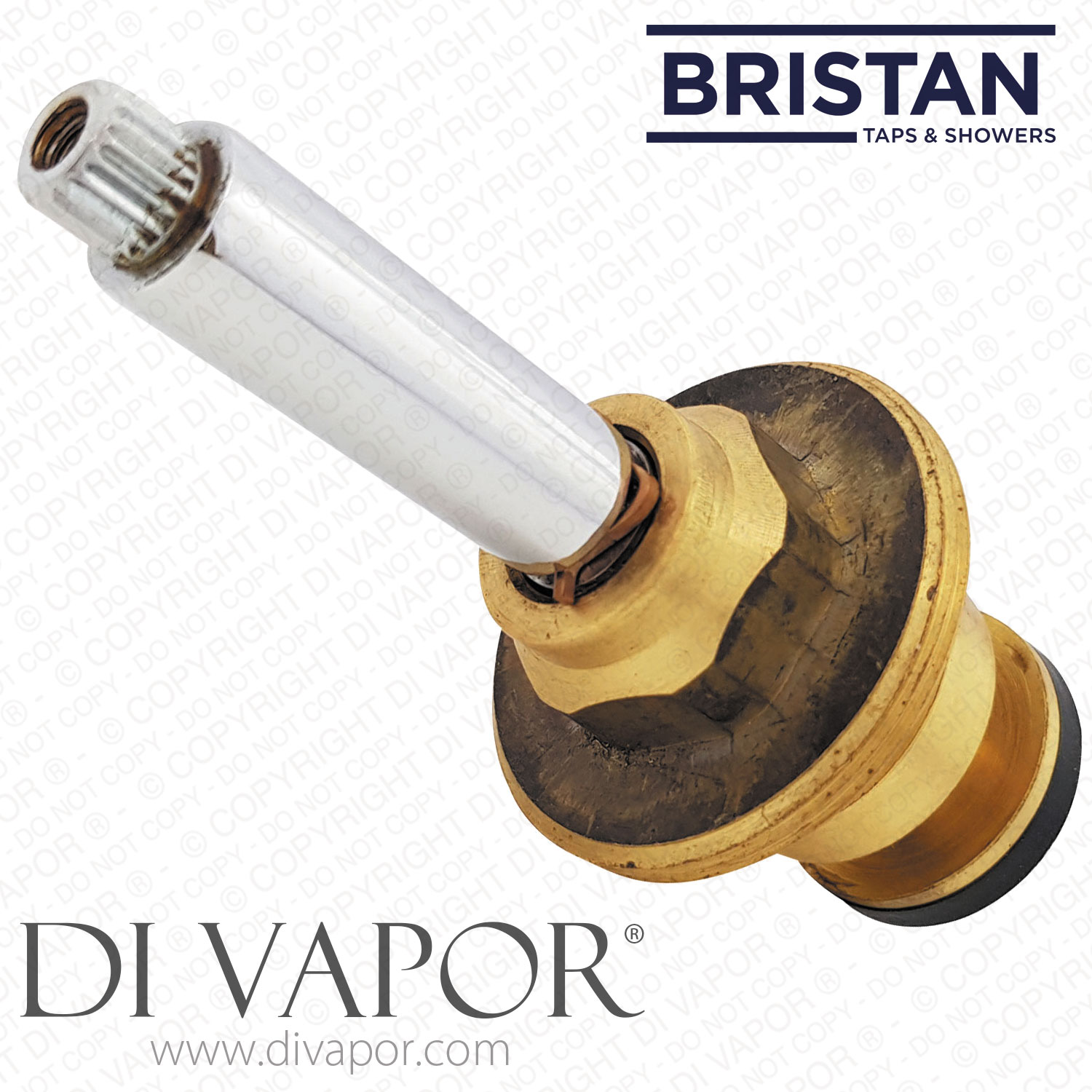

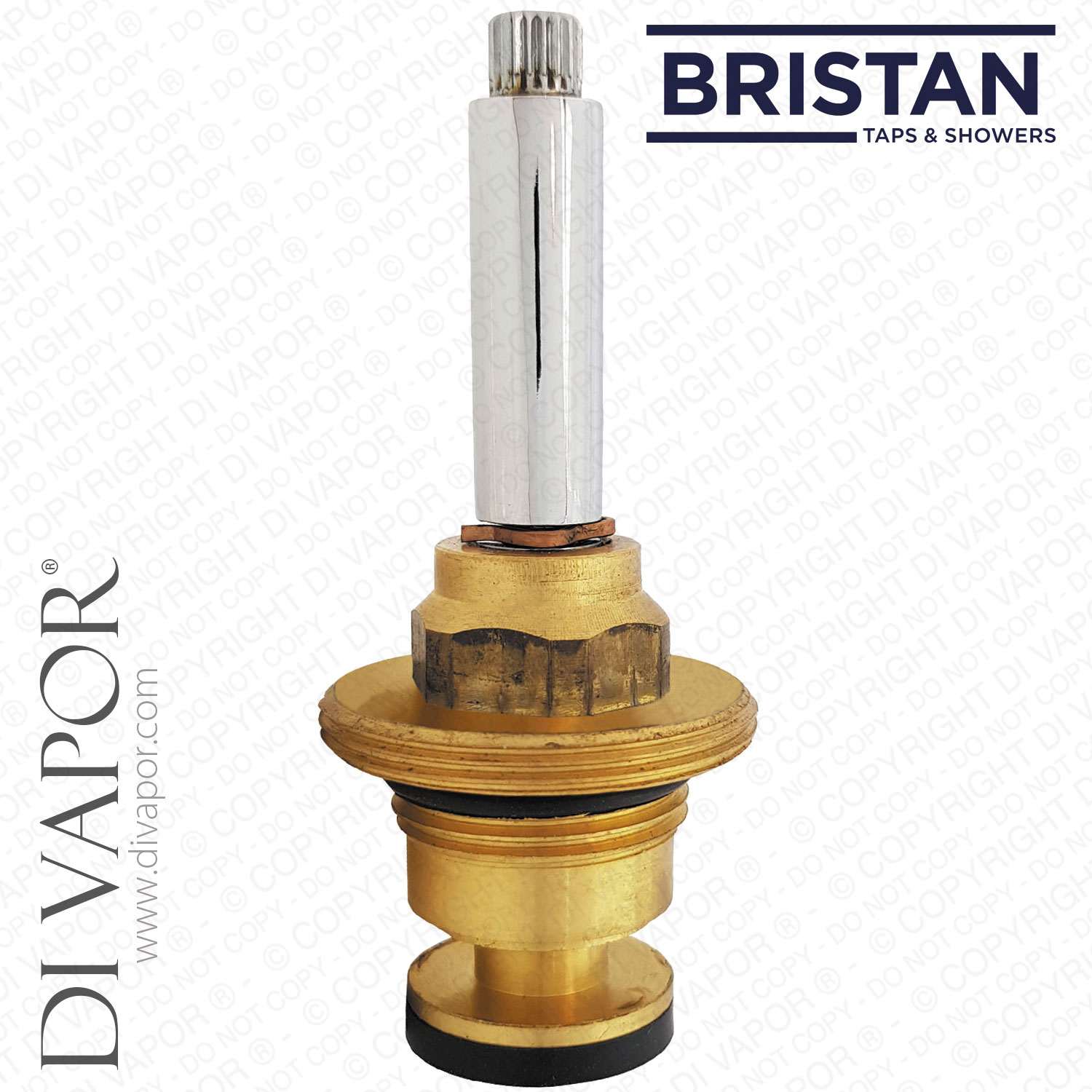

Bristan VLV XB079BD000O (VLV XB079BD0000) Flow Cartridge for Bristan 1901 Valves. Please note that the design of the cartridge has changed. There is no thread on the flange of the replacement cartridge as seen in this photo.
Sold individually.
Cartridge Measurements:
| Total Length (including bottom seal) | 79mm (fully compressed) - 87mm when extended |
|---|---|
| Diameter at Widest Point | 28.5mm |
| Top Spline Diameter | 7.6mm |
| Top Spline Teeth / Notches | 20 |
| Barrel Diameter | 23.6mm |
| Lower Thread | 3/4" |
| Bottom Seal Colour | Black - Compression type |
| Close Direction | Anti-Clockwise Close (Clockwise Open) |
| Upper Thread (closer to spline) | 37.7mm |
