Bristan VLV 04070-8-20A Flow Cartridge Replacement Valve - 3/4" 20 Spline for Artisan & Prism Concealed Shower Valves
Send a photo of your item and we'll help confirm it.
Summary
Bristan VLV 04070-8-20A Flow Cartridge Replacement Valve - 3/4 Inch, 20 Spline for Artisan & Prism Concealed Shower Valves
Cartridge Measurements:
| Total Length (including bottom seal) | 89.2mm |
|---|---|
| Diameter at Widest Point | 28.5mm |
| Top Spline Diameter | 7.8mm |
| Top Spline Teeth / Notches | 20 |
| Barrel Diameter | 23.9mm |
| Lower Thread | 3/4" |
| Bottom Seal Colour | Blue (for Cold Side) |
| Close Direction | Clockwise Close (Anti-Clockwise Open) |
| Upper Thread (closer to spline) | 24mm |
This is used in PM TSHCVO C valves From 09/09/2005.
General Shower Spares Information: Bristan VLV 04070-8-20A Flow Cartridge

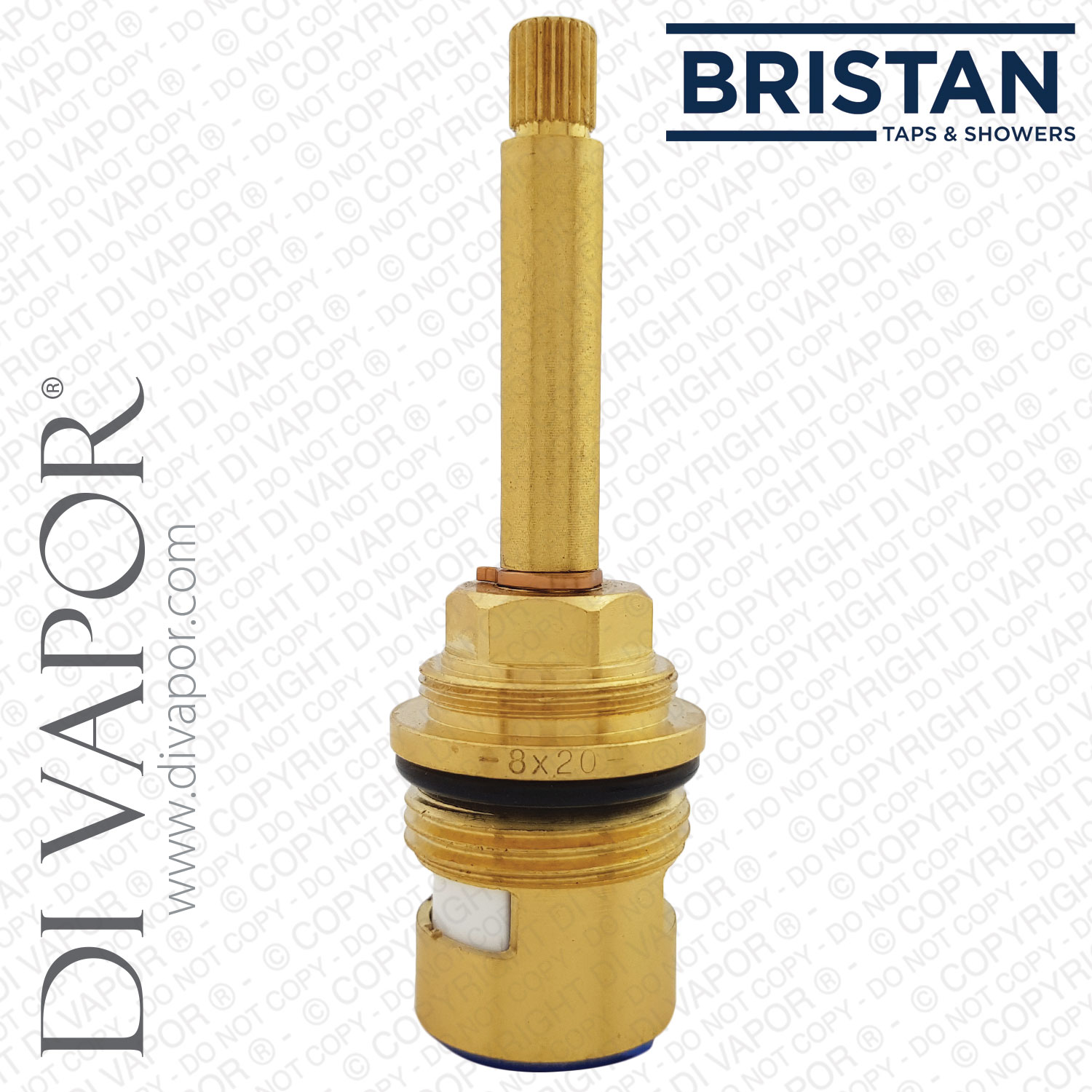

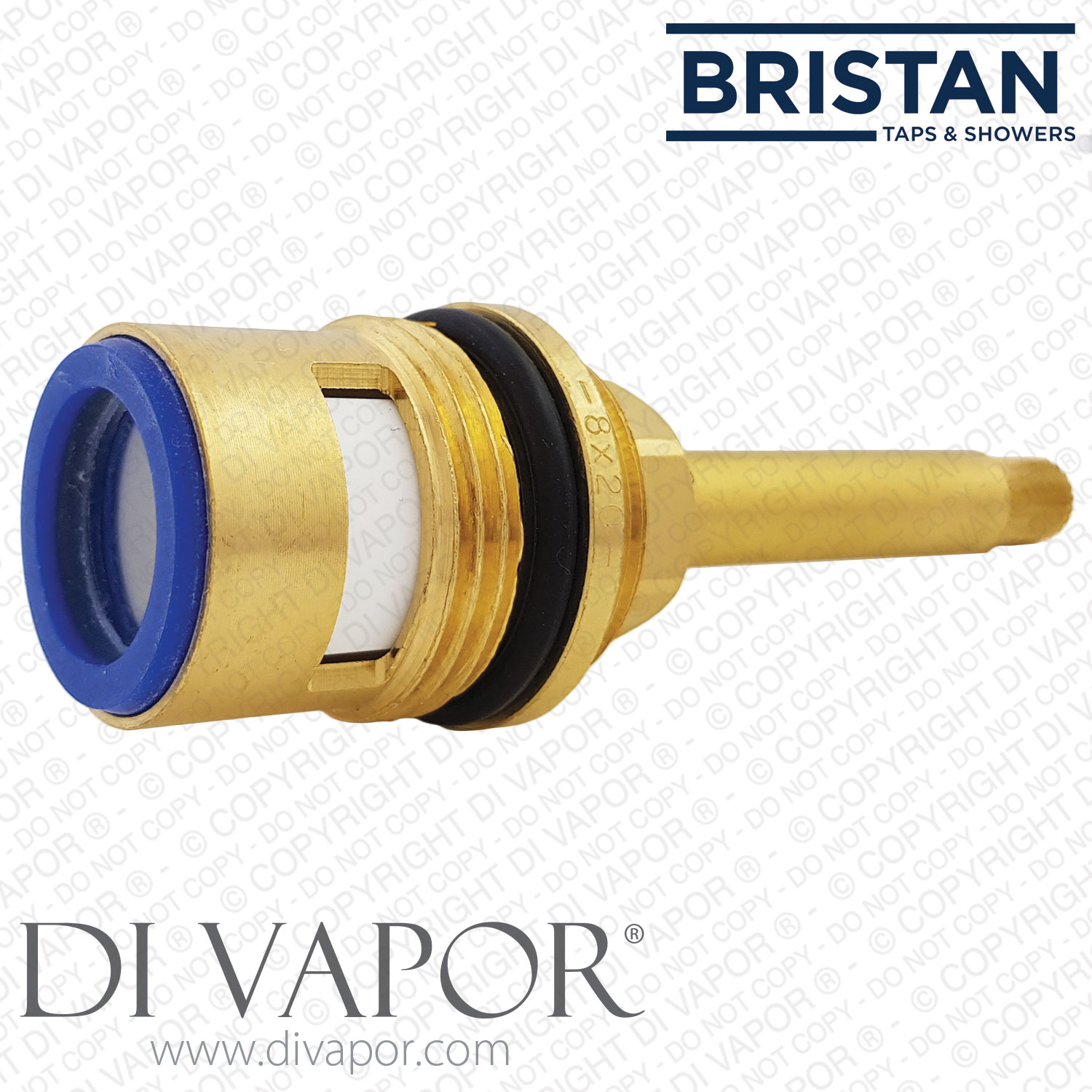

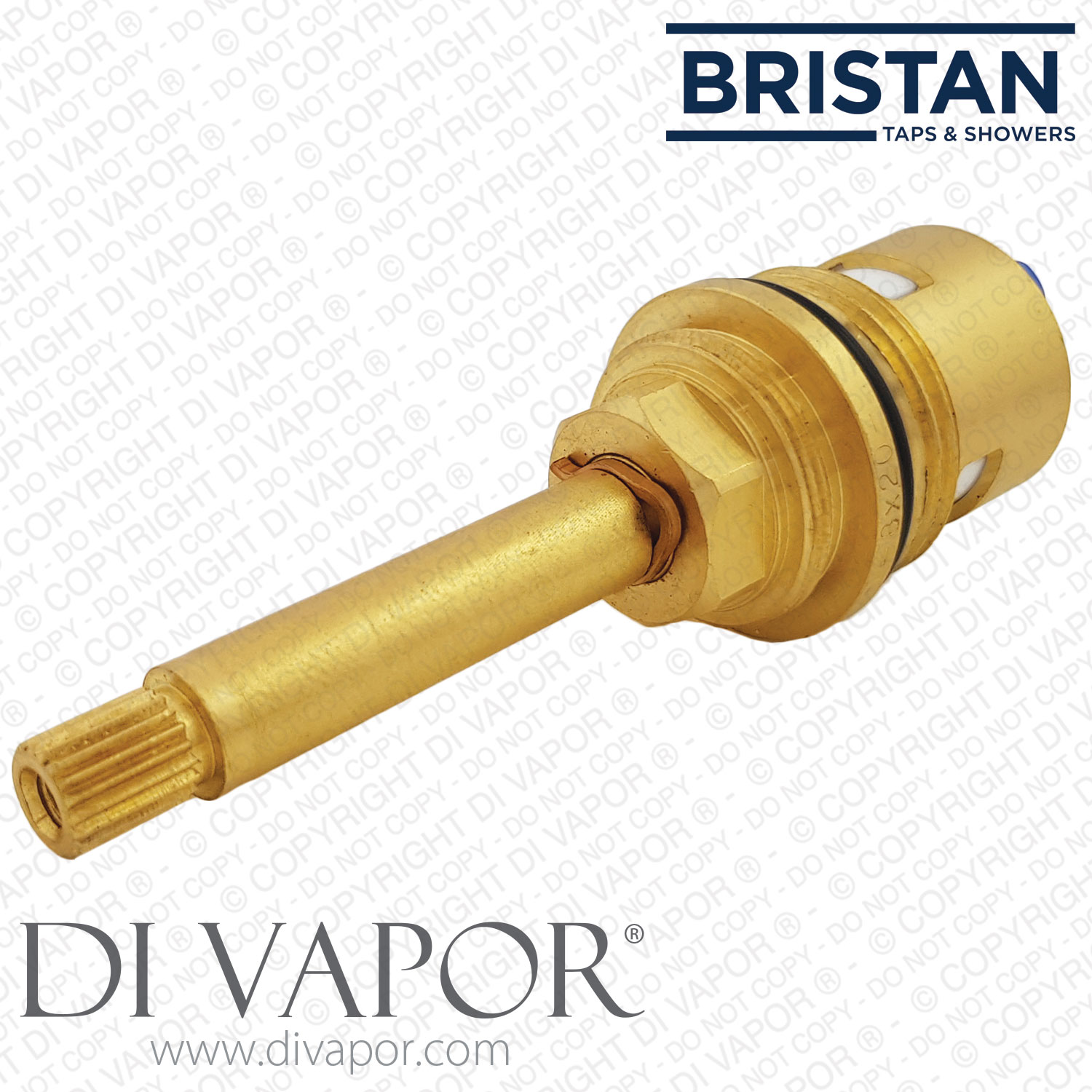

The Bristan VLV 04070-8-20A is a replacement ceramic disc (CD) flow valve. The cartridge has a long spindle and a blue bottom seal.
Please pop us a message if you have questions about Bristan spares for showers or taps. Spares experts from Di Vapor are ready to attend to your queries. You can also reach us through WhatsApp (contact number: 07754 173340). We are at your service!
Time can wear out the Bristan VLV 04070-8-20A flow cartridge. These are among the most common indicators that the ceramic disc valve is in its last legs:
- leaks from the flow control knob or the shower head;
- weak flow of water;
- or the valve won’t turn off.
If the shower is exhibiting such issues, a replacement ceramic disc flow valve is the solution to get your shower’s functions and flow rate back to normal.
Bristan VLV 04070-8-20A Compatible Shower Valves
- (N TSHCVO C) Bristan 1901 Thermostatic Shower Valve
- (N SHC3STPP CC) Bristan 1901 Triple Control Thermostatic Shower Valve
- Bristan 1901 Concealed Dual Control Shower Valve
- (PM TSHCVO C) Bristan Prism Dual Control Concealed Shower Valve
- Bristan Prism Recessed Thermostatic Shower Valve
- Bristan Artisan Dual Control Concealed Shower Valve
Other Bristan spares for these showers are:
- BRISTAN-06734B (Thermostatic Cartridge)
- BRISTAN-00622415 (Thermostatic Cartridge)
- 00515534 (Shroud)
- HD-05536CSET1-BL (Temperature Control Handle)
Bristan VLV 04070-8-20A Replacement Tips
- Isolate hot and cold water supplies before starting.
- Bristan VLV 04070-8-20A has a spindle length of approximately 48mm (4.8cm). It is a threaded flow cartridge. A 17mm box spanner is needed to undo the threads and remove the faulty cartridge.
- Use only silicone-based grease on the O-ring of the replacement Bristan flow cartridge (VLV 04070-8-20A). The grease will help the new part seal in the valve.
Please see the section below for the available heat-resistant plumbing grease.
