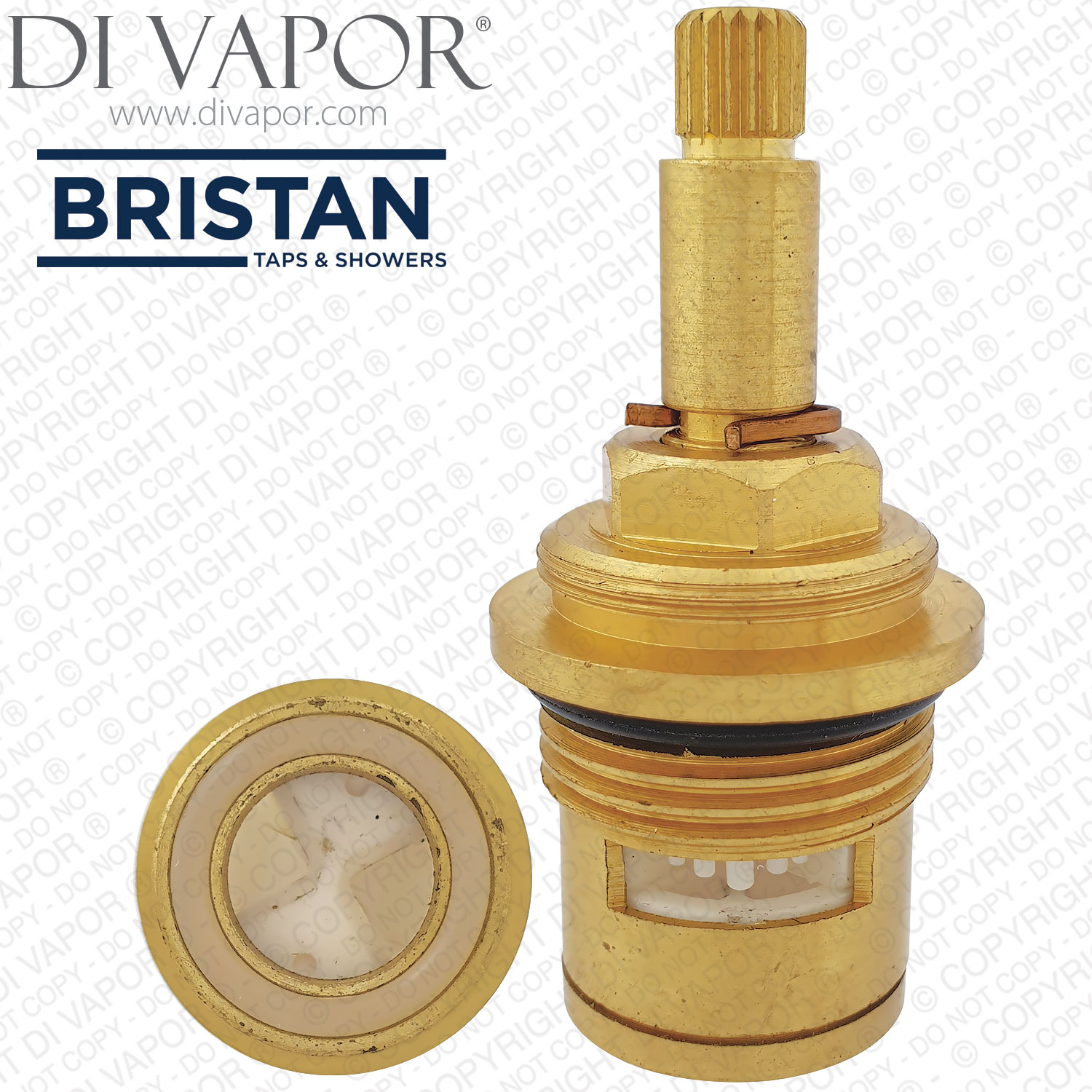

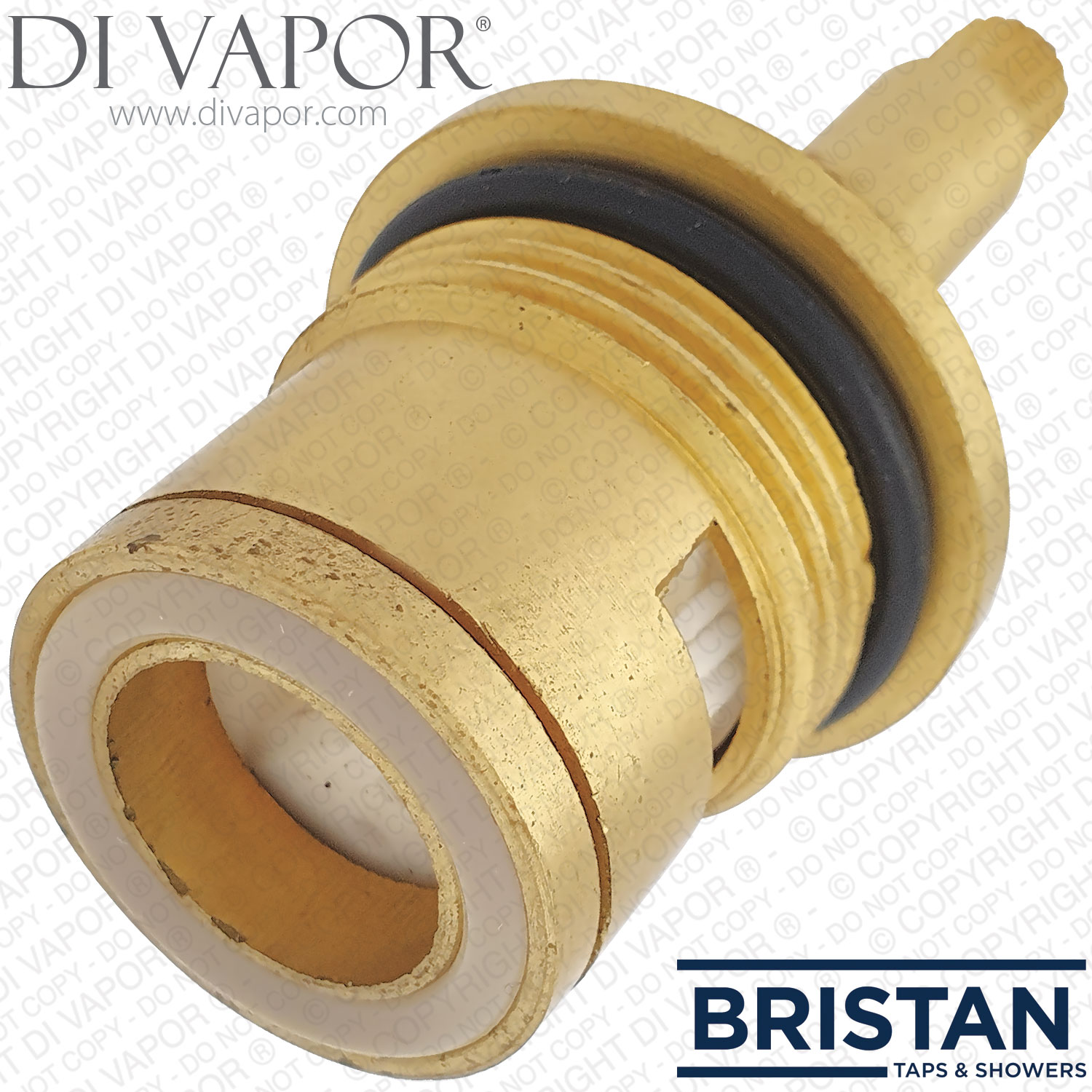

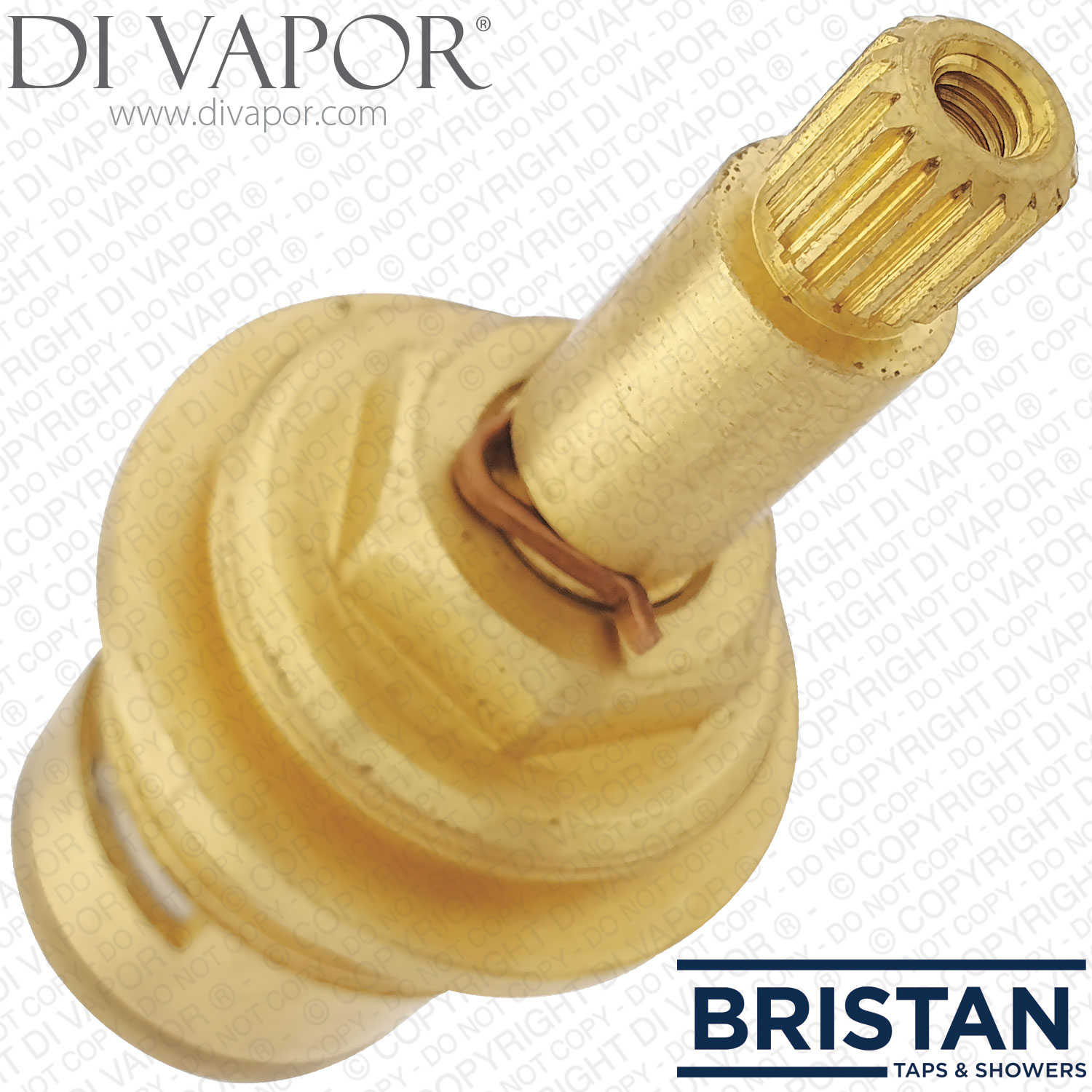

Bristan SP9201 3/4" Cartridge

SUMMARY

SP9201 3/4 Inch Cartridge

Cartridge Measurements:
Total Length (including bottom seal): 64.5mm
Spindle Length: Diameter at Widest Point: 32mm

Top Spline Diameter: 7.8mm
Top Spline Teeth / Notches: 18

Lower Thread Diameter: 25.9mm
Barrel Diameter Below Lower Thread: 23.6mm

Bottom Seal Colour: Transparent
Close Direction: Clockwise Close (Anti-Clockwise Open)

Turn: Quarter Turn (1/4 Turn) 90°
Upper Thread (closer to spline): 23.7mm


Bristan SP9201 is shipped out within the day for purchases placed before 3:00 PM from Monday to Friday.
